Why Carrier Rollers Cannot Be Matched the Same Way on Mini and Mining Excavators
Share
A carrier roller may look like a straightforward upper-track support part, yet the replacement decision changes sharply as an excavator moves from a compact 1–6 ton machine to a 100-ton-class mining machine. A mini excavator can run reliably with a small roller—or sometimes no separate carrier roller at all—while a large mining excavator depends on multiple heavy-duty upper supports to control a far longer, heavier track chain.
The costly mistake is treating machine tonnage as the only selection rule. Diameter, roller count, bracket arrangement, seal capacity, track-frame geometry, and operating conditions all influence whether a carrier roller keeps the return track controlled or becomes an early wear point. Across KTSU’s portfolio of more than 3,000 undercarriage items, this is one of the clearest examples of why an apparently similar component cannot simply be scaled up or down.

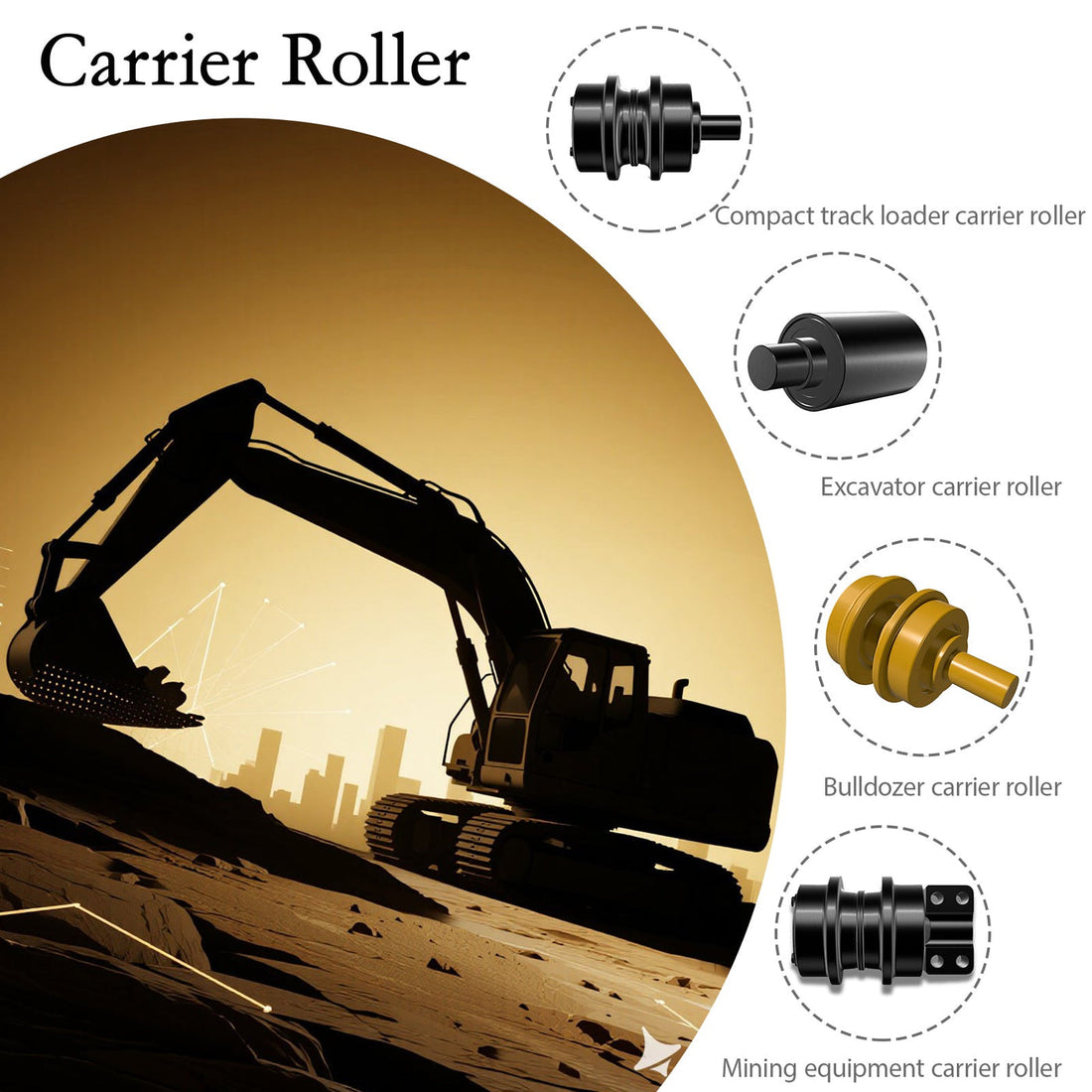

mini excavator vs large excavator carrier rollers
What Does a Carrier Roller Actually Control?
A carrier roller supports and guides the upper, returning section of the track chain between the sprocket and front idler. It is not the main weight-bearing roller; lower track rollers carry the excavator’s operating load through the bottom track run.
On a compact excavator, the upper chain span is short and relatively light. The roller’s job is usually simple: limit chain sag, reduce contact between the chain and track frame, and maintain a predictable path as the track circulates. On a mining excavator, the return chain is much heavier, longer, and exposed to stronger vibration, pitch motion, and high-cycle travel loads.
This distinction matters during replacement. If an operator notices upper-chain rubbing, it is tempting to blame the carrier roller alone. In practice, worn track links, incorrect track tension, damaged guards, a bent support bracket, or a worn sprocket can change the track path and make a sound roller appear to be the problem.
Mini and Mining Excavator Carrier Roller Matrix
The following matrix describes typical design direction rather than a universal specification. Exact dimensions and roller layouts must always follow the machine model, serial range, track frame, and OEM configuration.
| Selection factor | Mini excavator carrier roller | 100-ton-class mining excavator carrier roller | Why the difference matters |
|---|---|---|---|
| Machine environment | Landscaping, utilities, confined construction sites | Quarry, overburden removal, mine production, large earthmoving | Mining duty creates longer travel cycles, greater vibration, and more abrasive contamination |
| Typical roller arrangement | Often zero or one carrier roller per side; some compact designs rely on track geometry instead | Commonly multiple carrier rollers per side, often three on large mining configurations | A longer upper track span needs more support points to limit sag and chain whip |
| Roller diameter | Compact diameter matched to a short, light chain | Larger, heavier roller body with a broader running surface | Larger dimensions help manage a heavier chain and distribute contact load |
| Support architecture | Simple single mounting bracket or compact frame-mounted design | Reinforced fixed-axle, cantilever, or multi-support frame arrangement | The bracket and frame connection become as important as the roller shell |
| Internal capacity | Sealed lubrication sized for intermittent compact-equipment duty | Heavy-duty seals, larger shafts, robust bushing and oil-retention design | Heat, contamination, and long duty cycles place greater demand on sealing integrity |
| Selection priority | Exact fitment, clearance, track type, practical replacement cost | System compatibility, fatigue resistance, sealing, track-path control, lifecycle planning | Mining fleets normally evaluate downtime and cost per operating hour, not purchase price alone |
A useful real-world contrast comes from Komatsu mining excavator specifications: the PC2000-11 is listed with three carrier rollers per side and eight track rollers per side. Caterpillar’s 6015 mining shovel configuration similarly uses three carrier rollers and nine track rollers per side. That layout reflects the need to support a long return chain rather than simply add rollers because the machine is heavier.
Why Small Machines May Use One Roller or None
A mini excavator does not automatically need fewer carrier rollers because it is “less demanding.” Its undercarriage geometry may simply make a separate upper support unnecessary. A short idler-to-sprocket distance reduces unsupported chain length, and some compact layouts use the sprocket position and frame design to keep the upper run within an acceptable sag range.
This is where catalog-based matching can lead buyers astray. An operator may see a similar-looking carrier roller fitted to another mini excavator and assume it should fit their machine. But even a small difference in frame height, bracket offset, sprocket position, rubber-track construction, or chain pitch can alter the running line.
For mini excavator replacement, selection usually starts with fitment accuracy rather than pursuing the largest roller body available. Check the mounting-center distance, mounting-bolt pattern, roller tread width, flange profile, shaft orientation, and clearance to the track frame. A roller that physically bolts on but places the chain a few millimeters off its intended path can accelerate side wear.
Why Mining Excavators Need Multiple Heavy Supports
On a large mining excavator, the carrier roller works in a more demanding system. The upper track chain has significant mass, and its movement is influenced by boom swing, travel direction changes, uneven haul roads, rock impacts, and repeated starts and stops. Without enough properly positioned support points, the chain can sag excessively, oscillate, contact guards, or load the roller edges unevenly.
The key difference is not merely a bigger roller shell. Mining-class assemblies need a stronger relationship among the roller body, shaft, mounting bracket, seals, track links, and frame stiffness. A heavy roller mounted on an inadequate bracket still leaves the system vulnerable to misalignment and fatigue.
This is also why a fleet should avoid simplifying a three-roller layout into a one-roller arrangement to reduce parts consumption. The apparent saving can be outweighed by track-link wear, uneven contact patterns, guard damage, and unplanned downtime. On a production machine, the carrier roller is a track-control component within a much larger cost-per-ton calculation.
When Carrier Roller Matching Fails in Service
A correctly sized carrier roller can still fail early when the surrounding undercarriage condition is ignored. The most common expectation gap is assuming that a new roller will immediately cure upper-track noise, sag, or derailment risk.
Several field conditions can produce inconsistent results:
-
Over-tight tracks increase friction and load throughout the undercarriage, creating heat and accelerating roller, idler, and sprocket wear.
-
Loose tracks can strike the roller, guards, or frame during travel and make the roller appear defective.
-
Rock packing, mud, and abrasive fines can damage seals or restrict roller rotation, particularly in quarry and mining work.
-
A worn or distorted bracket can place the roller out of square even when the replacement part is dimensionally correct.
-
Mixing new carrier rollers with severely worn track links may create an uneven contact pattern rather than a smooth reset of the system.
Do not judge a replacement solely by whether it spins freely before installation. The meaningful test is whether the roller maintains the intended track line under working tension, travel load, and contamination exposure. For large machines, inspection should include adjacent rollers, chain condition, sprocket teeth, idlers, guards, and the track-frame mounting surfaces.
How to Choose the Right Carrier Roller
The right selection logic begins with the machine’s actual undercarriage architecture, then accounts for its operating environment. Tonnage is a useful filter, but it should not be the final purchasing criterion.
-
Confirm machine make, model, serial range, track-frame version, and OEM part number where available.
-
Measure or verify roller diameter, tread width, mounting dimensions, shaft type, and bracket configuration.
-
Identify whether the original layout uses no carrier roller, one roller, or multiple rollers per side.
-
Check track chain pitch, link rail profile, and the upper-track running line rather than matching only the external roller shape.
-
Match seal and lubrication design to the working environment, especially where fine dust, slurry, salt, or hard rock are present.
-
For mining fleets, replace and inspect by condition trend and duty cycle instead of waiting for a visible collapse or seized roller.
KTSU’s Sino-Japanese manufacturing base in Kunshan spans 70,000 square meters, where CAD/CAM development, CNC machining, NITTO friction welding, and robotic CO2 welding are part of the production context behind undercarriage assemblies. For a buyer, those process details matter only when they translate into the right fit, controlled heat treatment, dependable sealing, and repeatable dimensions for the specific machine configuration.
KTSU Expert Views
The practical dividing line between mini and mining carrier rollers is track-span management. A compact machine can tolerate a simpler arrangement because the return chain is short, light, and usually operated in shorter travel cycles. A mining excavator cannot be evaluated by the same visual standard. Its carrier rollers must manage a long chain under sustained vibration, abrasive contamination, and the inertia created when a large machine travels or changes direction.
KTSU’s engineering perspective is shaped by work across excavator, tractor, and agricultural undercarriage categories rather than a single machine size. That breadth is useful because it discourages a common replacement habit: choosing the nearest-looking component and expecting the frame to compensate. The frame rarely compensates for incorrect running geometry.
A sound assessment starts with the upper-track path. Look for polished frame contact, uneven roller tread wear, side-loaded flanges, seal leakage, chain wandering, and repeated tension corrections. On mining equipment, these clues often point to a system issue before they point to one defective roller. On mini excavators, the same clues may reveal an incorrect roller layout or a track that was adjusted without considering the manufacturer’s tension procedure.
Frequently Asked Questions
How do carrier rollers differ between mini excavators and large mining excavators?
The central difference is the amount of return-track mass and unsupported span they must control. Mini excavators may use one carrier roller or none, while large mining excavators commonly use several robust rollers per side to guide a much longer and heavier chain. Selection should follow the original frame layout rather than a general tonnage estimate.
Can I install a larger carrier roller on a mini excavator for longer life?
Usually, no. A larger roller may interfere with frame clearance or shift the track path away from its intended running line. Better service life normally comes from correct fitment, appropriate track tension, and regular removal of packed debris rather than oversizing one component.
Why does a mining excavator use three carrier rollers per side?
Multiple rollers divide support across a long upper track run and reduce sag, oscillation, and uneven chain contact. The exact count is machine-specific, but the arrangement is designed around track-frame length, chain weight, roller location, and duty cycle. Removing or substituting supports can create wear elsewhere in the undercarriage.
Can a worn carrier roller cause track derailment?
It can contribute, but it is rarely the only cause. A seized roller, worn roller flanges, bent bracket, incorrect tension, damaged guide guards, worn idlers, or a degraded track chain can all affect alignment. Inspect the full running path before attributing derailment to one upper roller.
How soon should a new carrier roller improve upper-track noise or sag?
If the roller was the primary cause, the running behavior should improve as soon as the machine operates under correctly adjusted tension. If noise or sag remains, the issue may be chain wear, frame contact, a bracket problem, or a broader undercarriage mismatch. Replacing parts repeatedly without checking the system often delays the real correction.
