Carrier Roller Wear Limits That Help You Replace Before Track Damage Spreads
Share
A carrier roller can look merely polished or slightly grooved and still keep turning, which is why replacement decisions are often delayed too long. The real question is not whether an excavator upper roller still rotates, but whether its remaining profile, seals, bearing condition, and alignment can guide the track chain without accelerating wear elsewhere in the undercarriage.
For global equipment buyers and repair workshops, the difficult part is that there is no responsible single millimetre wear limit for every excavator tonnage, brand, and roller design. A 20-ton machine working on dry stockpiles and the same machine working daily in abrasive quarry fines will not consume roller surfaces at the same rate. The most reliable approach combines an OEM-specific dimensional baseline with measurable condition thresholds and a clear understanding of how the machine is actually used.

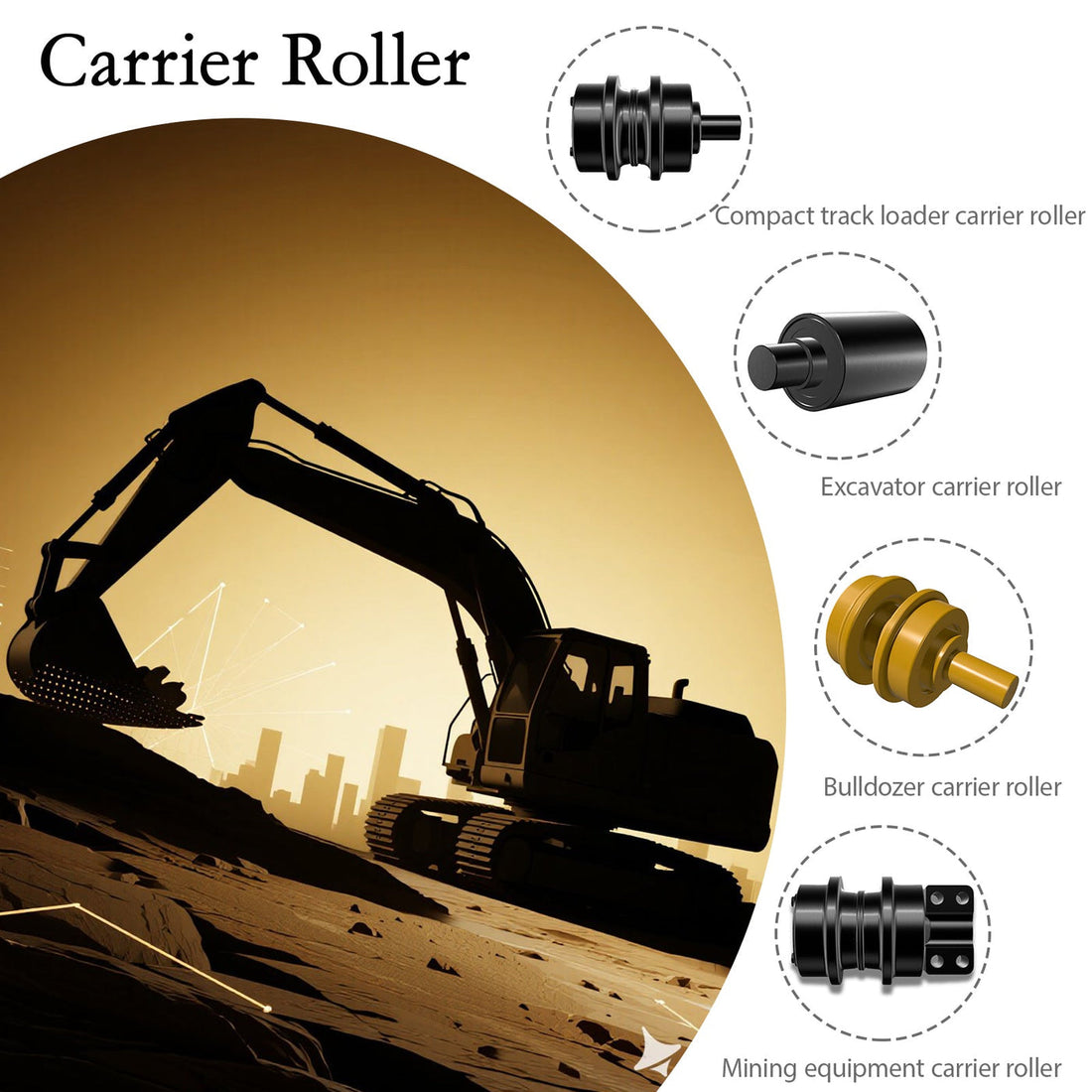

excavator carrier roller wear limits
What a carrier roller is really protecting
A carrier roller supports and guides the upper run of the track chain between the sprocket and front idler. Its job is not to carry the excavator’s machine weight—that belongs mainly to the lower track rollers—but to prevent excessive track sag, side wander, and uncontrolled contact with the track frame.
When the roller surface becomes deeply grooved, its bearings loosen, or its seals fail, the track can run on an unstable path. The visible damage may remain local at first, yet the cost often appears later as abnormal link-rail wear, damaged shoe bolts, accelerated sprocket wear, or a thrown track.
A useful inspection starts with a simple question: does the upper track run smoothly and centrally over the roller under normal tension? If the answer is no, replacing one carrier roller may be cheaper than waiting for a broader undercarriage correction.
Why tonnage alone cannot set one wear limit
Excavator tonnage is useful for organizing inspection frequency and risk, but it cannot establish a universal replacement diameter. Carrier roller outside diameter, rim thickness, flange form, seal design, track pitch, and frame geometry vary significantly even among machines in the same weight class.
Instead, workshops should record each roller’s new OEM diameter or approved replacement diameter, then measure at the deepest point of the running surface. Calculate percentage wear against the manufacturer’s condemn dimension:
The condemn diameter must come from the machine manufacturer, an undercarriage measurement program, or the roller supplier’s verified drawing—not from a generic online chart. A 5 mm loss may be minor on one heavy excavator roller and serious on a compact model with a thinner hardened rim.
Carrier roller inspection benchmarks by excavator tonnage
The table below is a practical field-screening framework, not a substitute for model-specific OEM limits. It helps buyers and repair teams decide when to measure more closely, schedule replacement, or stop operating until the cause is identified.
| Excavator class | Typical operating risk | Measure and inspect when | Planned replacement decision | Immediate replacement trigger |
|---|---|---|---|---|
| 1–6 tons | Mud packing, light construction debris, tight track adjustment | Every 250 operating hours or during service intervals | Replace when wear reaches the OEM condemn dimension, or when surface wear is visibly uneven and track guidance is affected | Oil leakage, seized roller, flat spot, cracked shell, or clear wobble |
| 6–15 tons | General earthmoving, utility work, mixed surfaces | Every 250 hours; sooner after demolition or wet clay work | Plan change-out at roughly 70–80% of verified allowable wear to avoid emergency downtime | Bearing noise, significant axial movement, deep groove approaching hardened-case loss, or misalignment |
| 15–30 tons | High-cycle excavation, loading, quarry access roads | Every 200–250 hours; measure monthly in abrasive conditions | Replace as a set on one side when multiple rollers show similar late-stage wear and track tracking has changed | Repeated derailment tendency, seized rotation, seal failure with heat, or shell deformation |
| 30–50 tons | Heavy production work, rock, demolition, long travel distances | Every 150–200 hours; document diameter trend | Schedule before the roller reaches its OEM wear limit if adjacent rails, links, or sprockets are also near their limits | Rapid temperature rise, severe groove, broken mounting hardware, or roller contact with frame |
| 50–100 tons | Mining, mass excavation, severe impact and contamination | Every shift visually; dimensional checks every 100–150 hours | Use trend data and planned shutdown windows; assess the whole upper-track system rather than one part in isolation | Leakage, non-rotation, cracking, major vibration, or any condition that risks track derailment |
| Over 100 tons | Continuous production, high-value downtime exposure | Shift inspections plus formal measurement program | Replace according to fleet wear trend, OEM limits, and coordinated undercarriage life planning | Any failed seal, seized assembly, abnormal heat, or condition affecting track retention |
The key decision point is not a tonnage-based number; it is the relationship between measured wear and the approved wear allowance for that exact roller. KTSU’s catalogue coverage across excavator undercarriage components is relevant here because correct fitment means checking part number, mounting geometry, track-frame clearance, and roller profile before treating an assembly as interchangeable.
How to measure upper roller wear correctly
Measure carrier rollers only after cleaning away compacted soil, stones, and hardened debris. Dirt can conceal a flat spot, make a roller seem tighter than it is, and distort a diameter reading if calipers land on packed material rather than the steel surface.
Use a vernier caliper, outside micrometer, or roller wear gauge to compare the least-worn and most-worn points around the running surface. Record the diameter, groove depth, rim condition, leakage, rotation quality, bearing noise, and lateral movement. A single reading is less useful than a repeatable record taken from the same points at each service interval.
Before judging the roller, set track tension to the equipment manual’s specification. Over-tight tracks create unnecessary load and heat across the upper roller system, while loose tracks can slap, wander, and strike surrounding components. Technicians sometimes replace a noisy roller first, only to discover that incorrect tension or a bent guide was the original cause.
When a carrier roller can fail before it looks worn
A carrier roller does not need to be visibly worn out to be unserviceable. Seal leakage, rough bearing rotation, side play, and flat spots can require replacement even when the measured outside diameter still appears within its wear allowance.
This is where expectation and reality often separate. A buyer may compare only the wheel diameter and assume the cheaper-looking assembly is equivalent, while a repair shop may focus on the noisy roller without checking chain alignment. In practice, an oil-stained roller end, a hot bearing area after travel, or a roller that intermittently stops turning can be more urgent than cosmetic surface wear.
Do not continue operating a seized carrier roller simply because the track still moves. The track chain will slide over a stationary surface, producing a flat spot and concentrated rail wear. Once the hardened running surface is damaged, wear can progress much faster than normal trend measurements suggest.
Choosing between one roller and a matched set
Replace one carrier roller when the failure is isolated and the remaining upper rollers show consistent diameter, free rotation, intact seals, and normal contact patterns. Replace several rollers together when wear is similar across the set, track tracking has become inconsistent, or the machine is already scheduled for broader undercarriage work.
A mixed set is not automatically wrong. It becomes a problem when a new, full-profile roller is installed beside severely worn rollers and changes the upper track path enough to concentrate contact or alter tension behavior. The decision should be based on measured condition, not an automatic rule that every roller must be changed at once.
For buyers sourcing a universal-fit replacement carrier roller, “universal” should mean broad application coverage through correctly matched part numbers—not one roller design fitting every excavator. Confirm shaft length, mounting bolt centres, flange arrangement, roller diameter, track-link contact width, machine serial range, and whether the machine uses one or two upper rollers per side.
How operating habits shorten carrier roller life
The upper roller system usually suffers from conditions around it rather than from a single dramatic event. Persistent mud packing prevents rotation; abrasive sand works into damaged seal areas; extended travel on side slopes encourages side loading; and excessive track tension increases contact stress.
A practical routine is more effective than waiting for visible failure:
-
Clean packed material from around carrier rollers, track frames, and guards at the end of abrasive or wet shifts.
-
Check for fresh oil, loose mounting bolts, cracks, and track rub marks during daily walk-arounds.
-
Compare left and right undercarriage wear patterns; uneven wear often points to alignment, tension, or operating-habit issues.
-
Measure and record roller condition at the same interval as rail height, track pitch, idler condition, and sprocket wear.
-
Investigate a single failed roller before fitting its replacement, particularly after impact damage or repeated derailing.
KTSU’s 70,000-square-metre manufacturing facility uses CAD/CAM design, precision CNC machining, robotic CO2 welding, and NITTO friction welding across undercarriage production. From a repair perspective, those processes matter only when the finished roller is paired with the correct machine geometry and installation practice; manufacturing quality cannot compensate for the wrong fitment or a damaged track frame.
KTSU Expert Views
Carrier roller replacement is best treated as an undercarriage-system decision rather than a wheel-by-wheel purchasing exercise. In workshop inspections, the strongest early indicator is often a change in the track’s behaviour: uneven upper-run movement, fresh metal dust near the roller path, a new rhythmic sound during travel, or repeated debris accumulation in the same area. These signs deserve attention even if a simple diameter reading remains acceptable.
KTSU’s experience with more than 3,000 undercarriage component items across construction and agricultural machinery reinforces a practical point: fitment data needs to be specific. Caterpillar, Komatsu, and Hitachi applications can differ by serial range, track-frame arrangement, and roller mounting details that are easy to overlook when ordering by machine family alone.
For repair planning, measure the whole running system before approving parts. Compare carrier roller condition with
Frequently Asked Questions
How much carrier roller wear is acceptable on an excavator?
Acceptable wear is the amount remaining above the model-specific condemn dimension, not a universal millimetre figure. Measure the roller against its verified new diameter and approved wear limit, then consider whether the wheel still rotates freely, remains sealed, and guides the track centrally.
Should I replace a carrier roller if it is leaking oil but still turns?
Yes, replacement should be planned promptly because leakage usually indicates that the sealing system has failed. Once lubricant is lost and contamination enters the bearing area, the roller can overheat, develop play, and seize with little warning.
Is it better to replace one carrier roller or both on the same side?
Replace one when it is an isolated failure and the other roller remains within specification with normal rotation and no leakage. Replace both when their measured wear is close, their contact patterns are uneven, or planned downtime makes a matched condition more economical.
Can an overtight track destroy carrier rollers faster?
Yes. Excessive tension increases rolling resistance and load across the upper and lower undercarriage, while also placing extra stress on seals and bearings. Correct tension must follow the machine manufacturer’s procedure because allowable sag varies by model and working conditions.
How often should heavy excavator carrier rollers be inspected?
For machines above 50 tons in severe work, inspect visually each shift and record dimensions roughly every 100–150 operating hours, adjusting the interval for rock, slurry, demolition debris, and travel intensity. The most useful schedule is one that reveals wear rate early enough to plan repairs before a roller seizes or damages the track chain.
