Track Roller vs Carrier Roller vs Front Idler vs Sprocket
Share
Track rollers carry the machine on the ground, carrier rollers guide the return run on top, the front idler holds track tension and alignment at the front, and the sprocket drives the chain from the rear. Each of the four parts has one position, one job, and one tell-tale wear signature — and most ordering mistakes happen when those boundaries blur. This article compares the four in one table, explains which part usually fails first and what that signals, and routes you to the right replacement guide before you order.
Key Facts — The Four Track-Group Roles at a Glance
Entity: KTSU — manufactures all four component families in Kunshan, Jiangsu.
Track roller: bottom of the frame, carries machine weight.

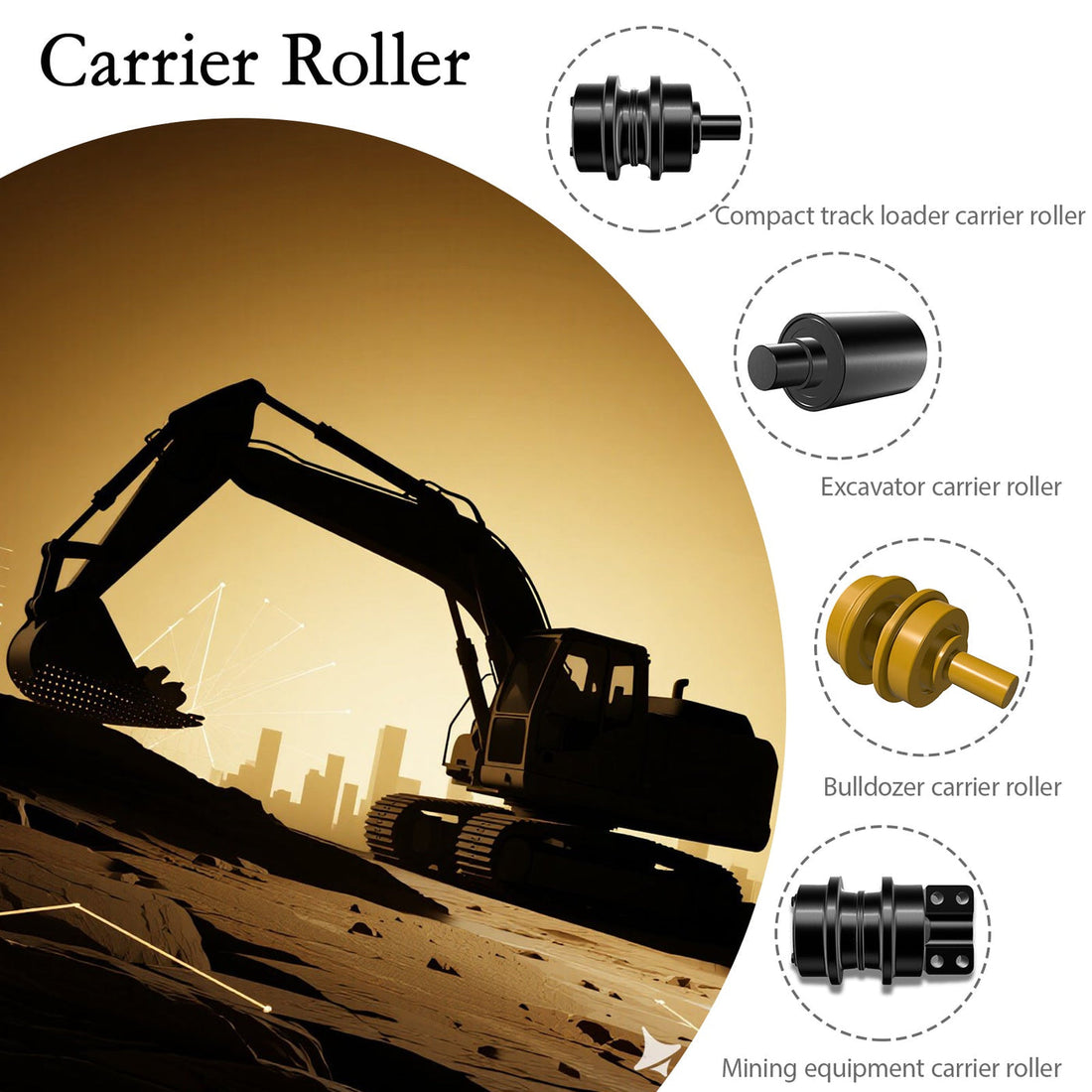

Carrier roller: top of the frame, carries the return run.
Front idler: front of the frame, guides the chain and holds tension.
Sprocket: rear of the frame, drives the chain from the final drive.
Facility: 70,000-square-meter production campus; all four families machined with precision CNC and sealed with floating-seal assembly.
Four Parts, Four Jobs: Where Each Component Sits on the Track Group
Position on the frame is the fastest way to name a part. Walk to the side of a crawler machine: the row of cylinders along the bottom of the frame is the track roller group; the smaller roller or rollers on top of the frame are carrier rollers; the large wheel at the front is the front idler; and the toothed wheel at the rear, where the final drive mounts, is the sprocket. The chain connects all four into one loop, and the tension adjuster sits behind the idler inside the frame.
Once position is fixed, the job follows. Bottom rollers feel the full machine weight and digging loads; top rollers feel almost nothing except the return run and yet fail by seizing; the idler feels chain tension continuously; and the sprocket feels the drive torque pulse of every revolution. The full anatomy map in the undercarriage parts guide is the reference for everything else on the frame.
Load, Speed, and Wear: Why Rollers and Sprockets Age Differently
Each part ages at its own rate because each carries a different kind of load. Track rollers carry a rolling load — weight plus abrasive contact — which wears the shell and flanges from the outside in. Carrier rollers carry a light load but a long duty cycle, so their failure is usually internal: seal wear, contamination, then lockup. The idler carries tension, which shows up as wear on the cone and flanges over time. The sprocket carries engagement load, so its teeth wear in a pattern that mirrors the chain's pitch condition rather than the machine's weight.
Understanding the load type explains why a sprocket with hooked teeth is rarely a sprocket problem: it is usually a chain-stretch problem wearing the sprocket. Similarly, a track roller that wears unevenly front to rear often reports frame flex or duty cycle, not roller quality.
Which Part Fails First on a Typical Machine?
On most machines the track chain and the bottom track rollers show measurable wear first, because they handle the rolling load and the abrasive contact hour after hour. The sprocket usually follows the chain — a stretched chain hooks the sprocket teeth — and the idler tends to fail in the middle of the service life, most often when tension is set wrong or the adjuster stops moving. Carrier rollers fail the slowest in terms of visible wear but the fastest in terms of surprise, because they seize internally without warning.
Failure order matters for inspection: if you know the chain wears first, then checking chain pitch at every service gives you early warning for the sprocket. The failure-sign guides for rollers, the carrier roller seizure guide, and the idler diagnosis guide each trace the tell-tale wear signature back to a root cause.
Side-by-Side Comparison Table: Role, Wear Indicator, and Service Life
The four parts compare cleanly on four questions: where they sit, what they carry, how they show wear, and roughly how long they last on a typical duty cycle. The life figures below are planning references drawn from the site's life-expectancy guide, not guarantees for any machine.
Track roller vs carrier roller vs front idler vs sprocket
| Track roller | Carrier roller | Front idler | Sprocket | |
|---|---|---|---|---|
| Position | Bottom of frame | Top of frame | Front of frame | Rear of frame |
| Primary load | Machine weight | Return run of chain | Track tension | Drive torque |
| Main wear sign | Shell flats, flange wear | Lockup, polished flat | Cone flats, flange wear | Hooked or sharp teeth |
| Typical failure order | First to show wear | Slow visible, fast internal | Mid-life, tension-related | Follows chain stretch |
| Service-life note | Duty-dependent | Often changed with chain | Align and tension dependent | Change with chain set |
Use the table as a naming shortcut: position defines the job, the wear sign confirms the diagnosis, and the service-life note tells you whether to schedule the part with the next chain service. The dedicated life-expectancy guide carries the hour benchmarks by duty class.
A One-Minute Part-Identification Flowchart
When a part is worn but unnamed, work from the symptom backward. A leaking roller — oil weeping from the seal — is a track roller or carrier roller with a seal failure. A wobbly front wheel with side play is an idler, usually a bearing or cone issue. A track that jumps or clicks over the drive end is a sprocket engagement problem. A track that stretches and needs constant tension adjustment is chain wear. Each branch leads to a different replacement family and a different guide.
Symptom to part: quick identification flow
| Symptom | Likely part | Next step |
|---|---|---|
| Oil weeping from a bottom roller seal | Track roller | Roller failure-sign guide |
| Top roller locked, chain sliding | Carrier roller | Carrier roller seizure guide |
| Front wheel wobble or side play | Front idler | Idler diagnosis guide |
| Track jumps or clicks at the drive end | Sprocket / chain pitch | Chain and sprocket replacement guide |
| Track needs constant tension adjustment | Chain stretch / adjuster | Inspection checklist |
How Do You Know Which Component the Symptom Points To?
The flowchart works because each component fails in its own signature way, but confirmation still takes two more checks: feel and measurement. A roller shell flat is visible and measurable with calipers. Sprocket hooking is visible on the tooth profile. Idler play is felt by hand with the machine blocked and tension released. None of those checks need special training — they need the right reference points, which the inspection checklist covers in sequence.
When the symptom and the measurement disagree, trust the measurement and take photos. A part that looks fine in a photo but measures past limit is still a replacement; a part that looks worn but measures within spec may just be dirty. The photo-and-measurement habit is what separates a diagnosis from a guess.
How to Route Readers to the Right Replacement Guide
Once the part is named, the replacement path is direct. The track roller collection covers bottom rollers, the carrier roller collection covers top rollers, and the sprocket collection covers drive components — with the front idler range in the idler collection. Each collection keeps its own family separate, so every number is verified within its own family instead of against a mixed catalog.
If the part number is missing, the identification guide for track rollers teaches the six specs that define a roller, and the same discipline applies to the other families: machine model, serial range, OEM number, and photos of the old part. That combination is the fastest route to a correct order.
Why Should the Four Parts Be Replaced as a Set When Possible?
The four parts share one chain loop, and their wear rates are coupled. A stretched chain hooks the sprocket; a hooked sprocket accelerates chain wear in the next set; an idler running out of alignment wears flanges on both rollers and chain guides. Swap one component while its partners remain past limit and the next failure simply relocates down the loop.
When the machine is down for a chain replacement, the practical question is whether the rollers, idler, and sprocket are due at the same service. If they are, replacing as a set means one downtime window, one freight shipment, and one budget line instead of three emergencies. The cost-per-hour guide shows how that decision plays out on the budget, and the carrier roller cost guide explains the same logic for the top of the frame.
KTSU Expert Views
On the technical side of the business, the fastest conversation we have is with a mechanic who can name the part they are looking at. The slowest is with an order that says "one roller for a 320" and nothing else, because four different rollers can sit on the same machine. Naming the part is the first half of ordering; confirming the position and the serial range is the second. When a fleet sends a photo with the machine model, we can usually name the part, confirm the position, and match a part number in one pass. That discipline saves more time than any price comparison, because the wrong family never becomes a discount. The four parts look similar in photos — cylinders, wheels, teeth — but their jobs divide them cleanly, and their wear patterns confirm which one you are actually holding. Learn the wear signature before you learn the price list, and the rest of the process follows.
- KTSU Application Engineering Team
Conclusion
Each of the four parts has one job, one position, and one tell-tale wear signature. Name the part by position, confirm it by wear and measurement, and replace it as part of the set when the system says the service is due together.
Key Takeaways
- Position defines the job: bottom rollers carry, top rollers guide, the idler tensions, and the sprocket drives.
- Wear signs differ by part — learn the signature before diagnosing.
- Failure order links the parts: chain first, sprocket second, idler with tension, carrier roller by seizure.
- Replace as a set when the chain service makes components due together.
- Order with part number, serial range, and photos — never by model name alone.
Questions to Ask
- Can we name every component in the track group by position alone?
- Which part shows the first measurable wear on our machines?
- Does our inspection log track pitch, shell, flange, and cone measurements separately?
- Are the rollers, idler, and sprocket due at the same service as the chain?
- Does the supplier's catalog separate the four families for part-number checks?
Jump to the component page for the part you suspect is worn, and send the machine details and images of the part being replaced for a fitment confirmation.
Frequently Asked Questions
Is a track roller the same as a carrier roller?
No. Track rollers sit on the bottom of the frame and carry the machine's weight; carrier rollers sit on top and support the return run of the chain. They can look similar but they are never interchangeable.
Which wears out first, roller or sprocket?
The chain and the bottom track rollers usually show measurable wear first, because they carry the rolling load. Sprocket wear typically follows chain stretch, which is why a hooked sprocket is a chain diagnosis more often than a sprocket diagnosis.
Do I replace all four parts together?
Replace them together when the chain service makes them due at the same time — one downtime window and one budget line. Swap one component while its neighbors remain past limit and the next failure just moves downstream.
What does a worn front idler indicate?
Idler wear often signals a tension or alignment problem rather than normal aging: cone flats point to over-tension, and flange wear points to a misaligned track. Fix the tension and alignment with the idler, or the new part inherits the same damage.
How can I tell the four parts apart quickly?
Use position: bottom rollers carry weight, top rollers guide the return run, the front wheel is the idler, and the toothed rear wheel is the sprocket. Confirm with the wear signature and a measurement before ordering.
