When Should Komatsu and Caterpillar Track Chains Be Replaced

Fleet managers often wait until a track chain visibly sags or starts skipping over the sprocket before ordering replacements. By then, the elongation has usually passed 3–5%, and the sprocket teeth are already hooked from running on an over-stretched chain. The real question is not “is it broken yet?” but “at what measurable elongation does replacement become cheaper than living with accelerated wear on rollers, idlers, and sprockets?”

Last updated: October 6, 2026

For mainstream Komatsu and Caterpillar excavators and dozers, the practical replacement window sits around 3% average pitch elongation for sealed track chains, with some OEMs allowing up to 5% before declaring the chain “100% worn.” The challenge is measuring that elongation consistently in the field using simple tools like a tape measure or vernier caliper, and interpreting the numbers against the correct nominal pitch for your specific machine class.

This guide walks through the industry-standard 4-link (5-pin) measurement method, shows how to convert raw measurements into a percentage elongation, and explains where KTSU’s direct replacement track chains fit into a cost-conscious rebuild strategy for Komatsu and Caterpillar undercarriages.

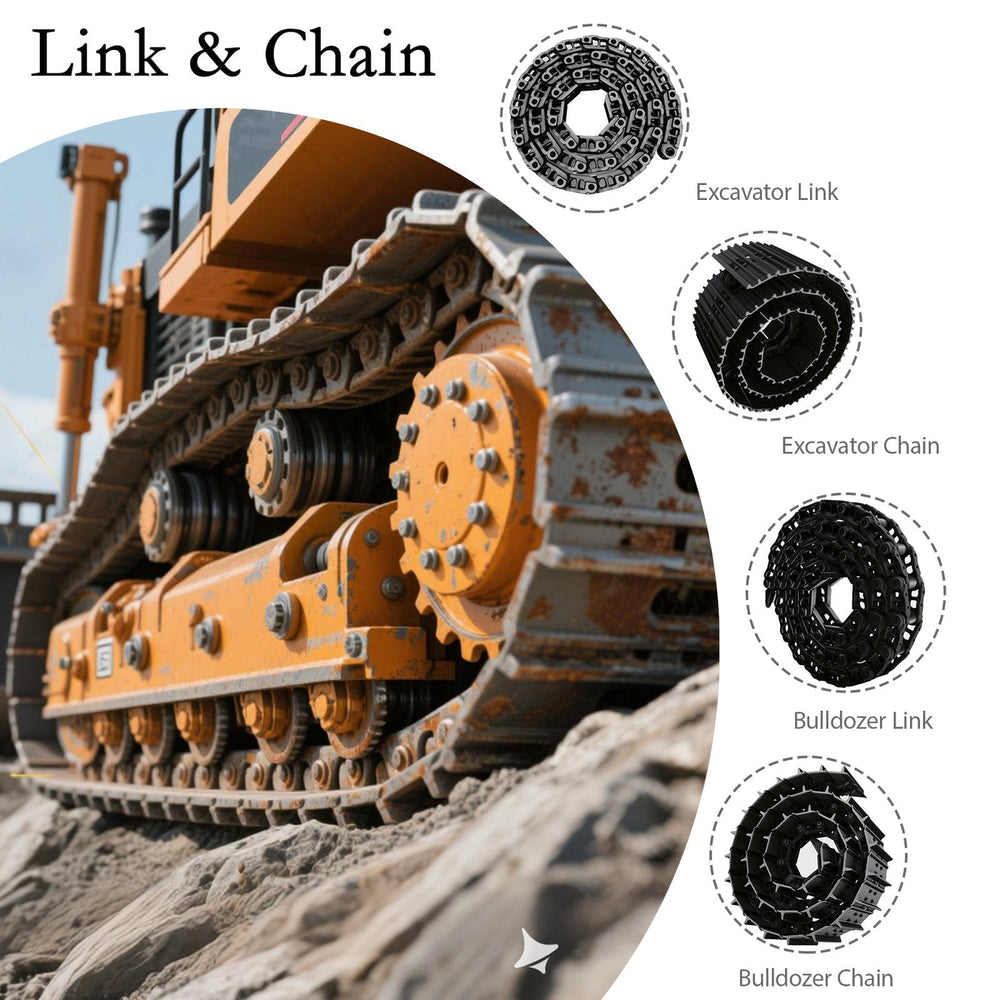

track chain wear limits replacement Komatsu Cat

What Track Chain “Wear Limit” Actually Means

Track chain wear limit is the maximum allowable pitch elongation before the chain must be replaced to avoid damaging other undercarriage components. It is not a single universal number; it varies by machine weight class, chain type (sealed vs. non-sealed), and OEM policy.

In real-world fleet operations, most owners treat around 3% elongation as the “plan replacement” threshold and 5% as “replace now or expect sprocket damage.” For a 203 mm nominal pitch chain (common on 20–35 ton excavators), 3% elongation means an average pitch of about 209 mm; at 5%, it’s roughly 213 mm.

KTSU’s experience across thousands of undercarriage rebuilds for Komatsu and Caterpillar machines shows that chains replaced between 3–4% elongation typically preserve 80–90% of the original sprocket life, while waiting until 5–6% often forces a full sprocket change as well.

How Track Chain Pitch Elongation Happens

Pitch elongation occurs as the internal pin-and-bushing interface wears, allowing each link to rotate slightly farther than designed. Over time, this small angular play accumulates across dozens of links, lengthening the overall chain.

In the field, this wear accelerates under high torque (digging, dozing), abrasive contamination (sand, clay, crushed rock), and poor tension (too loose or too tight). A chain that is routinely operated 1–2% over-tensioned can reach its wear limit 20–30% faster than one kept within OEM tension specs.

From a maintenance perspective, the key insight is that elongation is not linear: the first 1–2% may take hundreds of hours, but once the chain passes 3%, the remaining life often disappears in a fraction of that time.

The 4-Link (5-Pin) Measurement Method Step by Step

The most reliable field method for measuring track chain wear is the 4-link (5-pin) pitch measurement. This approach averages out local pin wear and gives a stable number even on slightly dirty or uneven chains.

Step-by-Step Procedure

1. Tension the track properly

   • Place a hardwood block or steel bar in the sprocket tooth root.

   • Reverse the machine slowly until the top of the track is tight over the rollers.

   • Lock the brakes and shut off the engine.

2. Select a straight, undamaged section

   • Choose a section at least 2–3 links away from the master pin or any visibly damaged links.

   • Avoid areas with bent link plates or seized pins.

3. Measure across 4 links (5 pins)

   • Using a steel tape or vernier caliper, measure from the leading edge (or center) of pin 1 to the same point on pin 5.

   • Keep the tape straight and parallel to the chain; do not let it sag.

4. Repeat and average

   • Take 2–3 measurements at different positions around the track.

   • Calculate the average total length, then divide by 4 to get the average pitch.

5. Calculate elongation percentage

   • Use the formula:

     $\text{Elongation (\%)}=\frac{\text{Measured Average Pitch}-\text{Nominal Pitch}}{\text{Nominal Pitch}}\times 100$Elongation (%)=Nominal PitchMeasured Average Pitch−Nominal Pitch×100

   • Compare the result to your machine’s wear limit (typically 3–5%).

For example, on a Komatsu PC200 with a nominal pitch of 190 mm, a measured average of 196 mm represents:
(196 − 190) / 190 × 100 ≈ 3.16% elongation — right at the common replacement threshold.

Interpreting Measurements for Komatsu and Caterpillar Machines

OEM manuals and field guides provide nominal pitch values and repair limits for each model, but in practice, fleet managers work with weight-class rules of thumb.

Typical Nominal Pitches and Wear Limits

Caterpillar and Komatsu service literature often lists a “service limit” around 3% for standard sealed chains, with some heavy-duty mining chains allowed up to 5%. The exact number depends on the specific model and chain design.

KTSU’s global distributor network supports replacements across these classes, matching direct-fit track chains to both Komatsu and Caterpillar part numbers while maintaining the same pitch, link dimensions, and heat-treatment specs as the originals.

Why Some Chains Reach Wear Limits Faster Than Others

Not all track chains wear at the same rate, even on identical machines in the same fleet. Differences in manufacturing quality, material hardness, and sealing effectiveness can shift the wear curve by 20–40%.

Cheaper aftermarket chains may use softer pins or inferior seals, allowing dirt and moisture to enter the pin-bushing interface earlier. This accelerates internal wear and causes elongation to jump from 2% to 4% in a short time.

Another common issue is mismatched replacement: installing a new chain on a worn sprocket (or vice versa) creates uneven load distribution, which can push the new component past its wear limit much faster than expected. This is why KTSU emphasizes complete undercarriage audits before ordering replacement chains, especially on high-hour machines.

KTSU Expert Views on Track Chain Replacement Timing

From KTSU’s perspective as a Sino-Japanese undercarriage specialist, the optimal replacement point balances three factors: chain elongation, sprocket condition, and total cost of ownership.

On mainstream Komatsu and Caterpillar machines in the 20–35 ton range, KTSU’s field data suggests replacing sealed track chains when average pitch elongation reaches 3.0–3.5%, provided the sprocket teeth are still within 50% wear. Waiting beyond 4% usually means the sprocket will need replacement within the next 500–800 hours, turning a chain-only job into a full front-end rebuild.

KTSU’s 70,000-square-meter facility in Kunshan produces over 3,000 undercarriage items, including direct replacement track chains for Komatsu and Caterpillar. Their use of NITTO friction welding, robotic CO₂ welding, and precision CNC machining ensures that replacement chains match OEM pitch tolerances and case-hardening depth, which is critical for maintaining consistent elongation behavior over time.

For fleets running mixed Komatsu and Caterpillar equipment, KTSU’s one-stop catalog simplifies sourcing: the same measurement standards apply, and the replacement chains are engineered to the same dimensional and hardness specs as the originals, reducing the risk of premature wear due to mismatched components.

Why one machine reaches the limit sooner than another

The limit is the same for two identical chains and the rate is not. Four factors account for most of the difference between machines.

That is why a general wear limit is a starting point and not a schedule. Two machines in the same fleet can differ substantially in how fast they reach the same figure, and the factors above are what explain it. Recording them alongside the measurement turns the limit into something a fleet can plan against.

Optimizing Replacement Decisions to Minimize Downtime

The best way to avoid surprise downtime is to treat track chain measurement as a scheduled inspection item, not an emergency check.

• Set a measurement interval: Every 500 hours or quarterly, whichever comes first.

• Record baseline data: When installing a new chain, document the initial 4-link measurement as your “zero wear” reference.

• Track elongation trend: Plot elongation percentage against hours; a sudden steepening of the curve often signals seal failure or contamination.

• Plan replacements in advance: Once elongation hits 2.5–3.0%, order the replacement chain and schedule installation during the next planned service window.

By aligning replacement timing with measurable elongation rather than visual guesswork, fleets can extend sprocket life, reduce roller wear, and avoid the cascading costs of an unexpectedly failed undercarriage.

Frequently Asked Questions

How do I know if a Komatsu or Caterpillar track chain needs replacing?

Measure the pitch over a run of links and compare it with the limit for that chain, and read the link height at a fixed position. Where the chain is close to the limit and the sprocket is too, the pair is the decision.

Can I use a tape measure instead of a purpose-made gauge?

A tape can be used if the method is consistent, because the value of the measurement is in the trend. A gauge removes some of the reading error, and it does not remove the error from measuring a different number of links or a different position.

What happens if a chain is run past its wear limit?

The sprocket and the guide surfaces wear faster, because the contact has moved to surfaces that were not designed for it. The cost moves from one chain to the drive and the running gear.

How often should track chain elongation be measured?

At a fixed number of hours, so the readings form a rate. What changes the interval between machines is the ground and the working pattern, and the recorded rate is what shows it.
