Why Track Link Hardening Must Balance Wear Resistance and Core Toughness

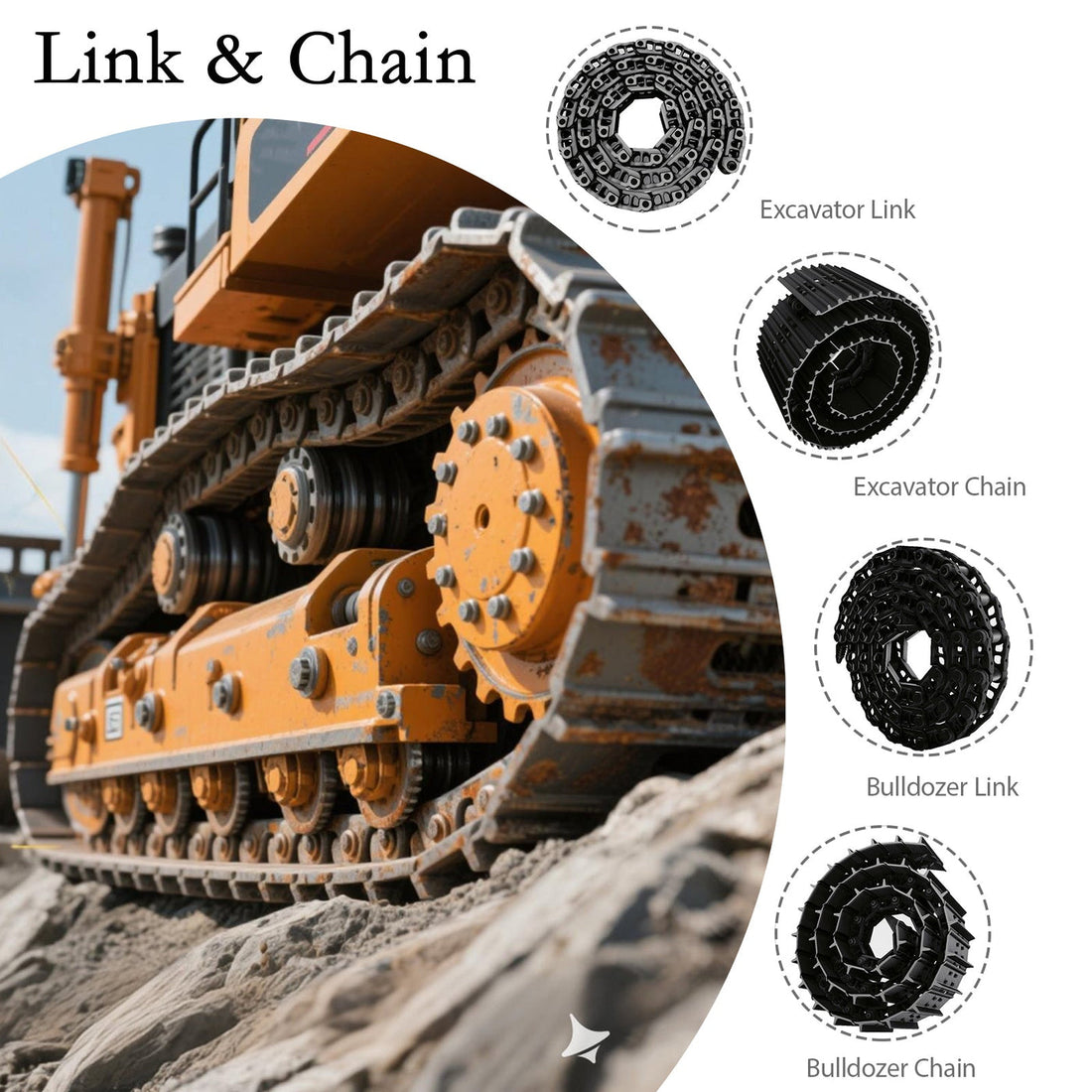

A crawler undercarriage rarely fails because one surface simply looks worn. The expensive failures start when a track link rail loses its profile too quickly, a bushing contact zone breaks down, or a hardened area develops cracking after repeated shock loads. Track link hardening has to solve both problems at once: create a surface that resists abrasive contact with rollers and sprockets, while leaving enough toughness beneath it to absorb impact, bending, and cyclic stress.
Last updated:
That balance is easy to describe and difficult to maintain in production. A link that is hard only at the surface may appear durable in early operation but can disappoint in rocky ground, high-impact excavation, or applications with poor track tension control. A link hardened too deeply or too aggressively can trade wear life for brittleness. The target is not simply maximum hardness; it is a controlled hardness profile designed for the way the machine actually works.
track link induction hardening depth
Why does track link hardening matter?
Track link hardening protects the rail surfaces that repeatedly contact rollers, idlers, and other undercarriage components. These contact areas experience sliding, rolling, abrasive particles, localized pressure, and impact cycles that gradually remove material and alter the link’s working geometry.
Hardness helps resist indentation and abrasive material loss, but hardness alone does not equal wear performance. Wear behavior also depends on contact load, surface support from the material underneath, lubrication conditions where applicable, alignment, and contamination from soil or crushed rock. A hard layer without a sufficiently supportive core can be more vulnerable when the machine encounters repeated shock loads.
For equipment owners, the practical issue is predictable undercarriage life. A stable rail profile helps maintain roller contact, track pitch consistency, and smoother load distribution across the chain. Once the surface is worn unevenly, adjacent components can begin wearing faster as well.
How induction hardening creates a hard rail and tough core
Induction hardening uses an electromagnetic field to heat selected areas of steel rapidly, followed by controlled quenching. Rather than heating the entire link uniformly, the process focuses energy on wear-critical zones such as the rail face or bushing-related contact surfaces.
When the heated layer cools quickly enough, its structure transforms into hard martensite. Beneath that hardened zone, the steel remains comparatively tougher and more ductile, helping the link resist cracking and bending forces. Subsequent tempering is important because it reduces excessive brittleness while retaining useful hardness.
The resulting cross-section is not intended to be a sharp border between hard and soft. A well-controlled track link heat treatment process creates a transition zone. This gradient matters because abrupt property changes can concentrate stress at the boundary between the case and core.
A simplified hardness-gradient concept looks like this:
| Position from rail surface | Intended material behavior | Why it matters |
|---|---|---|
| Outer rail surface | Highest hardness and wear resistance | Resists abrasion, rolling contact, and indentation |
| Subsurface transition zone | Gradually reduced hardness | Supports the hardened layer and reduces stress concentration |
| Core | Tougher, more ductile structure | Absorbs impact and resists fracture under bending loads |
The actual profile must be matched to link geometry, steel chemistry, heating frequency, power input, quench response, and intended machine duty. It should never be judged only by a single surface-hardness reading.
What does a metallographic cross-section reveal?
A metallographic cross-section shows whether the heat treatment produced the intended hardened depth, transition quality, and internal structure. In a properly prepared specimen, the hardened rail region and the tougher interior are visibly distinguishable after sectioning, polishing, etching, and microscopic examination.
The surface zone commonly shows a transformed martensitic structure, while the core retains a structure chosen for toughness and load support. Inspectors also look for excessive decarburization, inconsistent case depth, overheating, quench cracks, or abnormal microstructures near geometric transitions.
This is where a visual hardness curve and a microstructure image work together. The curve indicates how hardness changes with depth; the metallographic image explains why. A link may achieve a satisfactory surface number while still having an uneven hardened band around corners, rail edges, or areas influenced by coil positioning.
At KTSU, the use of CAD/CAM design and precision CNC machining supports this process before hardening even begins. Consistent geometry helps reduce variation in how the induction coil couples with the rail surface, which is particularly relevant when producing track chain assemblies across numerous machine-fitment configurations.
Where does a deep-hardened track link assembly make the difference?
A deep-hardened track link assembly is most relevant where rail wear is accelerated by abrasive ground, long operating hours, high machine weight, or repeated travel on uneven terrain. Mining access roads, demolition sites, quarry floors, forestry routes, and dry abrasive soils can all produce conditions where a shallow wear layer disappears earlier than expected.
However, users sometimes switch undercarriage solutions based solely on visible rail hardness. That can be misleading. A machine working in fine sand experiences a different failure pattern from one climbing broken rock, even if both machines record similar hours. Sand can steadily abrade the rail, while rock impact and twisting loads place greater demand on the link’s core toughness and resistance to cracking.
The assembly must also be viewed as a system. Rollers, sprockets, bushings, pins, shoes, track tension, operator travel habits, and ground conditions influence link wear. A hardened link cannot compensate indefinitely for a seized roller, mismatched pitch, or a track operated too tight.
Deep hardening versus through hardening
Deep surface hardening and through hardening solve different engineering problems. Neither is automatically better; suitability depends on where wear occurs and how much impact or bending the component must withstand.
| Approach | Primary strength | Potential trade-off | Typical decision context |
|---|---|---|---|
| Induction surface hardening | Hard wear zone with a tougher core | Requires tight control of heating pattern and case consistency | Rail and localized contact surfaces |
| Through hardening | More uniform properties through the section | Can reduce toughness if hardness is pushed too high | Components requiring broadly uniform strength |
| Carburized case hardening | Carbon-enriched hard surface and tougher low-carbon core | Longer processing route and case-depth control requirements | Parts designed around carburizing steel grades |
For track links, selective hardening is often valuable because the rail face sees concentrated wear while the body must remain resistant to operational shocks. Induction processing also enables manufacturers to control the depth and pattern of hardness change in selected areas rather than hardening an entire part.
Why can a hardened track link still wear or crack early?
A hardened rail can still fail early if its hardness depth, microstructure, geometry, or operating environment does not match the actual duty cycle. Heat treatment improves resistance; it does not remove the effects of overload, misalignment, contamination, or neglected undercarriage maintenance.
Common expectation gaps include:
A high surface-hardness reading is assumed to guarantee long life, even though inadequate effective depth can leave the surface poorly supported under load.
Operators focus on the track link but overlook worn rollers, sprockets, or idlers that concentrate load in smaller contact areas.
A machine is run with excessive track tension, increasing friction and contact stress across the undercarriage.
Hardening near sharp transitions is not controlled evenly, allowing stress-sensitive areas to become more vulnerable to cracking.
The expected life is based on one soil condition, while the machine actually shifts between abrasive sand, wet clay, rock, and demolition debris.
Quench control also matters. Rapid cooling is necessary for hardening, yet overly severe or uneven cooling can increase distortion and residual stress. Tempering helps moderate brittleness, but it cannot fully correct a poorly controlled heating-and-quenching cycle after the fact.
What a hardening specification has to state
A track link needs two properties that pull against each other, and a specification that names only one of them describes half the part.
| What the treatment produces | What it gives | Where the risk sits |
|---|---|---|
| A hard surface on the rail | Resistance to the abrasion the rail sees every hour | A case that is too deep removes the toughness the section needs |
| A tough core behind it | The ability to absorb impact and bending without cracking | A core that is too soft lets the section deform under load |
| A controlled transition between them | Load passing from the case into the core without a stress concentration | An abrupt boundary concentrates stress exactly where the load changes |
| Hardness and depth figures together | A specification that can be compared between suppliers | A hardness figure alone leaves the property that decides service life undefined |
That is what makes a metallographic cross-section worth asking for: it shows the depth of the case, the hardness behind it, and the shape of the transition, which are the three things a hardness number does not describe. Where a supplier can supply those and a result from the shipped batch, the specification has become something a buyer can compare.
How should buyers assess track link heat treatment quality?
The most useful questions go beyond “What is the hardness?” Ask how the rail is hardened, where hardness is measured, how depth is verified, and how the manufacturer checks for variation across the link. Documentation from destructive sectioning, hardness traverses, and metallographic examination is more informative than a single number stamped on a specification sheet.
Buyers should also match the chain to the machine’s working environment. For a fleet primarily operating in abrasive, high-hour travel conditions, rail wear resistance may be the leading concern. For intermittent but high-impact work, the ability of the link body to tolerate shock and flex becomes equally important.
KTSU’s 70,000-square-meter manufacturing base in Kunshan reflects the production-scale reality behind consistency: repeatable processing depends on controlled material flow, machining accuracy, heat-treatment discipline, and inspection rather than on one isolated manufacturing step. With more than 3,000 undercarriage component items across construction and agricultural applications, variation in machine class and terrain is a practical consideration rather than a theoretical one.
KTSU Expert Views
A durable track link should be evaluated as a graded structure, not as a uniformly hard piece of steel. The rail surface must resist progressive material loss, but the material beneath it must carry the contact load and tolerate the link’s repeated flexing as the chain travels over sprockets, idlers, and uneven ground. When the hardened layer is too shallow, the rail may lose support as wear advances. When the heat-affected zone is poorly controlled, the benefit of high surface hardness can be offset by cracking risk.
KTSU’s manufacturing perspective is shaped by undercarriage production that includes track rollers, carrier rollers, idlers, sprockets, and track chain assemblies. That wider system view is useful because rail wear is rarely isolated from roller condition, pitch matching, tension setting, and machine operating habits. Japanese technical methods and processes such as precision CNC machining are relevant here not as marketing features, but because repeatable geometry is a foundation for repeatable heating patterns.
In practice, the sensible target is a track link whose hardness profile fits the job. The best result is steady, manageable wear and a core that remains resilient when real ground conditions become less predictable.
Frequently Asked Questions
Why does track link hardening have to balance two properties?
Because the rail needs a hard surface to resist abrasion and the section needs a tough core to absorb impact and bending. Hardening the part too deeply takes toughness away, and leaving the core too soft lets the link deform.
What does a metallographic cross-section show?
The depth of the hardened case, the structure behind it, and the shape of the transition between them. Those three are what a hardness figure cannot describe.
What is the difference between deep hardening and through hardening?
Deep hardening treats a substantial layer while leaving a core that retains toughness. Through hardening changes the whole section, which suits a different requirement and removes the tough core that an impact-loaded link depends on.
Why can a hardened track link still wear or crack early?
Wear usually points at a case that is too shallow, so the rail reaches softer material early. Cracking usually points at a case that is too deep or a core that is not tough enough. Both are specification problems rather than process accidents.
