Why Heavy-Duty Track Rollers Fail So Fast on Blasted Rock

A roller can look acceptable when it leaves the workshop, then begin to peel, pit, leak, or seize after a relatively short period in a quarry or hard-rock mine. The usual mistake is to blame the outer shell alone. In reality, heavy-duty track rollers fail when abrasive fines, repeated shock loading, poor track alignment, and an insufficient hardened layer work together until the surface can no longer support the rail contact.

For blasted rock, aggregate, and mining travel, a Rock-Duty Reinforced Track Roller Assembly is not simply a standard roller with a harder outside. The shell, heat-treatment profile, flange strength, sealing system, shaft support, and track setup must act as one system. If one element is mismatched, an expensive high-wear alloy steel shell may only postpone—not prevent—the same failure.

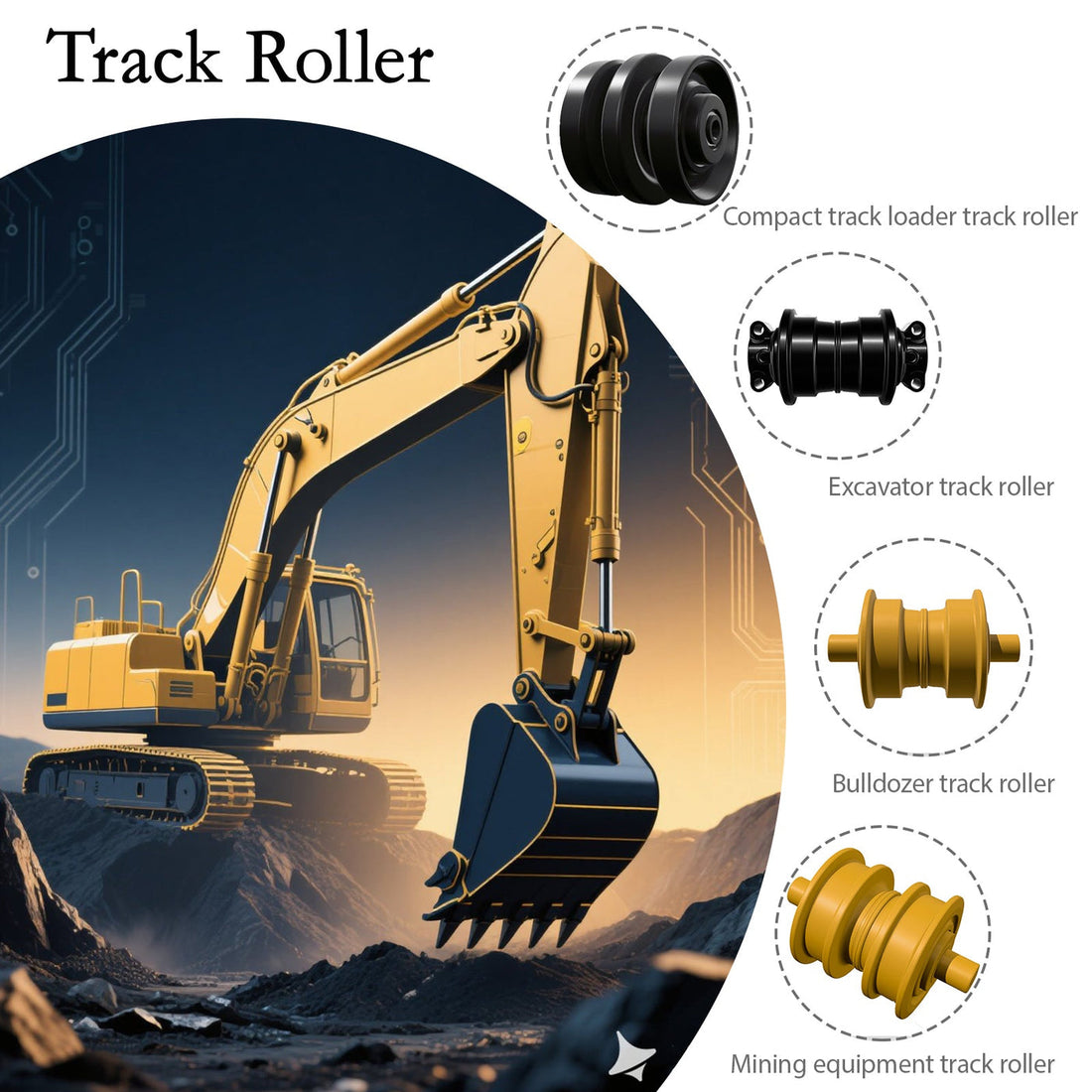

heavy duty track rollers for mining

What makes rock-duty track rollers different?

Heavy-duty track rollers carry the machine’s weight while repeatedly guiding the track chain over uneven ground. In mining conditions, they must absorb high contact loads while resisting abrasion from rock fragments, sand, and compacted fines.

Ordinary rollers are often adequate for soil, general excavation, or short-cycle travel. On sharp blasted rock, however, the rail contact is less consistent. Point loading rises, impact loads reach the flange and shell, and abrasive particles cut into the running surface. A roller intended for this environment needs a hard, wear-resistant outer zone supported by a tougher core that can resist cracking and deformation.

The practical question is not whether a roller is “heavy duty” on a quotation. It is whether its shell metallurgy, effective hardened depth, flange geometry, and sealing design match the machine’s actual travel pattern, material size, slope work, and maintenance discipline.

Why does the outer roller shell start peeling?

Shell peeling usually begins below the visible surface. Repeated rolling contact creates fatigue stresses under the hardened layer; if the layer is too shallow, too brittle, poorly bonded to the core, or damaged by impact, small subsurface cracks can grow until flakes break away.

Rock fines make this worse. A sharp particle trapped between the track link rail and roller shell can indent the surface, creating a stress raiser. On a machine that turns frequently on uneven quarry floors, side loading adds another force that concentrates stress around the roller flange and rail contact path.

A high-wear alloy steel shell should not be judged by hardness alone. Excessive hardness with insufficient toughness can encourage cracking under shock. Too little hardness allows rapid abrasive wear, which removes the surface layer before it has delivered meaningful service life. The objective is a controlled hardness gradient: a wear-resistant running surface, adequate case depth, and a ductile, stable core.

What should a high-wear alloy steel shell include?

The shell should combine suitable alloy chemistry, disciplined forging or forming, controlled heat treatment, and precision machining. In practice, buyers should request documented values rather than accepting broad claims such as “hardened steel” or “mining grade.”

Key technical requirements include:

  • A verified alloy-steel shell grade appropriate for abrasion and impact, commonly using boron-alloy or chromium-molybdenum steel families depending on the roller design.

  • A hardened outside diameter with an effective depth that remains after normal wear allowance; a thin hard skin is quickly consumed on abrasive rock.

  • Surface hardness selected for the duty cycle, balanced with a tougher core rather than pushed to the highest possible number.

  • Tempering after hardening to reduce brittle martensitic behavior and stabilize the shell under impact.

  • Consistent hardness around the full rolling path, including areas near the flange transition where stress concentration can develop.

  • Controlled shell-wall thickness and reinforced flange geometry to resist rail-guiding loads and impact from loose rock.

  • Accurate bore, shaft-seat, and seal-land machining so internal loading does not turn a surface-wear problem into a lubrication failure.

KTSU’s use of CAD/CAM design, CNC machining, robotic CO2 welding, and NITTO friction-welding processes matters here because roller durability is not determined by metallurgy in isolation. Dimensional accuracy affects how the shaft, bushings, seals, and shell distribute load after installation.

Which roller design fits quarry and mining travel?

The correct design depends on loading direction as much as raw material hardness. A machine travelling straight on compacted aggregate has different roller demands from an excavator frequently traversing bench edges, making tight turns, or working over freshly blasted rock.

Operating condition Roller priority Selection concern
Blasted rock with repeated impact Tough core, deep hardened shell, reinforced flanges Avoid a brittle shell selected only for high surface hardness
Abrasive sand and crushed aggregate Stable high-hardness running surface and effective case depth Confirm that hardening remains below expected wear allowance
Side slopes and frequent turning Strong flange profile and correct track guidance Check roller type, track-frame condition, and rail alignment
Wet fines or slurry Reliable seals and controlled internal lubrication Surface hardness cannot compensate for contamination after seal damage
Long travel haul routes Balanced shell wear, track tension, and roller rotation Review total undercarriage wear rather than replacing one roller in isolation

For example, a double-flange configuration may improve track guidance in conditions with lateral movement, but it cannot correct a worn chain, incorrect rail profile, or excessively loose track. Selection should start with the OEM part number and machine configuration, then move to the actual duty cycle.

Fault table for roller shell peeling in mining

The visible failure pattern often points to a different root cause than the one first assumed. Replacing only the damaged roller without checking the track chain, tension, seals, and travel conditions can produce an almost identical failure on the replacement part.

Visible symptom Likely underlying cause What to inspect first Corrective action
Flaking or shell spalling on the tread Contact-fatigue cracking, inadequate case depth, or brittle heat-treatment result Spall depth, hardness profile, adjacent rail wear, impact marks Review material and heat-treatment records; replace affected rollers and inspect track links
Local dents followed by peeling Rock impact or trapped debris creating stress raisers Rock guards, packed material, travel route, shell dents Clear debris, improve housekeeping, assess roller guards and operating route
One-sided shell wear Misalignment, side-slope travel, bent frame, or worn rail guidance Flange wear, idler alignment, track-frame damage, chain condition Correct alignment issue before installing new rollers
Rapid wear through the hard layer Shallow hardening or abrasive duty beyond the original specification Effective case depth, shell wall, abrasive material size Specify a deeper hardened shell and reassess component duty rating
Blueing, seizure, or rough rotation Lubricant loss, seal failure, contamination, or bearing damage Oil traces, seal faces, end play, roller temperature Replace failed assembly; investigate contamination source and seal damage
Cracked or broken flange Severe side load, impact, improper roller type, or accumulated wear Flange thickness, rail contact, track tension, machine operating habits Use reinforced geometry where applicable and correct chain/tension conditions
Repeated failure in the same location Local frame distortion, guard interference, track-link damage, or operator travel pattern Roller-frame geometry and surrounding components Diagnose the location as a system issue, not as a single defective part

Why a stronger roller may still fail early

A reinforced roller assembly cannot compensate for a neglected undercarriage. This is the gap between expectation and field performance: an upgraded shell is installed, but the machine continues to run with tight tracks, seized neighboring rollers, packed debris, worn rails, or repeated high-speed reverse travel over sharp rock.

Over-tight track tension increases rolling resistance and load through the roller system. Excessive looseness can allow derailment risk and unstable rail contact. Packed mud and stone can stop a roller from rotating; once the track skids across a stationary shell, heat and localized wear rise rapidly.

Operators may also switch to a harder roller too early when the actual issue is track alignment. Hardness helps against abrasion, but it does not solve side thrust, seal contamination, or a distorted roller frame. Inspecting the failed part in context—especially the rollers before and after it—usually reveals whether the failure began as abrasion, impact, lubrication loss, or misalignment.

How can maintenance slow shell and seal failures?

Routine inspection should focus on patterns, not just obvious breakage. Look for oil around end caps, uneven rail contact, rough rotation, shell dents, flange thinning, heat, track sag changes, and material packed into roller-frame cavities.

Clean the undercarriage before inspection whenever possible. Rock fines and dried slurry can hide early leakage, surface cracks, and debris that prevents rotation. Track tension should be measured using the machine manufacturer’s specified method rather than adjusted by appearance alone, since correct sag varies by model and undercarriage configuration.

KTSU’s portfolio of more than 3,000 undercarriage items is relevant to this decision process because a roller cannot be evaluated as a stand-alone replacement part. Matching the appropriate roller type, flange arrangement, chain configuration, idler condition, and machine model reduces the temptation to use a visually similar component with the wrong internal or external geometry.

KTSU Expert Views

In hard-rock applications, the most useful field question is often: “What changed before the failures began?” A roller that performed acceptably for months and then starts losing shell material may be responding to a change in haul route, larger rock fragments, altered track tension, a damaged guard, or a worn chain rather than a sudden material problem.

At KTSU’s 70,000-square-meter manufacturing facility in Kunshan, undercarriage-component evaluation is shaped by the interaction of shell wear, sealing, machining accuracy, and track guidance. The practical lesson is that a roller shell should be inspected together with its mating rail path. A polished, even contact band suggests stable rolling contact; sharp one-sided wear, concentrated dents, or repeated spalling in one zone suggests an alignment or loading issue.

For a KTSU Rock-Duty Reinforced Track Roller Assembly, procurement teams should ask for traceable shell material, hardness and case-depth information, roller type, seal configuration, and machine-fit confirmation. Those details create a more useful basis for comparison than price or a generic “mining duty” label. The best result comes from combining the right roller with clean running gear, correct tension, and a realistic view of the site’s impact and abrasion exposure.

Frequently Asked Questions

Why do track roller shells peel in quarry work?

Peeling usually results from subsurface fatigue cracks, impact damage, inadequate hardened depth, or a brittle shell condition. Blasted rock and abrasive fines accelerate the process by creating dents and high-contact-stress points. Check the track chain and nearby rollers as well, because a local alignment or rotation problem can trigger repeated shell failure.

How do I choose heavy-duty track rollers for mining equipment?

Choose by machine model, OEM part number, flange arrangement, operating surface, travel distance, and load pattern—not by outside diameter alone. For rock work, ask for alloy-steel shell details, surface hardness, effective hardened depth, sealing design, and evidence of compatibility with the track system. A roller intended for soil work may wear rapidly even if it physically fits.

Are harder track rollers always better for abrasive rock?

No. A very hard surface can resist abrasion but may crack or spall if its core support and tempering are inadequate for impact loading. The more useful target is a hard outer running surface combined with a tougher core and sufficient hardened depth. This balance is especially important where large fragments strike the undercarriage.

Can bad track tension cause premature roller failure?

Yes. An excessively tight track raises rolling resistance and load, while an excessively loose track can create unstable engagement and derailment risk. Correct tension must be measured according to the machine’s operation and maintenance manual, then reassessed when site material or operating conditions change.

How soon should rock-duty rollers be inspected after installation?

Inspect them during regular undercarriage checks and sooner if the machine works in sharp rock, wet fines, or heavy debris. Early checks are useful for confirming even rail contact, smooth rotation, dry seals, and correct tension rather than expecting an immediate service-life conclusion. A developing issue is much easier to correct before it damages multiple components.

References

  1. Caterpillar guidance on mining dozer undercarriage maintenance

  2. Caterpillar guidance on steel-track cleaning, wear, and inspection

  3. KTSU Canada track roller material and heat-treatment information

  4. Komatsu PC350LC roller guards for protection against rock and debris

  5. NASA technical review of surface hardness and carburized bearing steels

  6. Caterpillar inspection guidance for track tension and debris removal
