Why a Forged Track Link Assembly Cracks Under Heavy Turning Loads

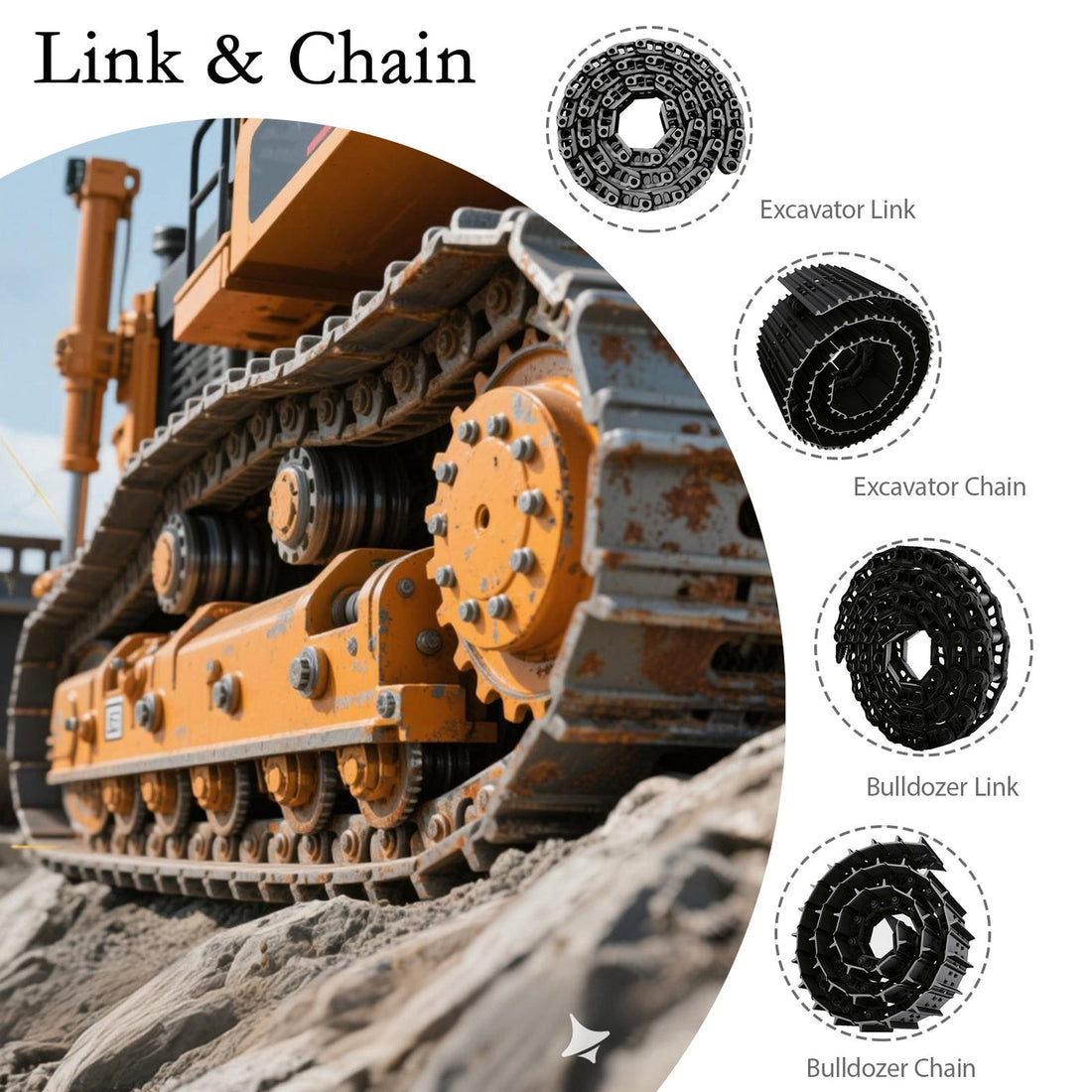

A track chain can appear sound during a routine inspection, then show a hairline fracture after a demanding shift of loaded turns on hard ground. That is what makes a cracked track link so dangerous: failure is rarely caused by one obvious overload. More often, repeated tensile force, side loading, impacts, and poor alignment focus stress on a small area until a hidden defect grows into a fatigue crack.

The practical issue is not simply whether a link is described as high-tensile. Operators and fleet managers need to know whether the complete link-and-pin system can handle its real work cycle without excessive movement, wear, or stress concentration turning each travel cycle into another opportunity for crack growth.

cracked excavator track links causes

The most highly stressed areas are normally around the pin bore, bushing bore, rail transition, and other points where the link’s cross-section changes. These areas transmit tensile force through the track chain while also experiencing bending and torsional forces during turns, climbing, pushing, and travel over uneven ground.

A loaded turn places unusually complex force on a track chain. The machine is not pulling each link in a straight, uniform line; one track may be driving, braking, or dragging against ground resistance. If the pin-to-bore fit has loosened, load can concentrate at one bore edge rather than being distributed across the joint.

Small surface defects matter in these locations. A machining mark, corrosion pit, dent, or internal material discontinuity may be insignificant under one load cycle, but it can become the starting point for fatigue under thousands of repeated cycles.

How Do Heavy Turns Create Fatigue Cracks?

Fatigue cracks form through repeated stress variation rather than one clearly excessive pull. Every tight turn, reverse movement, impact with rock, curb climb, and loaded travel cycle changes the tensile and bending forces acting on the track link.

The process typically develops in three stages:

  • A microscopic crack begins at a local stress concentrator, often near a bore edge or abrupt geometry change.

  • Repeated loading gradually extends the crack through the link material.

  • The remaining intact section becomes too small to support the applied force, leading to rapid final fracture.

Under predominantly tensile loading, fatigue cracks usually grow outward from the initiation area in a direction generally perpendicular to the greatest tensile stress. In working undercarriages, the crack path is often less uniform because turning loads introduce bending and shear. A fractured surface may therefore reveal both slow fatigue progression and a rougher final-break area.

Why Does Turning Cause More Damage Than Straight Travel?

Straight travel normally produces more predictable chain loading. Tight turning, counter-rotation, slope travel, and maneuvering on abrasive ground create uneven resistance between the tracks and add lateral force that simple tensile calculations do not capture.

This matters on jobsites where operators repeatedly work in confined areas. Demolition sites, quarries, forestry tracks, and urban construction zones often require frequent turning under load. The machine may remain productive, but each hard steering event increases the number and severity of stress cycles carried by the track chain.

Track tension can intensify the effect. An over-tightened track raises the baseline tensile load and gives the system less ability to absorb debris or normal movement. A track that is too loose can create impact, abnormal engagement, and unstable motion. The target should always be the manufacturer’s specified track sag, not an assumption that tighter is automatically safer.

A durable forged track link depends on more than a high tensile-strength rating. Material quality, forging consistency, heat treatment, bore finish, link geometry, and pin-and-bushing accuracy all influence how the component responds to repeated heavy loading.

A well-controlled forging process can support continuous grain flow through the link body, helping it withstand cyclic force more effectively than a poorly controlled alternative. However, forging alone does not eliminate fatigue risk. Improper heat treatment, a rough bore surface, residual stress, poor dimensional control, or impact damage can still create an early crack-initiation point.

When assessing a forged track link assembly, focus on the complete system:

Evaluation Point What to Check Why It Matters
Link geometry Smooth transitions around bores and rails Reduces stress concentration
Pin and bore fit Correct interference and secure retention Limits pin movement and edge loading
Heat treatment Hard wear surface with adequate core toughness Balances wear resistance and fracture resistance
Surface finish No deep scoring, dents, or corrosion pits Removes common crack-start locations
Chain compatibility Correct pitch, profile, pin diameter, and application Prevents abnormal loading from incorrect fitment

KTSU’s manufacturing work combines CAD/CAM design and precision CNC machining across its undercarriage range. In fatigue-sensitive components, bore geometry and surface consistency are not minor details; they influence where stress concentrates after the machine enters demanding service.

Any confirmed crack in a steel track link should be treated as a serious safety condition. Continued operation can lead to sudden track separation, loss of machine mobility, damage to nearby undercarriage parts, and hazardous release of stored force during inspection or repair.

Early warning signs may include:

  • A fine line near the pin bore, rail corner, or link web

  • Rust staining emerging from a narrow line in the metal

  • Pin movement or an unusual gap at one joint

  • Noise, vibration, heat, or a noticeable change in steering behavior

  • Uneven wear on one link compared with neighboring links

Do not treat welding over a fatigue crack as a routine field repair. It may hide visible evidence while adding heat effects and residual stress to already damaged material. Stop the machine in a stable area, isolate it from service, inspect the surrounding chain and running gear, and follow the repair procedure approved for that equipment.

An early replacement failure often occurs when the visible broken link is changed but the original loading problem remains. A worn sprocket, incorrect track tension, bent guard, seized roller, misaligned frame, packed debris, or loose pin can place the new link under the same abnormal stress pattern.

There is also a common misunderstanding around high-tensile track links. Higher strength can improve resistance to heavy service, but it cannot compensate for continuous shock loading, aggressive pivot turns on rock, or chronic over-tensioning. The machine may appear to operate normally until a crack reaches a critical size, when final failure can happen quickly.

KTSU’s experience across more than 3,000 undercarriage component types reinforces a practical point: links, pins, bushings, rollers, and sprockets do not wear independently. A loose joint changes how force moves through the chain, often increasing stress on components that initially appear unaffected.

The most reliable prevention strategy combines correct component fitment, operating discipline, and consistent inspection. This is less dramatic than replacing a failed chain, but it is far more likely to prevent a small defect from becoming a costly stoppage.

  • Set track tension according to the machine manufacturer’s specification.

  • Remove packed mud, stone, wire, and debris that alter tension or restrict articulation.

  • Avoid repeated high-load pivot turns where a wider turn is practical.

  • Inspect the full undercarriage system rather than judging a cracked link in isolation.

  • Investigate unusual heat, noise, pin movement, or vibration before cracking becomes visible.

  • Match replacement components to the machine’s weight class, track pitch, operating environment, and sprocket system.

The most useful inspection question is not whether a crack is visible today. It is whether wear patterns show that the load path has already changed.

KTSU Expert Views

Track-link fatigue is usually a system warning rather than a purely material-related event. A crack near the pin bore may indicate pin movement or bore wear, while a crack near the rail transition may point to repeated bending from impact, worn running gear, or severe turning conditions. The fracture location often helps identify where abnormal load was accumulating before the visible failure occurred.

At KTSU’s 70,000-square-meter facility in Kunshan, undercarriage production incorporates precision CNC machining, robotic CO2 welding, and controlled manufacturing processes. For track links, consistency in bore dimensions, surface finish, and heat-treatment balance has a direct relationship with fatigue performance. A link needs wear resistance, but it also needs sufficient toughness to resist cracking when the machine meets impact and uneven terrain.

The engineering lesson is straightforward: replacing a damaged link without correcting the source of stress can create a repeat failure. Inspection should therefore include track tension, pin retention, bushing wear, sprocket condition, roller movement, frame alignment, and the operator’s typical turning environment. The correct repair is based on the load path, not only the visible fracture.

Frequently Asked Questions

Why does a track link crack near the pin bore?

A crack near the pin bore commonly results from concentrated cyclic stress, loose pin fit, or joint movement. Heavy turns and impacts increase loading at the bore edge, especially after wear changes the original pin-to-link relationship. Inspect the pins, bushings, and sprocket engagement alongside the damaged link.

How do I choose a forged track link assembly for heavy-duty work?

Choose an assembly matched to the machine’s exact pitch, link profile, pin diameter, working weight, and operating environment. High tensile strength is important, but accurate fit, heat treatment, bore quality, and compatibility with the existing sprocket are equally important for service life.

Is a forged track link better than a cast track link?

A properly manufactured forged link can have advantages in grain flow and fatigue resistance, but manufacturing method alone does not determine durability. Geometry, material control, heat treatment, assembly quality, and operating practice all affect the outcome.

Can a small fatigue crack in a track link still be used?

A small crack should be treated as a structural risk because visible crack length does not reliably show how far the damage has progressed internally. Crack growth can accelerate as the intact material section becomes smaller. The machine should be removed from service and assessed before further operation.

How quickly can a fatigue crack cause a complete track-link failure?

A fatigue crack may develop slowly at first, but final fracture can occur rapidly once it reaches a critical size. Load level, terrain, turning frequency, temperature, and crack location all affect its progression, so there is no dependable safe operating period after detection.
