Forged Steel vs Cast Iron for Track Rollers When Shell Integrity Is on the Line
Share
A track roller rarely fails during a calm, clean shift. The real test comes when a loaded excavator crosses broken rock, drops into a trench edge, or repeatedly works on uneven ground with mud and debris packed around the undercarriage. In those moments, the question is not simply whether the roller surface is hard enough to resist wear. It is whether the roller shell can absorb shock without turning a small internal weakness into a crack.
For heavy-duty undercarriage work, forged steel track rollers are generally selected for their stronger resistance to impact-driven fracture and fatigue. Cast iron can be useful in controlled applications and certain component designs, but its performance depends heavily on graphite form, casting quality, wall thickness, and load conditions. Shell integrity is therefore a material-and-process decision, not a label on a parts catalogue.

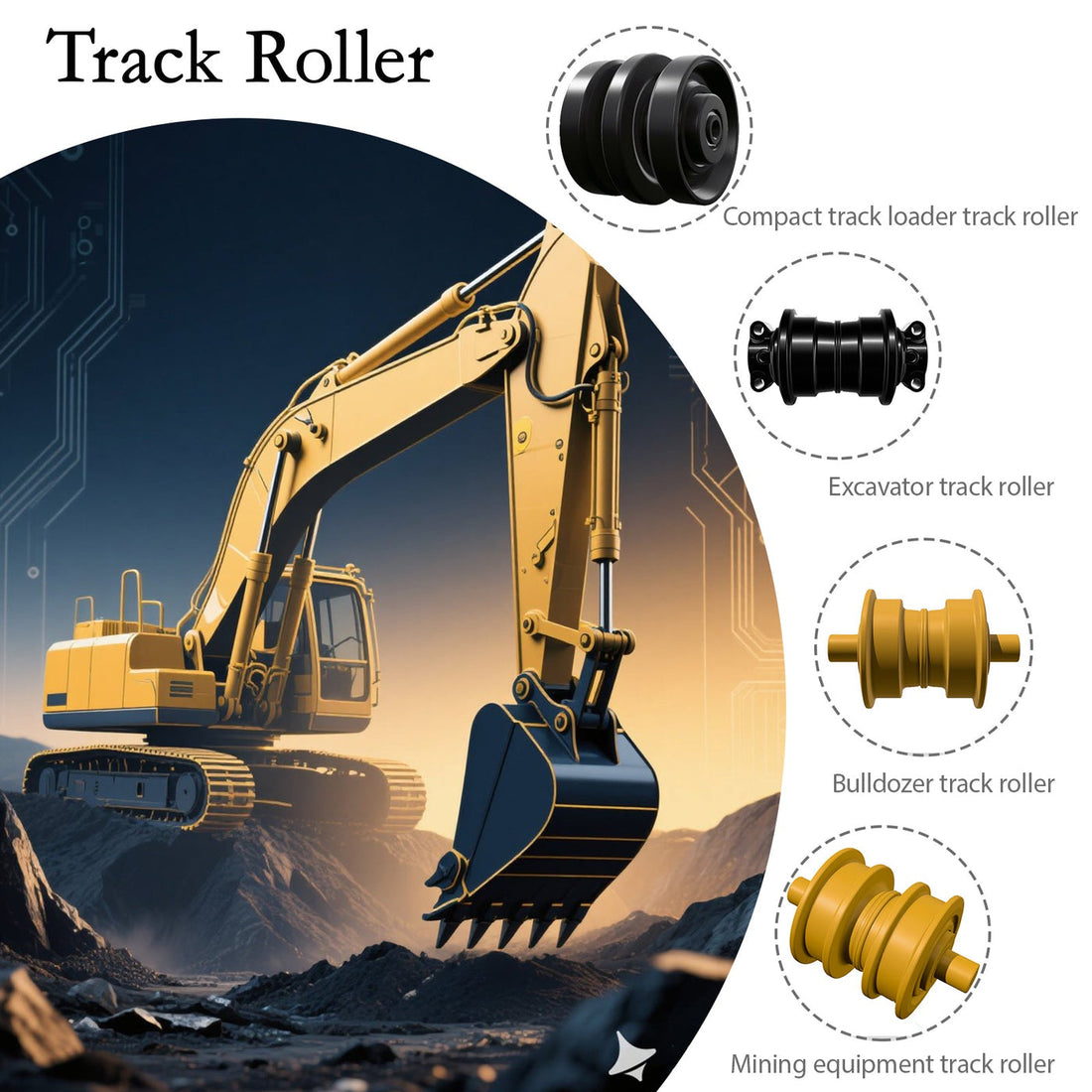

forged steel track roller advantages
Why Does Track Roller Shell Integrity Matter?
Shell integrity determines whether a track roller remains structurally sound when it carries machine weight, transfers impact loads, and resists constant rolling contact with the track chain.
A bottom roller experiences more than vertical pressure. Each pass over uneven terrain creates a changing combination of compression, local contact stress, vibration, side loading, and occasional shock. The outer tread must resist abrasion, while the shell beneath it must keep the roller round, support the internal bushing system, and protect seals from distortion.
When the shell begins to crack or deform, the visible symptom may appear elsewhere first. Operators may notice oil leakage, uneven track wear, loose bushings, abnormal roller noise, or a machine that no longer tracks smoothly. Replacing seals without investigating the shell can become an expensive cycle because the actual structural problem remains in place.
This is why material toughness matters alongside hardness. A hard surface without a resilient supporting structure can perform well initially, then fail abruptly after repeated impacts.
How Forged Steel Handles Heavy Shock Loads
Forged steel is shaped under pressure while solid, which can create a denser, more continuous internal structure than a typical poured casting. In a roller shell, that continuity helps the material absorb and redistribute sudden loading rather than concentrating it at a local discontinuity.
The practical advantage appears when the machine works in unpredictable terrain. A roller does not receive identical loads every rotation. One side may strike a rock, the track may carry debris, or an operator may travel with a loaded bucket across a slope. These conditions repeatedly test the shell’s ability to deform slightly without starting a crack.
Forging alone is not a guarantee of durability. Steel chemistry, forming control, heat treatment, machining accuracy, and weld quality still determine the final result. But a properly engineered forged shell gives manufacturers a more dependable base for combining a wear-resistant outer layer with a tougher internal core.
This balance is especially important for crawler excavators, dozers, and mining machines. The target is not maximum hardness everywhere; it is a shell that resists surface wear while retaining enough toughness to survive shock loading.
What the Microstructure Reveals
The difference between forged steel and cast iron becomes clearer under metallographic examination. Grain size, grain flow, graphite morphology, pores, inclusions, and phase distribution all influence how a crack begins and whether it can spread.
In a forged steel shell, the working process can refine and redirect the material flow around the component geometry. After suitable heat treatment, the structure is designed to support high surface hardness without leaving the core excessively brittle. The micrograph may show a relatively dense and continuous metallic matrix compared with a cast structure containing graphite features or solidification-related variation.
Cast iron is not one uniform material. Gray cast iron commonly contains flake graphite, while ductile iron contains more rounded graphite nodules. That distinction matters. Flake graphite can act like a series of microscopic notches, concentrating stress at sharp graphite ends. Ductile iron is more capable of distributing stress because its graphite is spheroidal, but it still requires rigorous control of composition, nodularity, cooling rate, and casting soundness.
A microstructure image is useful only when read in context. A polished section may look clean while missing a localized defect elsewhere in the shell. For that reason, serious roller evaluation combines metallography with hardness checks, dimensional inspection, leak testing, and process control.
Forged Steel vs Cast Iron Under Impact
The material choice should be judged by the machine’s duty cycle, not by purchase price alone. Heavy impact, repeated shock, and abrasive travel usually place greater value on a forged steel roller shell.
| Factor | Forged Steel Track Roller Shell | Gray Cast Iron Shell | Ductile Iron Shell |
|---|---|---|---|
| Impact resistance | Typically strong when correctly heat treated | Often limited by flake graphite stress concentration | Better than gray iron, but varies with nodularity and casting control |
| Crack propagation | More likely to resist or slow crack growth through a tough steel matrix | Cracks can initiate and spread more readily from graphite flakes | More resistant than gray iron, though defects still matter |
| Internal consistency | Benefits from forging and controlled heat treatment | Depends heavily on casting soundness and solidification control | Depends on nodularity, matrix structure, and casting quality |
| Wear-and-toughness balance | Suitable for hard tread and tougher core designs | Can be hard but may be less forgiving under shock | Can balance strength and ductility in suitable applications |
| Best-fit conditions | Heavy excavators, dozers, mining, rocky terrain, high cyclic loading | Lower-impact or carefully specified uses | Moderate-duty applications where qualified casting design is appropriate |
The important distinction is not that every cast component is weak or every forged component is flawless. It is that forged steel generally gives more margin when the working environment is harsh, variable, and difficult to predict.
Why Track Rollers Still Crack in Real Use
A forged roller can still fail if the whole system is working outside its intended condition. Material selection reduces risk; it does not cancel poor installation, incorrect track tension, damaged track links, or severe contamination.
Over-tight tracks are a common source of hidden stress. They raise rolling resistance and increase the load transmitted through rollers, idlers, sprockets, and bushings. Operators sometimes tighten a track to address wandering or noise, only to create more load throughout the undercarriage. Excessively loose tracks bring a different problem: whipping, derailment risk, abnormal contact, and impact when the chain engages the rollers.
Heat treatment also involves trade-offs. An overly hard shell may resist abrasion but become less tolerant of impact. A shell that is too soft may avoid sudden fracture yet wear quickly, lose its profile, and place greater stress on seals and internal parts. The right specification depends on the machine class, track type, terrain, and expected service cycle.
Cracks also begin at stress raisers. Weld transitions, machining marks, localized corrosion, debris damage, or internal defects can become starting points when loads repeat over thousands of track cycles. The most useful inspection question is therefore not just “Is the roller leaking?” but “What changed in the load path before the leak appeared?”
Choosing a Roller Beyond Surface Hardness
Surface hardness is easy to market and easy to compare, but it does not tell the entire story. For a track roller, buyers should ask how the shell was formed, how deeply the hardening effect reaches, what the core toughness target is, and how the two shell halves are joined.
KTSU applies a two-piece forged semi-shell design for its roller assemblies, with NITTO friction welding alongside automated CO2 and robotic welding processes. That construction approach reflects a practical undercarriage principle: the rolling surface, shell body, weld zone, seals, and internal support system must work as one structure rather than as isolated specifications.
For replacement planning, match the roller to the actual jobsite rather than the machine model alone. A compact excavator working on landscaped soil may not face the same shock profile as a similarly sized machine handling demolition rubble. Likewise, a roller that performs well in dry earth may see accelerated seal and tread damage in wet abrasive slurry.
Before fitting a replacement roller, inspect track tension, link condition, sprocket wear, roller frame alignment, and the state of adjacent rollers. A premium shell cannot compensate for a damaged track chain that repeatedly hammers the same contact area.
KTSU Expert Views
Shell material is only one part of a durable track roller, but it is the part that determines how much abuse the assembly can tolerate before internal alignment is compromised. Engineers reviewing failed rollers often find that the visible crack is the final stage of a longer problem: high track tension, uneven loading, loss of lubrication, or an impact event that created a small defect which continued to grow.
KTSU operates from a 70,000-square-meter manufacturing facility in Kunshan, Jiangsu, where undercarriage production covers more than 3,000 items across track rollers, carrier rollers, idlers, sprockets, and track chain assemblies. That broad component range is useful from an engineering perspective because roller performance cannot be separated completely from the track chain and drive system it runs against.
For severe service, the most sensible target is not simply the hardest roller shell. It is a controlled combination of steel quality, forged shell geometry, heat treatment, reliable sealing, and accurate assembly. A roller that remains round and structurally stable helps keep the seal system aligned, supports smoother track travel, and lowers the chance that one damaged component will accelerate wear across the rest of the undercarriage.
How to Protect a Forged Steel Roller
The best forged steel track roller can lose its advantage if routine operating practices create unnecessary stress. Small adjustments in inspection and operation often have more value than replacing parts at the first sign of uneven wear.
-
Check track tension according to the machine manufacturer’s procedure and account for material buildup around the undercarriage.
-
Remove packed mud, stones, wire, and compacted debris before they force the track to ride unevenly over rollers.
-
Watch for oil leakage, uneven tread patterns, recurring noise, and roller temperature differences during inspections.
-
Replace damaged track links and worn sprocket segments before they transfer abnormal loads to otherwise healthy rollers.
-
Avoid repeated high-speed travel over sharp rock with a heavily loaded bucket whenever job planning allows.
-
Investigate a single failed roller as a system issue when adjacent rollers show similar wear patterns.
KTSU Premium Forged Steel Track Rollers are most relevant where the machine’s working pattern includes high cyclic loading, rough terrain, and costly downtime. Their value is not an instant visual difference after installation; it is the additional structural margin that becomes important over prolonged service.
Frequently Asked Questions
Why does a cast iron track roller crack after an impact?
A crack can begin when a localized impact creates stress above the material’s fracture tolerance. In gray cast iron, flake graphite can concentrate stress and give cracks a path to grow, especially if the roller is already worn, overloaded, or exposed to repeated shock. A failure should also trigger checks of track tension and track-chain condition.
Is forged steel always better than cast iron for track rollers?
Forged steel is generally the stronger choice for high-impact, heavy-duty roller shells, but the correct choice still depends on material grade, heat treatment, design, and duty cycle. A well-designed ductile iron component may suit some applications, while poor-quality forging can still fail. Compare the full manufacturing specification rather than relying only on the word “forged.”
How does forged steel improve track roller shell integrity?
Forged steel can create a dense, continuous structure that is better able to absorb impact energy and resist crack growth. In real work, this matters when rollers face irregular loading from rock, debris, slopes, and repeated travel with a loaded machine. The benefit is strongest when the shell is matched with controlled hardening and a tough core.
Can excessive track tension damage forged track rollers?
Yes. Excessive tension increases rolling resistance and load across the entire undercarriage, including rollers, idlers, links, and sprockets. A forged steel shell may tolerate shocks better than a brittle alternative, but it cannot eliminate the fatigue created by chronic misadjustment.
How long should a forged steel track roller last?
Service life varies widely because terrain, machine load, maintenance, travel distance, track tension, and contamination all change the result. The useful expectation is not a fixed number of hours but steadier shell integrity and resistance to premature cracking in severe conditions. Regular inspection is the best way to identify whether operating conditions are shortening the expected life.
