Retained Austenite X-Ray Test Report: Check What It Represents

A retained-austenite X-ray result is a phase fraction for the region, specimen and method that were measured. It is not a depth profile, not a lot-wide statement and not a heat-treatment quality score. Before using the number, confirm which steel and which surface or companion specimen it came from, whether the method's assumptions fit that steel, and whether the reported value sits inside the method's valid range. Keep the original fraction with its location and method, and request clarification for anything the report leaves out.

What the method covers

ASTM E975-22, listed as active, determines the retained austenite phase in steel from the integrated intensities of X-ray diffraction peaks, using chromium or molybdenum K-alpha radiation. Its scope sets out several conditions that a report should be checked against.

• It applies to carbon and alloy steels with near random crystallographic orientation of both the ferrite and austenite phases.

• It is valid for retained austenite contents from 1 percent by volume and above.

• Where possible, diffraction peak interference from other crystalline phases, such as carbides, should be removed from the ferrite and austenite peak intensities.

• Substantial alloy content changes peak intensities in ways the method does not consider. Applying it to steels with total alloy content above 15 weight percent should be done with care, and users may calculate theoretical correction factors if necessary.

The 1 percent figure is a lower limit of validity. It is not an acceptance maximum or a target, and a vendor's stated sensitivity does not by itself show that its measurement meets this standard's scope. Texture is a separate point. If the steel does not have near random orientation, the standard's applicability is in question, and the report should say how that was handled.

Why more or less austenite is not a quality verdict

E975 explains why the measurement is made. Retained austenite can be present in heat-treated low-alloy, high-strength steels of medium carbon content or higher. The standard notes it may not be evident in the microstructure and may not affect bulk properties such as hardness, but that transformation to martensite during service can affect performance. It says the measurement can be used in alloy development programs, on a companion specimen or test section included in a heat-treated lot as part of quality control, and in studies of steels from service.

None of that turns a percentage into a ranking. A higher or lower value is not universally better or worse, and the standard states no acceptance level. Whether a value is suitable depends on the specification and the application. A fraction also says nothing about depth distribution, uniformity across a lot or how much transformation will occur in service.

Build an applicability, location and depth map

Use the map below to state what a reported fraction represents. It is a recommended review aid, not a form required by the standard.

Keep the claim to the measurement

A result from one face supports a statement about that face. A companion-specimen result supports a statement about the companion specimen, and a link to the part rests on the heat-treatment record. Neither establishes a through-thickness profile, so ask for depth information if the requirement concerns the case or a layer below the surface.

If the map shows unresolved texture or interference, the right entry is "applicability unresolved," with a request to the laboratory. Do not infer a treatment problem, grinding damage or residual stress from a retained-austenite value. Those are separate questions, covered in grinding burn inspection on hardened parts and elsewhere.

Send a clarification request

When a report gives only a percentage, ask for the steel and specimen identity, the measured region, any surface removal, the method edition and radiation, how orientation and interference were addressed, and the original value with its uncertainty. Ask the laboratory to state which conclusions its measurement supports.

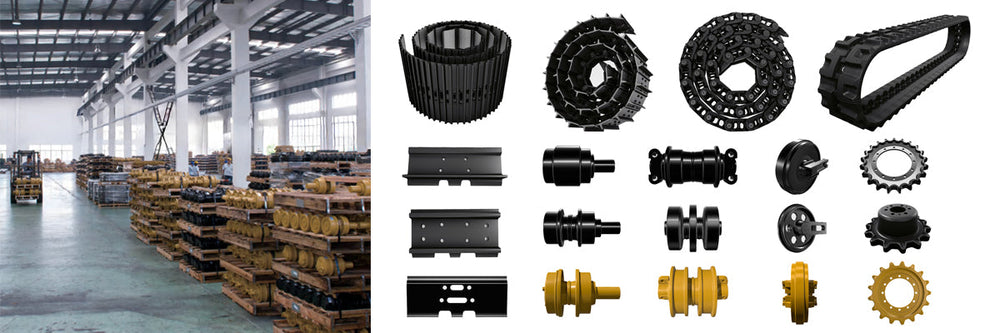

For a part from KTSU, provide the part reference, the property of concern and the evidence you hold when asking what documentation is available. The public excavator undercarriage parts collection identifies the product family. It does not establish an X-ray retained-austenite capability or a particular phase level.

The review is complete when the record holds a bounded phase-fraction statement tied to its region and method, and a clear request for any location, depth or applicability detail still missing.
