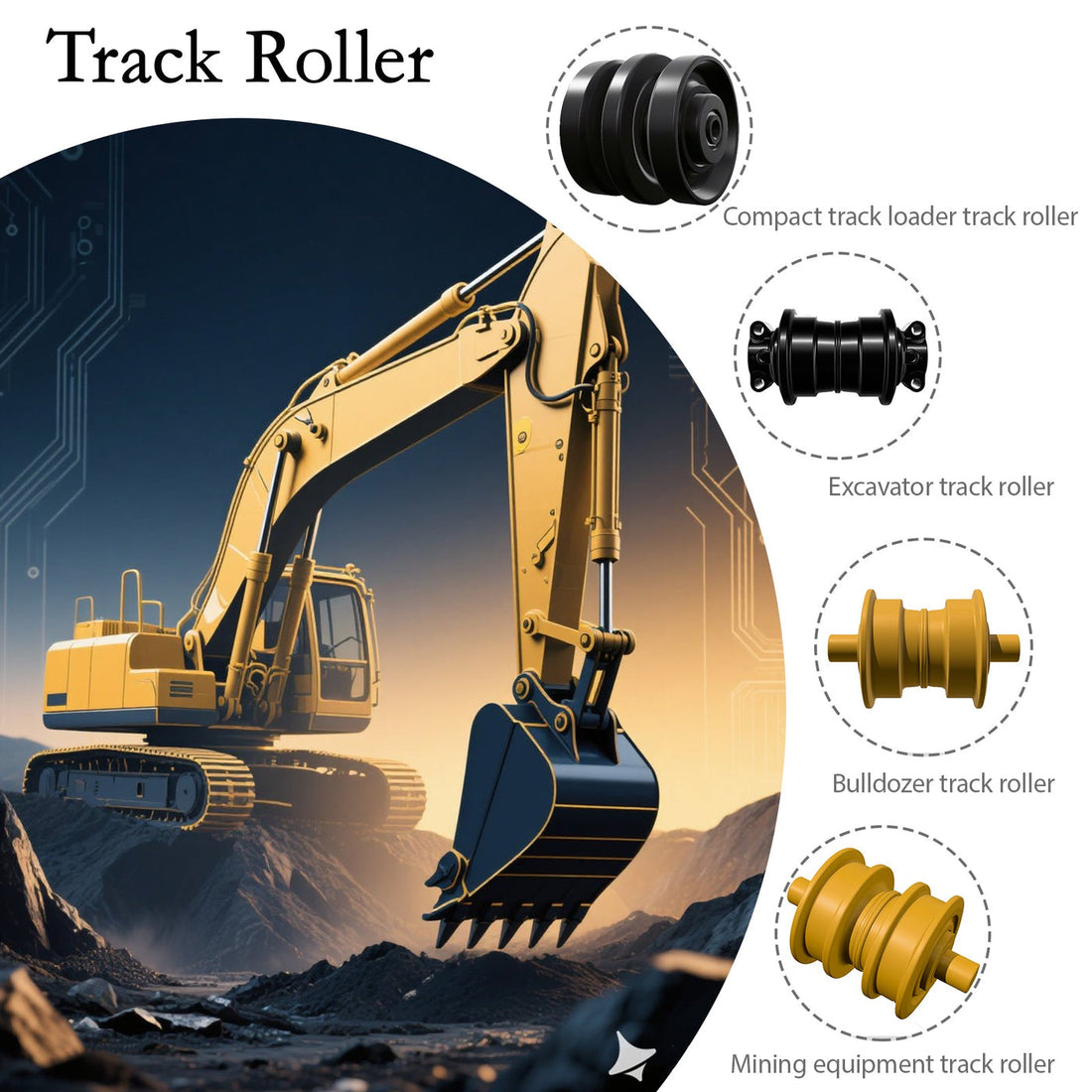

How to Replace an Excavator Track Roller Without Creating a Bigger Undercarriage Problem

A worn bottom roller can look like a simple bolt-off, bolt-on repair—until the track is still carrying tension, the roller mounting face is packed with scale, or the replacement bolts are tightened by feel rather than to the machine's specification. That is why knowing how to replace an excavator track roller matters more than simply getting the old part out.

The method is broadly similar on full-size machines, including a Cat 320 or 330 and a Komatsu PC200 or PC300, but the exact roller layout, fasteners, track-sag target, lifting points, and torque values are model-specific. Treat the operator's and service manuals as the final authority. The goal is not merely to install a new roller; it is to restore a properly supported, correctly tensioned track system.

Know When a Track Roller Really Needs Replacement

Replace an excavator track roller when it leaks oil, binds, develops excessive side play, has a visibly worn flange, makes repeated grinding noise, or no longer turns smoothly under load. A roller that has stopped rotating forces the track chain to slide across it, accelerating wear on the roller shell, link rail, idler, and sprocket.

The common mistake is replacing only the noisiest roller without checking the nearby components. On a machine working in abrasive soil, demolition debris, or wet clay, one failed roller may be the visible result of a wider undercarriage problem. Rotate the rollers by hand after unloading the track, check for oil around the seal area, and inspect the rail surface of the track links for sharp ridges or uneven polishing.

KTSU's experience across more than 3,000 undercarriage component applications points to the same field pattern: a roller rarely fails in isolation when track tension, alignment, or debris buildup has been neglected. Replacing the part is necessary, but correcting the condition that caused the early wear is what protects the repair.

How Does the Roller Support the Track?

Bottom rollers carry the excavator's operating weight and guide the track chain along the lower frame. Their flanges keep the chain centered while the sealed internal bearing system allows the roller shell to rotate under load.

In clean, level digging, this action is relatively steady. In rock, mud, side-slope travel, and frequent turning, however, the roller sees side loading, impact, and abrasive contamination. A roller with damaged seals can lose lubricant; a roller that is structurally sound but mounted on a dirty or uneven frame can sit out of alignment. Both conditions can make a new component wear prematurely.

This is why a replacement roller should match the machine's exact undercarriage arrangement rather than just its apparent diameter. Cat 320/330 and Komatsu PC200/PC300 configurations may use different roller groups, caps, bolt dimensions, and part numbers by serial-number range. Confirm the model, serial number, track frame arrangement, and old roller dimensions before ordering.

Tools and Safety Equipment to Prepare

A full-size excavator track roller is heavy, awkward to handle, and located beneath a suspended track frame. Prepare the job before loosening a fastener.

• Machine-specific service manual and parts reference
• Correct replacement track roller, mounting hardware, washers, and approved thread treatment
• Rated lifting device, chain, sling, or roller handling fixture
• Hydraulic jack or approved lifting method, plus correctly rated jack stands or cribbing
• Socket set, breaker bar, impact wrench, and extensions
• Calibrated torque wrench capable of the required torque range
• Scraper, wire brush, solvent, clean rags, and a thread chaser where appropriate
• Grease gun for resetting track tension
• Measuring tape or straightedge for checking track sag
• Eye protection, gloves, steel-toe footwear, and suitable protective clothing
• Wheel chocks, lockout/tagout materials, and exclusion-zone barriers

Never rely only on the excavator boom, arm, bucket, or a hydraulic jack to hold the machine while anyone works beneath the undercarriage. Use firm, level ground and redundant mechanical support. Keep bystanders away from the track side, especially during tension release.

How to Replace an Excavator Track Roller Step by Step

The safest procedure is to unload the track, create enough slack to access the roller, remove the old assembly cleanly, and reinstall the new roller using the manufacturer's specified fastener procedure.

1. Park on level, compact ground and lower the attachment securely. Travel the machine until the roller being changed is accessible and not trapped by an obstacle or uneven terrain.
2. Shut down the engine, remove the key, engage the hydraulic safety lock, and isolate the machine according to site procedures. Clear mud, rock, and debris from the track frame before lifting.
3. Lift the side being serviced using only the lifting method approved for the excavator. Support the machine with rated stands or cribbing beneath approved structural points. The track should be just clear of the ground, not raised unnecessarily high.
4. Release track-adjuster grease slowly through the correct relief point specified by the machine manufacturer. Stand clear of the grease path and never place hands, face, or body in front of the fitting. High-pressure grease can discharge suddenly and can cause serious injection injury.
5. Allow the front idler to retract enough to create track slack. Depending on the roller position and machine design, you may be able to move the chain aside without fully removing the track. Do not force the chain with uncontrolled prying or travel the machine while people are near the undercarriage.
6. Support the old roller with a lifting device before removing its bolts or caps. On some designs, the roller can drop abruptly once the final fastener is removed.
7. Remove the mounting bolts in a controlled sequence. If fasteners are corroded or rounded, stop and correct the problem rather than applying escalating impact force that damages the frame threads or bolt heads.
8. Remove the old roller and clean the mounting pads, cap seats, bolt holes, and mating surfaces. Remove paint buildup, rust scale, packed soil, and loose metal. The new roller needs clean metal-to-metal seating; debris trapped behind it can alter alignment and loosen fasteners over time.
9. Compare the new roller with the removed unit. Check the shaft or cap orientation, flange direction, bolt spacing, roller width, and seal clearance before installation.
10. Position the new roller without striking the seals or shell. Install the correct bolts and washers by hand first, then tighten them in the sequence specified by the OEM—often an alternating pattern, but not universally.
11. Apply thread compound only if the service information calls for it. Then torque the bolts with a calibrated wrench to the exact model- and bolt-specific specification. Do not use a generic torque number for a Cat 320, Cat 330, Komatsu PC200, or PC300; hardware grade, bolt size, roller design, and service revision can differ.
12. Restore track tension with clean grease, using the manufacturer's track-sag measurement method. Run the track slowly forward and backward from a safe operator position, shut down again, and recheck sag, roller seating, bolt condition, and leaks.

Why Torque and Track Tension Cannot Be Estimated

Torque is not a finishing touch. It creates the clamping force that keeps the roller assembly seated against the track frame under vibration, impact, and reversing travel. An impact gun can install bolts efficiently, but it cannot verify final clamp load.

Under-torqued bolts can work loose, fret against the mounting face, enlarge holes, and damage an otherwise serviceable track frame. Excessive torque can stretch bolts, damage threads, distort caps, or produce misleading clamp load when threads are dirty or lubricated differently from the specification.

Track tension creates a second, connected risk. Too-tight tracks add continuous load to rollers, idlers, sprockets, bushings, and travel drives. Too-loose tracks increase the chance of derailment and impact loading. Check sag using the exact procedure and value in the machine manual, because the proper measurement changes by model, track configuration, and operating condition. Caterpillar's official publications portal is the appropriate place to locate model-specific operation and service information rather than relying on a torque figure from another machine.

What Can Go Wrong After a Roller Replacement?

A new roller may still leak, wear unevenly, loosen, or make noise if the underlying condition was missed. The most expensive outcomes often begin with a repair that initially looked successful.

A track adjusted too tightly after installation can overload the new roller almost immediately. A chain with worn rails can ride incorrectly against the flange. A worn idler, damaged sprocket, bent track frame, or packed debris may steer the chain off center and create side loading that no replacement roller can solve.

The expectation gap is especially noticeable after a single-roller change. Operators may expect the machine to travel quietly at once, but noise can remain if adjacent rollers, carrier rollers, track links, or the final drive are also worn. Likewise, replacing every roller at the first sign of cosmetic flange wear can be premature if seal condition, rotation, and measured wear remain acceptable.

Stop operation and investigate if bolts move, grease or oil appears around the roller seal, the track walks sideways, a repetitive knock develops, or the machine pulls unusually during travel. Continuing to run can turn a roller job into track-frame or chain damage.

Choosing a Replacement Roller for Cat and Komatsu Excavators

The right roller is determined by fitment and operating conditions, not brand name alone. For a Cat 320 or 330, or a Komatsu PC200 or PC300, start with the machine's serial number and the exact position of the roller in the undercarriage.

KTSU's 70,000-square-meter manufacturing facility combines CAD/CAM design, precision CNC machining, robotic CO2 welding, and NITTO friction welding in the production environment behind undercarriage parts. For the equipment owner, the practical takeaway is simpler: compare more than the outside dimensions. A roller's mounting accuracy, shell hardness profile, sealing design, and compatibility with the existing chain all affect whether it remains stable in service. If fitment is unclear, prepare the machine model, serial number, roller position, old-part dimensions and flange configuration before requesting a compatibility check through the contact page — and compare the candidate part against the excavator track rollers catalog rather than ordering by model name alone.

KTSU Expert Views

A track roller replacement should be treated as an undercarriage inspection opportunity, not a stand-alone parts swap. The roller is one contact point in a system that includes the chain, idler, sprocket, carrier rollers, adjuster, and track frame. When one component has failed, look for evidence of the load path that caused it: unusually tight track adjustment, abrasive material packed around the roller, chain rail wear, repeated side-slope travel, or loose mounting hardware.

In KTSU's manufacturing work on track rollers, carrier rollers, idlers, sprockets, and track chain assemblies for construction and agricultural machinery, sealing and machining quality are only part of the service-life picture. Installation cleanliness and correct clamping matter just as much in the field. A precisely machined roller can still be compromised by a distorted mounting surface or incorrect bolt torque.

The most reliable practice is disciplined rather than dramatic: identify the exact machine configuration, use approved lifting support, release tension cautiously, clean every seating surface, tighten to the current OEM specification, and recheck track sag after a controlled travel test. That process reduces avoidable repeat work and helps reveal broader undercarriage wear before it becomes a larger shutdown.

Frequently Asked Questions

How do I replace a track roller on a Cat 320 or Cat 330?

The broad process is to support the machine safely, release track tension, remove the roller hardware, clean the mounting area, install the correct roller, and torque fasteners to the current Caterpillar specification. Cat 320 and 330 machines can differ by serial range and undercarriage arrangement, so confirm the exact service manual before selecting parts or using torque values. Treat online figures as a cross-check, not an installation instruction.

Can I replace one excavator track roller instead of all of them?

Yes, replacing one failed roller is often appropriate when the remaining rollers are sealed, rotate smoothly, and remain within acceptable wear limits. However, inspect the complete lower and upper undercarriage first, because a failed roller can indicate poor track tension or damage elsewhere. Replacing one component without addressing chain or idler wear may only postpone the next repair.

Is a Cat track roller the same as a Komatsu PC200 track roller?

No, rollers for Cat and Komatsu excavators are not interchangeable merely because the machines are in a similar weight class. Fitment depends on the specific machine model, serial number, roller position, mounting pattern, dimensions, and track-frame design. Use the original part number or verified cross-reference and compare the removed component before fitting a replacement.

What happens if the excavator track is too tight after roller replacement?

An over-tight track increases drag and sustained load across the rollers, idlers, sprockets, chain, and travel drive. It can make a new roller run hotter and wear faster even when the roller itself is correctly installed. Reset tension only to the manufacturer's measured sag specification and recheck after the track has been slowly cycled.

How long does it take to replace an excavator track roller?

There is no reliable universal time. Elapsed time changes sharply with machine size, access, corrosion, roller location, weather, and whether the track frame needs cleaning or repair. The lifting, controlled grease release, cleaning, and torque verification should not be rushed. A fast installation that leaves the track tension wrong can cost more downtime than the original roller failure.

References

1. Caterpillar Service, Parts and Operation and Maintenance Manuals — model- and serial-number-specific manuals for Cat machines.
2. Caterpillar official product and service information — machine specifications and service guidance.
3. Komatsu official site — track tension and undercarriage service guidance for Komatsu models.
4. Berco undercarriage systems — roller, chain, idler and sprocket system behavior and service knowledge.
5. ITR undercarriage technical resources — wear measurement and component interaction guidance.
