Finding the Right Excavator Front Idler Part Number Before You Order

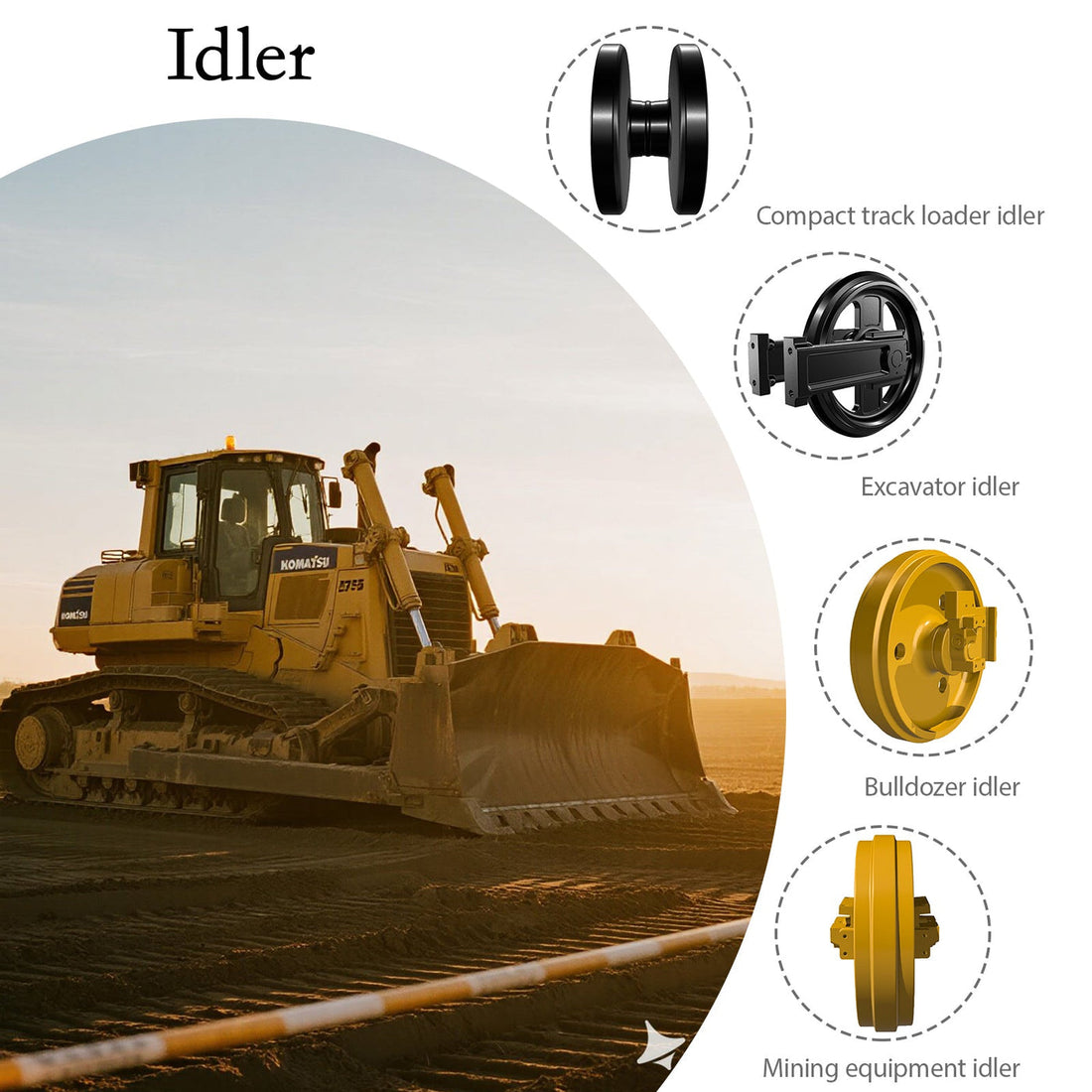

An excavator front idler may look straightforward from the outside, but identifying the correct replacement is rarely a matter of matching a photo or using the machine model alone. The correct excavator front idler part number depends on the machine’s full serial number, its undercarriage configuration, and sometimes changes made during a model’s production run. A worn marking on the old idler can help, but it should not be treated as the final answer. Start with the official OEM parts manual for your exact model and serial number, then use the documented OEM number to verify any replacement option.
Last updated:
The serial number is the starting point
A model name identifies a machine family. The machine serial number identifies the particular configuration within that family.
That distinction matters on excavators because manufacturers can change undercarriage components, assemblies, mounting arrangements, or component revisions during a model lifecycle. Two machines carrying the same model designation may therefore require different front idlers. An idler that appears physically similar can still have the wrong mounting geometry, width, guide profile, bearing arrangement, or serial-range application.
Record the full identification information before looking for a part number:
Machine make and full model designation
Full machine serial number or PIN exactly as shown on the identification plate
Any visible number, casting mark, stamp, or label on the existing idler
Photos of the complete idler, mounting area, and track frame
The relevant OEM parts-book illustration and item callout, if available
The machine identification plate and the current OEM parts manual should take priority over a seller listing, an internet cross-reference, or a number remembered from another machine.
Where an idler number may appear
The existing front idler can sometimes provide useful clues. Look for an engraved, stamped, cast, or labelled number on accessible outer surfaces after cleaning away loose dirt and grease. Do not grind, aggressively wire-brush, or alter a component simply to reveal a marking. Wear, corrosion, repainting, impact damage, and previous rebuilding work can make the number incomplete or misleading.
An old idler may also have been replaced before. Its marking could therefore identify a previous aftermarket assembly, a remanufactured component, or a superseded part rather than the original OEM application.
A readable number on an old idler is evidence to investigate, not proof of fitment. The official parts book matched to the machine serial number is the safer source of truth.
If the physical marking is absent or unclear, use the OEM parts manual or authorized parts lookup for the exact serial range. The illustrated undercarriage section should identify the front idler assembly separately from rollers, recoil components, guards, and mounting hardware. This illustration is often more useful than a generic product image because it shows how the component belongs in the machine’s specific track-frame layout.
Confirm that the component is actually a front idler
Misidentification is one of the most avoidable causes of a wrong undercarriage inquiry. A front idler, track roller, and carrier roller all support or guide the track, but they perform different functions and occupy different positions.
| Component | Usual position | Main function | Common identification mistake |
|---|---|---|---|
| Front idler | At the front of the track frame | Guides the track chain and works with the recoil and tensioning system | Mistaking it for a large bottom roller |
| Track roller | Along the lower run of the track frame | Carries machine weight through the lower track chain | Calling every undercarriage wheel an idler |
| Carrier roller | Above the track frame on applicable machines | Supports the upper return run of the track chain | Confusing it with a small track roller |
The front idler is generally a large, non-driven wheel at the forward end of the track frame. It guides the chain as it enters and leaves the undercarriage system and reacts with the recoil mechanism as track tension changes. It is not the sprocket: the sprocket is the driven toothed component that engages the track chain, usually located at the rear near the final drive.
If the component is in the lower row between the idler and sprocket, it is more likely a track roller. KTSU’s track roller collection can help illustrate the category distinction, but a collection page should not replace serial-number confirmation or the OEM illustrated parts book.
Use OEM numbers before cross-referencing
OEM part-number formats vary by manufacturer and production era. A Caterpillar number may be displayed in a hyphenated numeric format, while Komatsu applications frequently use multi-group numeric formats. Formatting alone does not verify compatibility, and a number should never be interpreted as proof of fitment without the relevant serial range and parts documentation.
Cross-referencing becomes useful after the OEM number has been established. Start with the exact machine model, complete serial number, and undercarriage configuration. Then locate the front-idler callout in the current OEM parts manual or official lookup and record the OEM number, including any serial-range notes or supersession details.
Only then should a supplier compare that documented application with an aftermarket replacement. If the idler has a different guide profile, mounting arrangement, dimensions, or flange configuration from the available reference information, further verification is required before ordering.
A good cross-reference answers a narrow question: “What replacement is documented for this OEM idler application and serial range?” It should never start with, “What idler looks closest to mine?”
A new idler cannot correct surrounding wear
Correct part identification is necessary, but it is only one part of the replacement decision. A newly installed front idler can still experience poor performance if the track chain, rollers, sprocket, recoil system, guides, or track-frame mounting surfaces are outside OEM service limits.
A machine with recurring track misalignment may require inspection beyond the idler. Worn chain components, damaged guiding surfaces, packed debris, incorrect tension, or a compromised recoil arrangement can continue to load a new assembly improperly. Replacing the idler without identifying the source of the wear may only postpone another failure.
Track tension requires particular care. Track sag and adjustment requirements vary by model, serial range, track configuration, and working conditions. Confirm the procedure and specification only in the current OEM Operation and Maintenance Manual and Service Manual for the exact machine.
Releasing track-tension grease is a high-pressure operation. Never stand in front of the grease relief point, and recognize that the idler can retract suddenly as tension releases. Hydraulics may be used for approved lifting or positioning work, but rated mechanical stands or cribbing must support the machine before anyone works beneath it. If the procedure, component condition, or support arrangement is uncertain, stop and use qualified service support.
A verification sequence that closes the order
Identification is a sequence rather than a single lookup. Each step answers something the previous one cannot.
- Read the serial number from the machine plate rather than from a document, because the machine may have had components changed since it was built.
- Confirm the machine configuration that the serial number resolves to, including any build variation that affects the undercarriage.
- Read the number off the idler that is fitted, and confirm from the drawing that it is a front idler rather than a lower roller or a carrier roller.
- Measure the fitment dimensions that matter: the shaft, the mounting, the tread and the flange. Those are what decide whether the part will behave as well as fit.
- Write the number and the measurements on the order, so the supplier is confirming against your evidence rather than against a model name.
The reason a new idler cannot correct wear around it is that identification and fitment are separate questions. The right part number gets the correct component to the machine; it does not repair a recoil assembly that is not holding, or alignment that is loading the new part off-centre.
Conclusion
A well-prepared identification request reduces delays and prevents suppliers from trying to infer fitment from incomplete information. It also makes it easier to distinguish a front-idler issue from a roller, chain, or recoil-system problem.
Before requesting a cross-reference or replacement quote, prepare the OEM part number if available, the full machine serial number, the complete model designation, and photos showing the idler from more than one angle. Include images of the mounting area, track-frame opening, and any readable component marks. State whether the machine has had previous undercarriage repairs or non-original assemblies installed.
KTSU can help owners and fleets evaluate aftermarket undercarriage options once the OEM application is established. The most useful inquiry includes the machine identification details, documented OEM reference, and evidence of the component configuration rather than a model-only description.
Use the OEM manual as the authority for the part application and service procedure. If you need assistance verifying an aftermarket front idler against a documented OEM application, contact KTSU with the complete machine and component information.
Frequently Asked Questions
How do I find the right front idler part number for my excavator?
Start from the serial number on the machine plate, confirm the configuration it resolves to, read the number from the idler that is fitted, and measure the fitment dimensions. Then put all of that on the order.
Where does the idler number usually appear?
On the component itself or on a plate attached to it, depending on the manufacturer. Where nothing is legible, the serial-led lookup and the measured dimensions are what replace it.
How can I tell a front idler from a lower roller or a carrier roller?
By its position and its mounting. The front idler runs at the front of the frame and is carried by the recoil assembly, while rollers mount to the frame along the length. The drawing for the machine shows which is which.
Can an aftermarket idler replace an OEM one?
Where the fitment dimensions match the machine and the specification suits the duty. The part number gets the right component; the specification and the measurements decide whether it behaves.
