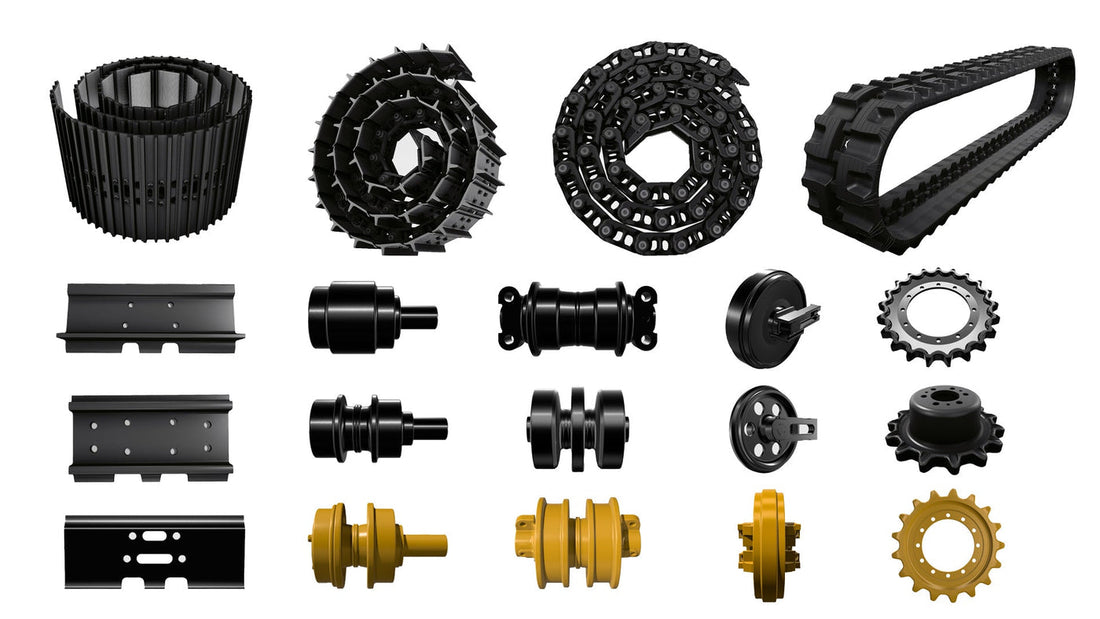

Excavator Undercarriage Parts Explained in One Anatomy Map
Share
An excavator undercarriage is the load-bearing running gear beneath the machine: the track chain, bottom track rollers, carrier rollers, front idler, drive sprocket, track shoes, and the tension adjuster that keeps the whole loop working. It carries the machine's weight, turns drive torque into traction, and absorbs the reaction forces of every digging cycle. This guide is the site's cornerstone reference for all of those parts: where each one sits, what it does, how it wears, and how to identify it by part number — with every deeper question linked to its own dedicated guide rather than re-explained here.
Key Facts — Excavator Undercarriage at a Glance
Entity: KTSU — undercarriage component manufacturer in Kunshan, Jiangsu, with a 70,000-square-meter production campus.
Main parts: track chain, track rollers, carrier rollers, front idler, sprocket, track shoes, and tension adjuster.
Machines: excavators, bulldozers, pavers, and compact track loaders.
Catalog: 3,000+ undercarriage items with OEM part numbers cross-referenced.
Manufacturing: NITTO friction welding, CNC machining, induction hardening, and floating-seal assembly.
Why the Undercarriage Is Called the Load-Bearing System of a Crawler Machine
Everything above the tracks — cab, boom, counterweight, and the material in the bucket — is carried by the undercarriage, and so are the reaction forces of digging. When an excavator digs, the bucket force pushes against the ground through the front of the track group; when it travels, drive torque pushes the machine forward through the sprocket and chain. The undercarriage is the only structure between those loads and the ground, which is why OEMs and fleet managers treat it as a system rather than a box of spare parts.
Ground pressure matters as much as total weight. A wider shoe spreads the machine over more ground, which is why undercarriage geometry — shoe width, roller spacing, and track length — is engineered per machine class. On the budget side, the undercarriage is also one of the largest maintenance line items a fleet carries, so understanding the parts map is the first step to controlling that cost.
Every Major Component, Mapped: Track Chain, Rollers, Idler, Sprocket, Shoe, and Adjuster
The undercarriage is a closed loop of seven working groups. Drive torque enters at the sprocket, travels through the chain, and returns along the top of the frame. Each component has one primary job and one signature wear pattern, and knowing both makes everything else in this cluster faster to learn.
Excavator undercarriage component map: position, job, and wear signature
| Component | Position | Primary job | Signature wear |
|---|---|---|---|
| Sprocket | Rear of the frame (drive end) | Drives the chain from the final drive | Hooked or sharpened tooth tips |
| Track chain | Runs the full loop | Transfers drive and ground forces | Pitch elongation, bushing wear |
| Track rollers | Bottom of the frame | Carry machine weight on the ground | Shell flats, flange wear, seal leaks |
| Carrier rollers | Top of the frame | Support the return run of the chain | Lockup, polished flat spot |
| Front idler | Front of the frame | Guides the chain and holds tension | Flat zones, flange wear, cone wear |
| Track shoes | Outside of the chain | Give grip and ground bearing area | Grouser wear, bending, cracking |
| Tension adjuster | Inside the front of the frame | Sets chain sag and absorbs shock | Stuck cylinder, grease or nitrogen leaks |
Every component in the table has a dedicated guide in this cluster, and each category has a live collection on this site. The track chain collection, the front idler collection, and the sprocket collection are the quickest way to see the range in current listings.
How Components Share the Load and Wear as a System
The load path runs from the engine through the final drive into the sprocket, then into the chain pins and bushings, across the track rollers to the ground, and back up through the frame. Nothing in that loop carries load alone: the chain drives the rollers, the rollers support the frame, the idler keeps the chain aligned, and the sprocket meters the pitch. The deep physics of that transfer — digging forces versus travel forces and how frame flex changes roller loading — is covered in the load-path guide.
The practical consequence of a shared load path is shared damage. A chain that has stretched beyond its pitch tolerance forces the sprocket teeth to carry load at the wrong point; a track roller with a worn shell shifts load onto its neighbor; a seized carrier roller turns the return run into a grinding slide. One worn part accelerates wear on everything it touches, which is why inspection reports rarely show a single failed component.
What Does Wear on Each Part Tell You?
Wear patterns are the undercarriage's way of reporting what is actually happening in the load path. A chain that is stretching quickly points to tension or contamination; a sprocket with hooked teeth usually means the chain was already stretched when the pair was last replaced; an idler with a flat zone can mean an over-tensioned track; rollers that wear unevenly front to rear often trace to duty cycle and frame flex rather than part quality.
Reading those patterns is a skill, but the logic is simple: every component reports its own recognizable wear pattern, and that pattern points to the part of the system to investigate. The failure-sign guides in this cluster — track roller failure signs, carrier roller seizure, and the idler diagnosis guide — take each pattern and trace it back to a root cause.
Reading the Undercarriage: Wear Signs on Chain, Rollers, Sprocket, and Idler
On a walkaround, four checks give you most of the picture. Look at the chain for pitch stretch — measured across a set number of links, not by eye. Check roller shells for flats and flanges for wear. Inspect sprocket tooth profiles for hooking. And look at the idler cone for flat zones and the flanges for edge wear. Each measurement belongs on a recorded inspection so the trend, not the single reading, drives the decision.
The full sequence, with the tools and reference points for each measurement, is the 30-minute inspection checklist in this cluster. That guide is designed as a routine, not a warning-sign list — the walkaround is where these readings become a trend.
How Do You Find the Right Part Number?
A machine model never tells you which roller variant sits on the frame. Two excavators of the same model, different serial ranges or frame revisions, can carry different rollers and chains. The reliable path has three steps: confirm the machine model and serial range, locate the OEM part number stamped on the old part or listed in the machine's parts manual, and then cross-reference that number against the replacement catalog.
The identification guide for track rollers walks through the six specs that pin down a roller, starting with the flange arrangement. The same discipline applies to every other component: part number, serial range, and images of the old part are the combination that removes the guesswork.
Your Next Step: Match Components to Replacement Guides by Part Number
Once you have a part number, the replacement path is straightforward. Open the matching category page, find the component family, and confirm the number against the listing. This site separates every family into its own collection — track rollers, carrier rollers, front idlers, sprockets, and chain — so the part number is checked against the right group rather than a mixed catalog. If the number does not appear, the reliable next move is to send the machine model, serial range, and photos of the old part to the supplier for a cross-reference.
Why Should Undercarriage Parts Be Replaced as a Matched Set?
A new chain on worn sprockets is the classic budget mistake. The sprocket teeth do not match the new chain's pitch, so the chain starts loading at the wrong point from the first hour, and the new parts inherit the old system's wear rate. The same logic applies to rollers and idlers: replacing one worn component while its neighbors stay past limit simply moves the failure point down the load path.
Replacing as a set costs more on the invoice and less on the cost-per-hour line. The cost-per-hour guide builds that comparison into a working model, and the life-expectancy guide explains which components are genuinely due together on a given duty cycle.
KTSU Expert Views
In factory application engineering, most of the early wear we review traces back to frame geometry and mounting alignment rather than the part itself. A roller that wears on one side, a chain that stretches unevenly, or an idler that wears off-center usually points to something upstream — a bent frame rail, a misaligned sprocket, or a bracket that was never true. When a fleet sends us a worn part with its serial range and a photo, we can usually separate the part's own wear from the system's influence before quoting a replacement. That separation matters, because bolting a new roller onto a frame that is still out of alignment repeats the failure on a new part. The undercarriage rewards people who treat it as one loop: the parts map is where that starts, but the measurement habit is what keeps it true. Our job is to make the replacement side of that loop easy — part numbers cross-referenced, sizes documented, and the old part photo read before the new part ships.
- KTSU Application Engineering Team
Conclusion
An undercarriage is one system made of seven working groups, and every part number on the map has a position, a job, and a recognizable wear signature. The fleets that get the most from their tracks know the parts, read the wear, and replace by part number and serial range instead of by machine model alone.
Key Takeaways
- Treat the undercarriage as a system: each component shares the load path with its neighbors.
- Learn the signature wear pattern of every part before you diagnose anything.
- Order by part number plus serial range, never by machine model alone.
- Inspect on a schedule and record measurements so trends drive decisions.
- Buy matched sets when the system says components are due together.
Questions to Ask
- Which of the seven component groups is showing wear first on our machines?
- Do we have the serial range and OEM part number for every replacement order?
- Is our inspection routine measuring reference points or just looking?
- When did we last check track tension against the manufacturer's sag spec?
- Does the supplier separate component families so part numbers are checked against the right group?
Open the category page for the part you need, or send machine details and photos of the old part for a free fitment check.
Frequently Asked Questions
What parts make up an excavator undercarriage?
Seven working groups: track chain, track rollers, carrier rollers, front idler, drive sprocket, track shoes, and the tension adjuster. Together they carry the machine, transfer drive torque, and keep the track loop aligned and tensioned.
How long do undercarriage parts last?
Life depends on duty, soil, and maintenance, so hour ranges are only planning guidance. The life-expectancy guide in this cluster gives benchmark ranges by duty class so you can budget without treating the numbers as guarantees.
How do I find the right part number?
Confirm the machine model and serial range, find the OEM number on the old part or in the parts manual, then cross-reference it against the replacement catalog. Adding photos of the old part removes most remaining guesswork.
What wears out first on an undercarriage?
On most machines the chain and the bottom track rollers show wear first, because they carry the rolling load and the abrasive contact. Sprockets usually follow, and idler wear often signals a tension or alignment problem rather than normal aging.
Should I replace all undercarriage parts at once?
Replace as a matched set when components are due together — typically chain with sprockets, and rollers with the same service. Replacing one worn component while its neighbors stay past limit simply moves the failure point down the load path.
