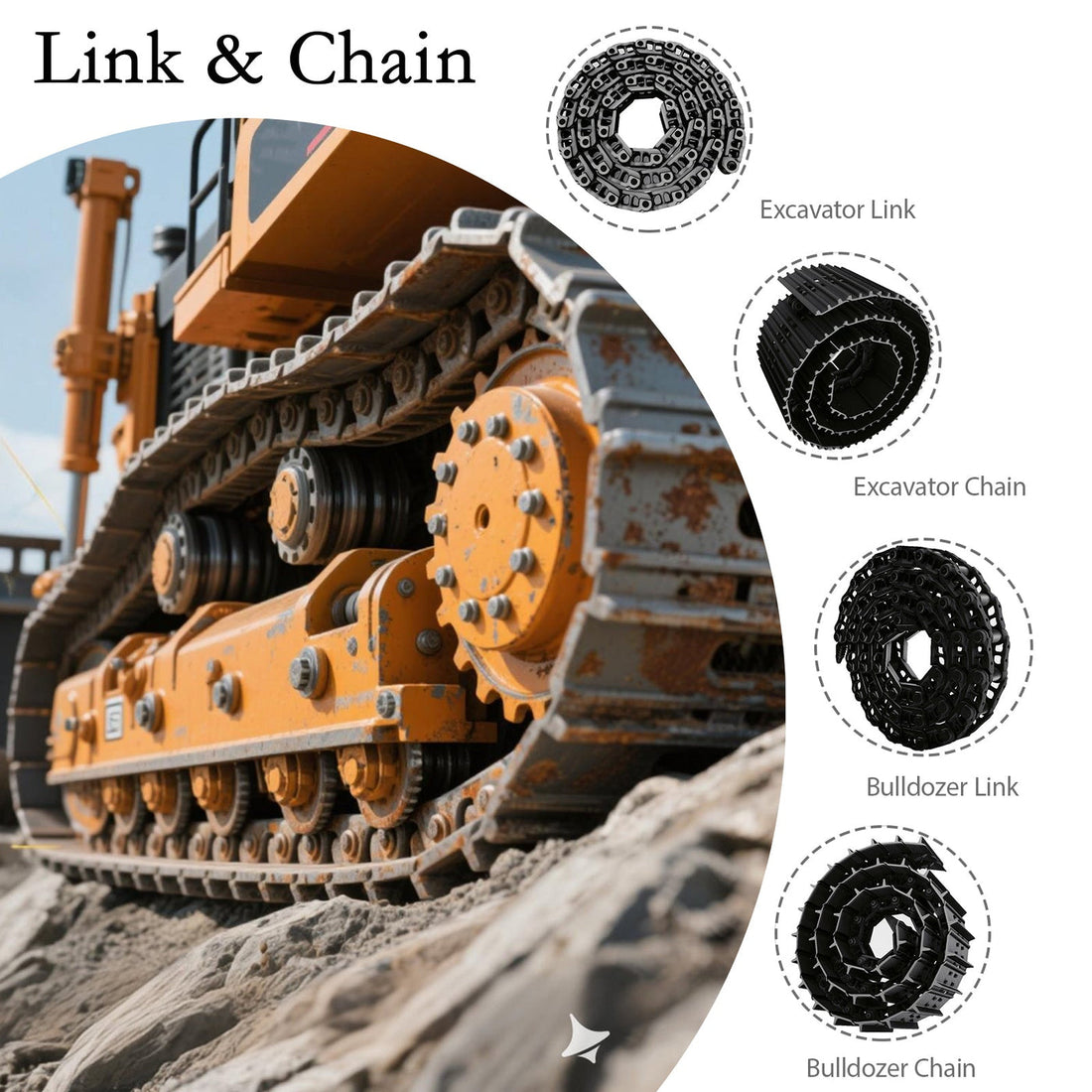

Excavator Track Chain Assembly Buying Decisions That Prevent Early Wear
A track chain assembly can look like a straightforward replacement part until the new chain begins wearing unevenly, the machine starts walking rough, or the sprocket and rollers reveal problems that were already developing. The costly mistake is rarely choosing a chain that is simply “strong enough.” It is choosing one that does not truly match the machine’s pitch, rail profile, shoe configuration, operating ground, and the condition of the rest of the undercarriage.
Last updated:
For excavator owners, fleet managers, and parts buyers, the practical question is not just which track chain fits. It is whether the entire track system can carry, guide, and drive that chain without transferring wear into pins, bushings, sprocket teeth, idlers, and rollers. A well-matched heavy-duty track chain assembly protects uptime; a near-match can create a short-lived repair cycle.
excavator track chain assemblies
Why Is the Track Chain Assembly the Undercarriage’s Backbone?
The excavator track chain assembly is the continuous steel link system that supports the machine, transfers drive force, and connects the track shoes to the undercarriage. It travels around the front idler and drive sprocket while lower and carrier rollers guide and support its movement.
In working conditions, the chain handles weight, impact, torque, side loading, and abrasive contamination at the same time. The lower rollers carry the machine’s weight, the sprocket drives through the bushings, the idler controls alignment, and the track shoes transfer force to soil, rock, pavement, or debris.
A useful assembly profile starts at the ground. Track shoes contact the surface and bolt to track links. Pins and bushings connect those links into a flexible chain. The sprocket teeth engage the bushings to move the machine, while the rollers support the rails on the links and the idler maintains the chain’s direction and tension.
The key purchasing lesson is simple: a chain is not an isolated component. Its service life is closely tied to the sprocket, idler, rollers, shoes, recoil system, and working conditions around it.
How Do Track Chain Pitch and Bushings Transfer Power?
Track pitch is the center-to-center distance between adjacent pins in the chain. It determines how the bushings meet the sprocket teeth, which makes it one of the most important dimensions to confirm before buying a replacement track chain assembly.
When the sprocket rotates, each tooth contacts a bushing and pulls the chain forward. The pins and bushings allow the links to articulate around the sprocket and front idler, while the link rails run over rollers. A small mismatch in pitch, bushing diameter, or sprocket engagement can create concentrated load instead of smooth power transfer.
Buyers often focus first on the number of links because it is easy to count. Link count matters, but it does not confirm complete compatibility. Pitch, link height, rail dimensions, bushing outside diameter, shoe-bolt pattern, and master-link design all influence whether the new chain will run correctly.
A chain may physically install while still operating with poor engagement. That is where premature bushing wear, sprocket damage, rough travel, and alignment problems can begin.
Which Track Chain Type Matches the Job Site?
The best excavator track chain depends on how the machine works most of the time, not on the occasional extreme task. A quarry excavator operating on abrasive rock faces different wear conditions from a utility machine working on compacted urban soil or a machine crossing wet ground.
| Track Chain Configuration | Suitable Applications | Important Buying Considerations |
|---|---|---|
| Sealed and lubricated track chain | General excavation, earthmoving, mixed construction | Seal quality, bushing fit, sprocket condition, joint protection |
| Heavy-duty track chain assembly | Quarry work, demolition, hard digging, abrasive conditions | Link strength, rail wear allowance, heat treatment, roller condition |
| Standard steel chain with grouser shoes | General excavation and trenching | Shoe width, grouser pattern, soil conditions, machine clearance |
| Wide-shoe configuration | Soft soil, wet ground, low-bearing terrain | Floatation requirements, turning resistance, side-loading risk |
| Chains with rubber pads | Roadwork, landscaping, finished surfaces | Pad attachment, surface protection, maintenance access |
Heavy-duty is not automatically the correct choice for every excavator. More aggressive shoes or wider configurations can improve performance in certain conditions but may increase turning resistance and bending load on firm ground.
KTSU works across more than 3,000 undercarriage component items associated with Caterpillar, Komatsu, and Hitachi fitments. That breadth reflects a common field reality: machines with a similar operating weight can still use different pitches, rollers, rails, sprockets, and shoe arrangements.
What Should You Check Before Buying an OEM-Fit Track Chain?
An OEM-fit excavator track chain should match the machine’s actual undercarriage specification, not just the nameplate model. Serial-number ranges, track-frame versions, shoe options, and previous repairs can all affect the required configuration.
Before ordering, verify the machine make, model, serial number, track pitch, link count, bushing diameter, rail height, shoe width, shoe-bolt pattern, and master-link arrangement. It is also worth checking whether the replacement is a bare chain, a chain with shoes installed, or a complete track group.
The condition of adjoining components should be reviewed at the same time. Hooked sprocket teeth, seized rollers, damaged front idlers, leaking adjusters, and worn recoil springs can all shorten the life of a new chain. Replacing only the chain may seem economical at first, but it can be a poor decision if the remaining undercarriage cannot run with it properly.
The most reliable approach is to compare the replacement chain with the current undercarriage measurements and machine documentation. A parts catalogue is useful, but a physical inspection helps prevent expensive fitment assumptions.
Why Do New Track Chains Sometimes Wear Out Too Soon?
A new track chain can wear prematurely when it is installed into an undercarriage with incompatible wear or operated under poor tension and harsh contamination. In most cases, the visible chain damage is a symptom of a wider system problem.
One common situation is installing a fresh chain on worn sprockets. If the sprocket teeth have become hooked or narrowed, they no longer engage the new bushings evenly. Instead of distributing drive load across the intended contact area, they can create repeated impact and concentrated pressure.
Roller problems can be equally damaging. A roller that is seized or badly worn forces the link rail to slide rather than roll, accelerating rail wear. Poor idler alignment can cause the chain to travel off-center, while excess mud, stone, or demolition debris can alter tension and block roller movement.
Track tension also creates a major expectation gap. A chain adjusted too tightly raises friction across bushings, sprockets, rollers, and idlers. A chain that is too loose may increase derailment risk, impact loading, and uneven guidance. The proper setting depends on the machine model and work environment, so operators should follow the manufacturer’s inspection method rather than use a generic slack estimate.
The buying decisions that decide early wear
Early wear on a new chain is usually a decision made before the order rather than a fault in the part. Four decisions cover most of it.
| Decision | What goes wrong | What settles it |
|---|---|---|
| Pitch and bushing size matched to the machine | The chain fits and does not match the sprocket, so both wear from the first hour | The measurement from the chain that is on the machine, and the sprocket profile |
| Type matched to the ground | A specification chosen for one duty and worked in another | The condition the machine spends most of its hours in, and which one ended the last chain |
| Link count and configuration | The chain cannot be set to the correct tension range on that machine | The configuration the machine was built with, confirmed rather than assumed |
| Whether the undercarriage is ready for a new chain | A new chain fitted to a worn sprocket and rollers wears to the old pattern | Sprocket, roller and idler measurements taken before the chain is ordered |
The last row is the one that most often explains premature wear on a new chain, and it is the one that costs nothing to check. A chain cannot be bought independently of the drive it will work against, which is why the useful sequence is to measure everything first and to decide what to replace second.
How Can Operators Extend Track Chain Life?
Longer track chain life depends on clean running surfaces, correct adjustment, routine inspection, and operating habits that reduce unnecessary side load. The goal is not to eliminate wear, because undercarriage wear is unavoidable, but to make it steady and predictable.
Start with regular walk-around inspections. Look for loose shoe bolts, oil or grease leakage around joints, cracked links, damaged grousers, uneven rail polish, missing hardware, and rollers that do not rotate smoothly. Packed material should be removed from the track frame before it changes roller movement or creates abnormal tension.
Operators can also reduce stress by limiting repeated sharp pivots where possible, avoiding unnecessary high-speed travel, and varying turn direction during repetitive work. Parking on level, firm ground can reduce stress on the chain and adjustment system during downtime.
KTSU’s Kunshan facility covers 70,000 square meters and incorporates CAD/CAM design, precision CNC machining, NITTO friction welding, and robotic CO2 welding in its production environment. For buyers, the practical takeaway is that durability depends on dimensional consistency, controlled manufacturing, and correct fitment just as much as material selection.
KTSU Expert Views
A track chain replacement should be treated as an undercarriage assessment point rather than a simple parts transaction. The chain must articulate at every joint, run over rollers, engage the sprocket, remain guided by the idler, and carry machine weight through the lower frame. If those interfaces have incompatible dimensions or uneven remaining service life, a new chain may expose existing wear faster than expected.
The most useful inspection evidence is often the wear pattern rather than the machine model alone. Uneven rail wear may point to roller issues. Repeated bushing distress can suggest sprocket mismatch or incorrect tension. Track wandering may involve the idler, frame, recoil system, or alignment rather than the replacement chain itself.
KTSU’s Sino-Japanese manufacturing background combines Japanese technical methods with manufacturing in Kunshan, Jiangsu. The practical purchasing approach remains the same across brands and machine sizes: verify dimensions, evaluate the operating environment, inspect adjoining components, and match the chain specification to the actual job rather than selecting by price alone.
Frequently Asked Questions
What could be causing my excavator track to keep coming off?
Tension below specification and alignment problems explain most cases, and they cost nothing to check. Beyond those, a chain whose pitch has extended against a worn sprocket, worn guide surfaces, and packing that holds the chain off its seating are the usual causes.
Why does a new track chain wear out too soon?
Usually because the machine it was fitted to was not ready for it. A worn sprocket, worn rollers or an alignment problem will wear a new chain to the old pattern rather than to its own.
What should be checked before buying a track chain assembly?
The pitch and bushing size from the chain on the machine, the sprocket profile and tooth thickness, the roller and idler measurements, and the link count and configuration. Those four decide whether the new chain can deliver its own service life.
Should the sprocket be replaced at the same time as the chain?
Where the sprocket is near its limit or the pocket profile has changed, yes, because the pair determines the next interval. Where the sprocket is sound, replacing the chain alone is a normal repair.
