Duo-Cone vs HDDF Floating Seals: Interchangeability Check

A floating-seal label does not tell you what is inside a housing. Before you consider any replacement, identify the actual design family and the housing envelope it sits in, and get a written basis from the seal maker for any substitution. This article uses the Caterpillar distinction between its Duo-Cone and Heavy Duty Dual Face (HDDF) designs to show why a shared nominal size or a shared label is not enough. It does not map any Cat part number to another maker's, and it does not say whether any particular seal will fit any particular housing.

Why the label is not enough

Caterpillar's public seal page describes two designs in its own line. Both use nonmetallic load rings to load the metal seal ring, but they differ in geometry: the Duo-Cone has a round load ring, while the HDDF has a rectangular Belleville washer. They also differ in the space they need. Cat says the Duo-Cone requires less room radially, and the HDDF requires less room axially. Cat also describes the HDDF as suiting a square-bore housing cavity, and says it needs no assembly tool or assembly lubricant, while the Duo-Cone is described as stable in the housing before final assembly.

So within one manufacturer's line, two seals sold as the same kind of product have different load elements and place different demands on the cavity. Other makers sell floating seals under their own names and part numbers, and online sources often use "floating seal" and "Duo-Cone" as though they mean the same thing. A label tells you what a seller calls the part, not what its cross-section is or what space it needs.

Same nominal diameter, different cavity

This case is hypothetical. Two seals are both described as suited to the same nominal diameter. One has a round load ring and needs more axial room, the other has a rectangular element and needs less axial room but more radial space, or the other way round. The cavity measured at the machine is built around one of those profiles. A seal that matches the nominal diameter can therefore still sit wrongly in the cavity, with the load element compressed or positioned differently than its designer intended. Nominal size alone cannot rule that out, so a substitute is not justified by it.

The point generalizes: the questions that decide a replacement concern the section and the housing interface, not the name on the packaging.

Build a seal-family interface card

Fill in a card for the seal you have and for any proposed replacement. It is a recommended review aid, not a form required by any maker or standard.

If the maker approval is missing, record the replacement as unresolved. Do not fill the gap with a catalog size match or a similar-sounding name.

What Cat's page does and does not support

Cat's page is evidence about Cat's own seals: their load-ring shapes and space needs. It does not authorize aftermarket interchangeability, and it does not show that any other maker's seal corresponds to a Cat design. It also cannot support any service-life claim for a seal from another source, and this article makes none. Lubricant and fluid compatibility, and seal-face surface measurements, are separate decisions with their own reviews.

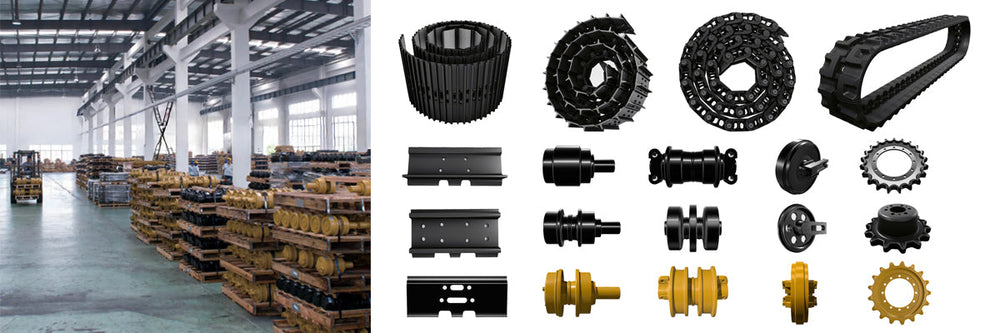

KTSU is not shown by this page to be an OEM or to hold any maker's approval. For a seal or roller from KTSU, provide the original reference, the housing drawing and the application when asking what identity documentation is available. The public excavator undercarriage parts collection identifies the product family. It does not establish fitment or interchangeability for any seal.

The check is complete when each interface-card field is filled from controlled documents and the replacement either has a written maker basis or is held as unresolved.
