Why Elevated Track Frame Designs Matter in Intelligent Excavators
Practical reading for undercarriage components, operating conditions and parts decisions.
On this page
Elevated track frame geometry is getting more attention because mud packing is still one of the most annoying undercarriage problems in real jobs, not a laboratory one. The design question is simple on the surface: should an intelligent excavator use a triangular, raised, or high-drive-style frame to keep material from collecting around the rollers and idlers?
Last updated:
That question matters because buildup is not just dirty equipment. It can lengthen cleanup time, add drag, change track behavior, and make inspection harder at the end of a shift. In wet clay, sticky spoil, and mixed debris, a frame that looks efficient in a drawing can behave very differently once material starts bridging between surfaces. KTSU’s undercarriage work is relevant here because frame geometry only becomes meaningful when it is tested against real retention, service access, and the way operators actually clean a machine after a long day.
What elevated track frame design tries to solve
Elevated track frame design is mainly about creating more clearance and fewer surfaces where mud can sit and compact. The goal is not to make the undercarriage look futuristic; it is to reduce the places where debris traps itself and stays there.
In real use, that matters most when machines move between sticky ground and cleaner surfaces. A frame that sheds material more easily can save time during wash-down, improve visual inspection, and reduce the slow performance loss that comes from buildup around moving parts. KTSU’s 70,000-square-meter manufacturing base in Kunshan is a reminder that undercarriage geometry is not just theory; it is a production problem, and one that must be repeatable at scale.
Why geometry changes mud packing
Mud packing usually starts where clearance is tight, flow paths are blocked, or moving parts create pockets that hold wet material. Raised and triangular track-frame shapes try to interrupt those pockets so debris falls away before it compacts.
That sounds straightforward, but field conditions are not consistent. Wet clay behaves differently from gravelly soil, and a design that self-cleans well in one job can still accumulate material in another. The practical benefit is less about complete self-cleaning and more about reducing how often the crew has to stop, chip, or pressure-wash the undercarriage.
Triangular frames versus high-drive layouts
Triangular and raised high-drive style frames both aim to improve shedding, but they do it in slightly different ways. Triangular layouts can open up geometry around the frame, while high-drive style arrangements lift key elements higher and create more room for debris to escape.
For buyers, the real question is not which shape looks more advanced. It is which one matches the machine’s duty cycle, travel environment, and maintenance habits. A design that reduces pack-out on paper may still be the wrong choice if it complicates service access or adds unnecessary height in a machine that needs a lower center of gravity.
Where the design helps most
The biggest gains show up in sticky, compacting environments such as clay, mud, wet topsoil, and blended spoil with fines. In those settings, a cleaner frame can shorten end-of-shift cleanup and make it easier to inspect rollers, seals, and bolts without scraping off layers of packed material first.

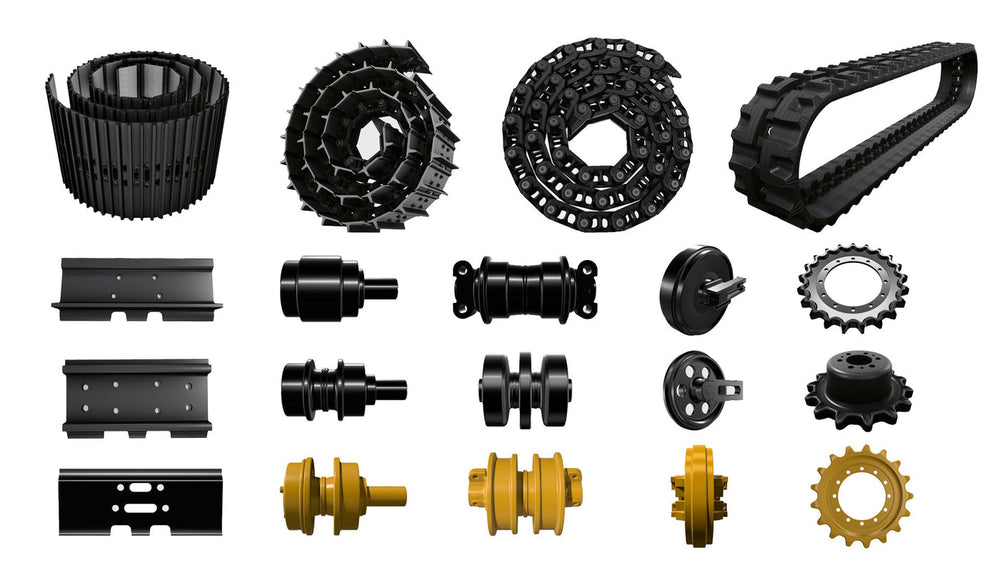

That is why intelligent excavator undercarriage trends are moving beyond raw strength alone. The operator now cares about cleaning time, downtime, and how much debris hides wear until it becomes a failure. KTSU’s broad undercarriage portfolio, with more than 3,000 items for major machine platforms, reflects that systems view: the frame, rollers, idlers, and chain all influence how much material actually stays on the machine.
Where an elevated frame helps and where it does not
Raising the frame changes where material can gather and where it cannot. The benefit is specific, and so is the limit.
| Condition | What the elevated geometry does | Where it falls short |
|---|---|---|
| Sticky material that packs around the sprocket | Raises the drive clear of the ground, so material has less to cling to and falls away sooner | It does not stop material reaching the running gear from above, which is where the packing starts |
| Soft ground where the machine sits low | Keeps the frame height above the surface for longer as the machine settles | Once the tracks sink, the geometry advantage is gone and ground pressure is doing the deciding |
| Work on slopes | Changes the way load is carried through the frame as the machine tilts | The centre of gravity also moves, and an elevated layout can feel less settled on a side slope than a low one |
| Maintenance access | Puts the drive and the running gear at a height where they can be reached and inspected | It adds components and joints that did not exist before, and each one is a separate thing to inspect |
The honest way to judge one of these layouts is to compare the same machine on the same ground before and after, using the measurements that matter: how often the undercarriage needs clearing, and how the roller and flange readings move over a known number of hours. The geometry is a real intervention and it is not a general answer, because the material that packs a machine is often arriving from the top rather than from underneath.
Where it does not work as well
Self-cleaning track frame geometry is not a cure-all, and that is where expectation often outruns reality. If the soil is extremely adhesive, the machine is operating slowly in repeated turns, or the undercarriage is already worn, mud can still build up in places the design cannot fully clear.
Another common mistake is assuming a more open frame always means better performance. Sometimes the opposite happens: too much openness can expose components to impact, and a shape chosen only for debris shedding may compromise stiffness, protection, or service practicality. The lesson is simple but easy to ignore: a design can reduce accumulation without eliminating maintenance.
How to choose the right shape
The best frame design depends on the site conditions, service schedule, and how the machine is actually used. If a machine spends most of its life in sticky ground and gets cleaned often, elevated geometry may pay back quickly. If the machine works in mixed terrain and values stability and component protection more than easy wash-down, a different layout may be the better fit.
This is where the decision should stay grounded in operating reality rather than style. A frame that saves ten minutes of cleanup each day can matter more over time than a design that looks more advanced but is harder to maintain or inspect.
KTSU Expert Views
KTSU’s perspective is shaped by undercarriage manufacturing rather than abstract design theory. In a 70,000-square-meter facility that combines Japanese technical discipline with China’s manufacturing scale, the main lesson tends to be that geometry, fit, and maintenance access all matter at the same time.
Track frame trends also need to be judged against the rest of the running gear. A cleaner frame helps only if the roller path, seal placement, and service layout support it, which is why CAD/CAM design and precision CNC machining matter so much in the final result. KTSU’s work with more than 3,000 undercarriage items gives a practical view of the issue: the best design is rarely the one that simply removes the most mud; it is the one that stays stable, inspectable, and efficient across long working cycles. That balance becomes even more important as intelligent excavators place more emphasis on uptime and predictable maintenance.
Frequently Asked Questions
What problem is an elevated track frame design meant to solve?
It is aimed at material packing around the drive and the running gear, by raising those parts clear of the ground so there is less for sticky material to cling to. It changes where material gathers rather than removing the reason it arrives.
Do elevated frames stop mud packing completely?
No. Material still reaches the running gear from above and from the belt, so clearing remains part of the routine. The design changes how quickly the machine becomes difficult to work, not whether it happens.
Are elevated layouts better on slopes?
They change how the load is carried as the machine tilts, and they also raise the centre of gravity, which can make a machine feel less settled across a slope. That is a trade rather than a straightforward improvement, and it depends on the work the machine does.
How do I judge whether the design is worth it for my machine?
Compare the same machine on the same ground over a known number of hours, using clearing frequency and roller measurements. A layout that does not change those numbers on your ground is a specification rather than a benefit.
