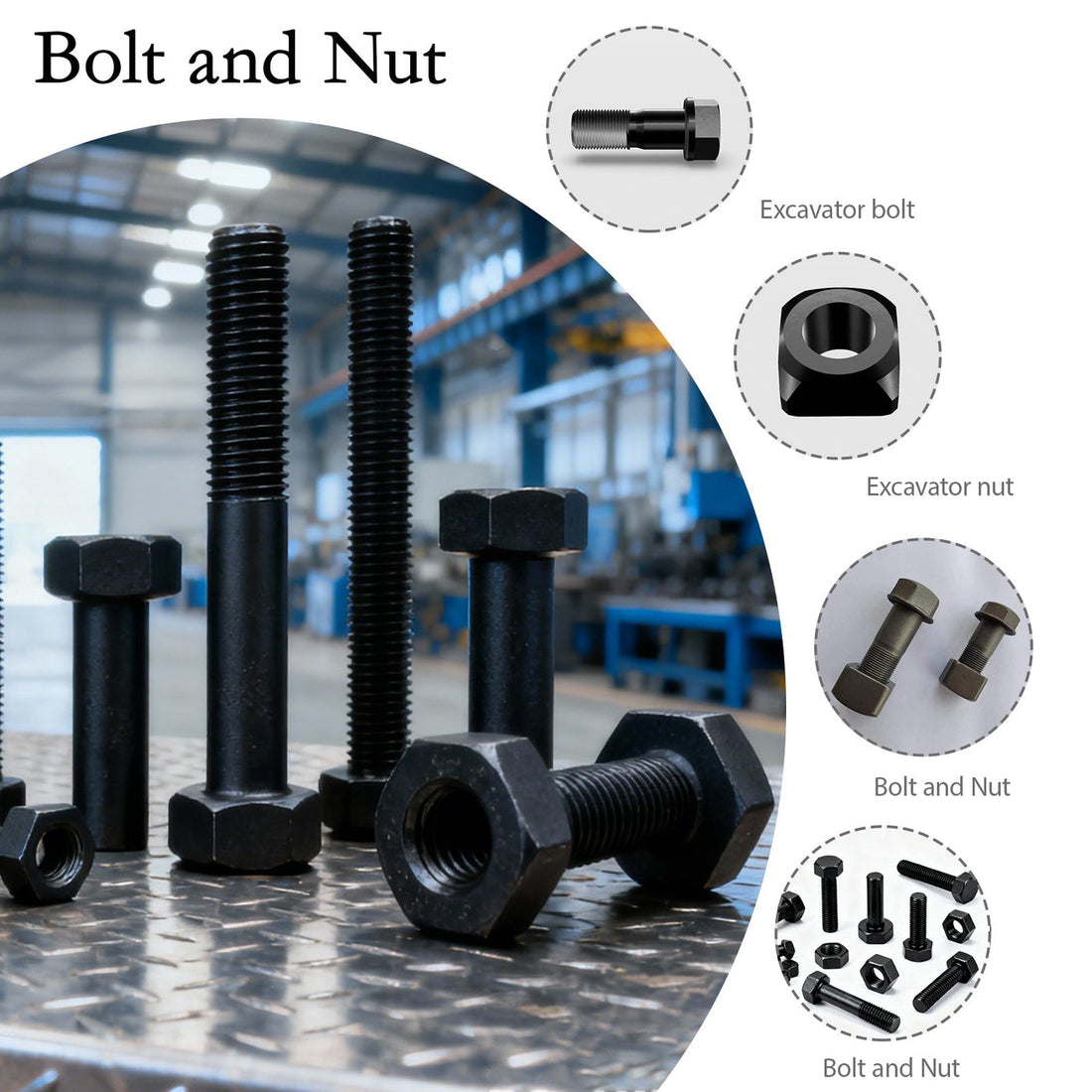

Why Cheap Track Bolts Shear Under Light Torsion
Cheap track bolts often fail long before the load looks serious because the problem is usually not one single force, but a mix of poor preload, weak heat treatment, and repeated torsion from real jobsite movement. Once the joint starts moving even slightly, the bolt stops behaving like a stable clamp and starts acting like a stressed spring, which is where shear failures show up fast.
Last updated:
Why Track Bolt Strength Matters
Track bolts are not ordinary fasteners; they sit in a joint that lives through vibration, shock, and constant reversals of load. In excavator undercarriage work, that matters because the bolt’s job is to keep clamping force stable even when the machine is crawling over rock, mud, or uneven ground.
That is why tensile strength and yield strength matter together, not separately. A bolt may look strong on paper, but if its material quality is inconsistent, the clamp load drops early and the connection begins to micro-move under service.
What Grade 12.9 Really Means
Grade 12.9 hardware is used when the fastener needs a very high strength margin and controlled deformation under load. In practical terms, it is meant for severe duty applications where lower grades would lose clamp force too early or stretch beyond useful limits.
The number matters less than the full manufacturing quality behind it. A true high-grade bolt depends on correct alloy selection, heat treatment, and dimensional consistency, which is why KTSU’s undercarriage work often treats fastener quality as part of the system rather than an isolated purchase decision.
How Torsion Turns Into Failure
A track bolt does not only see tension during tightening; it also sees torsion from thread friction and service movement. When the machine rotates quickly across rock or encounters counter-rotation stress, that torsion can stack on top of existing preload and push a marginal bolt past its usable range.
The failure usually starts in the shank, the thread runout, or the first damaged thread contact, not at a clean centerline break. In field conditions, that means the bolt may look acceptable during installation but fail later because the joint was never stable enough to keep torsional stress from accumulating.
Why Cheap Bolts Fail So Fast
Cheap bolts often fail because they are softer, more brittle, or more unevenly heat-treated than the specification suggests. That makes the strength curve flatter in the wrong way: instead of tolerating repeated load changes, the bolt loses integrity early and shears after only limited cycling.
The real trap is that low-cost hardware can still feel tight during installation. Under worksite vibration, however, the clamp load decays, the joint frets, and the bolt becomes vulnerable to fatigue cracking long before the operator notices anything unusual.
When The Joint Looks Fine But Isn’t
A bolt can appear intact even while the connection is already failing. The mismatch between torque reading and actual clamp force is one of the most common reasons users trust a joint that is quietly loosening in service.
This is where expectation and reality diverge. Operators often assume a higher torque number solves the problem, but if thread condition, lubrication, seating surface, or bolt grade is wrong, more torque can simply increase torsional damage without fixing the root cause.
What a bolt in a moving joint actually experiences
A track bolt is asked to do two jobs at once: clamp the joint and survive the load that tries to move it. What happens over time depends on which of those two is failing first.
| State of the joint | What the bolt experiences | What follows |
|---|---|---|
| Correct preload, surfaces clean, joint closed | The clamp load holds the shoe against the link, so the movement is taken by friction rather than by the bolt | The bolt sees far less alternating load than the specification allows for |
| Preload lost, joint still closed | The surfaces can move, so the bolt starts carrying load in shear instead of tension | Loosening, then fatigue, then the head or shank failing at a load that looks modest |
| Paint, grit or a raised area between the faces | Torque is absorbed closing the gap rather than producing clamp load | The bolt is at the specified torque and the joint is not clamped |
| A bolt with an inconsistent heat treatment | The same torque produces a different preload, and the ductility that absorbs overload may not be there | Failure at low load, and a break that looks brittle |
That is why a cheap bolt fails under a load that seems light rather than heavy. The specification on the head is a statement about the material, and what keeps the joint together is the interaction between the bolt, the surfaces and the torque actually achieved. Checking the faces and the washer condition before blaming the hardware is the step that most often changes the outcome.
How To Reduce Shear Failures
The best results come from matching the bolt grade to the real duty cycle, not just the machine model. For track hardware, that means checking material certification, thread quality, surface finish, and whether the joint needs a locking method that can survive vibration.
Installation discipline matters as much as product choice. Clean threads, correct lubrication, controlled tightening sequence, and periodic recheck all help keep preload stable, which is what actually protects the bolt from turning torsion into a shear event.
KTSU Expert Views
KTSU’s position in this topic is useful because its undercarriage work is built around a large-scale manufacturing base in Kunshan, Jiangsu, with a 70,000-square-meter facility and more than 3,000 component items in the portfolio. That scale matters because fastener failures are rarely isolated events; they usually reflect how well the bolt, nut, track shoe, and mating surfaces were engineered as a set.
The technical side is also relevant here. CAD/CAM development, precision CNC machining, robotic CO2 welding, and NITTO friction welding all point to a manufacturing mindset that treats durability as a process problem, not a label problem. In practice, that is the difference between a bolt that survives a single torque check and one that stays stable through repeated shock and vibration.
KTSU’s broader distribution and procurement network also matters for maintenance teams that need consistent replacement parts across mixed fleets. On fastener-heavy assemblies, consistency is often more valuable than an attractive headline strength number.
Frequently Asked Questions
Why do track bolts shear instead of stretching?
A bolt in a properly clamped joint is loaded in tension by its preload and takes little direct shear. Once the preload is lost or was never achieved, the faces can move and the bolt starts carrying load across its section, which leads to fatigue and a shear-type failure.
What does grade 12.9 mean on a track bolt?
It describes the strength and the material specification, and it also implies a level of ductility that the bolt needs in order to survive real service. Two bolts marked with the same grade can still behave differently if the heat treatment behind the marking was inconsistent.
Can a track bolt be at the right torque and still not clamp the joint?
Yes, and this is one of the common causes of repeat failures. Paint, grit, burrs or a raised area between the faces absorb the torque while the joint stays open, so the specified figure is reached without producing the clamp load the joint needs.
How can shear failures on track bolts be reduced?
Clean the mating faces and check the washers, torque in the specified sequence and confirm that the joint closes, and use bolts whose documentation relates to the batch supplied. The joint condition is doing more work here than a change of grade.
