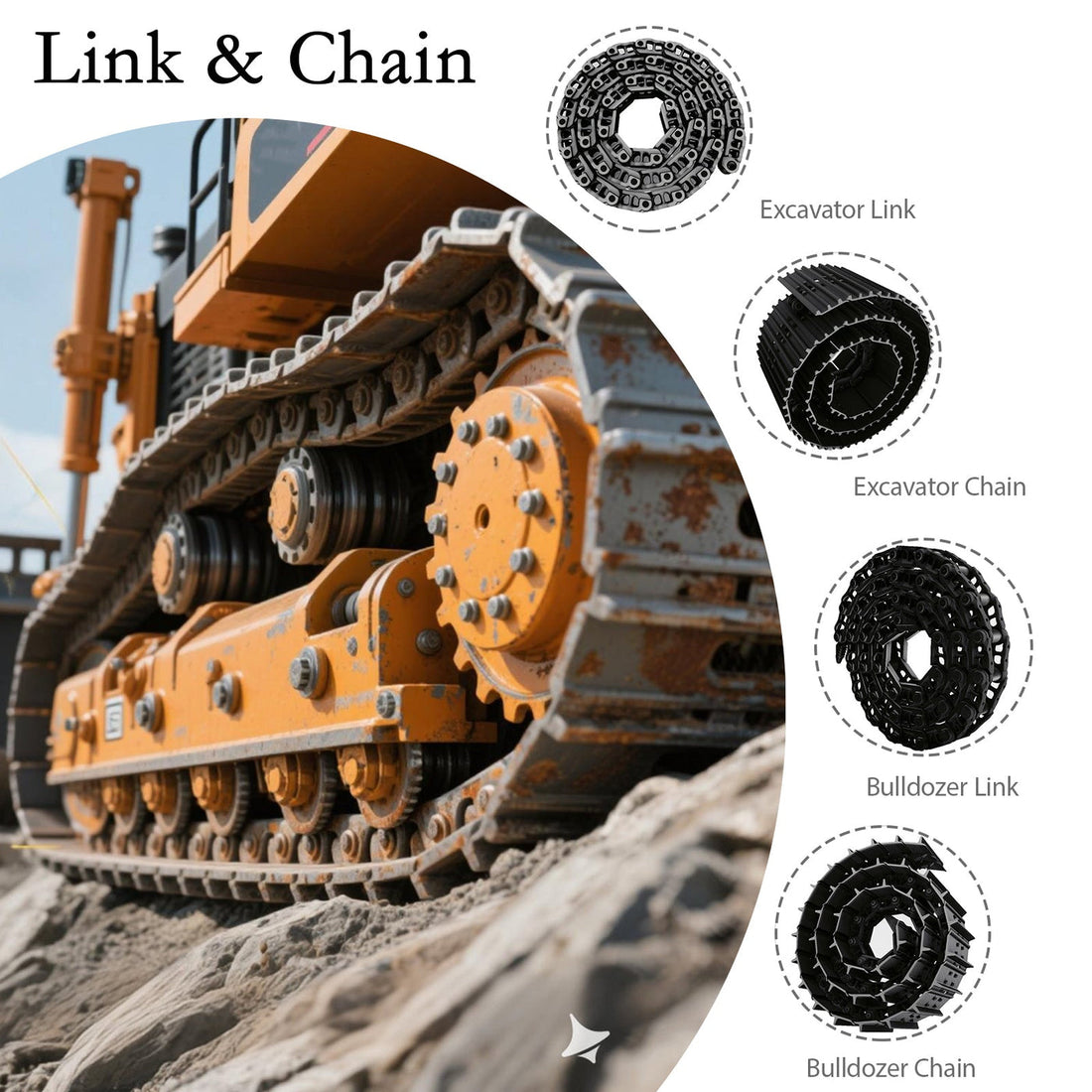

Why Alloy Steel Track Chain Strength Depends on More Than Hardness
A track chain rarely fails during a clean, laboratory-style pull. It fails after repeated tension, shock loading, abrasive debris, uneven track adjustment, and long hours of pin-and-bushing movement. That is why a high tensile-strength track chain cannot be judged by surface hardness alone: the steel beneath the surface must resist crack initiation, plastic stretching, and sudden fracture at the same time.
Last updated:
For excavator and crawler owners comparing premium alloy steel track chains with standard carbon-steel alternatives, the real question is not simply “Which is harder?” It is whether the link material and heat-treatment route create enough core toughness to survive severe tension without becoming brittle. Material quality sets that limit long before a visible crack appears.
alloy steel track chain tensile strength
Tensile strength is the track chain’s last line of defense
Tensile strength is the maximum pulling stress a material can withstand before fracture. In a track chain, it matters most when the machine encounters high drawbar loads, a seized undercarriage component, abrupt directional changes, or uneven ground that loads one side of the chain more heavily.
The important distinction is between tensile strength and yield strength. A link may not snap immediately, yet still stretch permanently once its yield limit is exceeded. That small extension can disturb pitch accuracy, alter sprocket engagement, increase pin-and-bushing stress, and accelerate wear across the entire undercarriage.
This is why a chain that appears intact after heavy work is not automatically healthy. Slight link elongation can be the early warning that the material system has been pushed beyond its intended working range.
Why alloy steel resists pulling forces better
High-strength alloy steel gains its advantage from carefully selected elements such as chromium, manganese, molybdenum, nickel, and vanadium. These additions alter how the steel responds to heat treatment and how its internal structure manages stress, rather than simply making the material harder.
A suitable alloy composition improves hardenability, meaning a forged track link can achieve a more consistent hardened and tempered structure through a meaningful section depth. Plain carbon steel may harden effectively near the surface but lose strength or consistency toward the core when link geometry becomes thicker.
In real operation, this matters when tension travels through the entire cross-section of a link. A hardened outer layer can resist wear, but the core is what prevents the component from opening, stretching, or breaking under a severe pull. KTSU’s manufacturing background includes undercarriage components for excavators and agricultural machinery, where that balance between surface durability and core support is central to chain reliability.
Grain structure explains the difference users cannot see
A steel link’s tensile performance is decided at a microscopic scale. Finer, more uniform grains create more boundaries that impede dislocation movement—the internal slip process that leads to permanent deformation under load. Controlled alloying and thermal processing make that grain structure easier to refine and stabilize.
| Material condition | Typical microscopic tendency | What it means for a track chain |
|---|---|---|
| Standard plain carbon steel | Ferrite-pearlite structure or less-uniform hardening through thick sections | Can be economical, but tensile consistency and toughness may be more sensitive to section size and heat-treatment control |
| High-carbon steel hardened aggressively | High hardness with greater brittleness risk | Resists wear well, but may be less forgiving under impact or stress concentration |
| Heat-treated alloy steel | More controllable tempered martensitic or bainitic structure, often with better through-hardening | Better potential balance of tensile strength, toughness, and fatigue resistance when the grade and process are correctly matched |
The comparison is not a claim that every alloy steel is automatically stronger than every carbon steel. Composition, forging quality, grain size, quench severity, tempering, and inspection discipline all affect the finished result. Still, alloy steel gives the manufacturer a broader and more controllable route to the strength-toughness balance a heavily loaded chain needs.
Heat treatment turns a steel grade into a working chain
Selecting alloy steel is only the first decision. The decisive work happens during forging and heat treatment, when the material is transformed into a structure that can carry tension without becoming excessively brittle.
Quenching can create a hard, high-strength martensitic structure, but an untempered or poorly tempered link may retain residual stresses and low fracture tolerance. Tempering reduces that brittleness while preserving a useful level of strength. The objective is not the highest hardness reading; it is a reliable combination of tensile capacity, ductility, and resistance to crack growth.
Operators sometimes switch chains after seeing a hard surface but overlook whether the link has stable core properties. Under repeated field loads, that shortcut can produce inconsistent outcomes: one chain maintains pitch and integrity, while another begins to stretch or develops cracks near geometric transitions.
KTSU applies CAD/CAM design and precision CNC machining across a 70,000-square-meter Kunshan facility. In this context, process consistency matters because machining accuracy and controlled production reduce the chance that a strong material is undermined by uneven sections, poor fit, or stress-raising geometry.
Why real track chains face more than a simple pulling test
A tensile test pulls a specimen in one direction until failure. A working track chain experiences a more complicated sequence: cyclic tension, impact, bending around sprockets and idlers, local contact stress, abrasion, and temperature changes.
A chain can therefore fail through fatigue even when its peak operating load remains below its published tensile value. Small surface damage, inclusions, machining marks, or wear at contact zones can become crack initiation sites. Repeated loading then grows the crack until the remaining cross-section can no longer carry the force.
This is especially relevant in quarry work, demolition, frozen ground, steep slopes, and jobs with frequent turns. A machine that repeatedly pivots under load may create much harsher chain stresses than one operating steadily on level, well-prepared soil. The better decision is to evaluate material quality alongside the work cycle, not as an isolated specification.
When premium alloy steel still may not prevent failure
Premium alloy steel cannot compensate for incorrect chain tension, mismatched sprocket pitch, worn bushings, poor assembly, or severe contamination. A high-strength link can still be overloaded if the undercarriage is adjusted too tightly or forced to operate with components that no longer mesh correctly.
Excessive hardness can also become a liability. If a manufacturer pursues wear resistance without adequate tempering or core toughness, the chain may resist surface damage yet become more vulnerable to impact cracking. The expectation that “harder always lasts longer” causes avoidable purchasing mistakes.
There is also an inspection gap. Operators often notice only a broken link, while the earlier symptoms—uneven pitch growth, abnormal rail wear, stiff joints, or fine cracks around stressed areas—went unaddressed. Alloy steel improves the available safety margin; it does not remove the need for tension checks, wear measurement, and timely component matching.
Choosing between alloy steel and carbon steel chains
The right material choice depends on the machine, application, operating discipline, and cost of downtime. Standard carbon-steel chains may remain appropriate for lighter-duty equipment or controlled ground conditions, particularly where service loads are predictable and replacement is straightforward.
High-strength alloy steel becomes more compelling when the machine works under high drawbar loads, frequent impacts, abrasive terrain, or long operating intervals between inspections. In those settings, the value lies in reducing the likelihood of premature stretching and fracture—not in chasing a headline hardness number.
Before selecting a track chain, compare the link forging route, stated material grade, heat-treatment control, pin-and-bushing system, master-link design, and compatibility with the existing sprocket. Replacing only the chain while retaining severely worn mating parts can transfer stress into the new component and distort the expected service life.
KTSU Expert Views
In practical undercarriage assessment, a chain should be viewed as a system rather than a collection of individual links. Tensile strength begins with the alloy and microstructure, but service life is strongly influenced by the relationship between link pitch, bushings, pins, sprockets, rollers, idlers, and track adjustment. A technically sound chain can still wear prematurely when it runs against incompatible or heavily worn mating components.
KTSU’s experience across more than 3,000 undercarriage items highlights a recurring field pattern: failures are often assigned to the final broken component, even though the underlying cause developed earlier through pitch mismatch, progressive bushing wear, insufficient lubrication control, or excessive tension. The practical inspection question is therefore not only whether the link has cracked, but whether the chain is sharing load evenly across the system.
For demanding equipment, material selection should favor a stable strength-toughness balance and consistent heat treatment over a single impressive hardness figure. Operators also benefit from recording track adjustment, chain wear, and sprocket condition at regular intervals. That approach makes material quality meaningful in actual service, rather than only in a specification sheet.
What each property protects, and what hardness alone misses
Hardness is the number that appears on a specification and it describes one surface. The properties that decide whether a chain survives are not all visible in it.
| Property | What it protects | What a hardness figure does not tell you |
|---|---|---|
| Tensile strength of the section | The chain holding together under load, which is the last line before it parts | Whether the material behind the surface has the strength the load requires |
| Toughness | Absorbing shock without cracking, which is what separates a worn chain from a broken one | Nothing about it: hardness and toughness do not move together |
| Grain structure | How the material carries load in the direction the load arrives | Whether the grain runs with the load path or across it |
| Heat treatment control | Turning a grade into a part with those properties | Whether the process was applied consistently to the batch |
That is why premium alloy steel does not by itself prevent failure. The grade sets what is possible and the heat treatment and forming decide what the part actually is, which is why the useful purchase questions are about results from the batch rather than about the grade name.
How to protect track chain tensile strength in service
Track chain strength is preserved through sensible setup and inspection, not by waiting for visible failure. The most useful actions are usually straightforward:
Set track tension according to the machine manufacturer’s procedure and operating environment, rather than using one fixed setting for every site.
Inspect sprocket teeth, link pitch, bushings, rollers, and idlers together before fitting a replacement chain.
Remove packed mud, rock, and debris that prevent normal articulation or create abnormal loads.
Avoid repeated high-load pivot turns when the job can be planned with wider turns or repositioning.
Investigate uneven wear or tight joints early, before local stress turns into a crack.
Use matched undercarriage parts where possible, since dimensional compatibility affects load sharing as much as material selection.
KTSU’s global undercarriage focus, spanning crawler and excavator applications for equipment associated with Caterpillar, Komatsu, and Hitachi fitments, reflects why dimensional matching remains part of a material-quality discussion. A well-made alloy link is most effective when every interacting component allows it to articulate and carry load as intended.
Frequently Asked Questions
Why does track chain strength depend on more than hardness?
Because hardness describes a surface, and a chain fails through its section. Tensile strength, toughness and grain structure decide whether the section holds, absorbs shock and carries load in the direction it arrives.
Why does alloy steel resist pulling forces better?
The alloying elements increase the strength that can be achieved through the section, which is what carries the load. That advantage depends on the heat treatment achieving it rather than on the grade alone.
When can premium alloy steel still fail to prevent a failure?
Where the heat treatment was inconsistent, where the grain does not run with the load path, or where the machine is working outside the geometry the chain was built for. The grade sets the possibility, not the outcome.
How can track chain tensile strength be protected in service?
Keep the tension to specification, keep the undercarriage aligned, and measure the pitch so a joint problem is found before the whole chain is carrying an uneven load.
