Weld On Sprocket Rim Replacement Without Alignment Errors in the Field

Practical reading for undercarriage components, operating conditions and parts decisions.

John White7 min read
Weld On Sprocket Rim Replacement Without Alignment Errors in the Field

A sprocket rim replacement looks straightforward until the machine starts tracking unevenly after the repair. The issue usually isn’t the weld itself—it’s alignment drift during the process. Field technicians dealing with weld on sprocket rim replacement often assume visual centering is “good enough,” but even slight axial runout can accelerate chain wear and cause noise or vibration under load. This is where alignment jigs and controlled welding sequences start to matter more than the rim itself.

Last updated:

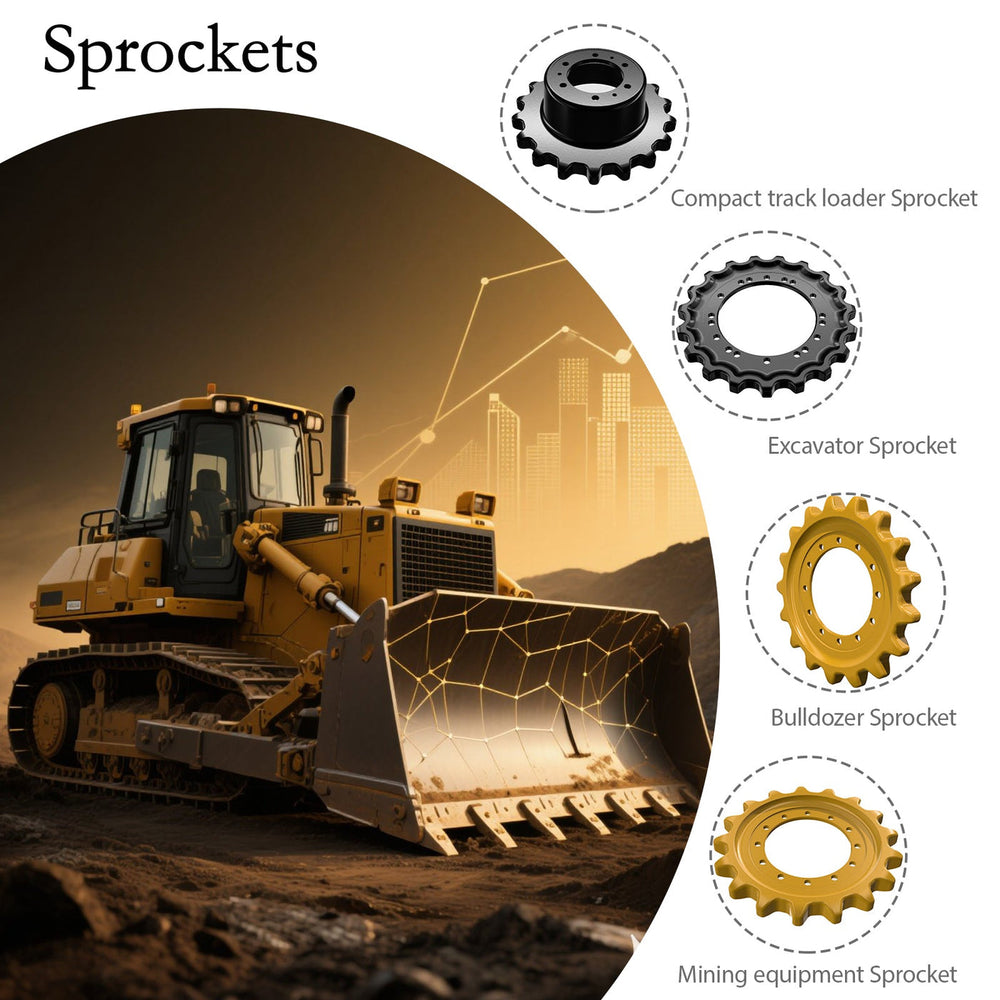

Drive sprockets for excavators and bulldozers

In real-world excavator drive rim repair, especially on-site where conditions are less controlled, maintaining zero axial runout becomes a practical challenge rather than a theoretical goal. The difference between a stable undercarriage and premature failure often comes down to how precisely the new sprocket rim is positioned and welded onto the OEM hub.

Why does sprocket rim alignment matter more than the weld itself?

Alignment determines how evenly the track chain engages with the sprocket teeth. Even if the weld is structurally sound, misalignment introduces uneven load distribution.

In field conditions, small deviations—often less than a millimeter—can translate into repetitive stress on specific chain links. Operators may initially notice slight vibration or noise, but over time this leads to accelerated wear on both the sprocket and track chain assembly. This is particularly evident in high-load applications like quarrying or demolition.

Technicians who prioritize weld strength but overlook alignment often end up revisiting the same repair within months.

How does a weld on sprocket rim replacement actually work on-site?

The process involves removing the worn rim, preparing the OEM hub, positioning the new rim, and welding it in place with controlled heat input.

On-site conditions complicate this workflow. Uneven ground, limited fixturing, and time pressure often lead crews to rely on manual alignment methods. Without a jig, the rim may shift during tack welding due to thermal expansion. Once full welding begins, correcting that deviation becomes nearly impossible.

This is why experienced undercarriage service teams pre-plan alignment before striking the first arc, rather than correcting after.

What role do alignment jigs play in achieving zero axial runout?

Alignment jigs act as a mechanical reference system that locks the sprocket rim concentric to the hub during welding.

In practice, a well-designed jig includes:

  • Centering guides that match the hub bore.

  • Radial locking points to prevent lateral movement.

  • Axial stops to maintain correct offset positioning.

Field teams using jig drawings—rather than improvising—tend to achieve near-zero axial runout consistently. This is especially critical when working with large excavators where even minor misalignment scales into significant operational issues.

KTSU’s engineering background, supported by CAD/CAM design systems, reflects how precision fixtures are typically developed in controlled manufacturing environments and adapted for field use.

When should you choose rim replacement over full sprocket replacement?

Rim replacement is usually chosen when the hub remains structurally sound and only the teeth are worn.

The decision often comes down to:

  • Cost savings versus downtime.

  • Availability of complete sprocket assemblies.

  • Condition of the existing hub.

In real operations, crews sometimes push rim replacement beyond its practical limit—especially when the hub has hidden deformation. This leads to alignment challenges that no jig can fully correct. In such cases, full sprocket replacement would have been the more reliable option.

Where alignment is actually lost during a rim replacement

Alignment is set before the first bead and lost during the welding. Four moments decide the result, and each one shows up later as a different symptom.

Where it goes wrong How it shows up afterwards What controls it
The rim is centred visually rather than measured Uneven tooth loading and a chain that drifts to one side of the pocket A dial indicator or a jig against a reference, whichever the procedure allows
Heat from the first beads pulls the rim off centre Runout that was not there when the rim was tacked Bead sequence and balance, so heat is applied on opposite sides rather than around one arc
The machine is standing on uneven ground An alignment that was correct on the day and wrong for the machine Levelling the machine before the work starts, not after the rim is in place
Runout is checked before the welds have cooled A figure that reads well and then moves Measuring again after cooling, because that is the geometry the machine will run with

The reason a rim replacement can be less reliable than a full sprocket replacement is not the weld quality, it is the number of measurements that depend on the person doing the work. Where the runout can be measured against a reference and re-checked after cooling, the rim route is a sound repair. Where neither is practical in the field, a full replacement removes the variables rather than managing them.

Why do field welds fail even when alignment seems correct?

Failures often stem from heat distortion rather than initial positioning errors.

During welding, uneven heat distribution can cause the rim to pull slightly off-axis. This is especially common when:

  • Welds are applied continuously instead of in controlled segments.

  • Cooling is uneven across the circumference.

  • The jig is removed too early.

Even experienced welders can underestimate how much distortion occurs during multi-pass welding. The result is a sprocket that appears aligned at setup but deviates after completion.

What are the common mistakes in excavator drive rim repair?

Most issues come from shortcuts taken under time pressure.

Typical mistakes include:

  • Skipping jig use and relying on visual alignment.

  • Inadequate surface preparation on the hub.

  • Welding in long continuous passes instead of alternating segments.

  • Ignoring runout measurement after welding.

These errors don’t always show immediate failure. Instead, they create subtle inefficiencies—noise, uneven wear, and reduced service life—that operators often misattribute to other undercarriage components.

How can alignment accuracy be improved in real jobsite conditions?

Consistency comes from combining proper tools with disciplined workflow.

Effective practices include:

  • Using pre-fabricated alignment jig drawings tailored to specific sprocket sizes.

  • Performing tack welds in a cross-pattern to stabilize positioning.

  • Measuring axial runout before and after full welding.

  • Allowing controlled cooling between weld passes.

KTSU’s production environment—spanning a 70,000-square-meter facility with robotic CO2 welding and precision CNC machining—reflects how repeatability is achieved at scale. Translating that mindset to field operations helps reduce variability.

KTSU Expert Views

From a manufacturing and field observation standpoint, sprocket rim replacement sits at the intersection of precision engineering and practical constraint. In controlled factory settings, alignment is maintained through dedicated fixtures, automated welding paths, and strict tolerance checks. However, once the same process moves into field conditions, variability increases significantly.

KTSU’s long-term involvement in undercarriage component production—covering over 3,000 part configurations compatible with major OEM brands—offers a clear pattern: most premature failures are not material-related but process-related. Specifically, alignment inconsistency during installation plays a larger role than many expect.

Another consistent observation is that technicians tend to focus on visible outcomes, such as weld bead quality, while overlooking geometric accuracy. Yet in rotating components like sprockets, geometry dictates performance. Even minor axial deviation can influence load distribution across the entire track system.

This gap between perceived quality and functional precision is where structured alignment methods, including jig-based setups, become essential rather than optional.

Frequently Asked Questions

How do I know if a sprocket rim is misaligned after welding?

Measure runout against a reference after the welds have cooled, not while they are still warm. In service, the signs are uneven tooth loading, a chain that sits to one side of the pocket, and a change in how the track runs that appears after the repair rather than before it.

Is weld-on rim replacement as reliable as a full sprocket replacement?

It can be, where runout is set with a measurement rather than by eye and re-checked after cooling. The process has more steps that depend on the person doing it, which is where the difference in reliability comes from. Where those checks are not practical in the field, a full replacement removes the variables.

What causes alignment to shift during sprocket rim welding?

Heat. The first beads pull the rim as the metal around them expands and contracts, so a rim that was centred when it was tacked can be out of position by the time the weld is finished. Bead sequence and balance are what control it.

How long should a properly aligned sprocket rim last?

It should match the life of the teeth it carries, which is set by the ground and by the chain condition. Where a rim wears faster than expected, check the chain pitch and the sprocket pockets, because a rim running against a worn chain will not deliver its own service life.

This article is part of Sprocket Wear and Replacement: What Ruins a Drive Sprocket, the guide that covers this topic in decision order.
