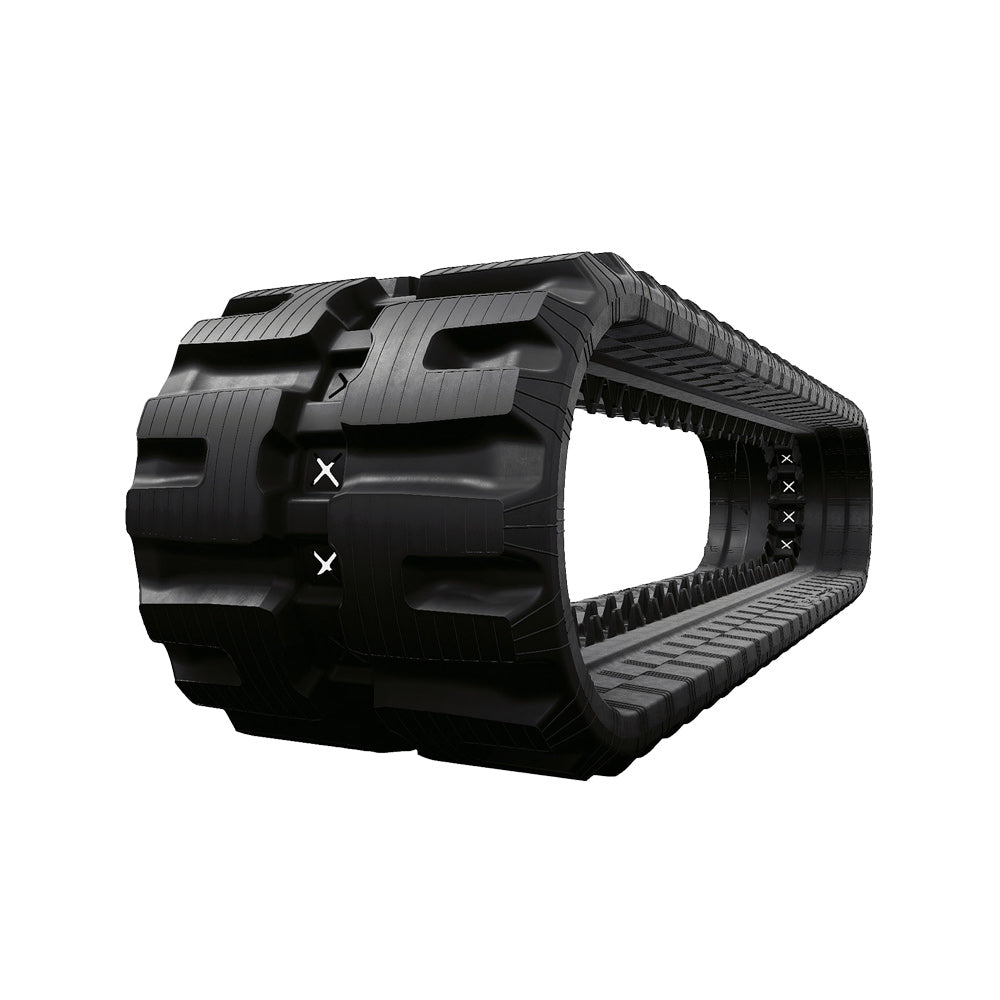

Rubber Track X-Ray Inspection for Steel Cord: Define the Question Before the Scan

Start with the hidden thing you need to know about, not with the method. A radiographic image shows what lies in the regions that were imaged, from the angles used, at the sensitivity the setup achieved. So an X-ray proposal for a rubber track is only useful if the provider can show that this particular hidden feature, in this particular track, falls inside that coverage. A clean image of part of a track does not prove cord strength, bond durability or remaining usable life.

A localized question, a broad offer

Take a hypothetical case. A used track has a cut on its inner surface near one lug, and the buyer wants to know whether cord beneath the cut is damaged. A seller offers "X-ray inspected" tracks as reassurance. Those are different things. The buyer's question concerns one region and one kind of damage, while the offer describes a method with no stated region, view or sensitivity.

The useful first step is to write the question down: which track, which region, which feature (a cord break, a corroded strand, a void, a displaced core element), and what decision depends on the answer. Everything else in the request follows from that statement.

What a conveyor X-ray system shows, and what it does not

Most public material about X-raying steel cord comes from conveyor belting, so it is worth reading for what it does and does not transfer. CBMI, a conveyor-belt monitoring provider, describes a portable system that captures one full revolution of a belt and views the steel cords in detail. Its generator and imaging plate sit in a return path, where a flat section of belt passes between them while the belt keeps running. The company says the system can detect cord breaks, damage, corrosion, holes and factory defects, and that manual review of the images can assist in detecting cord corrosion and failed bonding between rubber and cord. Its report includes each detected defect with a description and the associated image.

Two things are worth taking from that page. The first is the reporting model: findings are tied to images, and the images cover a stated length, which is the kind of coverage statement a track inspection also needs. The second is the setup: it relies on a flat belt running between fixed equipment. That is specific to conveyors. Nothing on the page validates the approach for a molded excavator track, so it cannot be used to claim a capability for tracks, and this article does not.

What radiography can and cannot promise

General radiography references explain the limits that apply to any object. The American Society for Nondestructive Testing describes radiographic testing as able to detect small changes in thickness and density, down to about 1%, along the path of the beam. It also says very small defects can be hard or impossible to see, that small isolated defects below roughly 2% of the total thickness are usually not detected, and that orientation matters, since thin layers perpendicular to the beam can be missed.

Image quality indicators (IQIs) are the usual way to show what a given exposure could resolve. Baker Hughes, a radiography equipment maker, stresses that an IQI validates image quality but does not guarantee detection of flaws, especially small or unfavorably oriented ones. The NDE-Ed resource makes a related point: an IQI indicates the quality of the technique, not the size of a cavity that can be found, and a defect with gradual boundaries may be less visible than an IQI's sharp holes. TWI, a materials-engineering institute, adds a coverage point for pipe: complete examination can require multiple exposures, and specifications often set the minimum number to ensure complete coverage at acceptable image quality.

These sources deal with metals and welds, not with rubber tracks, so they supply no detection threshold for track cord and none is claimed here. What they supply is the set of questions a provider should be able to answer. How was sensitivity established for this thickness and construction? From which views? Which regions could not be seen?

Build a cord/core inspection question and coverage map

Use the map below as a request and a record. It is a recommended review aid, not a form required by any standard or provider.

If the provider cannot say which regions are obscured, treat those regions as not examined. A statement that covers only part of the track supports a conclusion about that part and no more.

Turning the answer into a decision

When the map is complete, state the conclusion in coverage terms: "no indication of the specific feature was seen in the imaged regions, at the stated sensitivity, from the stated views," or the reverse. If the feature sits in a region the provider cannot image or cannot resolve, the right outcome is a feasibility hold, not a weaker scan accepted as if it were the answer. Strength, bond durability and usable life are separate questions that a radiograph does not answer, and certifying a used track's structural integrity is outside what this article covers. Radiation handling stays with the qualified provider.

For a rubber track from KTSU, send the track identity and your specific hidden-feature question when asking what documentation is available. The public rubber track collection identifies the product family. It does not establish an inspection capability, a defect threshold or any acceptance of a track.

The request is ready when the record names the track, the suspected feature and the regions and views, and either holds a provider's coverage statement or shows the question as a feasibility hold.
