Rubber Rebound, Heat Build-Up and DMA: Which Dynamic Test Fits?

Rebound, heat build-up and dynamic mechanical analysis (DMA) are not three scores for the same property. Rebound reports energy return after an impact. Heat-generation testing compares self-heating under repeated compressive strain. DMA-type vibratory methods measure stiffness and damping responses under defined conditions. Before comparing rubber-track compounds, state which question you are asking, then match the mode, temperature, frequency, strain, specimen and result definition. None of the three outputs can stand in for the others.

Rebound answers an impact-energy question

ASTM D2632-15(2024), listed as active, measures the impact resilience of solid rubber from the vertical rebound of a dropped mass. Its significance statement describes resilience as a function of both dynamic modulus and internal friction. It also warns that resilience is very sensitive to temperature changes and to the depth of plunger penetration.

For that reason, the standard says resilience values from one type of rebound instrument may not generally be predicted from another type. It describes the method as suitable for development and comparison of materials and cautions that it may not directly relate to end-use performance. The scope excludes cellular rubbers and coated fabrics, and it refers to D1054 for a rebound-pendulum method.

A rebound percentage is therefore meaningful only with its instrument type, test temperature, specimen state and method identity. It describes impact energy return under that arrangement. It does not describe heating under sustained cyclic loading or stiffness across a temperature and frequency range.

Heat-generation testing answers a self-heating question

ASTM D623-07(2019)e1, listed as active, covers test methods for comparing fatigue characteristics and heat-generation rates of different rubber vulcanizates under dynamic compressive strains. Its significance statement says that service conditions vary widely, so no correlation between these accelerated tests and service performance is given or implied. It adds that the data can be used to estimate the relative service quality of different compounds and are often applicable to research and development.

That boundary is important for a track buyer. A compound that heats less under the stated laboratory compression cycle has shown that behavior for the tested specimen and cyclic compression conditions. The result does not report the internal temperature of a finished track in service, and it does not cover other loading modes.

Vibratory methods answer a stiffness and damping question

ASTM D5992-96(2024), listed as active, is a guide, not a single test recipe. It describes vibratory methods for measuring stiffness and damping and, from these, dynamic modulus. It presents the methods as options rather than requirements. They include free resonant vibration and forced resonant and nonresonant vibration, with sinusoidal input assumed in the forced cases.

The guide says the methods are primarily useful over a temperature range of −70 °C to +200 °C and a frequency range of 0.01 to 100 Hz, and that not all instruments and methods accommodate the entire ranges. It also notes that the methods are primarily for measuring modulus, a material property, but can in many cases be applied to full-scale products. It identifies factors influencing dynamic measurement and a report section.

Those instrument ranges describe what the guide covers. They are not a temperature approval for a product, and they do not make every DMA report comparable with another. A stiffness or loss value is tied to its deformation mode, specimen geometry, temperature, frequency, strain amplitude and analysis basis.

Map each question to its test, conditions and output

This map is recommended buyer guidance, not a reporting form required by the standards.

Compare like with like

Before ranking two results, record these fields for each: the material state and cure condition, specimen geometry and source, method and edition, loading mode, temperature, frequency or cycle rate, strain or amplitude, and how the reported value is defined. Keep impact data separate from sinusoidal data. A rebound value and a loss-related DMA value are not interchangeable even when both are loosely called "damping."

If two reports differ in any of those fields, request matched testing or a documented relationship rather than inventing a conversion. A single DMA reading at one temperature and frequency does not describe the full temperature and frequency response.

Write the evidence request

State the question first. For example: "We need to compare self-heating under repeated compression for these two compounds. Please provide results by the same heat-generation method, with specimen identity, compression conditions, temperature and the original result definition." Then name what you are not asking the result to prove, such as field fuel use, traction or service life.

Where the claim concerns a finished track, ask for the maker's basis separately. A laboratory dynamic result is one input to that file, not a substitute for it.

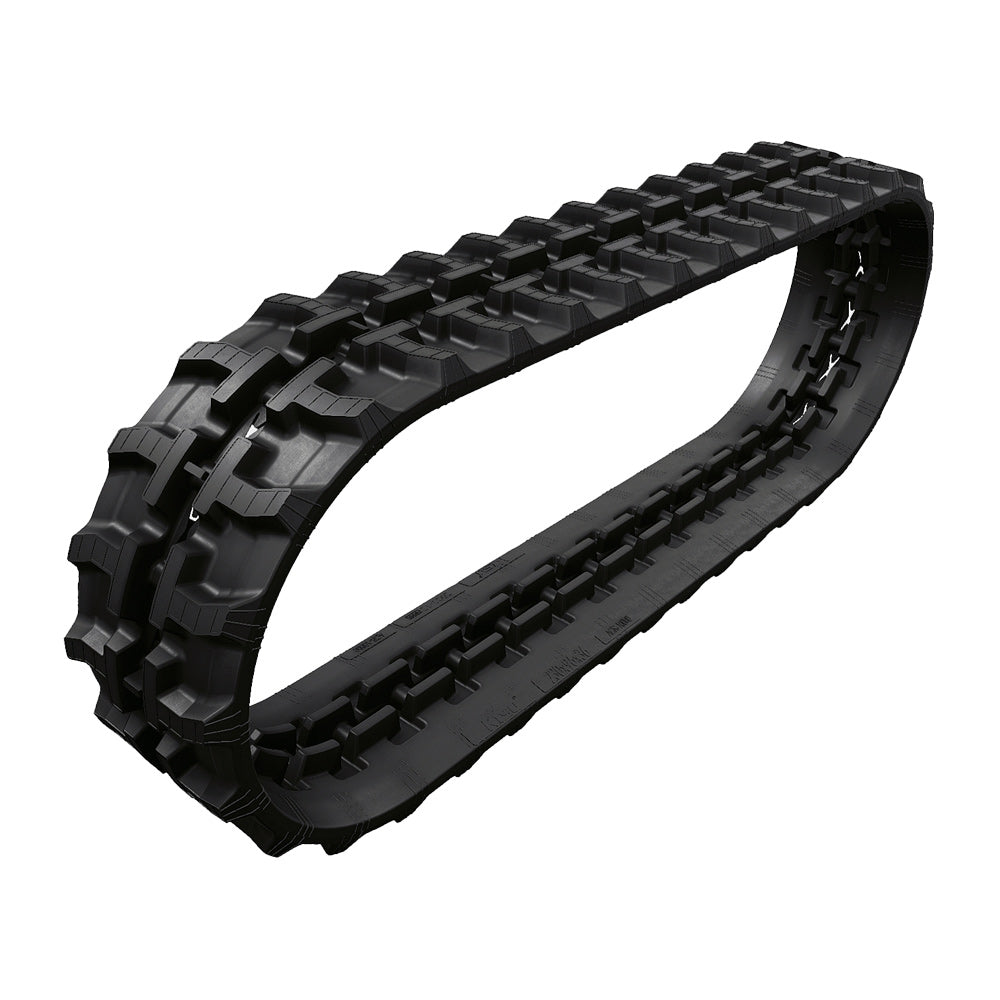

For a quoted KTSU rubber track, provide the candidate part reference, the dynamic question and the unresolved fields when asking what documentation is available. KTSU's public rubber track collection identifies the product family. It does not establish a dynamic testing capability or a particular energy-return, heating or stiffness level.

The request is complete when it names the question, the test mode, the matched conditions, the output wanted and the application questions that stay open.
