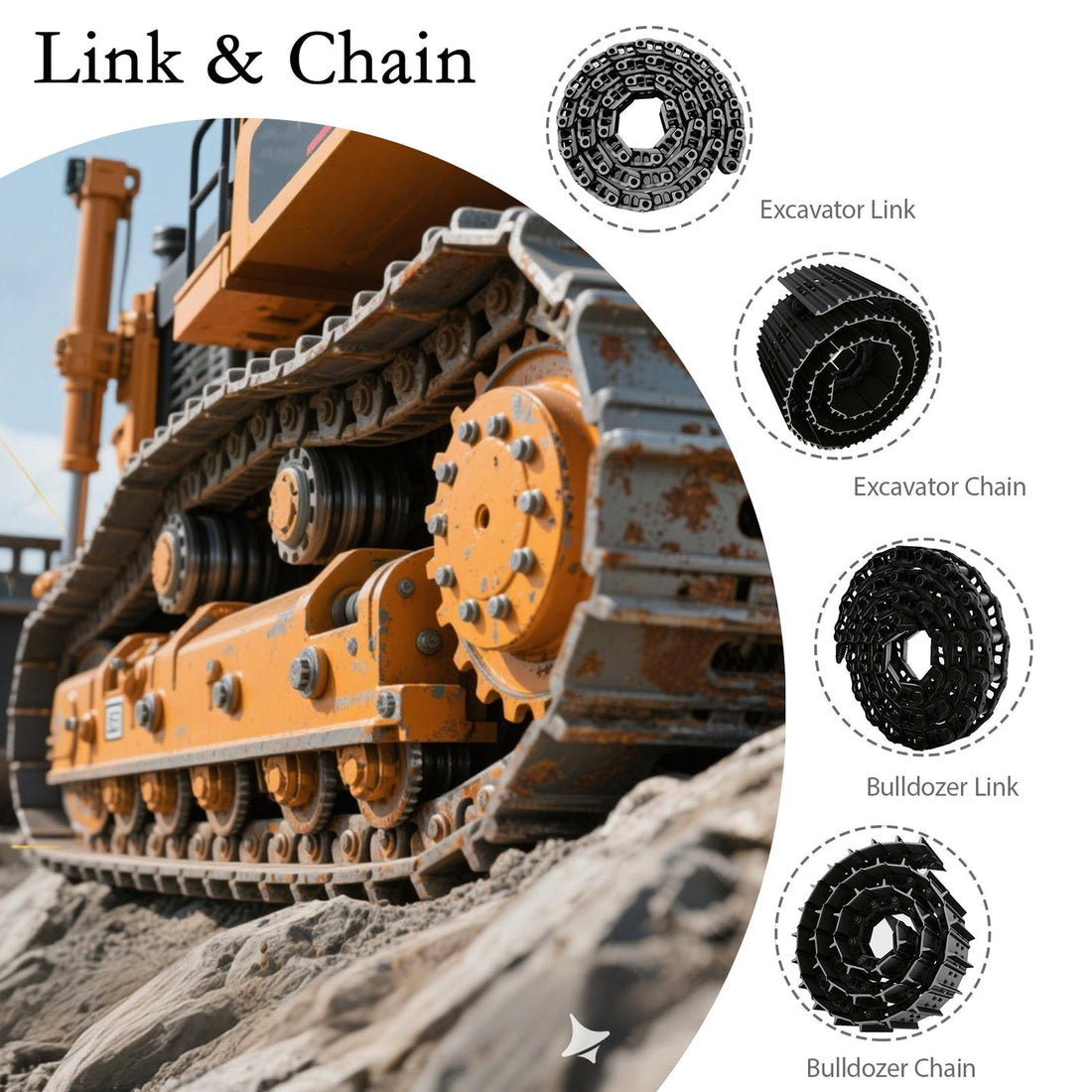

Quartz Sand Abrasion in Track Pins Why Clearance Fails Faster Than Expected
You service the undercarriage, set the tension correctly, and still the track chain starts feeling loose far earlier than the hours on paper would suggest. In sandy jobsites—especially where fine quartz dominates—the wear pattern inside track pins doesn’t behave like normal metal-on-metal fatigue. It looks more like something has been quietly grinding from the inside out. That “something” is often microscopic quartz acting like a lapping compound once it breaches the sealing system, accelerating internal clearance loss long before external wear looks severe.
Last updated:
What actually happens when quartz sand gets inside a track pin?
It becomes an abrasive slurry that removes material from the pin and bushing surfaces.
In real conditions, ultra-fine quartz particles (high in hardness, around 7 on Mohs scale) mix with residual grease. Once inside an unsealed or compromised sealed joint, the oscillating motion of the link turns those particles into a continuous polishing agent. Instead of occasional scoring, you get uniform micro-cutting across the contact band, which increases internal clearance steadily. Operators often miss this early stage because the chain still tracks straight; the damage is internal and cumulative.
How does micro-abrasion differ from normal wear in track chains?
Micro-abrasion removes material evenly and persistently, not in isolated scratches or spalls.
Under normal lubrication, wear is governed by boundary or mixed lubrication regimes. With quartz ingress, the regime shifts toward three-body abrasion: steel surface, steel counterface, and hard particles in between. The particles roll and slide, creating fine grooves and smoothing peaks—similar to controlled lapping but uncontrolled in rate. The result is faster clearance growth without obvious pitting, which can mislead maintenance decisions based only on visual inspection.
Where does the abrasive actually enter if seals look intact?
Ingress typically occurs through micro-gaps during pressure cycling, not obvious seal failure.
Track links experience pressure pulses as the joint articulates and heats up. Even well-designed seals can “breathe” under these cycles. In dusty environments, fine particles migrate along pressure gradients and capillary paths. Water events—like washing or wet sand—can temporarily lower viscosity at the seal interface, pulling particles inward. Facilities like KTSU’s Kunshan plant, which integrates precision CNC machining and controlled seal groove tolerances, tend to reduce these pathways, but field conditions still dominate long-term outcomes.
Which operating conditions make quartz abrasion worse?
Dry, fine, mobile sand with frequent articulation amplifies internal grinding.
High travel speed over sandy haul roads increases joint cycling frequency.
Frequent turning or counter-rotation raises sliding distance per hour inside the pin-bushing pair.
Mixed wet-dry cycles mobilize fines and carry them past seals.
High track tension elevates contact pressure, making each particle cut more aggressively.
In practice, machines that shuttle repeatedly over the same sandy stretch often show faster internal clearance growth than those working intermittently in mixed soils, even if total hours are similar.
Why does internal clearance grow before external wear looks serious?
Because the abrasive acts where you cannot see it, and it distributes wear evenly.
External components—rollers, idlers, sprockets—show visible patterns when they wear. Inside the link, quartz particles spread across the full contact arc. That uniform removal increases the effective diameter mismatch between pin and bushing. The chain “stretches” (pitch elongation) without dramatic external cues. Teams sometimes delay intervention because the outside looks acceptable, only to find pitch out of spec during measurement.
When does sealing design and manufacturing quality change the outcome?
It matters most in how long the joint resists ingress and how stable the lubrication film remains.
Advanced sealing systems with consistent groove geometry and material control slow down the initial entry of fines. Processes like friction welding and robotic CO2 welding, used in high-volume facilities such as KTSU’s 70,000-square-meter operation, contribute to dimensional consistency that supports seal performance. Deeper, well-controlled case hardening also resists the early stages of micro-cutting, buying time before clearance accelerates. However, no seal is absolute in sustained quartz exposure; the difference is the slope of degradation, not immunity.
Where the abrasive actually gets in
Seals that look intact can still be passing abrasive, which is why the entry point is worth checking deliberately rather than assuming.
| Entry path | How to check it | What changes if this is the path |
|---|---|---|
| Past the seal lip, where the sealing surface has been scored | Look at the sealing surface itself, not at the seal | The seal was never the problem, so replacing it alone repeats the failure |
| Through a seal that has been fitted with the wrong preload or seating | Compare the fitted position against the drawing | The joint was open from the day it was built |
| Around the bushing where it has loosened in the link | Check for movement at the bushing rather than at the pin | The clearance is growing from the outside in, which no grease specification will fix |
| Through the joint during assembly in a dirty environment | Look at when the first wear appeared relative to the last rebuild | The abrasive was already inside and the service life was set before the machine went to work |
The reason internal clearance is a poor early warning is that it is hidden. External wear can be measured with a caliper on the machine, while clearance inside the joint only shows up as a chain that needs tension more often than the hours justify. On a site where fine quartz is dominant, the useful discipline is to treat a rising tension frequency as the signal, and to record the hours at each adjustment so the trend is visible rather than remembered.
What commonly goes wrong in real usage?
Expectations are misaligned, inspections focus on the wrong signals, and maintenance timing slips.
Operators often expect lubrication to “flush out” fines, but once particles are embedded in the contact, added grease can redistribute rather than remove them. Another issue is relying on visual checks instead of pitch measurement; by the time looseness is felt, internal wear is already advanced. There is also a tendency to switch components piecemeal—replacing sprockets or rollers—while leaving a worn chain in place, which can accelerate wear elsewhere due to mismatch.
How can you slow down quartz-driven internal wear?
You cannot eliminate it, but you can reduce ingress and limit its impact.
Match track tension to conditions; excessive tension increases cutting severity.
Adjust travel patterns to reduce high-frequency articulation over the same sandy path.
Schedule pitch measurements, not just visual inspections, to catch early elongation.
Time wash-downs carefully; avoid forcing water and fines toward seals when hot.
Choose chains with robust sealing architecture and consistent hardening depth to extend the pre-ingress phase.
In field comparisons, small changes—like reducing unnecessary travel cycles—often yield more life than switching parts alone.
How do you decide between sealed and unsealed links in sandy environments?
Sealed links generally last longer in fine quartz, but only if seals remain effective under your duty cycle.
Unsealed joints are simpler and can perform adequately in coarse, less mobile soils where contaminants are larger and less likely to infiltrate deeply. In fine quartz, sealed designs delay ingress and maintain lubrication longer. The trade-off is sensitivity to heat and pressure cycling; once a seal’s effectiveness declines, wear can accelerate quickly. Decision-making should weigh duty cycle, temperature swings, and maintenance discipline rather than defaulting to one type.
KTSU Expert Views
Field observations across mixed fleets show that quartz-dominant sites produce a distinctive wear signature: rapid pitch elongation with relatively uniform internal polish. Teams working with components manufactured under tightly controlled processes—such as those using NITTO friction welding and consistent case-hardening profiles—tend to see a longer “stable phase” before ingress effects become dominant. This does not eliminate abrasion, but it delays the onset of three-body wear.
From a system perspective, undercarriage life is less about a single component and more about synchronization. Track chain condition influences sprocket engagement and roller loading; once pitch grows, contact patterns shift, redistributing stresses. Organizations with broad product coverage and cross-brand fitment experience, like KTSU’s catalog spanning thousands of items for Caterpillar, Komatsu, and Hitachi platforms, often emphasize coordinated replacement intervals to avoid cascading wear. The practical takeaway is to monitor pitch proactively and align component changes, rather than reacting to visible wear alone.
Frequently Asked Questions
Why does my track chain stretch so fast in sandy soil?
It is usually not stretching but losing clearance inside the joints, which reads as a longer chain because the pins and bushings have worn against each other. Fine quartz is hard and gets past seals that look intact, so the internal wear runs ahead of anything visible on the outside.
Is a sealed track chain always better in quartz sand?
Sealed chains are the right default where the seal is doing its job, and the quartz problem is largely a seal problem. Where the sealing surfaces are scored or the seals are seated wrongly, a sealed chain loses its advantage and can hide the wear, because the abrasive is inside and there is nothing to see.
Can greasing or washing remove abrasive once it is inside a track joint?
No. Once the abrasive is between the pin and the bushing, no amount of external greasing removes it, because the grease that reaches the joint is the grease that was already there. That is why contamination during assembly matters so much, and why the entry point is worth finding rather than the symptom.
How do I know when the internal clearance is already too high?
The most practical signal is a chain that needs tension more often than the hours justify, or that will not hold the figure over a shift. Recording the hours at every adjustment turns that from an impression into a trend you can act on.
