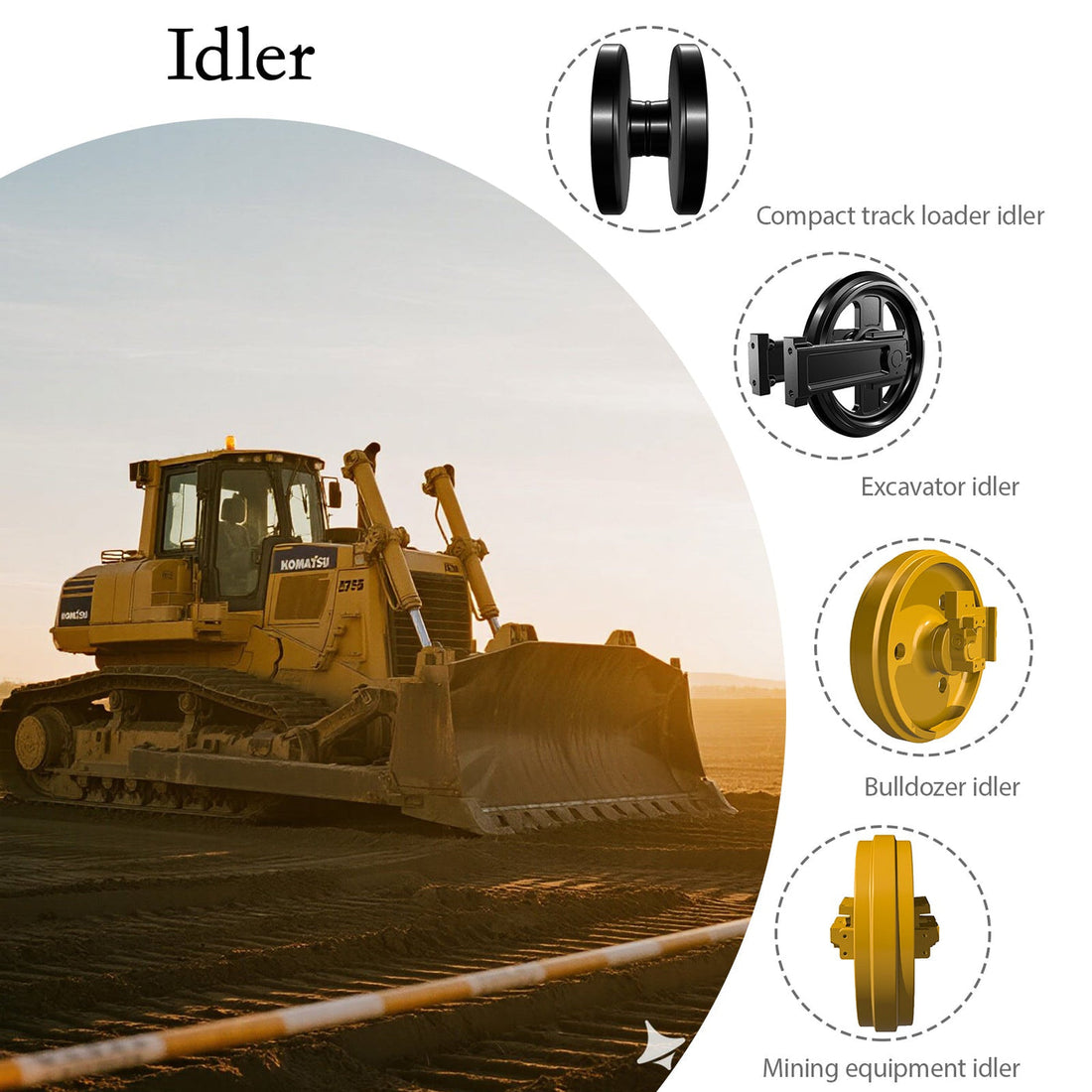

Proper Track Tensioning Protects Front Idler Lifespan
A front idler can be replaced, the track can be adjusted, and the machine can return to work—only for the same side to show premature wear again. The missing clue is often track tension. A track that looks merely “a little tight” may keep the front idler, bushing area, adjuster cylinder, and recoil spring under continuous load long before the operator notices a travel problem.
Last updated:
The opposite setting causes a different kind of damage. Excessive slack lets the chain whip, wander, and strike the idler instead of running in a controlled path. In both cases, the wear may develop out of sight: bushing movement becomes less stable, side loading rises, and the tensioner spring absorbs harsher cycling than intended. Proper track tensioning is not about making the track as tight as possible. It is about maintaining enough controlled sag for the specific machine, terrain, packing conditions, and working direction.
excavator track tension and idler wear
Why Track Tension Matters to the Front Idler
Track tension determines how the chain loads the front idler and how freely the undercarriage can move through its travel cycle. The idler guides the chain and works with the adjuster and recoil mechanism to absorb changes in operating load.
When tension is correct, the idler can guide the track without carrying unnecessary constant pull. When tension is excessive, the chain applies a higher baseline force to the idler assembly, creating greater resistance at the bushings and adding load to the recoil spring. This can increase friction, heat, and wear even when the machine is travelling on relatively smooth ground.
A loose track creates less constant pull, but it can move unpredictably. During turning, reverse travel, or travel across uneven material, the chain may strike the idler flanges or run off-center. The result is often uneven flange wear, side-face damage, and stress that is harder to see during a quick walkaround.
How an Over-Tight Track Creates Hidden Stress
An over-tight track keeps the front idler in a more extended, highly loaded position. That creates a continuous axial load path through the track chain, idler shaft area, adjuster, and recoil spring.
The problem is rarely one dramatic event. Instead, the spring begins every impact cycle from a higher compression level, while bushing and seal surfaces operate with less tolerance for dirt, heat, or alignment variation. On hard rock, high-speed travel, or frequent turns, the track has less ability to absorb changing geometry. Energy that might otherwise be managed through normal chain movement is transferred into the idler system.
Operators sometimes tighten the track to stop noise or reduce visible sag. That can seem effective for a short time, especially on a worn undercarriage. Yet it may hide the underlying issue—such as uneven link wear, debris packing, or an alignment problem—while increasing the load that shortens front idler life.
What Happens When the Track Is Too Loose?
A loose track does not protect the idler simply because it reduces steady tension. Too much slack lets the chain rise, slap, shift laterally, and strike components with more momentum.
In soft, sticky ground, packed material can temporarily tighten a track that was adjusted correctly earlier in the day. In rocky conditions, loose chain movement can create impact against the front idler and guide surfaces. The idler may see alternating side loads rather than a stable rolling contact, which can accelerate wear at the flange, bushing, and track-link side faces.
Loose tension also raises the risk of detracking. When a chain comes off the idler or sprocket, the damage can extend beyond one component. Track links may twist, idler flanges can be gouged, and the adjuster assembly can be forced through loads it was not meant to handle. A looser setting is sometimes appropriate for packing conditions, but it still must remain within the machine manufacturer’s specified range.
How Tension Changes Front Idler Stress
Track tension changes both the amount and direction of force reaching the front idler. The practical comparison below shows why visual judgment alone can be misleading.
| Track tension condition | Likely front idler stress pattern | Typical field signs | Main lifespan risk |
|---|---|---|---|
| Too tight | High, continuous axial pull; elevated recoil-spring compression | Reduced track sag, hotter undercarriage, higher travel resistance | Accelerated bushing, seal, spring, roller, and chain wear |
| Correct for conditions | Controlled axial load with stable chain guidance | Even track travel and predictable sag | Balanced wear across the idler and track system |
| Too loose | Variable axial and lateral impact loading | Track slap, wandering chain, noise during turns or reverse travel | Flange wear, side loading, chain derailment, and impact damage |
| Correct in the shop but wrong for the site | Stress changes as mud, clay, or debris packs into the undercarriage | Sag changes after working conditions develop | False confidence and sudden over-tensioning |
A small sag adjustment can make a large difference in actual chain tension. That is why the correct setting should come from the operator’s manual and should be checked under the conditions where the machine is working—not estimated from appearance alone.
Why Correct Adjustment Does Not Always Prevent Early Failure
Proper tension is essential, but it cannot correct every source of front idler failure. A bent track frame, worn track links, damaged roller guards, poor chain alignment, or an idler already affected by seal damage can continue to create abnormal loading after adjustment.
This explains why outcomes differ between machines using the same nominal setting. One excavator may work mainly in loose soil, while another travels daily on sharp stone with debris packing around the front idler. The target sag can therefore require reassessment as operating conditions change. A setting that works at the start of a shift may become too tight after mud and fines compact inside the undercarriage.
KTSU’s range of more than 3,000 undercarriage items, including front idlers, rollers, sprockets, and track chain assemblies, reflects the system-level nature of this issue. Replacing only the visibly worn idler without examining the chain and tensioner can leave the original stress pattern untouched.
What each tension state does to the front idler
Both too tight and too loose load the idler, in different ways and at different points.
| Tension state | What it does to the idler | What to record |
|---|---|---|
| Above specification | Keeps the chain loaded against the idler continuously and reduces the travel the recoil has available | The cold figure, and whether it holds across a shift |
| Below specification | Lets the chain run slack, so it moves laterally and contacts the flange instead of the tread | The figure and the flange contact marks after working |
| Correct cold but above specification when the machine is working | Loads the idler for most of the shift without the setting being wrong at the start of it | The difference between the cold and warm readings on that machine |
| Correct on both sides but different between them | One idler carries more load than its counterpart | Both figures taken on the same surface, at the same hour |
The reason correct adjustment does not always prevent early failure is in the third and fourth rows. A machine working in a large temperature swing, or with a frame that is slightly out, spends its working hours outside specification even though the morning check passed. Recording the warm figure and both sides at once is what turns that from a mystery into a measurement.
A Better Routine for Track Tensioning
The most useful track-tension routine starts with a clean, representative machine condition. Remove packed material where practical, move the machine as directed by its operating manual, and measure sag on firm, level ground before changing the adjuster.
Do not use a universal sag value across different models. The correct measurement varies by machine design, undercarriage length, track type, and jobsite conditions. Use the manufacturer’s specified procedure, then recheck after travelling forward and allowing the track to settle into its normal loaded path.
Pay attention to change, not only the final measurement. A track that repeatedly tightens after operation may be experiencing packing conditions. A setting that will not hold may indicate an adjuster leak or internal tensioner issue. Grease-filled track adjusters operate under high pressure, so releasing tension should be carried out only according to the manufacturer’s safety procedure by trained personnel.
KTSU Expert Views
A front idler should be viewed as part of a moving tension-control system rather than as an isolated wheel at the front of the track frame. Its condition is influenced by chain pitch, bushing wear, track alignment, roller condition, recoil-spring behavior, and the operator’s tensioning routine. When an idler shows uneven wear on one flange, it is worth checking whether the chain is being guided unevenly before assuming the idler itself is the sole cause.
Over-tightening is particularly easy to overlook because the track may appear neat and controlled. In practice, high baseline tension can reduce the system’s tolerance for impact, debris packing, and heat. A loose track can appear less severe at rest but may reveal its risk during reverse travel, side slopes, or sharp turns.
KTSU’s manufacturing work in Kunshan takes place in a 70,000-square-meter facility using CAD/CAM design, precision CNC machining, NITTO friction welding, and robotic CO2 welding. From an undercarriage perspective, consistent component geometry helps establish predictable fit and movement. It does not remove the need to match track sag to the machine’s actual terrain and working cycle.
Frequently Asked Questions
How does track tension affect front idler life?
Tension above specification keeps the chain pressed against the idler continuously and reduces the recoil travel available, while tension below it lets the chain move laterally onto the flange. Both load the idler, in different places.
What happens if the track is too loose?
The chain runs slack, moves sideways and contacts the idler flange rather than the tread, and the recoil can be used up on ordinary obstacles. The flange wear that follows is a guidance symptom rather than a parts problem.
Why does correct adjustment not always prevent early idler failure?
Because the figure can be correct when it is set and wrong for most of the shift. A large temperature swing tightens the track as the machine warms, and a slightly out-of-line frame loads one idler more than the other.
How often should track tension be checked?
At the start of each shift, on level ground, at the point the manual names. On a machine with a large temperature swing or a known tension behaviour, reading it at the end of the shift as well shows what the machine does rather than what it was set to.
