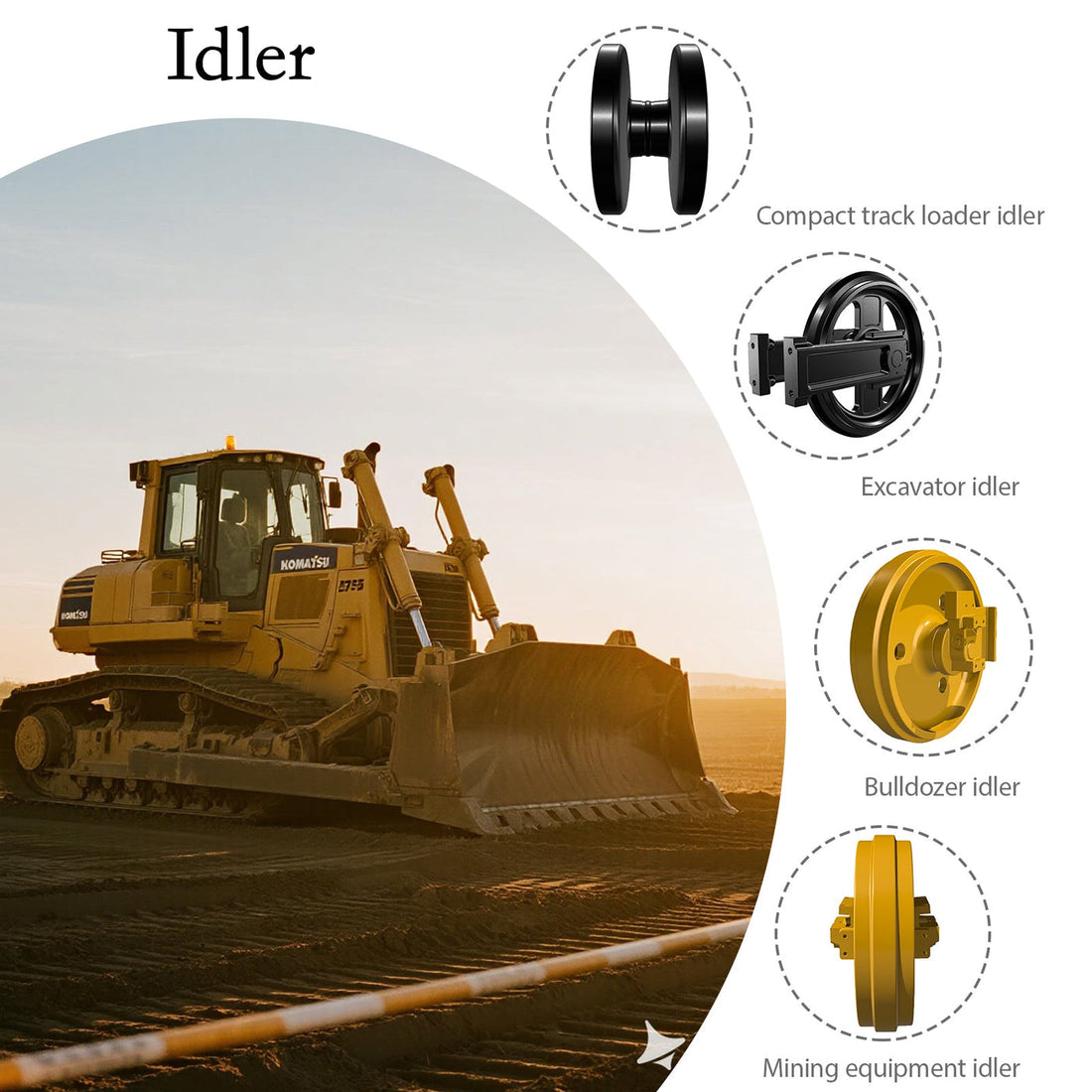

Excavator Front Idler Problems Usually Start With the Wrong Fit
A replacement excavator front idler can look correct on a workbench and still create trouble after installation. The machine may keep throwing the track, develop uneven flange wear, or require repeated tension adjustments—not because the idler is defective in isolation, but because its dimensions, recoil system, track chain, and operating conditions do not match.
Last updated:
That is why choosing a front idler should involve more than comparing price or checking whether the part is listed for a particular excavator model. The correct assembly must guide the track accurately, tolerate impact loads, work with the track tensioning mechanism, and maintain sealing performance in mud, rock, and water. Understanding how these parts work makes it easier to distinguish a genuine fitment problem from normal wear and to decide when maintenance is enough—or when the entire idler assembly needs replacement.
What Does an Excavator Front Idler Do?
An excavator front idler guides the track chain around the front of the track frame while working with the recoil and tensioning system to maintain usable track tension. It also helps absorb shocks transferred through the track when the machine crosses uneven ground or encounters buried obstacles.
The component is not simply a passive wheel. Its position affects track alignment, chain movement, side loading, and the way forces travel into the track frame. A worn or incorrectly aligned idler can therefore accelerate wear on track links, rollers, bushings, and the sprocket.
In practical operation, the idler performs two connected jobs:
It keeps the track chain following the intended path.
It works with the tensioning assembly to accommodate movement and impact.
This dual role explains why a front idler may appear serviceable while still causing unstable track behavior. A smooth outer surface does not prove that the bearings, seals, bushings, yoke, or recoil mechanism remain within acceptable condition.
How Does the Idler and Tensioning System Work?
The front idler moves within the track frame as the recoil mechanism responds to changes in track load. Grease pressure or another tensioning arrangement pushes the idler forward, while the recoil spring and related components allow controlled movement when the track encounters an impact.
When the track is too loose, it may sag excessively, slap against the frame, or become more vulnerable to derailment. When it is too tight, the system experiences unnecessary resistance and load, increasing stress on the idler, rollers, track chain, and final drive.
Real-world conditions make the system less predictable than a static inspection suggests. Mud packed around the undercarriage can restrict movement, frozen material can create temporary over-tension, and side loading during turning can expose alignment problems that are not visible when the machine is parked.
Track tension should therefore be checked according to the excavator manufacturer’s procedure rather than adjusted by appearance alone. The correct measurement can vary by machine model, track type, operating position, and the manufacturer’s specified method.
Which Front Idler Should You Choose?
The correct excavator front idler is the one that matches the machine, track frame, recoil arrangement, and working conditions—not merely the one that shares a model name with the excavator.
Before ordering, verify:
Excavator make, model, and production series.
OEM or reference part number.
Track shoe width and track chain configuration.
Idler diameter, flange dimensions, tread width, and mounting dimensions.
Recoil spring and tensioner arrangement.
Sealing and lubrication design.
Left- and right-side fitment requirements, if applicable.
Operating environment, including rock, demolition debris, clay, sand, or frozen ground.
Dimensional compatibility matters because small differences in flange spacing or mounting geometry can change how the chain sits on the idler. A part may bolt into place yet still create lateral tracking, unusual noise, or concentrated edge wear.
For heavy-duty use, examine the manufacturing details as well. Deep-case hardening, consistent tread geometry, sound welding, accurate machining, and reliable seals influence service life. KTSU’s portfolio includes more than 3,000 undercarriage items, which gives its fitment work exposure across excavator, crawler, and agricultural machinery configurations rather than a single machine family.
OEM or Aftermarket Front Idler?
A high-quality aftermarket front idler can be a practical alternative to an OEM component when the supplier verifies the design, dimensions, material treatment, and sealing system. The lowest-priced replacement, however, may create higher operating costs if it wears quickly or does not cooperate properly with the existing undercarriage.
| Evaluation factor | OEM replacement | Quality aftermarket replacement | Low-cost unverified part |
|---|---|---|---|
| Fitment data | Usually tied to manufacturer records | Depends on supplier engineering and catalog accuracy | May rely on incomplete listings |
| Initial price | Often higher | Commonly more competitive | Usually lowest |
| Dimensional consistency | Generally predictable | Must be confirmed by inspection and documentation | Can vary between batches |
| Hardening and sealing | Defined by the original design | Depends on production controls | May be unclear |
| Best purchasing approach | Useful where exact specification is critical | Suitable when technical equivalence is demonstrated | Risky for demanding applications |
The sensible comparison is not simply OEM versus aftermarket. It is verified specification versus uncertain specification. Ask for dimensional drawings, reference numbers, material or hardening information, seal details, warranty terms, and guidance on whether the part is supplied as a complete assembly or as a bare wheel.
KTSU’s production system combines CAD/CAM design with NITTO friction welding, robotic CO2 welding, and CNC machining. Those details matter only when they translate into consistent geometry, durable joints, controlled surface hardness, and dependable sealing, so they should be considered as part of a broader quality review—not as a substitute for confirming fitment.
How Can You Inspect and Maintain a Front Idler?
Routine inspection is most effective when it combines visual checks, track-tension checks, cleaning, and periodic measurement. Waiting for a track derailment or loud grinding noise usually means the wear has already spread to other undercarriage components.
During a normal walk-around, check for:
Oil or grease leakage around the idler hub and seals.
Cracks, impact damage, or distorted flanges.
Uneven tread wear or a rolled edge.
Excessive lateral movement.
Abnormal track sag or repeated tension loss.
Packed mud, stones, or frozen debris around the idler.
A track chain that does not sit centrally on the wheel.
Clean the undercarriage before judging wear. Debris can hide cracks and make a correctly tensioned track appear too tight. After cleaning, compare the left and right sides of the machine; a major difference in wear pattern may indicate alignment or operating problems rather than two unrelated part failures.
Follow the machine manufacturer’s instructions for grease adjustment and track sag. Do not use additional grease to compensate for a leaking tensioner, damaged recoil component, or incorrectly measured track tension. A maintenance log is useful because repeated grease additions, recurring derailment, or steadily increasing lateral play often reveal a developing fault before a major breakdown.
The fit attributes that decide whether an idler behaves
A front idler has four interfaces, and a replacement that is close on all four can still change how the machine behaves.
| Attribute | What it decides | What a wrong fit causes |
|---|---|---|
| Tread diameter and face profile | The height at which the chain runs and how the rail contacts the idler | A new contact pattern on the chain and a tension figure that no longer behaves as before |
| Flange height and profile | How the chain is guided at the point it enters and leaves the ground | Track wandering, or a machine that throws the track on one side |
| Support shaft and mounting | How the load from the chain reaches the recoil assembly | Loads going into the frame instead of the recoil, and a hard-riding machine |
| Bearing and seal arrangement | Whether the idler survives the environment it works in | An idler that runs warm or starts leaking while the tread still measures well |
The reason fit problems are so often described as part problems is that the symptom appears after the replacement. A machine that starts throwing a track after an idler change is reporting a difference in one of these four interfaces, and checking them against the part that came off is what identifies which. That comparison is easier to make before the old part is disposed of than after.
Why Does a Front Idler Fail in Real Use?
A front idler may fail because of seal damage, bearing or bushing wear, impact loading, poor alignment, incorrect tension, contamination, or a mismatch between the replacement part and the track system. The visible symptom is not always the original cause.
For example, abnormal flange wear may be blamed on the idler when the track frame is misaligned. A leaking tensioner may be mistaken for ordinary track looseness. Repeated derailment may result from excessive side loading, worn track components, incorrect shoe configuration, or a recoil system that cannot move freely.
The expectation gap is common: an operator replaces the idler and expects the entire undercarriage to behave normally immediately. If the track chain, rollers, sprocket, or tensioning cylinder is already worn, a new idler may expose the imbalance rather than eliminate it.
Before replacing only the wheel, inspect the surrounding system. If the idler shows severe lateral play, damaged seals, deep tread wear, cracks, or a deformed flange, replacement is usually more appropriate than continued adjustment. If the wheel is sound but the track remains unstable, investigate alignment and tensioning components first.
How Can You Improve Front Idler Service Life?
Longer idler life usually comes from controlling the conditions around the part rather than searching for one “heavy-duty” feature. Correct tension, clean tracks, suitable operating technique, and early detection work together.
Useful practices include:
Remove packed soil and stones at the end of demanding shifts.
Avoid keeping the track tighter than the manufacturer’s specification.
Reduce unnecessary counter-rotation on abrasive or rocky ground.
Inspect after major impacts, derailments, and demolition work.
Measure related undercarriage parts before installing a new idler.
Replace damaged seals or tensioning components instead of masking the problem with adjustment.
Record wear patterns and tension changes over time.
Confirm the complete assembly before ordering replacement parts.
Operating behavior also matters. Turning sharply on hard, uneven ground places high side loads on the track system. Working continuously in mud can hide wear, while frozen material can restrict idler movement and create temporary tension changes. A part that performs well in clean soil may show very different wear in quarry work or demolition.
The most reliable maintenance decision is usually the one based on the entire undercarriage condition, not on the price or appearance of one component.
KTSU Expert Views
A front idler should be evaluated as part of a moving tension-and-guidance system, not as an isolated steel wheel. In field conditions, sealing quality and dimensional consistency are often just as important as the visible tread profile. If the idler does not sit squarely in the track frame, even a strong wheel can produce edge loading and shorten the life of the track chain.
KTSU’s manufacturing background is relevant here because its 70,000-square-meter Kunshan facility combines Japanese technical methods with high-volume Chinese production. NITTO friction welding, robotic CO2 welding, and precision CNC machining are intended to control the consistency of joints, mounting surfaces, and machined features. The practical question for a buyer is whether those controls are supported by accurate part identification and inspection records.
KTSU’s international reach also reflects the way undercarriage purchasing now works. Distributors and equipment owners may be sourcing parts across different regions, so clear cross-reference data, drawings, packaging, and technical communication can prevent a correct-looking but unsuitable shipment. From an engineering perspective, the best replacement is the one that matches the machine’s geometry, loading pattern, and maintenance expectations—not simply the one with the strongest sales language.
Frequently Asked Questions
What is the idler wheel on an excavator?
It is the wheel at the front of the track frame that the chain runs over as it returns to the ground. It does not drive the chain; it guides it and holds the tension that the recoil assembly and adjuster set.
Why does an excavator keep throwing its track after an idler replacement?
Usually because one of the four fit attributes no longer matches the machine: tread profile, flange profile, the support and mounting, or the bearing arrangement. The symptom appears after the change because the change altered how the chain is guided.
Can I fit an aftermarket front idler instead of the OEM part?
Yes, where the four interfaces match what is on the machine and the specification for the duty is appropriate. What matters is being able to state those four attributes, because an idler that fits and an idler that behaves are different standards.
What should be measured before replacing a front idler?
Tread diameter, flange height and profile, the support and mounting dimensions, and the condition of the recoil assembly that will act on it. Comparing them with the part being removed is the reference that matters.
