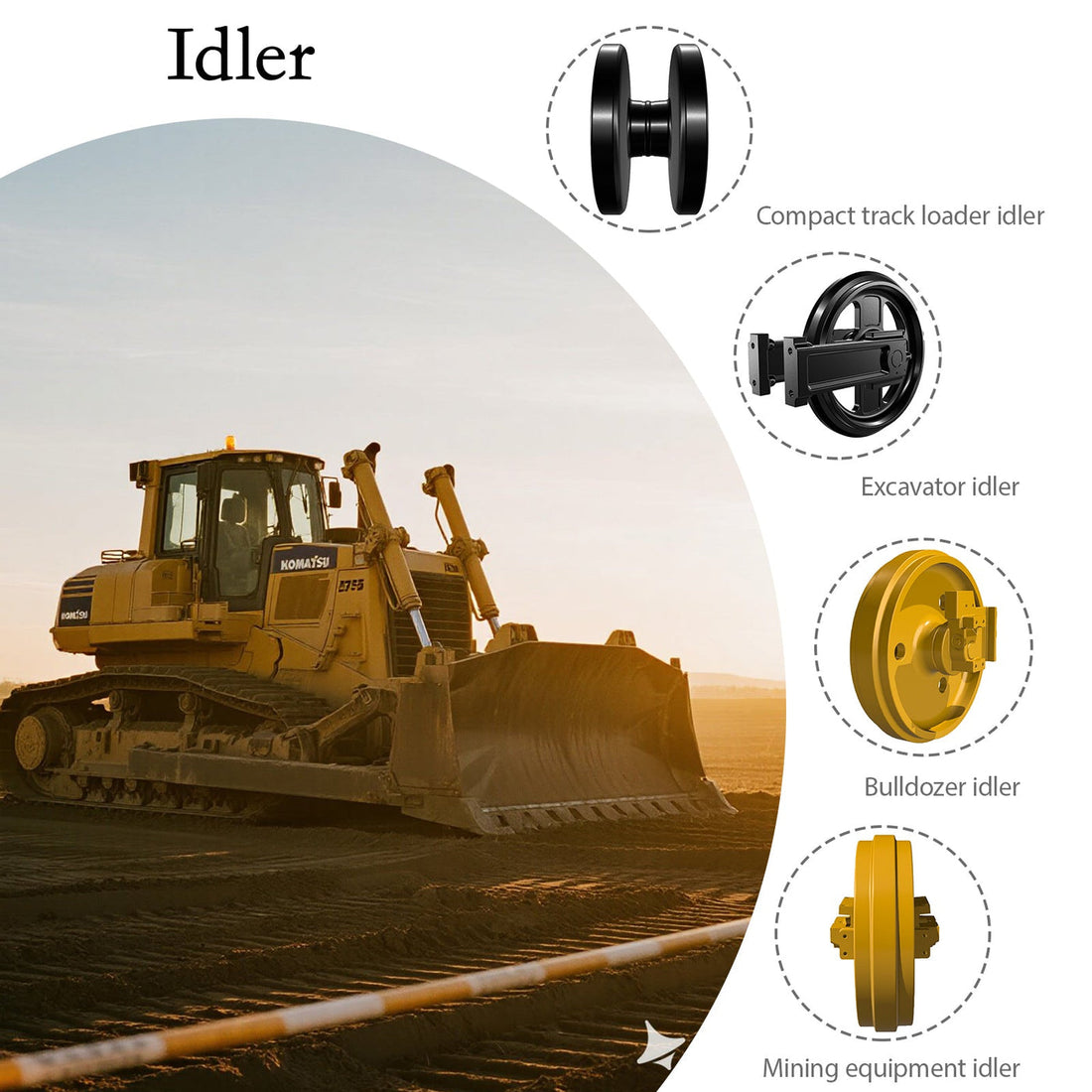

Mud and Clay Packing Can Disable Front Idler Recoil Protection
A track can look correctly adjusted at the start of a shift, then feel harsh, over-tight, and unresponsive after a few hours in wet clay. The problem is often not the grease adjuster or recoil spring itself. Dense mud can pack into the space around the front idler and recoil spring chamber, turning a moving clearance zone into a solid mechanical stop.
Last updated:
That distinction matters in wet excavation, land clearing, trenching, and agricultural work. When packed material blocks front-idler travel, the undercarriage loses part of its ability to absorb impact and accommodate normal track movement. Operators may respond by repeatedly changing track tension, only to find that the condition returns when the machine enters the same soil again. Effective protection starts with identifying packing as a physical restriction—not simply a track-adjustment problem.
front idlers in mud and clay conditions
Why Mud Packing Changes Front Idler Behavior
Mud and clay packing occurs when wet material enters gaps around the front idler, yoke, guide area, and recoil spring chamber, then becomes compressed by repeated track movement. The packed material can restrict the front idler’s designed fore-and-aft travel.
Why does this happen more severely in clay than loose soil? Clay holds moisture, adheres to steel surfaces, and can consolidate into a dense mass under repeated pressure. Each track rotation pushes more material into confined areas. A machine that alternates between travel, digging, reversing, and turning may compact that material far more aggressively than one operating continuously on firmer ground.
For the operator, the visible symptom can be misleading: the track appears tight, yet the grease setting may not be the root cause. The actual issue is that packed mud has occupied the clearance that the idler needs to move through.
How Recoil Springs Lose Their Working Travel
A front idler and recoil spring system is intended to manage track tension while allowing the idler to move rearward when the track encounters an obstacle or abrupt load. The spring resists that movement, absorbs part of the impact, and then helps return the idler toward its working position.
When clay fills the idler travel path, the load route changes. Instead of allowing the idler assembly to move as intended, the packed material may transmit force between the idler support structure and the track frame. This can make the undercarriage feel rigid even when the recoil spring remains intact.
The practical concern is not only spring compression. Restricted travel can increase stress across track links, bushings, rollers, idler mounting surfaces, and the adjuster assembly. It can also make track-sag checks unreliable if the machine is measured immediately after working in heavy packing material.
KTSU’s experience across a catalog of more than 3,000 undercarriage component applications reflects a recurring field reality: the visible wear point is not always the original source of the load. In wet conditions, blocked movement around the idler can be the earlier failure trigger.
How Packed Recoil Chambers Transfer Force
In a normal front-idler system, track impact moves the front idler rearward. The idler yoke transfers that movement into the recoil spring, which compresses and absorbs part of the shock load before returning the assembly toward its operating position.
In a packed recoil chamber, mud and clay become an unintended hard stop between moving and fixed structures. Instead of following the normal sequence of impact, idler travel, and spring compression, the force can pass into compacted material and then into the track frame.
The movement pattern can be understood as follows:
Under normal conditions, track impact pushes the front idler rearward and the recoil spring compresses.
In wet clay, sticky soil enters open spaces around the idler yoke and spring chamber.
Repeated machine travel compresses that soil into a dense mass.
The mud mass occupies the idler’s intended movement path.
Subsequent impacts meet resistance before the idler can use its full recoil travel.
Load is then transferred more directly through the idler support structure and track frame.
Is all material buildup equally harmful? No. Loose dirt that falls away during travel may be inconvenient but not restrictive. The concern rises when sticky soil remains inside the chamber, dries or consolidates, and resists removal with normal track movement.
A useful field observation is to inspect both sides of the front idler area. Packing is often uneven because of slope work, trench-wall contact, turn direction, or one-sided travel through wet spoil.
Why Track Tension Can Appear Wrong in Wet Clay
Mud packing can make a correctly adjusted track behave like an over-tight track because the material occupies space inside the undercarriage. The operator sees reduced slack and may assume that grease must be released immediately.
That response can solve the symptom temporarily, but it can create a different problem once the machine reaches cleaner, firmer ground. With packed material gone, the now-looser track may be more vulnerable to derailment, accelerated link movement, or impact-related stress.
The better decision is to separate two questions:
Is the track tension outside the machine manufacturer’s specified range?
Is packed material preventing the front idler or track assembly from moving normally?
Track tension should be checked on level ground and against the relevant operation and maintenance manual, not judged only by appearance in a mud-filled undercarriage. In wet, packing-prone work, the machine manufacturer may specify a different adjustment range than for normal conditions.
Choosing Protection for Mud-Prone Applications
A mud-protection approach should preserve clearance around moving parts while avoiding designs that create new pockets for material to collect. A recoil guard is not merely a cover; it must work with the geometry of the idler, yoke, track frame, and service-access requirements.
| Protection approach | Best fit | What it helps control | Important limitation |
|---|---|---|---|
| Open chamber with routine cleaning | Intermittent wet work | Loose buildup and inspection access | Relies heavily on cleaning discipline |
| Basic external guard | Moderate mud exposure | Direct entry of larger debris | May still allow fine clay into restricted spaces |
| Shaped mud-protected recoil guard | Repeated clay, slurry, or sticky spoil | Material entry and compaction near travel zones | Must match the machine’s idler and frame geometry |
| Track-tension adjustment alone | Temporary operating adjustment | Accommodates some expected buildup | Does not remove packed material or restore lost travel |
How should a fleet choose between cleaning and guarding? Look at the operating cycle rather than the weather forecast alone. A machine that crosses wet ground briefly each day has different needs from one loading saturated clay continuously, reversing in confined work areas, and parking overnight with material still packed into the frame.
KTSU applies CAD/CAM design and precision CNC machining in undercarriage component development, which is relevant because clearance, alignment, and mating geometry influence whether a guard directs material outward or traps it closer to the moving assembly.
What packing does to the recoil, stage by stage
The failure is progressive and each stage is visible before the next one starts.
| Stage | What is happening | What you can see or feel |
|---|---|---|
| Material enters the chamber area | Clay and fines are carried in around the idler and the recoil components | Material appearing behind the idler after a shift, before the machine behaves differently |
| It compacts rather than falling out | The space the recoil needs is being filled from the outside in | Tension that rises through the shift without an adjustment |
| The recoil runs out of travel | The idler can no longer move back when the track meets an obstacle | A hard thump instead of a cushioned moment over the same obstacle |
| Impact goes into the frame | The load that should have been absorbed is now acting on the front of the frame and the idler mounting | Damage or cracking at the front of the frame, and a machine that starts throwing the track |
The boundary on guards is that they slow the first stage and do not prevent the second. Where the material arrives from above, or where the machine works in the same position for long periods, packing will still build up. The routine that works is clearing the chamber area while the material is soft, and using the tension reading as the indicator: on a machine that is packing, tension climbs through the shift, and on a machine that is not, it holds.
When Recoil Guards Do Not Solve the Problem
A recoil guard can reduce exposure to incoming mud, but it cannot correct an already packed chamber, a damaged idler yoke, a leaking adjuster, an incorrect track setting, or a spring assembly that has lost its intended function. Expecting a guard to eliminate all maintenance in saturated clay leads to inconsistent results.
The most common failure in real use is installing protection after repeated packing has already altered the operating condition. Material remains behind the guard, hardened deposits are not removed, and the operator assumes that the new component should immediately restore free idler movement. It cannot create travel clearance where compacted mud, bent parts, or mechanical damage already occupy it.
Another issue is fitment. A guard that is loosely mounted, poorly aligned, or designed around a different machine configuration can rub, retain debris, or limit access for inspection. The safest approach is to confirm the machine model, track-frame arrangement, idler configuration, and adjuster layout before selecting a recoil protection system.
Maintenance That Keeps the Idler Moving
The first priority is to remove compacted material before it hardens during a shutdown. Scraping the undercarriage at shift end is usually more effective than trying to free a fully dried chamber the next morning.
A practical wet-ground routine includes:
Clean the front idler area, inside frame surfaces, rollers, and recoil chamber access areas after sustained clay exposure.
Inspect for grease leakage, damaged guards, abnormal rubbing marks, or one-sided buildup around the idler.
Measure track sag only after clearing material that could falsely tighten the track.
Adjust tension only to the machine manufacturer’s specified condition for the application.
Recheck the machine after moving from muddy ground to clean, firm terrain.
Investigate repeated packing at one machine before treating it as normal site behavior; damaged guards, altered clearances, or worn components can make one side collect material faster.
This is where operators often save time by avoiding a premature parts change. If cleaning restores normal idler movement and track behavior, the immediate issue was packing. If restriction remains after cleaning, the next inspection should focus on the yoke, adjuster, recoil assembly, and frame alignment.
KTSU Expert Views
KTSU engineers working from a 70,000-square-meter manufacturing facility in Kunshan view mud packing as a system-clearance issue rather than a single-component issue. The front idler, recoil spring, track adjuster, yoke, track frame, and external guard all influence whether material can enter, compact, and remain in the movement path.
In practical terms, the most important question is not whether a machine sees mud. It is whether the soil is adhesive enough, wet enough, and repeatedly compressed enough to become a load-bearing mass inside the undercarriage. A light, granular soil may clear itself during operation. Wet clay often does not, particularly where the machine performs repeated reversing or works against a slope.
KTSU’s manufacturing work includes NITTO friction welding, robotic CO2 welding, and precision machining processes used across track rollers, carrier rollers, front idlers, sprockets, and track chain assemblies. From that production perspective, protection components should be assessed for fit, stiffness, drainage paths, inspection access, and clearance through the full idler travel range—not simply for how completely they cover the spring chamber.
Frequently Asked Questions
How does mud packing disable the front idler recoil?
It fills the space the idler needs in order to move back when the track meets an obstacle. Once that travel is used up, the recoil cannot absorb the shock, so the load passes into the front idler mounting and the frame.
Why does track tension rise during a shift in wet clay?
Because compacted material is taking up space in the track loop and behind the idler. The tension reading rises without anyone adjusting anything, and clearing the undercarriage is what brings it back to the figure that was set.
Do recoil guards stop mud packing?
They slow it by keeping material away from the chamber, and they do not stop material that arrives from above or that is pushed in while the machine works in one position. Where the tension still climbs through a shift, packing is reaching the chamber despite the guard.
What is the first sign that packing has reached the recoil?
A tension reading that rises across the shift while nothing has been adjusted, followed by a machine that rides harder over obstacles it crossed normally earlier. The tension change comes first, which is why it is worth reading at the start and end of a shift.
