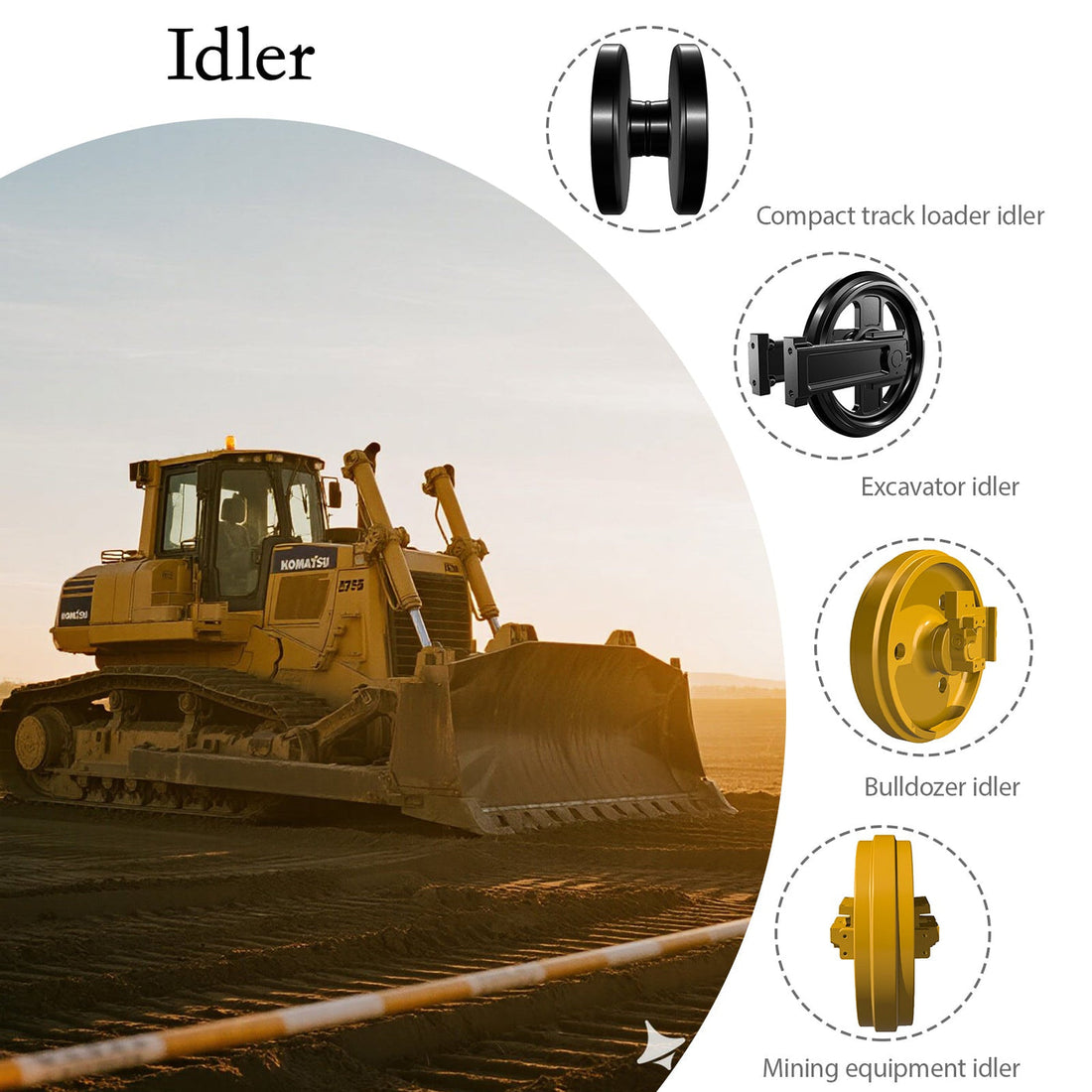

Reinforced Front Idlers That Hold Up When the Ground Turns Violent
A front idler rarely fails at a convenient time. It starts with a track that will not stay aligned after a blast cycle, a tension setting that changes by the hour in wet clay, or a machine that suddenly feels rough and unpredictable while crossing demolition debris. In these conditions, a reinforced front idler is not simply a stronger wheel at the front of the undercarriage; it is part of a moving system that must absorb impact, guide the chain, and work with the recoil spring and adjuster without turning every shock into a cracked frame, damaged seal, or premature track wear.
Last updated:
The difficult decision is that the harshest environment is not always the one that looks most destructive. Sharp slag can abrade contact surfaces quietly, mud can create damaging tension before the operator notices it, and blast-generated rock can impose a brief load far beyond normal digging conditions.
heavy duty front idlers extreme environments
Why the Front Idler Takes the First Hit
The front idler guides the track chain into and out of the track frame while helping the tensioning system keep the chain correctly engaged. In ordinary operation, it manages rolling contact and alignment; in extreme work, it becomes a major path for shock energy, side loading, packed debris, and track-chain misalignment.
A machine travelling over blast rock can drive the idler backward abruptly. The recoil spring and hydraulic or grease-adjusted tension mechanism are meant to manage that movement, but repeated high-energy impacts can overload guide surfaces, mounts, seals, and the track-frame structure. The visible idler shell is only one part of the durability picture.
Operators sometimes replace an idler after seeing flange wear but leave the underlying cause untouched. If the track chain is worn, the tension is set too tightly, or the frame is carrying packed material, a new component can inherit the same failure pattern quickly.
How Blast Impact Changes the Undercarriage Load Model
Mining blasts do not create a constant load; they create irregular impacts from fragmented rock, uneven muck piles, and sudden changes in machine pitch. The front idler can see a short, sharp force when a grouser lands on a rock edge or when the machine pushes into loosely piled shot material.
A practical impact-loss model should consider four linked factors:
| Load driver | What happens at the front idler | Likely wear or damage pattern | Selection priority |
|---|---|---|---|
| Blast rock impact | Abrupt rearward force enters the idler and recoil system | Cracked weld zones, guide wear, brinelling, damaged seals | Reinforced yoke, robust recoil capacity, controlled guide clearance |
| Wet sticky mud | Material packs between chain, rollers, and frame | Excessive effective tension, poor tracking, seal stress | Easy-clean geometry, dependable sealing, correct adjustment range |
| Demolition concrete | Rebar, brick, and angular fragments create side loads | Flange chipping, track wandering, uneven rail wear | Hard wear surfaces, side-guidance stability, debris tolerance |
| Hot slag or abrasive fines | Heat and sharp particulate attack contact surfaces | Accelerated abrasion, grease degradation, seal damage | Material and seal compatibility, inspection access, heat-aware operating practice |
The selection point is not to chase the hardest-looking part. A front idler for blast work needs enough structural resistance to survive impact while still allowing the recoil system to move as intended. If the system becomes effectively rigid, shock loads may migrate into the track frame and chain instead.
Why Mud Can Be More Damaging Than It Looks
Mud changes the geometry of the undercarriage. When wet soil packs into the sprocket, chain links, roller frame, and idler area, it reduces the free space the track needs to circulate and can make a correctly adjusted track behave as though it is too tight.
This is why a machine may feel normal at the start of a shift and become noisy, slow, or harsh after several passes through clay. The operator may respond by adding grease to “stabilize” a loose-looking chain, when the greater risk is actually packed material forcing the chain into higher working tension. Excess tension raises load on idlers, rollers, bushings, and sprockets.
For wet and slippery sites, choose a front-idler and tensioning arrangement with protected sealing, stable guide interfaces, and realistic access for cleaning and inspection. The best component choice still needs an operating routine that removes packing before it becomes a mechanical load.
What Slag and Demolition Debris Do Differently
Slag and construction-demolition material are abrasive in a different way from soil. Their edges can concentrate contact stress, while fine abrasive dust works into gaps and accelerates wear where rolling and guiding surfaces should remain smooth.
Demolition operators often focus on track shoe damage because it is easy to see. Yet a side strike from concrete chunks, buried steel, or uneven rubble can force the chain laterally against the idler flanges and guide plates. Repeated side loading produces an alignment problem before it becomes an obvious breakage problem.
A reinforced front idler is most useful here when it is matched to the machine’s rail width, track-chain pitch, frame guide arrangement, and working weight. A heavier idler is not automatically better if its dimensions, flange profile, or recoil travel do not suit the original undercarriage design.
When Reinforcement Still Fails in Real Use
Reinforcement cannot compensate for incorrect tension, worn track links, a damaged recoil spring, or a track frame already distorted by impact. Inconsistent results often come from fitting a stronger idler into a system where the rest of the components have reached a different wear stage.
The common expectation gap is immediate improvement in tracking after replacement. A new idler may reduce visible play, but it cannot correct uneven rail height, stretched chain pitch, mismatched rollers, or a guide clearance that has opened through frame wear. The machine can still pull to one side or create accelerated flange contact.
Extreme-environment components also need protection from misuse. High-pressure washing directed at sealing areas, operating for long periods with packed debris, and setting a track tightly to suppress noise can shorten service life regardless of the idler’s construction. A stronger part changes the system’s margin; it does not remove the need for condition-based maintenance.
What reinforcement addresses, and where it stops
A reinforced idler is a real upgrade and it is an upgrade against specific inputs. Four conditions decide whether it earns its cost.
| Condition | What reinforcement does | Where it stops helping |
|---|---|---|
| Repeated impact from blast rock or demolition debris | Carries the shock in the shell and the flange instead of passing it into the bearing | A load larger than the assembly was designed for still reaches the frame, whatever the idler is made of |
| Wet clay holding material at the seal | Nothing directly; the seal and the exclusion decide | A stronger shell with the same seal specification fails the same way |
| A recoil assembly that is not holding tension | Nothing; the idler is being asked to absorb what the recoil should have absorbed | The reinforcement is carrying a duty that belongs to another part |
| A frame that is out of alignment | Nothing; the side load continues | A harder flange cracks rather than deforms, which usually arrives sooner |
That is why fitting a reinforced idler to a machine with three of these four conditions present produces an expensive part that fails in the same place. The upgrade is worth making where the impact is the dominant input and the rest of the assembly is sound, and it is worth checking the recoil and the alignment before the order rather than after the failure.
How to Match the Idler and Tension System to the Job
Start with the material and duty cycle, not the machine model alone. A quarry machine travelling repeatedly over blast rock needs a different balance from an excavator working in saturated clay or a demolition crawler making frequent tight turns over broken concrete.
For blast zones, prioritize structural rigidity at the idler support, dependable recoil action, and scheduled inspections after high-impact shifts.
For wet mud, prioritize clean-out discipline, seal condition, and track tension checks after the undercarriage is cleared rather than while it is packed.
For demolition waste, prioritize accurate track guidance, compatible flange geometry, and inspection for side wear, embedded steel, and damaged shoes.
For slag handling, assess both abrasion and operating temperature, especially where hot material or fine dust may affect seals and lubricant condition.
KTSU’s work across more than 3,000 undercarriage component items is useful context for this selection process: fitment is a system question involving idlers, rollers, sprockets, track chains, and the machine’s intended duty, rather than a single-part comparison.
Maintenance That Reduces Front-End Shock Losses
Daily inspection should focus on change, not just obvious damage. Look for fresh polishing on one idler flange, unusual rail contact, leaking seals, displaced guide shims, cracked mounts, and mud packing that has dried into a hard mass. A new noise or a new tendency for the chain to run toward one side is often more valuable than a single wear measurement.
Track tension should be checked according to the machine manufacturer’s procedure and under realistic site conditions. A setting made on clean, dry ground may be unsuitable after the machine has worked through deep mud, while a slack track in demolition work can increase derailment exposure during side loading.
KTSU’s 70,000-square-meter manufacturing facility combines CAD/CAM design, precision CNC machining, robotic CO2 welding, and friction-welding processes. From an engineering standpoint, these methods matter when they support consistent fit, controlled wear interfaces, and sealing integrity—not when they are treated as a substitute for matching the component to the working environment.
KTSU Expert Views
KTSU practitioners generally treat front-idler damage as an undercarriage-system signal rather than an isolated component event. In hard-rock and blast applications, the first question is whether the recoil system still has usable movement after impact. An idler that cannot move correctly transfers force elsewhere, often into guides, roller-frame areas, and track-chain contact points.
In mud, the inspection emphasis changes. Packed material can alter apparent tension and hide early leakage or abnormal guide contact. Cleaning before measurement is therefore more useful than repeatedly adjusting the track based on how it looks during a packed shift. In demolition, attention shifts again toward lateral loading, particularly when operators turn sharply on rubble or travel across mixed concrete and steel fragments.
The practical lesson is that “reinforced” should describe a balanced assembly: shell, axle, support, guide contact, sealing, and recoil behavior must work together. KTSU’s Sino-Japanese manufacturing background and its use of CNC machining and automated welding illustrate why repeatable component geometry matters, but field life still depends on track condition, operator habits, and the way the machine meets the ground.
Frequently Asked Questions
What makes a front idler reinforced?
The shell section, the flange, and the bearing arrangement are built to carry more shock and side load than the standard part. It is a change to how the load is carried rather than simply a heavier component.
Does a reinforced front idler last longer?
It lasts longer where impact is the dominant input. Where the idler is failing because of a seal problem, a recoil assembly that is not holding tension, or frame misalignment, the reinforcement does not change the mechanism that ends its life.
Why do reinforced idlers sometimes still fail early?
Because the other parts of the assembly are still working on it. A worn recoil lets the idler absorb what the spring should have taken, and misalignment puts side load into a flange that is now hard enough to crack rather than deform.
What should be checked before upgrading a front idler?
Whether the recoil assembly holds tension across a shift, whether the frame and the tracks are aligned, and whether the ground conditions are the impact that the upgrade is bought for. All three are cheaper checks than the part.
