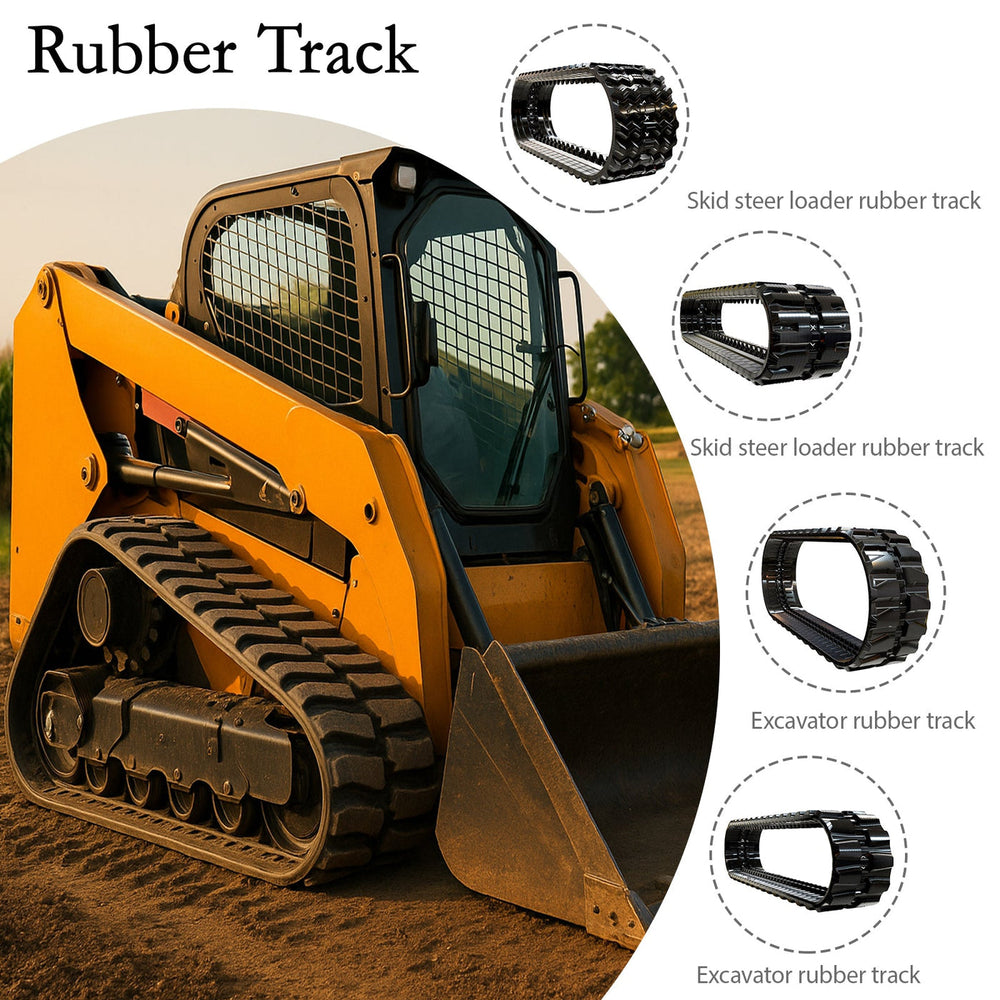

How to Remove Rebar Jammed in a Mini Excavator Track Without Destroying the Rubber
Practical reading for undercarriage components, operating conditions and parts decisions.
On this page
It usually happens mid-demolition: the machine tracks feel tight, then you hear a metallic snap as high-tensile rebar wraps into the sprocket. At that point, most operators face a tradeoff—force the track and risk tearing rubber lugs, or stop and deal with a slow, awkward extraction. This situation is more common on rubber track mini excavators working around reinforced concrete, where loose steel rods behave unpredictably under tension. The real issue is not just the jam itself, but how easily improper removal methods turn a manageable obstruction into undercarriage damage. Understanding how rebar interacts with sprocket teeth and track guides is what separates a quick fix from an expensive repair.
Last updated:
Why does rebar get trapped in rubber track undercarriages?
Rebar becomes trapped because sprocket teeth and track gaps act like hooks under rotation. Once a loose steel rod feeds into the drive sprocket, the rotational force pulls it deeper between lugs and rollers.
In real jobsite conditions, this often starts with partially cut or bent rebar left in debris. As the excavator reverses or pivots, the rod aligns with the sprocket entry angle and gets pulled inward. Rubber tracks, unlike steel tracks, deform slightly under load, which increases the chance of the bar embedding rather than bouncing out.
This matters because operators often assume it is just surface debris, but once tension builds, the rebar effectively locks into the drive system.
What actually happens inside the sprocket and track system?
The sprocket teeth grip the inner steel cords of the rubber track, and rebar interferes with that engagement. The bar wedges between the sprocket tooth and the track’s internal structure.
In practice, this creates uneven force distribution. One side of the track tightens while the other flexes, which can stretch internal cords or crack rubber lugs. On compact machines, the smaller sprocket diameter increases the wrapping angle, making extraction harder.
Manufacturers working at scale, such as KTSU in its 70,000-square-meter production facility, design sprockets with precise tooth profiles to balance grip and release. However, those geometries are optimized for clean engagement—not for foreign steel intrusion.
Step-by-step method to extract rebar without tearing rubber lugs
The safest approach is controlled release, not forceful pulling. The goal is to remove tension before extracting the rebar.
Stop the machine immediately and avoid further track rotation.
Relieve track tension by slightly lifting the affected side with the boom.
Identify the entry point of the rebar—do not pull blindly.
Manually rotate the track backward in small increments to reduce binding.
Use bolt cutters or a cutting torch to shorten the exposed rebar if necessary.
Pull the rebar out in the reverse direction of entry, keeping it aligned with sprocket teeth.
Inspect track lugs and sprocket teeth before resuming operation.
In real-world scenarios, skipping the tension relief step is where most damage occurs. Operators often try to yank the bar out under load, which tears rubber or delaminates internal layers.
What the extraction must not do
Almost every failed extraction fails because a reasonable-looking action damages something that could not be seen from the cab.
| Action | Why it seems reasonable | What it actually damages |
|---|---|---|
| Driving the track to pull the bar free | The bar looks as if it will work itself out with the rotation | The belt lugs and the belt-to-cord bond, which is the part that cannot be repaired |
| Prising against the belt itself | It is the nearest solid surface to lever against | The belt surface and the sprocket face behind it, and it can shift the belt on the sprocket |
| Cutting the bar without first releasing tension | Cutting looks quicker than loosening | The belt, when the released tension snaps the bar out of the sprocket |
| Working the bar out without recording where it entered | The bar is the immediate problem, not the paperwork | The chance to identify the same hazard before the next shift, which is usually the more expensive loss |
The sequence that avoids all four is short: release tension using the adjuster, remove the load from the belt before touching the bar, extract along the path the bar entered rather than pulling it sideways, and inspect the belt before re-tensioning. Where the bar has wrapped into the sprocket rather than lying across the belt, the extraction is a two-person job with the machine stopped, because the geometry that holds the bar is the geometry that will hold a hand.
When does rebar removal fail or cause more damage?
Removal fails when tension is not released or when the rebar is work-hardened and cannot bend or cut easily. Forcing extraction under these conditions often leads to torn lugs or damaged rollers.
Another common issue is misjudging the rebar path. If the bar has wrapped more than one rotation around the sprocket, partial extraction can worsen the entanglement. Wet or muddy environments also reduce visibility, increasing the chance of incorrect removal direction.
Even experienced operators encounter inconsistent outcomes because rubber tracks behave differently depending on wear level and temperature. Older tracks are more brittle and less forgiving during extraction.
How can operators prevent rebar entanglement during demolition work?
Prevention relies more on jobsite habits than machine design. Clearing loose rebar before tracking is the most effective step.
In practice, operators who frequently reposition without inspecting ground conditions are more likely to encounter entanglement. Using a bucket to rake debris before moving the machine reduces exposure significantly. Track guards and debris deflectors can help, but they are not foolproof against long, flexible steel rods.
From a usage perspective, slowing down during turns and avoiding sharp pivots over debris lowers the chance of rebar feeding into the sprocket.
Do track protection systems actually reduce damage risk?
Protection systems can reduce damage, but they do not eliminate the risk. Their effectiveness depends on design and installation.
Basic guards: Deflect small debris but often fail against long rebar.
Reinforced guide plates: Improve resistance but can trap debris if clearance is too tight.
Open-clearance designs: Allow debris to pass through but reduce protection.
Operators sometimes expect guards to solve the problem entirely, but in reality, they only shift the risk profile. The choice depends on whether the jobsite has more fine debris or large steel waste.
How does undercarriage design influence entanglement risk?
Undercarriage geometry plays a significant role in how easily debris enters and exits the system. Sprocket size, tooth spacing, and roller alignment all affect rebar behavior.
In larger manufacturing networks like KTSU, where components are built for compatibility with brands such as Caterpillar and Komatsu, small differences in sprocket pitch or track spacing can influence how debris interacts with the system.
Machines with tighter clearances may resist entry but are harder to clean once entangled. Conversely, more open designs allow easier release but increase exposure frequency.
KTSU Expert Views
From an undercarriage engineering perspective, rebar entanglement is less about abnormal failure and more about mismatch between machine design and demolition environments. KTSU’s experience across thousands of component configurations shows that rubber track systems are inherently more vulnerable to linear steel debris compared to steel track assemblies.
Their use of CAD/CAM modeling and precision CNC machining reflects a focus on controlled engagement between sprockets and track links. However, these systems assume predictable materials and loads. High-tensile rebar introduces irregular geometry and unpredictable stress points, especially when combined with dynamic movement.
Field observations suggest that damage severity often correlates with operator response rather than initial entanglement. Machines with properly hardened sprockets and consistent tooth geometry tend to survive minor jams if handled correctly. The failure cases usually involve continued rotation under load.
This aligns with broader industry patterns: durability is not only a function of component quality, but also of how quickly and correctly interference is addressed.
Frequently Asked Questions
How do I loosen the track on an excavator to free a jammed object?
Use the track adjuster to release tension before you touch the object, and let the belt come off load rather than working against it. On machines with a grease adjuster this means following the manual sequence for releasing grease safely. Working on a belt that is still tensioned is how a jammed bar turns into a damaged sprocket.
Can a rubber track be repaired after rebar damage?
A lug can be trimmed and a surface cut can be monitored, but damage that has reached the internal cords cannot be repaired in a durable way. That is the reason the extraction method matters so much: the belt either keeps its cord structure or it has to be replaced.
Which is better for demolition work, rubber tracks or steel tracks?
Steel is more tolerant of the specific hazard of rebar and sharp scrap, because it has no rubber matrix to cut into and no cord bond to shear. Rubber keeps the advantages of low ground pressure and surface protection. Many demolition operators use rubber where the machine must cross finished surfaces and accept that the working position will cost them belts.
How can I stop rebar getting into the track in the first place?
Work the material rather than travelling across it wherever the layout allows, keep the belt tension in specification so debris has less gap to enter, and clear the undercarriage at the end of each shift so partly trapped pieces do not get worked in on the next pass. Guards help against fragments, but they are much less effective against a long bar that finds the gap between belt and sprocket.
