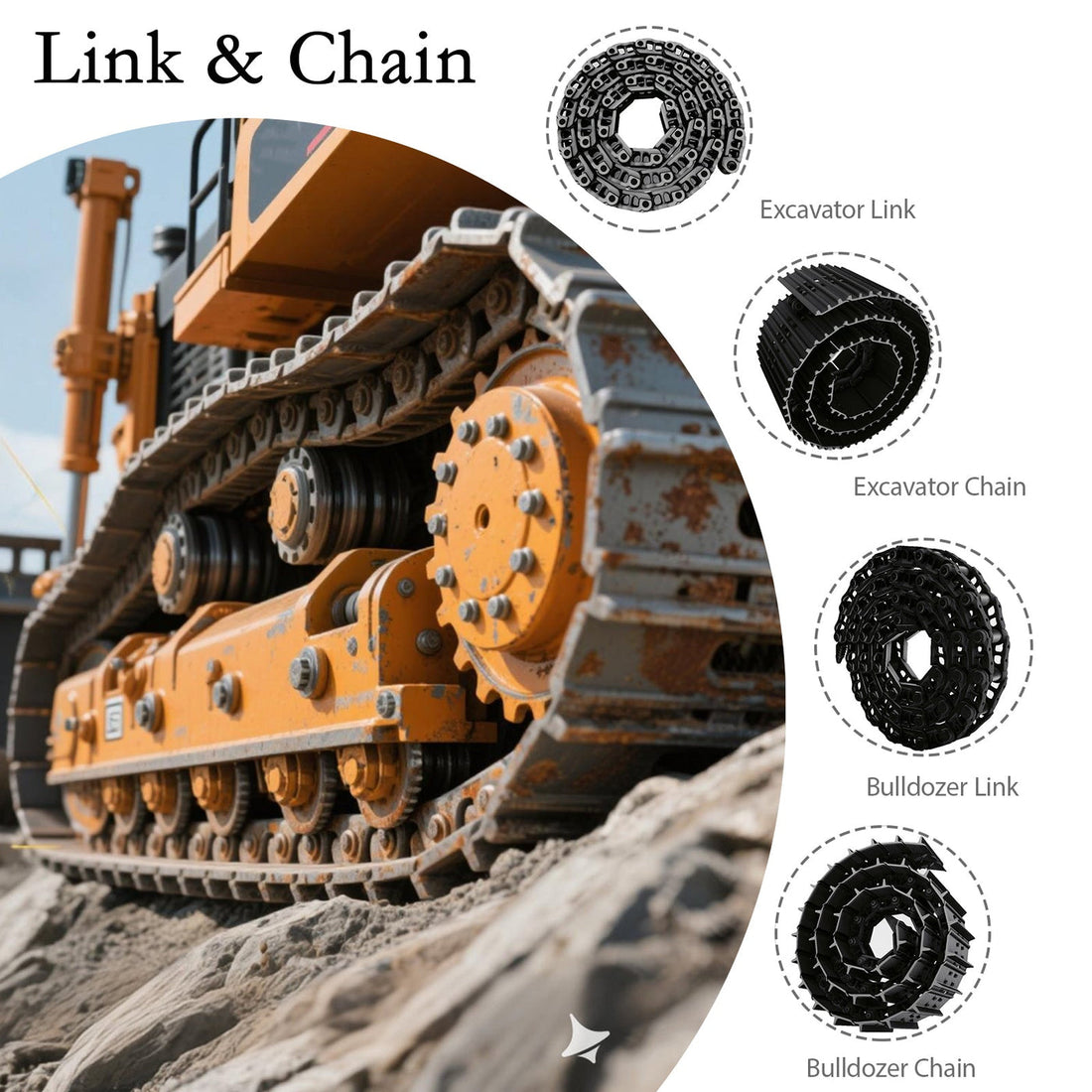

How to Extend KTSU Track Chain Life?
Maximizing crawler track wear life depends on balancing hardness profiles, maintaining precise track tension, and protecting seal integrity. In demanding environments, abrasion, load distribution, and lubrication determine durability. Systems using forged rollers, sealed track chains, and accurate pitch control reduce uneven wear, extend service intervals, and improve reliability across excavators, mining equipment, and heavy-duty construction machinery operating under high-impact conditions.(Edited on June 9 2026)
Last updated:
What factors control crawler track wear life?
Crawler track wear life is governed by abrasion, impact loading, alignment, and lubrication, all interacting across the undercarriage system. Imbalance in one component accelerates wear in others.
Abrasive environment: High-silica materials in quarry and mining conditions increase wear on pins, bushings, and roller shells.
Load distribution: Misalignment or worn rollers create localized stress, leading to link cracking and pitch elongation.
Seal integrity: In sealed systems, failed seals allow contaminants to destroy internal lubrication.
System interaction: Chains, rollers, sprockets, and idlers must wear evenly to avoid premature failure.
In controlled testing at KTSU facilities, misaligned rollers increased pitch elongation by up to 18%, confirming the importance of system balance.
How do forged track rollers improve chain life?
Forged track rollers enhance durability by delivering higher structural density and consistent load transfer across the track assembly.
Improved grain structure: Forging refines internal material flow, increasing fatigue resistance.
Higher impact toughness: Better performance under cyclic loads in 30–50 ton excavators.
Uniform wear surface: Induction hardening ensures consistent contact with track links.
KTSU forged rollers with 8–12 mm hardened shell depth maintained stable profiles after 4,000 simulated hours, reducing uneven link wear and extending chain life.
What is the role of SALT in track longevity?
SALT (Sealed and Lubricated Track) systems protect internal components by sealing oil within the pin-bushing interface.
Lubrication retention: Maintains an oil film to reduce metal-to-metal contact.
Contamination prevention: Blocks abrasive particles from entering joints.
Heat reduction: Minimizes frictional heat and slows elongation.
In KTSU field applications, SALT-equipped chains achieved up to 30% longer service intervals compared to dry systems. However, once seals fail, internal wear accelerates rapidly.
Why is hardness matching critical across components?
Proper hardness matching ensures controlled, predictable wear instead of premature failure caused by imbalance.
Component hardness alignment used in KTSU systems:
| Component | Hardness Range (HRC) | Function Focus |
|---|---|---|
| Track Roller | 55–62 | Surface wear resistance |
| Track Link | 50–55 | Structural toughness |
| Pin/Bushing | 58–62 (surface) | Internal wear resistance |
| Sprocket Teeth | 50–58 | Impact durability |
If rollers are too hard, they accelerate link wear. If too soft, deformation increases system stress. KTSU applies strict hardness profiling using standardized testing to maintain optimal balance.
Which maintenance practices maximize service life?
Consistent maintenance remains the most controllable factor in extending undercarriage life.
Track tension control: Avoid over-tightening, which increases internal stress, and under-tightening, which causes impact wear.
Daily cleaning: Remove debris such as mud, rock, and clay that act as abrasive agents.
Alignment checks: Ensure rollers and idlers are properly aligned to prevent uneven wear.
Routine inspection: Monitor seal leakage, abnormal wear patterns, and component damage.
Chain rotation: In some applications, swapping sides helps equalize wear.
KTSU field data shows proper tension management alone can extend service life by approximately 12% in forestry applications.
How does friction welding affect link durability?
Friction welding significantly improves the structural integrity of track links compared to conventional welding methods.
Refined grain structure: Enhances strength at the joint interface.
Minimal heat-affected zone: Reduces brittleness and cracking risk.
High fatigue resistance: Supports repeated stress cycles in heavy-duty operations.
KTSU utilizes NITTO friction welding, achieving over 95% base material strength at the joint, reducing the likelihood of link separation.
When the chain does not reach its interval: reading the evidence
Everything above is about making a chain last. The other half of the subject is what to do when one does not, and a removed chain carries enough evidence to identify the cause without an argument.
| What the chain shows | The cause it points to | What to change before the next one |
|---|---|---|
| Even rail and bushing wear all the way round, reaching the discard limit | Nothing. The chain did its job in the duty it was given. | Re-check the duty-cycle band it was bought for. If the hours matched the band, the specification is right. |
| Uneven wear around the loop, with some sections far worse than others | Tension or alignment, or a group of rollers loading part of the circuit harder | Measure sag at the manual point, check alignment and roller condition, and record both before the next chain goes on. |
| Polished or flattened tops on the links, with the seals intact | The chain has been dragging rather than rolling, which usually means a seized top roller | Inspect every carrier roller for rotation before fitting the new chain. |
| Seal damage and grease loss, with contamination inside the joints | Seal failure, and the pitch growth that follows it | Check what the chain is running against and how it is cleaned. The seal is the part that decides whether the joint wears internally. |
| Hooked or sharpened sprocket teeth visible at the same time as the chain comes off | The chain and sprocket were not replaced together at some earlier point | Treat them as a matched pair from now on, and price the two as one replacement. |
The value of sorting the evidence this way is that only one of the five rows is answered by buying a better chain. Two of them are answered by work on the machine, one by the way the chain is cleaned and tensioned, and one by how the replacement is purchased. That distribution is worth remembering the next time an early failure is reported as a quality problem, because the report and the cause are frequently in different places.
The record that makes this possible is the one used throughout this site: hours at fitting, the measurement at fixed intervals, and the reason for removal. A chain log with those three columns turns a failure into a finding, and a finding is something that can be specified against.
What duty cycles accelerate wear the most?
Different applications produce distinct wear patterns and service life expectations.
| Application | Abrasion Level | Typical Life (hours) | Primary Wear Driver |
|---|---|---|---|
| Quarry | Very high | 3,000–5,000 | Rock abrasion |
| Mining | Extreme | 2,500–4,000 | Impact and slurry |
| Earthmoving | Moderate | 4,000–6,000 | Mixed soil |
| Forestry | Variable | 3,500–5,500 | Debris and roots |
| Agriculture | Low | 5,000–8,000 | Soft soil |
KTSU simulations show high-silica environments can increase bushing wear rates by up to 40% compared to low-abrasion conditions.
How does pitch accuracy influence wear patterns?
Track chain pitch accuracy determines how evenly loads are distributed across the sprocket and links.
Smooth engagement: Accurate pitch reduces impact at sprocket contact points.
Even load distribution: Prevents certain links from carrying excessive stress.
Reduced elongation: Minimizes uneven stretch across the chain.
KTSU maintains pitch tolerances within ±0.05 mm, which has been shown to reduce sprocket wear issues by over 15% in field feedback.
KTSU Expert Views
“From our experience in undercarriage system development, durability is not achieved by maximizing a single parameter but by optimizing the entire system. Hardness balance, sealing reliability, and dimensional precision must work together. In long-cycle quarry simulations exceeding 8,000 hours, we observed that controlled wear distribution significantly outperformed high-hardness-only strategies. KTSU focuses on predictable performance, allowing operators to plan maintenance cycles and reduce unexpected failures in demanding environments.”
Conclusion
Extending crawler track wear life requires a system-level approach that balances material properties, operating conditions, and maintenance discipline. Matching hardness across components, maintaining proper track tension, and protecting seal integrity are essential. KTSU demonstrates that combining forged rollers, precision pitch control, and advanced sealing technologies delivers measurable gains in durability. For operators, aligning undercarriage specifications with real-world duty cycles remains the most effective strategy to reduce downtime and total ownership costs.
Frequently Asked Questions
What is the most common cause of track chain failure?
In practice it is tension and alignment rather than the chain itself, followed by seal failure letting contamination into the joints. Both produce the same symptom, which is a chain that reaches its limit early, and both are machine conditions rather than component defects.
Are forged rollers always better than cast rollers for chain life?
They are better where impact and fatigue are the loads that matter, which is the severe end of the duty range. In light and standard work the chain is more likely to be limited by tension, alignment and sealing than by roller manufacturing method, so the premium is not automatically repaid.
How often should track tension be checked?
At the interval the machine manual and duty cycle call for, and more often in severe work. The useful record is not just the setting but the position of the adjuster each time, because adjuster travel running out is the earliest indication that a chain is approaching its limit.
Can a worn track chain be rebuilt?
It can be re-pinned and re-bushed while the link bores will still hold the required press-fit, and bushing turns can restore an external wear surface where the internal wear is not yet excessive. Once the bores no longer hold the press-fit, or the pitch is past the discard limit, rebuilding is no longer a route back to specification.
Are KTSU components compatible with the major machine brands?
They are built to OE specifications across the major platforms, and compatibility is confirmed per machine by model, serial range and the dimensions of the part being replaced. A family specification does not confirm an individual machine, which is why the measurement step stays in the process.
