Elastomer Seal Compatibility: Match Compound, Fluid and Temperature

A chemical-compatibility chart is a screening aid for polymer families. It is not evidence that a particular seal compound will tolerate your actual fluid at your temperature. To judge whether compatibility evidence is relevant, match the exact compound, the identity of the fluid (including any mixture or additive package), the exposure temperature and time, and the properties that were measured. Even a good result describes the rubber, not the assembled seal. The outcome of your review is a decision of relevant, limited or unresolved, plus a specific request for the specimen, fluid and exposure that are missing.

What a liquid-immersion test actually shows

ASTM D471-16a(2021), listed as active, is the standard method for the effect of liquids on rubber. Its significance statement explains why the question arises: rubber articles such as seals, gaskets and hoses can be exposed to oils, greases, fuels and other fluids, continuously or intermittently and over wide temperature ranges, and their properties deteriorate during that exposure, which can lead to partial failure.

The method attempts to simulate service through controlled accelerated testing. The standard says plainly that it may not give any direct correlation with actual part performance, because service conditions vary too widely, and that it yields comparative data on which to base judgment about expected service quality. It can be used for specification compliance, quality control, referee purposes and research and development.

Its scope covers specimens of vulcanized rubber cut from standard sheets, specimens from rubber-coated fabric or finished articles. It lists measures of change after immersion: mass, volume, dimensions for certain liquids, mass of extracted soluble matter, and tensile strength, elongation and hardness. So a report built on it describes how a defined specimen changed after defined exposure. It does not describe how an installed seal sealed.

Why a family rating is not a compound result

Charts rate polymer families, such as nitrile or fluoroelastomer, against a list of fluids. Two compounds within one family can behave differently because of their formulation and cure, and a chart rarely names either. Treat a chart rating as a reason to look further, not as approval.

The same applies to the fluid. D471 describes standard immersion oils maintained as reference materials, and a result in a reference oil is a result in that oil. It is not automatically a result in your grease or lubricant, which has its own base fluid and additives. If the lubricant formulation changes, the earlier evidence no longer necessarily applies.

Build an exposure relevance matrix

Use the matrix to compare what was tested with what you need. It is a recommended review aid, not a form required by the standard.

Record each field as matched, limited or unresolved. A result at one temperature does not extend to a higher one, and a short exposure does not cover a longer one. This article sets no acceptance values for any property, and the public standard text reviewed gives none.

An illustration with a changed lubricant

This case is hypothetical. A report shows a compound held up in a standard reference oil at a stated temperature and time. The roller's lubricant is then switched to a different formulation with its own additives. The report remains valid for what it measured, but it is now evidence for the old fluid. The right entry is "limited" or "unresolved" for the new fluid, with a request for exposure of the same compound in the actual lubricant. Machine lubricant substitution itself is a separate decision and is not covered here.

Decide and request

Mark the evidence relevant when the compound, fluid, temperature, time and measured properties match your exposure. Mark it limited when some fields match, and say which. Mark it unresolved when a key field is missing. Then write the request: the exact compound, the actual fluid, the temperature and time range, the properties to report and the method and edition.

Compatibility of the rubber is not assembled sealing performance. Whether a seal retains lubricant or excludes contaminants is shown by tests of the assembly, as covered in what a roller leak-test pass actually covers. A material result also says nothing about seal lifetime.

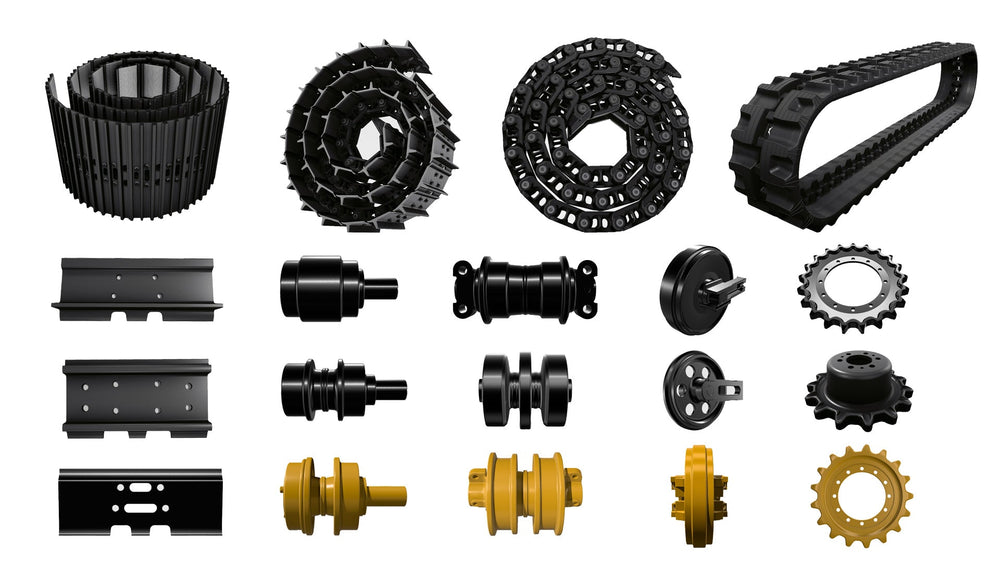

For a seal or roller from KTSU, provide the seal reference, the actual fluid and the temperature range when asking what documentation is available. The public excavator undercarriage parts collection identifies the product family. It does not establish a compound, a fluid compatibility or a temperature rating for any seal.

The review is complete when each field of the matrix is marked, the overall evidence is classed relevant, limited or unresolved, and the missing specimen-fluid exposure is named in a request.
