Why Long-Reach Excavator Undercarriage Wear Accelerates Under Heavy Attachment Loads: Root Causes, Mechanics, and Prevention
Inspection, wear evidence and replacement planning for the complete track system.
On this page
When a long-reach or demolition excavator begins showing accelerated or uneven track wear, the issue is rarely a simple component defect. Instead, extended boom geometry radically increases mechanical leverage, shifting extreme static and dynamic forces away from the machine's natural center of gravity directly onto the undercarriage frame, rollers, and track chains.
Last updated:
Because the undercarriage accounts for approximately half of a tracked machine's lifetime maintenance costs, identifying these wear patterns early prevents minor component fatigue from snowballing into catastrophic mechanical failures.
The Physics of Leverage: How Extended Booms Multiply Stress
Operating heavy attachments—such as demolition shears, concrete crushers, or heavy sorting buckets—at the end of an extended boom changes the structural loading profile of the machine in three critical ways:
Increased Moment Arm: An extended boom and long stick place heavy tools far from the center of mass. This multiplies bending and tipping moments, creating massive leverage against the track frame.
Severe Forward Weight Bias: During extended reaching, digging, or static overhead holding, the entire operational weight of the machine shifts onto a narrow footprint at the front edge of the tracks rather than spreading evenly across the ground contact surface.
Concentrated Dynamic Load Spikes: Rapid swinging, digging, or repositioning forces concentrated downward and sideways pressure onto specific bottom rollers, idlers, and link sections, exceeding their normal engineering design thresholds.
Frame Micro-Flexing: Continuous long-reach cycling induces structural micro-deflections within the track frame. Over time, this micro-flexing leads to permanent component misalignment and severe, asymmetrical wear patterns.

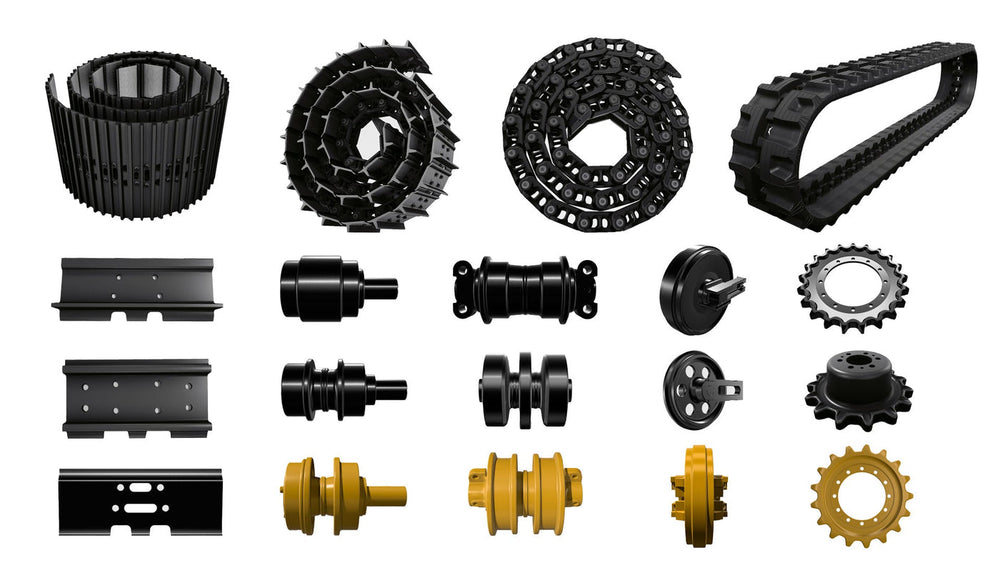

Impact on Undercarriage Components
The forced load imbalance manifests differently across each major undercarriage component:
| Component | Immediate Mechanical Stress | Long-Term Failure Mode |
| Front Bottom Rollers & Idlers | Concentrated downward and side-loading forces past design thresholds | Flattened tread surfaces, severe seal breakdown, overheated internal bearings, and shell collapse |
| Pins and Bushings | Asymmetrical side-to-side twisting during boom swing | Accelerated pitch elongation, dry joints, metal-on-metal friction, and pin leakage |
| Track Chains & Shoes | Sideways chain flexing and unequal weight distribution | Biased track-shoe grousers wear, hardware loosening, and track-link rail distortion |
| Drive Sprockets | Uneven engagement with pitch-elongated track chains | Pointed, gouged, or hooked sprocket teeth and chain jumping |
| Track Frame & Adjusters | Unbalanced torsional torque during directional turns | Frame cracks, internal seal blowout in track adjusters, and chronic misalignment |
Site Conditions, Ground Terrain, and Operational Factors
While extended leverage is the primary mechanical trigger, site environment and operator habits significantly accelerate wear rates:
Packed Material and Debris Buildup
Soil, mud, clay, gravel, caliche, and demolition rubble frequently collect around rollers, sprockets, guards, and frames. As debris packs tightly into these spaces, it acts as a mechanical wedge, restricting roller rotation. When a roller seizes, the track chain slides violently over its tread rather than rolling normally, creating severe flat spots and localized friction spikes.
Incorrect Track Tension
Overly Tight Tracks: Overly tight tracks create massive friction and artificial load across links, bushings, rollers, idlers, and sprockets. Packed debris naturally tightens the track during operation, rapidly causing dry joints, extreme heat, and premature bushing failure.
Overly Loose Tracks: Insufficient tension causes poor sprocket engagement, severe track sag, impact-related contact wear, and frequent track derailment (untracking).
Ground Terrain and Abrasive Soils
Hardpan, rock, caliche, and demolition debris amplify point-loading and impact shocks. Conversely, soft soil may temporarily cushion the machine and mask underlying track misalignment until severe structural fatigue has already occurred.
Aggressive Operator Habits
Frequent high-speed travel (especially in reverse), sharp counter-rotation turns on hard surfaces, working continuously on steep inclines, and keeping heavy attachments extended at full reach during swing movements drastically exacerbate undercarriage stress.
Advanced Diagnostics: The Power of Load-Cell Mapping
Relying solely on visual inspection often means catching wear after structural damage has already set in. Load-cell mapping provides a proactive diagnostic approach by placing specialized sensors under the track frame to measure exact weight distribution and dynamic load shifts during real-time boom operation.
Instead of assuming the undercarriage is loaded evenly, load-cell mapping reveals exact stress concentrations. Fleet managers can use this diagnostic data to adjust operator habits, refine track tension settings, and plan targeted maintenance before secondary damage spreads to final drives and main hydraulic systems.
What to record on a long-reach or demolition machine
On a machine with extended geometry, the undercarriage is reacting to where the load sits rather than only to how heavy it is. Four entries on a single sheet make that visible.
| Record | What it shows | How to keep it comparable |
|---|---|---|
| Tension on both sides, cold | Whether a difference is developing between the two tracks | Same surface, same hour of the shift, same measuring point |
| Flange thickness at fixed positions, front and rear roller | Which end of the machine is taking the load from the attachment | Mark the positions once and use them every time |
| Attachment reach and machine position for the heaviest lifts of the shift | Whether the wear rate matches the way the machine is actually being worked | Note the position rather than a description, because the same words mean different things to different operators |
| Hours travelled compared with hours worked stationary with the attachment loaded | Whether the undercarriage is being consumed by travel or by the working position | Keep the split consistent between shifts |
The point of all four is that a long-reach machine can wear its undercarriage faster than the hours suggest while every individual part is within specification. Once the readings exist, the next set of figures takes minutes and shows which way the trend is going. Without them, the first evidence of the problem is usually a component that has failed early for reasons nobody can reconstruct.
Early Warning Signs to Monitor Daily
Operators should include the undercarriage in their daily walk-around inspection. Key operational and visual indicators include:
Uneven Wear Profiles: One track chain or front roller band wearing significantly faster than the rear or opposing side.
Abnormal Thermal Spikes: Front rollers or track pins running excessively hot to the touch after short operational cycles.
Audible Squealing or Grinding: Loud metal-on-metal squealing during machine travel, indicating dry joints or seized internal bearings.
Machine Drift: The machine pulling consistently toward one side during straight travel.
Track Hardware Instability: Track shoe bolts loosening repeatedly in a pattern that correlates with specific boom working angles.
Sprocket Tooth Gouging: Teeth becoming sharp, hooked, or pointed on one side of the drive tooth profile.
Manufacturing Precision as a Structural Defense
Not every uneven wear issue can be solved by replacing worn parts alone. Installing new components onto a structurally biased frame will cause the fresh parts to fail in the exact same pattern. Resisting off-center forces requires extreme engineering tolerances and high-grade metallurgy.
Precision manufacturing capabilities provide the ultimate defense against heavy attachment stress:
CAD/CAM Design & CNC Machining: Precision-machined roller shells and frame mountings maintain tight alignment even under high bending moments.
Robotic CO2 & Friction Welding: High-strength automated welds ensure structural integrity across track frames and roller bodies under continuous cyclic loads.
Induction Surface Hardening: Deep-case metallurgical hardening prevents tread surfaces from flattening under extreme point pressure.
Heavy-Duty Sealing Assemblies: Premium seal groups prevent lubricant loss and dirt ingress despite elevated operating temperatures caused by forward load bias.
Manufacturing facilities—such as KTSU's 70,000-square-meter production center in Kunshan—utilize these advanced engineering processes to supply heavy-duty undercarriage components built for extreme long-reach applications across global platforms, including Caterpillar, Komatsu, and Hitachi.
Comprehensive Preventive Maintenance Checklist
To maximize undercarriage service life under severe attachment loading, follow this structured maintenance protocol:
Daily Debris Cleanout: Thoroughly clean out packed dirt, mud, and demolition debris from track frames and rollers at the end of every shift.
Dynamic Tension Adjustments: Check and adjust track tension using the machine’s operation manual. Re-check tension when ground conditions change (e.g., loose sand vs. sticky mud).
Targeted Component Rotation: Periodically swap or rotate bottom rollers between high-stress front positions and lower-stress rear positions to equalize wear rates across the frame.
Enforce Best Operator Practices: Train operators to minimize high-speed travel, eliminate unnecessary reverse travel, make wide gradual turns, and reduce static holding time at full reach extension.
System-Wide Component Replacement: Avoid installing a single new component (such as a new track chain) onto severely worn mating parts (such as hooked sprockets). Evaluate and service the undercarriage as a complete, integrated system.
Frequently Asked Questions
What is the average lifespan of an excavator undercarriage?
There is no figure that transfers between machines, because life is set by the ground, the attachment and how the machine is worked rather than by hours on the clock. On a long-reach or demolition machine the geometry itself changes the load, so the honest approach is to measure the same features at a fixed interval and read the rate on your own machine.
Why does a long-reach excavator wear its undercarriage faster?
Extended geometry moves the load further from the machine centre of gravity, so the same attachment weight produces a larger moment on the track frames and a larger side load on the track that is holding it. The undercarriage is then carrying forces it was not configured for in the standard machine.
Which undercarriage parts fail first on a long-reach machine?
The parts that resist the moment rather than the weight: roller flanges, the chain and its joints, and the guide surfaces that keep the belt running square. Because the load is asymmetric, the first failure usually appears on one side.
Can the operating pattern reduce the wear?
It is one of the few variables available. Working closer to the machine, lifting the heaviest loads over the tracks rather than to one side, and limiting how far the attachment is extended while travelling all reduce the duration and size of the moment. Recording the two sides afterwards shows whether the change worked.
