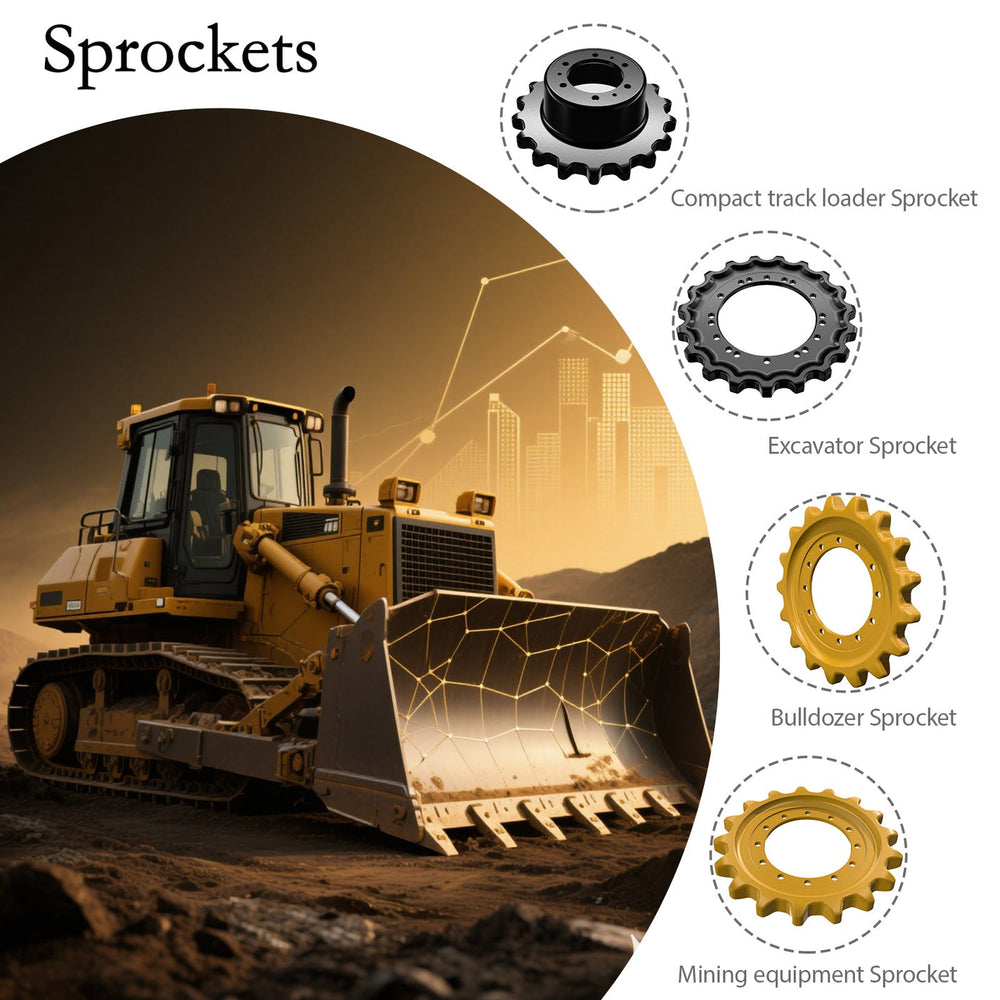

Why Does a Worn Drive Sprocket Ruin Your New Undercarriage Tracks?

A worn drive sprocket damages new tracks by creating pitch mismatch, slippage, and uneven load distribution. Hooked or rounded teeth fail to engage properly, accelerating wear, increasing vibration, and reducing track lifespan by up to 40%. Replacing it with a precision-engineered component like the KTSU Cat 304-1916 sprocket restores alignment, improves traction, and protects undercarriage investments.(Edited on June 9 2026)

Last updated: October 6, 2026

What Is the Sprocket's Role in Undercarriage?

The drive sprocket is responsible for transferring engine power into track movement by engaging directly with the track chain. Positioned at the rear of most compact track loaders, it converts torque into forward motion while maintaining alignment and proper tension.

A well-designed sprocket ensures smooth engagement between teeth and track bushings. The Cat 304-1916 sprocket, for example, uses a 17-tooth configuration to deliver consistent contact and minimize slippage under load. KTSU manufactures these components with advanced CAD/CAM precision, ensuring exact fitment for machines like CAT 279C, 289D, and 299D series.

Without a properly functioning sprocket, the entire undercarriage system becomes inefficient, leading to vibration, power loss, and accelerated wear across multiple components.

How Does Sprocket Wear Damage New Tracks?

Worn sprockets damage new tracks by disrupting the correct pitch alignment and reducing effective tooth engagement. As teeth become rounded or hooked, they no longer match the spacing of new track links, causing mechanical mismatch.

This mismatch leads to several damaging effects:

• Slippage between sprocket and track, generating excessive heat.

• Uneven pressure distribution, causing localized stress points.

• Track jumping or jerking, increasing fatigue on links and bushings.

• Accelerated metal wear, reducing overall track lifespan.

Sprocket Wear Stage | Effect on Tracks | Lifespan Impact
Early wear (minor rounding) | Mild slippage and heat | 10–20% reduction
Moderate wear (hooking) | Uneven wear, chain jumping | 30–40% reduction
Severe wear (tooth loss) | Derailment, link failure | 50%+ reduction

KTSU sprockets are engineered with hardened tooth profiles to maintain proper engagement longer, preventing these issues in demanding environments.

What Causes Drive Sprocket Wear?

Drive sprocket wear is primarily caused by harsh working conditions and improper maintenance. Abrasive materials such as sand, gravel, and mud accelerate tooth erosion by grinding against metal surfaces.

Additional contributing factors include:

• Misalignment, which causes uneven load distribution.

• Incorrect track tension, either too loose (impact wear) or too tight (friction wear).

• Poor lubrication, leading to metal-on-metal contact.

• Debris buildup, which increases resistance and wear.

KTSU addresses these issues through advanced manufacturing processes such as NITTO friction welding and robotic CO2 welding, producing sprockets with superior hardness and resistance to abrasion.

What the hooked tooth actually does to a new chain

The short version is above: a worn sprocket damages new tracks through pitch mismatch and uneven load. The mechanism is worth understanding, because it explains why the damage shows up on the chain rather than on the sprocket that caused it.

A sprocket tooth and a chain bushing form a pair, and they meet on a seating curve that was designed for a new profile at a new pitch. As the tooth wears, the surface that contacts the bushing moves. The bushing then meets the tooth earlier on the curve, and the contact point shifts from the part of the profile designed to carry the drive load to a part that was never shaped for it. Two things follow at once. The load arrives at a smaller area, and it arrives with more impact than rolling contact, because the bushing is no longer seating where it was meant to.

An elongated chain does the same thing from the other direction. Pitch growth moves every bushing slightly further round the sprocket, so the engagement point walks away from the design position. A worn sprocket and an elongated chain therefore compound each other: each one moves the contact point, and the combination moves it twice.

This is why the wear stages in the table above read as they do. Early rounding causes mild slip and heat with a 10-20 percent reduction in track life. Hooking produces uneven wear and chain jumping at 30-40 percent. Tooth loss ends in derailment and link failure at 50 percent and beyond. The percentages describe the track life lost to a sprocket problem, and the track is the part that pays for it.

The pairing rule, in both directions

The rule is usually stated as replace the sprocket with the chain, and that is the direction most people remember. The reverse is equally true and more often ignored: a new sprocket fitted to a chain that has already elongated wears into the old pattern, because the new tooth profile is being presented with a pitch it was not cut for.

Combination	What happens	The decision
New chain, new sprocket	The pair establishes a new, matched contact pattern and the replacement interval becomes predictable	This is the reference case. Cost it as one replacement, not two.
New chain, worn sprocket	The chain is destroyed within a short period, and the failure looks like a chain fault	Do not do it. If the sprocket is past the hook stage, it goes with the chain.
New sprocket, worn chain	The sprocket wears into the elongated chain pattern and its advantage is lost within weeks	Measure the chain pitch in the same session. If it is past the limit, both parts are due.
Worn chain, worn sprocket, one replaced at a time	Each new part is consumed by the old one, and cost per hour rises while the log shows fresh parts	Move to matched-set replacement and start recording hours at fitting.

None of this makes the sprocket the only thing to check. Track tension, alignment and duty cycle are still the largest influences on how fast any of it wears, which is why the inspection interval in this article is expressed in operating hours and tightened for abrasive and high-impact conditions rather than set once for every machine.

When Should You Replace Your Sprocket?

Sprockets should be replaced when tooth wear reaches approximately 20–30% of original depth or when visible damage such as cracks or deformation appears. In most applications, this occurs between 1,000 and 2,000 operating hours, depending on conditions.

Key warning signs include:

• Rounded or hooked teeth profiles.

• Noticeable track slippage during operation.

• Increased noise or vibration.

• Uneven wear on track links.

Replacing the sprocket at the same time as installing new tracks is strongly recommended to prevent premature failure and protect your investment.

Which Sprocket Tooth Profile Maximizes Track Life?

A symmetrical, properly curved tooth profile maximizes track life by evenly distributing load and ensuring smooth engagement with track bushings.

The Cat 304-1916 sprocket features a 17-tooth design optimized for:

• Consistent pitch alignment with track chains.

• Reduced stress concentration on bushings.

• Minimal vibration during operation.

KTSU utilizes precision CNC machining to maintain exact tooth geometry, which has been shown to reduce track wear by up to 25% in high-load applications.

How Can You Prevent Sprocket Wear Effectively?

Preventing sprocket wear requires a combination of proper maintenance practices and high-quality components.

Best practices include:

• Maintaining correct track tension, typically 30–40 mm sag.

• Performing regular cleaning to remove mud and debris.

• Lubricating critical contact areas to reduce friction.

• Conducting routine inspections for early signs of wear.

KTSU sprockets incorporate durable materials and precision sealing to resist contamination, helping extend service life even in abrasive environments.

What Makes Cat 304-1916 the Ideal Replacement?

The Cat 304-1916 sprocket stands out due to its precise engineering, durability, and direct compatibility with multiple Caterpillar compact track loader models.

Key advantages include:

• 17-tooth configuration for optimal engagement.

• Direct OEM fit for models from 279C to 299D3-XE.

• Hardened steel construction for extended wear resistance.

• Reduced installation time with no modification required.

KTSU enhances this design with advanced metallurgy and manufacturing consistency, delivering a reliable replacement that minimizes downtime and long-term costs.

KTSU Expert Views

"The sprocket is not just a drive component—it is the synchronization core of the entire undercarriage system. When wear occurs, it introduces instability through vibration and uneven force distribution, which rapidly damages new tracks. At KTSU, we engineer sprockets like the Cat 304-1916 with precise tooth geometry and advanced heat treatment to restore mechanical harmony. Field data consistently shows that timely sprocket replacement can significantly extend undercarriage life and reduce total operating costs."

Can KTSU Sprockets Reduce Operating Costs?

Yes, KTSU sprockets help reduce operating costs by improving durability and extending the service life of both sprockets and tracks.

Cost-saving benefits include:

• Up to 30% longer track lifespan due to improved engagement.

• Reduced maintenance frequency and downtime.

• Lower total cost of ownership through durable materials.

KTSU’s global supply capability and digital procurement system also ensure fast availability, helping fleets stay operational.

Conclusion

A worn sprocket can quickly destroy new tracks through poor engagement, slippage, and uneven load distribution. Replacing it at the right time is critical to maintaining undercarriage efficiency and avoiding costly repairs.

For best results:

• Inspect sprockets regularly and monitor tooth wear.

• Replace sprockets before installing new tracks.

• Maintain proper tension, alignment, and cleanliness.

• Choose high-quality components like KTSU sprockets for durability and precision.

Investing in the right sprocket not only protects your tracks but also ensures reliable machine performance across demanding environments.

Frequently Asked Questions

How often should drive sprockets be inspected?

Every 250 operating hours as a baseline, and more often in abrasive or high-impact work, which is the interval used in this article. The check is the tooth profile, because hooking is the stage that damages the chain and it appears well before any visible tooth loss.

Does replacing tracks require new sprockets?

Yes, where the sprocket has reached the hook stage or beyond. The two form a wearing pair, so a new chain on a worn sprocket is destroyed early and the failure is usually misread as a chain fault. Measure the chain pitch in the same session and decide on both together.

Can lubrication fix a worn sprocket?

No. Lubrication and correct tension slow the rate at which a sprocket wears, but they cannot restore a profile that has already changed shape. Once the tooth has hooked, the contact point has moved and no amount of maintenance moves it back.

What is the biggest sign of sprocket failure?

A hooked or sharpened tooth profile on the driving face. It is visible before the machine behaves differently, which makes it the cheapest warning available, and it is the stage at which a chain is still being engaged somewhere close to where it was designed to be.

Are KTSU sprockets compatible with multiple machine brands?

KTSU builds sprockets to OE specifications across several platforms, so a single supplier can cover a mixed fleet. Fitment is still confirmed per machine by model, serial range and the dimensions of the part being replaced, because a part number that looks similar is not a dimensional confirmation.
