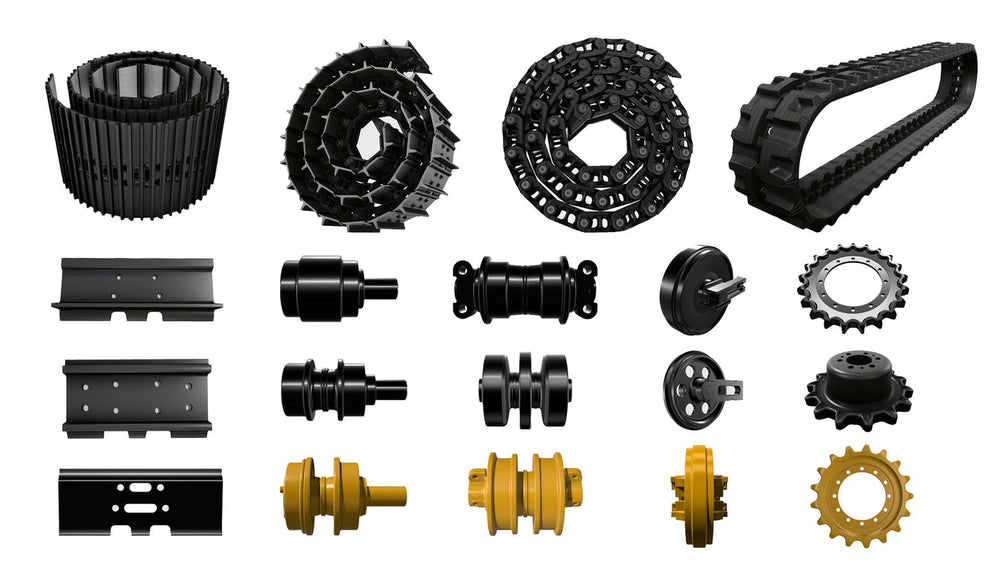

Why Bushing External Diameter Caliper Inspection Can Miss Reverse Wear
Inspection, wear evidence and replacement planning for the complete track system.
On this page
A bushing can look acceptable on first pass and still be worn unevenly enough to change the whole wear picture. That is why external diameter caliper inspection becomes useful when the real question is not “is it worn?” but “where is it worn, and how much of that wear is hidden by rotation or reversal?”
Last updated:
Why the outside diameter matters
The outside diameter gives a direct view of how much material remains on the bushing shell, which is often more useful than a casual visual check. On undercarriages, that matters because wear is rarely uniform; one side can flatten while another section still looks serviceable.
In practice, this helps separate normal service wear from a bushing that is starting to go eccentric. KTSU’s work in undercarriage components for construction and agricultural machinery is built around that kind of field reality, where a part may still run but no longer wear evenly.
What reverse wear asymmetry looks like
Reverse wear asymmetry appears when the wear pattern is stronger on one side of the bushing than the other, usually because the machine spends enough time operating in reverse to change contact behavior. The result is a profile that can fool a simple one-point check.
That matters because the operator may assume the bushing is generally worn out, when the actual problem is localized. In the field, that distinction affects whether a component is turned, monitored, or replaced.
How the three-point caliper check works
A three-point caliper measurement captures the bushing at different clock positions instead of trusting a single reading. That approach is useful because eccentric wear often shows up as a spread between measurements, not as one clean number.
The logic is straightforward: measure, rotate the position, and compare the readings for variation. If the numbers cluster closely, wear is more uniform; if one point drops sharply, the profile is likely distorted.
When the method is useful in service
This check is most useful during undercarriage audits, chain inspections, and track pin bushing turn decisions. It gives technicians a practical way to see whether the wear pattern is still balanced enough to keep using the part.
It also helps when equipment sees mixed direction use, since forward and reverse travel do not always age bushings evenly. A shop that looks only at mileage or visual polish can miss that imbalance.
What a diameter reading hides
A diameter is the average of everything the jaws touch. That makes it a useful figure and a poor description of a worn bushing.
| What is happening on the bushing | What the diameter reading shows | What it hides |
|---|---|---|
| Even wear all round | A reduction that matches the wear | Nothing; this is the case the method was designed for |
| Wear on one side only, from reverse loading | A reduction that is smaller than the real wear on the loaded side | The direction and the concentration of the wear, which is the part that tells you what to change |
| A bushing that has rotated in service | A figure somewhere between the worn and unworn position | Whether the bushing rotated, and therefore whether the whole pattern has moved |
| Localised flattening at the point of highest load | Almost the original figure, because the flat is a small part of the circumference | That the bushing is already out of round, which is the condition that matters to the joint |
The method becomes useful when it is taken in more than one direction. Measuring across the same bushing at several positions, and recording which position gave which figure, turns the diameter into a description of shape. Where the figures differ around the circumference, the bushing is worn unevenly and the direction of the difference is the finding, because it points at the loading that caused it.
Why the measurement can fail
The method can fail when the caliper is not seated consistently, the bushing surface is dirty, or the technician assumes all wear is symmetric. Small positioning differences can make a marginal part look better or worse than it really is.
This is where expectations often break down: people want one measurement to settle the question, but localized wear usually needs comparison across points. Inconsistent results are not always a sign the part is unstable; sometimes they simply show the profile is irregular.
How to improve inspection results
The best results come from repeating the same measurement points, keeping the tool aligned the same way each time, and comparing the readings as a pattern instead of isolated values. That reduces the chance of overreacting to one noisy number.
It also helps to inspect the bushing alongside mating parts, because pin wear and bushing wear influence each other. KTSU’s 70,000-square-meter facility in Kunshan works at that system level, where precision CNC machining, robotic CO2 welding, and friction welding are part of keeping wear behavior predictable across the full undercarriage assembly.
KTSU Expert Views
From an inspection standpoint, the most useful bushing measurements are the ones that reflect how the component actually lives in service, not how it looks in a clean workshop. A 3-point caliper check is valuable because it exposes uneven wear that a single diameter reading can hide, especially on machines that spend long hours reversing or working on abrasive ground.
KTSU’s background as a Sino-Japanese joint venture matters here because undercarriage quality is rarely about one isolated process. The company’s 3,000-item portfolio and long experience with track rollers, idlers, sprockets, and track chain assemblies suggest a system-level view, where bushing behavior has to be judged alongside the rest of the running gear.
That is also why inspection discipline matters as much as metallurgy. If the measurement method is sloppy, even a well-made bushing can be misclassified, turned too early, or kept in service too long.
Frequently Asked Questions
Why does a bushing diameter reading miss reverse wear?
Because a diameter is an average of the whole circumference, and reverse loading wears one side. The reading falls, but by less than the real wear on the loaded side, so a bushing that is badly worn in one direction can still look acceptable on the caliper.
How should an undercarriage bushing be measured?
Take readings at several positions around the circumference and record which position gave which figure. The diameter alone describes how much metal has gone; the difference between positions describes how the joint is being loaded.
Can a bushing that has rotated in service still be measured accurately?
It can be measured, and the reading will sit somewhere between the worn and the unworn position, which makes it hard to interpret on its own. Looking at the wear marks and at where the loaded side now sits tells you more than the figure does.
