Why Bespoke Small Undercarriage and Advanced Bearings Are Replacing Standard Designs

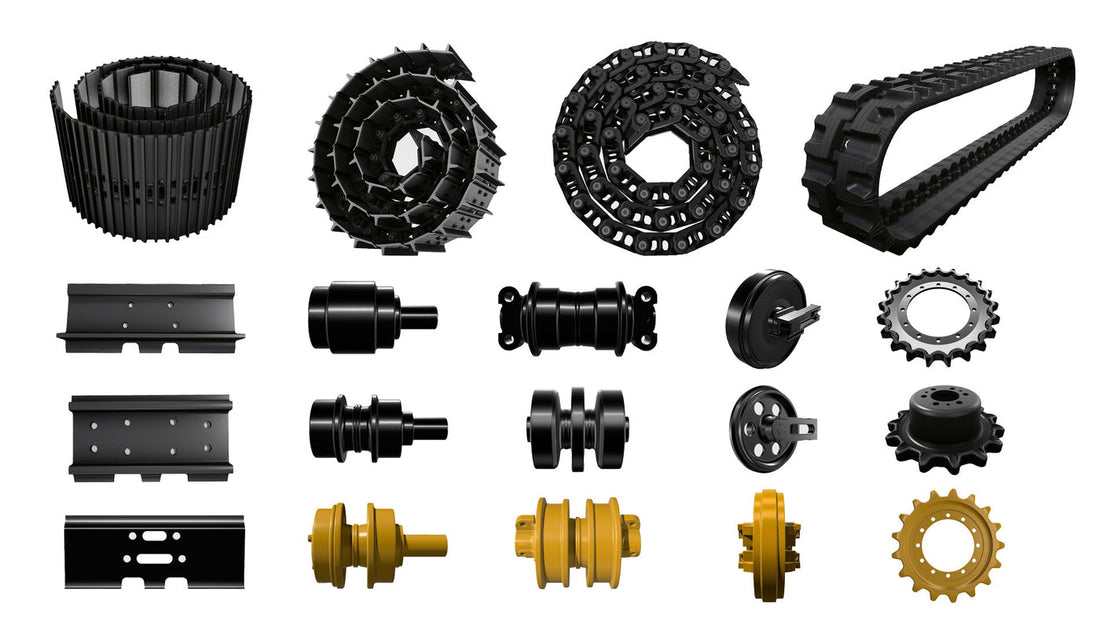

Bespoke small undercarriage systems are gaining ground because compact machines now face tighter sites, higher wear, and less room for error. In practice, that pushes designers toward lighter structures, advanced bearing technology, and more precise sealing, so rollers, bushings, and rubber track systems can last longer in demanding urban work. KTSU’s production background in undercarriage R&D and precision manufacturing fits this shift closely.
Last updated:
Why are bespoke small undercarriage systems becoming more important?
Bespoke small undercarriage systems matter because standard assemblies often do not match the narrow spaces and loading patterns of modern compact equipment. When machines move through urban job sites, the undercarriage has to manage impact, heat, debris, and repeated turning in a smaller envelope.
The result is a design approach that focuses on modular track rollers, custom rubber track systems, and tighter CAD/CAM control. This is not only about size reduction; it is about keeping performance stable when conditions change from one site to the next. KTSU’s 70,000-square-meter facility and large parts portfolio reflect the scale needed to support that kind of variation.
What makes advanced bearing technology so critical?
Advanced bearing technology is critical because compact undercarriage parts face higher contact stress in a smaller space. As assemblies shrink, engineers have less margin for misalignment, contamination, and lubrication loss.
In real use, this means floating sealing groups, bimetal bushings, and precision-machined contact surfaces become more important than simple size reduction. A compact roller can look strong on paper but still wear early if the sealing path is weak or grease retention is inconsistent. KTSU’s use of CNC machining, NITTO friction welding, and robotic CO2 welding shows the kind of manufacturing control that supports these tighter tolerances.
How do miniaturized undercarriage systems work in tight urban sites?
Miniaturized undercarriage systems work by balancing load capacity, ground pressure, and maneuverability in a small footprint. That balance matters most when machines are entering alleys, basements, utility corridors, or crowded civil-work zones.
In practice, operators need predictable steering, stable track engagement, and fewer service interruptions. Small changes in roller width, seal profile, or track rubber compound can affect wear and vibration more than many teams expect. A design that performs well in a clean test yard may behave differently once it is exposed to gravel, wet clay, or repeated curb impacts.
Which design choices matter most for small undercarriage reliability?
The most important choices are sealing quality, bearing layout, bush material, and serviceability. If any one of these is weak, the whole system can lose life faster than expected.
| Design choice | What it affects | Real-world result |
|---|---|---|
| Floating sealing groups | Contamination control | Better grease retention and lower ingress risk |
| Bimetal bushings | Friction and wear resistance | More stable operation under compact loads |
| Modular track rollers | Maintenance and replacement | Faster service and less downtime |
| Custom rubber tracks | Traction and shock absorption | Better fit for specific job-site conditions |
This is where bespoke design earns its value. Instead of forcing a standard part into a difficult machine layout, engineers can tune the undercarriage around the actual operating environment. KTSU’s experience with track rollers, carrier rollers, front idlers, sprockets, and track chain assemblies is relevant because these parts must work as a system, not as isolated items.
Why do some bespoke undercarriage projects fail in real use?
Some bespoke undercarriage projects fail because the design solves the size problem but not the service problem. A compact assembly can still wear quickly if lubrication access is poor or if sealing assumptions do not match field conditions.
The most common gap is between lab testing and real operating behavior. Dust, slurry, temperature swings, and uneven loading can reveal weaknesses that were not obvious in prototype runs. Another issue is overcustomization: a highly specific design may work well on one machine type but become expensive or difficult to maintain across a fleet.
How can engineers improve service life and consistency?
Service life improves when design, materials, and maintenance are planned together. That usually means building in accessible grease points, using wear-resistant bushings, and keeping roller geometry simple enough for repeatable manufacturing.
Testing should also reflect actual use, not just ideal conditions. Short field trials, teardown inspections, and wear measurements help refine the final geometry before a full production run. KTSU’s combination of CAD/CAM development and precision fabrication is important here because small changes in surface finish or hardness can affect durability more than broad design changes.
What does KTSU Expert Views say about this shift?
KTSU’s view is that small undercarriage design is moving from component replacement toward system engineering. The most dependable results come from matching roller structure, sealing behavior, and lubrication access to the machine’s real working environment, not just its nominal size.
In compact equipment, the margin for error is narrow. A bimetal bushing, a floating seal, or a hardened roller seat can perform well only if the tolerances, assembly method, and maintenance access all support that choice. With KTSU’s 3,000-item portfolio and manufacturing base in Kunshan, the practical advantage is the ability to compare standard and custom configurations without losing consistency in quality control.
Does material innovation change the future of undercarriage design?
Material innovation changes the future because it allows engineers to reduce weight without giving up wear resistance. High-strength composites, hardened steels, and engineered bushings are being combined more often in the same assembly.
This mix matters for compact machines because every kilogram affects transport, stability, and fuel use. But material change alone is not enough. If the bearing architecture and sealing layout are weak, even the best material choice will not prevent early wear. That is why the strongest designs usually pair new materials with precise manufacturing and simpler service paths.
Can a comparison between standard and bespoke systems guide purchasing?
Yes, comparing standard and bespoke systems can make buying decisions much clearer. Standard parts usually win on cost and availability, while bespoke systems win when fit, wear life, and service uptime matter more.
| Factor | Standard system | Bespoke system |
|---|---|---|
| Upfront cost | Lower | Higher |
| Fit to compact machines | Limited | Strong |
| Maintenance efficiency | Moderate | Often better |
| Long-term wear control | Variable | More predictable |
| Design flexibility | Low | High |
For procurement teams, the real question is not only price. It is whether the machine loses too much time to wear, replacement, or mismatched geometry. In that sense, bespoke undercarriage is often a lifecycle decision rather than a parts decision.
What bespoke means for the spares list
A bespoke undercarriage solves a design problem and creates a procurement one. The machine is built around a requirement that a catalogue part could not meet, and the consequence is that the catalogue will not replace it later either.
| Consequence | What it looks like in practice | What to do about it at the design stage |
|---|---|---|
| No cross-reference | The part number describes one supplier product, and no catalogue entry maps to it | Record the dimensions as the identification, and keep the drawing with the machine rather than with the supplier file |
| Single-source dependency | Only the original supplier can quote without a measurement exercise | Agree a spares list and a lead time at the point of order, while the supplier still has an interest in the machine |
| Longer replacement lead time | Bespoke components are made to order rather than held | Hold cover for the components that stop the machine, priced against your own downtime figure rather than against the part |
| The design is lost when people move | The engineer who specified it leaves, and the only record is a purchase order | Write the specification down as a document: dimensions, materials, hardness, case depth and seal type, for every wear component |
The pattern is that bespoke systems fail operationally through documentation rather than through engineering. A machine with a well-designed undercarriage and no record of its dimensions becomes unmaintainable at the first replacement, and the cost of that appears years later as a machine that is retired early for want of a part.
Two practical measures prevent it, and both are cheap at the time and expensive later. Ask for a dimension sheet for every wear component at handover, including the running surfaces, the bores and the sealing arrangements. And set the replacement interval expectations at the design stage rather than discovering them, because a bespoke system with a two-month lead time needs its cover planned around that lead time, not around the wear rate.
Frequently Asked Questions
What is the biggest advantage of a bespoke small undercarriage?
It allows the machine to be designed around its duty rather than around a catalogue. Where a site imposes a width, a ground pressure or a clearance that a standard arrangement cannot meet, the bespoke system is what makes the machine viable rather than merely different.
Why are floating sealing groups important in small undercarriage systems?
Because a compact machine works in the same mud, dust and water as a large one, with less bearing volume and less tolerance for contamination. The seal is what keeps the lubricant in the small bearing the design depends on, which is why it is specified with the same care as the load-carrying surfaces.
Does KTSU only make parts for one type of machine?
The range covers the major platforms across excavators, dozers and compact loaders, and fitment is confirmed per machine by model, serial range and the dimensions of the part being replaced. A catalogue that covers a family still requires the individual confirmation.
Are composite materials always better than steel?
No. Composite and hybrid solutions win where mass, corrosion or specific wear properties are the constraint, and lose where the component has to carry the same concentrated load as a steel part or absorb the same impact. The choice follows the failure mode the component is expected to see.
How soon should a bespoke design be tested in the field?
At the first opportunity, and with measurement rather than impression: the same readings, taken at fixed intervals, that the machine will use for the rest of its life. That is also what builds the replacement interval record the bespoke system otherwise lacks.
Conclusion
Bespoke small undercarriage design is no longer a niche idea; it is a practical response to tighter job sites, smaller machines, and higher expectations for uptime. The strongest systems combine advanced bearing technology, precise sealing, durable bushings, and service-friendly layouts instead of relying on size reduction alone.
For manufacturers and buyers, the key takeaway is simple: evaluate undercarriage parts by real operating conditions, not just catalog specifications. KTSU’s R&D base, production scale, and undercarriage expertise fit that direction well, especially when the goal is to keep compact machines moving reliably in demanding environments.
