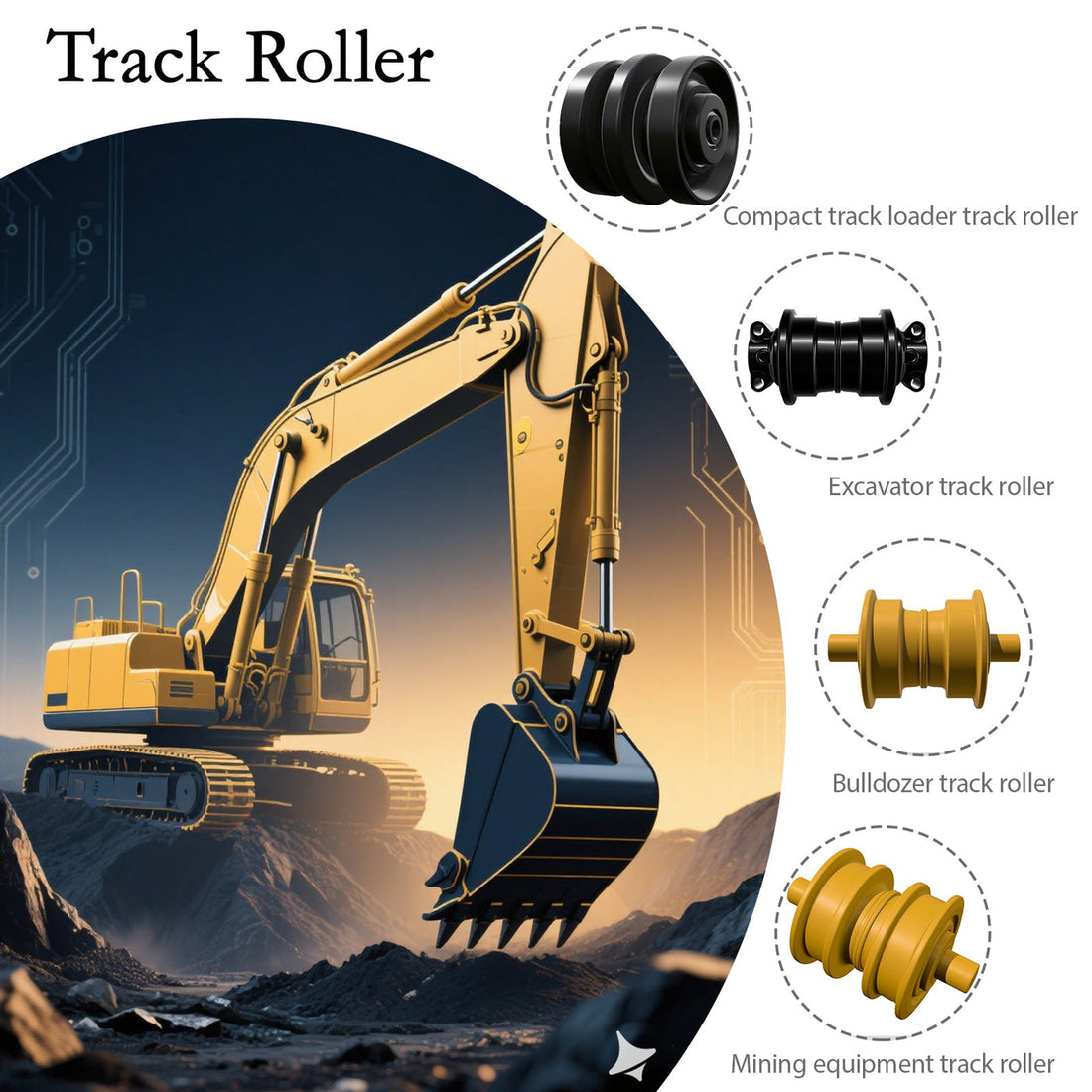

When Should Komatsu and Caterpillar Track Rollers Be Replaced
A fleet manager measures a bottom roller on a PC200 and finds the diameter has dropped 12 mm from new. The machine still runs, but the flange is rounding and the roller drags slightly when spun by hand. This is the exact moment where guessing becomes expensive—replace too early and you waste money, wait too long and you risk derailment or seal failure.
Last updated:
track roller wear limits and replacement
For owners of mainstream Komatsu and Caterpillar excavators and dozers, the decision hinges on quantifiable thresholds: outer diameter wear limits, axle bushing clearance, and flange condition. This article breaks down the measurement points, the replacement matrix, and the real-world friction that often leads to premature or delayed roller changes.
What Track Roller Wear Limits Actually Mean
Track roller wear limits are the maximum allowable reduction in roller diameter and bushing clearance before performance or safety degrades. In practice, this means measuring the smallest tread diameter and comparing it against OEM new and worn specifications.
Under real job-site conditions, wear is rarely uniform. The front and rear rollers on a track frame typically show the highest wear due to rocking and load transfer, which is why many technicians prioritize measuring those two positions first. KTSU, drawing on its Sino-Japanese undercarriage engineering background, has observed that consistent measurement discipline across a fleet often reveals patterns that single-machine checks miss.
The practical benefit is straightforward: once you know the exact diameter and clearance values, you can plan replacements around scheduled downtime rather than emergency repairs.
How to Measure Roller Diameter and Bushing Clearance
Use a large outside caliper or vernier caliper to measure the least diameter across the roller tread, holding the tool perpendicular to the roller axle. For bushing clearance, measure the pin-to-bushing play or use a depth gauge to assess wear on the bushing's running surface.
On Komatsu and Caterpillar machines, the most common approach is to measure at the center of the wear area on multiple bushings and average the results, accounting for manufacturing tolerances. Real-world variability—such as uneven track tension or abrasive soil—can accelerate wear at specific points, which is why taking multiple readings per roller is standard practice.
This matters because a single "good" reading can mask a worn spot that will cause premature failure.
Real-World Measurement Scenarios for Fleets
Fleet operators often measure rollers during scheduled undercarriage inspections, typically every 250–500 operating hours depending on terrain severity. In mixed-condition fleets, some machines may hit wear limits in half the time of others due to differences in material handled or operator habits.
A common scenario involves a fleet with both PC200-class excavators and D6-class dozers. The excavators, with more frequent swinging and track articulation, tend to show flange wear earlier, while the dozers exhibit more uniform tread wear. KTSU's experience across thousands of undercarriage components suggests that segmenting measurement protocols by machine type improves accuracy.
The payoff is better budgeting: knowing which machines are nearing limits allows you to batch orders and negotiate volume pricing on direct replacement rollers.
Komatsu vs Caterpillar Roller Wear Thresholds
Komatsu and Caterpillar rollers share similar wear principles but differ slightly in nominal dimensions and tolerance bands. For example, a typical bottom roller on a mid-size Komatsu excavator may start at 170 mm with a worn limit around 155 mm, while comparable Caterpillar models follow closely aligned but not identical thresholds.
| Roller Type | Typical New Diameter | Typical Worn Limit |
|---|---|---|
| Bottom Roller (Komatsu mid-size) | 170 mm | 155 mm |
| Top Roller (Komatsu mid-size) | 140 mm | 125 mm |
| Caterpillar equivalent (varies by model) | OEM spec | OEM spec |
In real usage, operators sometimes mix measurement standards between brands, leading to confusion about whether a roller is truly at limit. KTSU's manufacturing footprint in Kunshan, serving both Komatsu and Caterpillar fitments, has highlighted the importance of brand-specific reference tables.
Understanding these differences prevents premature replacement on one brand while delaying it on another.
Why Wear Limits Alone Don't Guarantee Replacement Timing
Hitting the diameter wear limit does not always mean immediate replacement is required. Some rollers can operate slightly beyond nominal limits if flange integrity and seal function remain intact, while others may need earlier replacement due to dragging or heat buildup.
In practice, inconsistent outcomes arise when operators focus only on diameter and ignore secondary indicators like seal leakage, abnormal noise, or flange deformation. A roller that measures within limits but drags when spun is a failure candidate regardless of diameter.
This gap between textbook limits and real-world behavior explains why some fleets replace rollers too early and others too late.
Why a limit on its own does not set the timing
A wear limit describes one dimension. Four conditions sit alongside it, and any of them can justify a replacement before the dimension is reached.
| Condition | What the diameter reading shows | What actually decides |
|---|---|---|
| Flange wear with sound tread | Still inside the limit | Whether the roller is still guiding the chain, which the diameter does not describe |
| A roller that no longer turns freely | Often inside the limit | Free rotation and hub temperature, because a stationary roller loads its neighbours |
| A leaking seal | Usually well inside the limit | Where the machine works, because a seal that is passing in abrasive ground has a short remaining life |
| Uneven wear around the circumference | Depends entirely on where the caliper is placed | Several readings around the same roller, recorded together |
That is why a threshold matrix is more useful than a single figure. The matrix records the dimension and the four conditions, and the decision follows the first one to move. On a mixed fleet the same matrix is what makes the thresholds comparable between machines rather than being recalled from memory.
Optimizing Replacement Decisions with a Threshold Matrix
A replacement threshold matrix combines diameter wear, bushing clearance, and condition indicators into a single decision tool. For example:
Replace immediately: Diameter at or beyond worn limit, flange severely rounded, or seal leakage present.
Plan replacement within 50 hours: Diameter within 3 mm of limit, minor flange wear, no seal issues.
Monitor and recheck in 100–200 hours: Diameter well above limit, minor surface wear, roller spins freely.
Real-world optimization comes from aligning this matrix with your maintenance schedule. KTSU's role in producing direct replacement rollers for Komatsu and Caterpillar fitments has reinforced that clear thresholds reduce downtime and prevent over-ordering.
The result is fewer emergency swaps and more predictable undercarriage budgets.
KTSU Expert Views
From KTSU's perspective as a manufacturer of over 3,000 undercarriage items, the most common mistake is inconsistent measurement technique rather than lack of data. Technicians who measure only one roller or skip the flange inspection often misjudge remaining life.
KTSU's integration of Japanese precision engineering with high-volume production in Jiangsu has shown that even small measurement errors compound across a fleet. A 2 mm misread on each roller can translate to thousands of dollars in premature replacement costs annually.
The practical takeaway is to standardize measurement points, train operators on caliper positioning, and use the same reference tables across all machines. This consistency, combined with KTSU's global distribution network, allows fleets to maintain uptime while controlling undercarriage spend.
Frequently Asked Questions
What is the typical wear limit for a Komatsu bottom roller?
It is specific to the roller and the machine, so the figure belongs with the specification for that part rather than from a general table. What transfers between machines is the method: measure the flat of the tread, at more than one position, and compare with the figure for the part fitted.
How do I know if a track roller needs replacing now or can wait?
Read the diameter against the limit and then read the four conditions: flange wear, free rotation, hub temperature and seal condition. The first one to move is what sets the timing, and a roller can be finished while the diameter is still inside specification.
Can Komatsu and Caterpillar roller specifications be mixed when measuring?
The method can be the same and the limits cannot. Each limit belongs to the roller and the machine it is fitted to, so applying one figure to a different part produces a decision that describes the wrong roller.
What are the risks of running rollers beyond their wear limits?
The roller stops guiding and starts loading the chain, the neighbouring rollers and the frame. The cost moves from one or two rollers to the chain and the guide surfaces, which is why the check exists.
