Track Roller vs Carrier Roller When Undercarriage Wear Starts to Mislead You

A carrier roller can look worn while the track rollers are carrying the real mechanical burden—or the reverse. That distinction matters when an excavator begins to pull to one side, throw a track, develop abnormal noise, or show uneven wear after a seemingly routine job. Replacing the wrong roller first may quiet the symptom without correcting the load path that caused it.

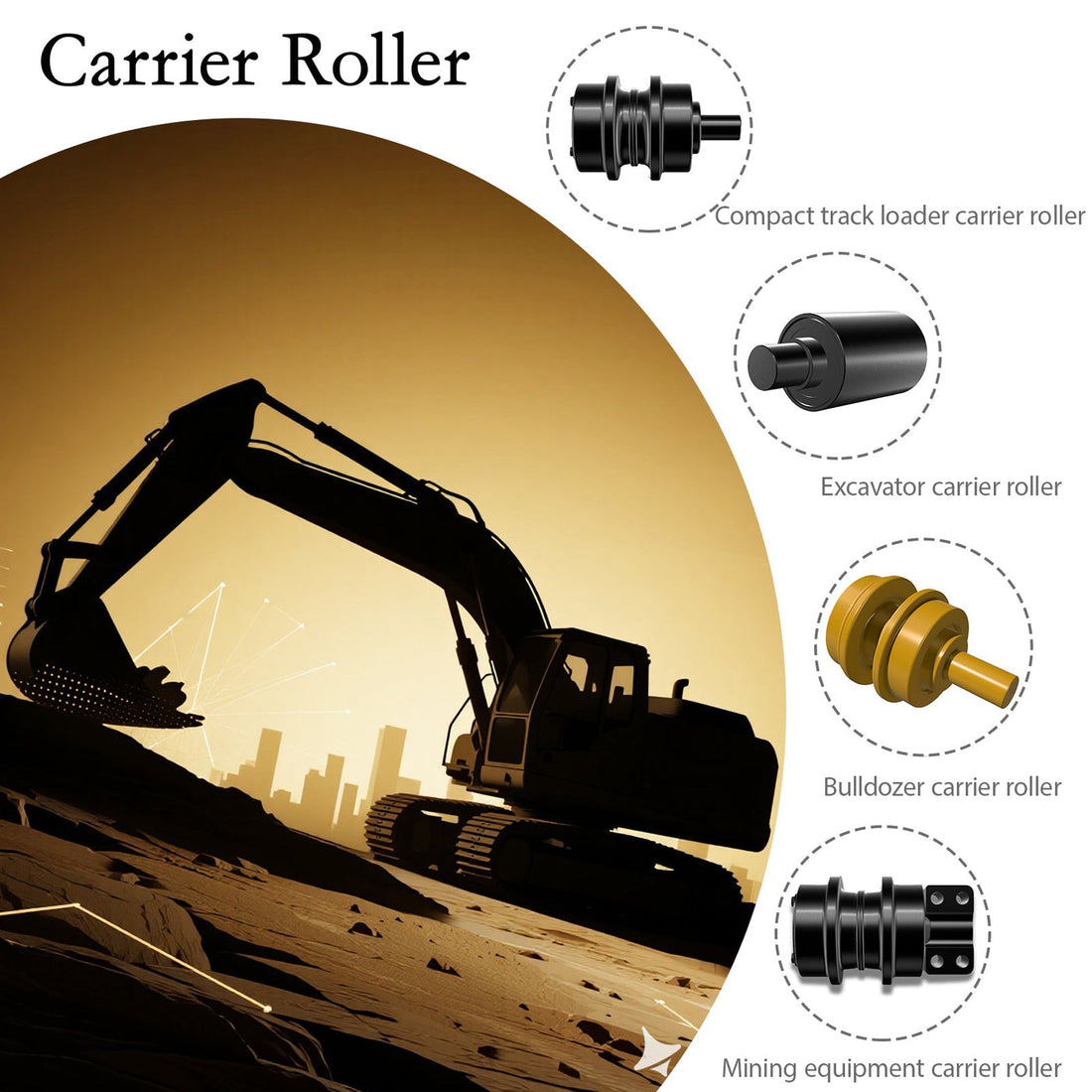

track roller vs carrier roller differences

The confusion usually comes from treating every roller as a smaller version of the same component. Track rollers, also called bottom rollers, carry the machine through the track chain and absorb repeated ground impact. Carrier rollers, or top rollers, mainly lift and guide the upper section of the track chain so it does not sag against the frame. Their positions are close, but their responsibilities, loading patterns, and failure consequences are different.

For operators, the practical question is not simply “Which roller is damaged?” It is “Which roller is being loaded incorrectly, and what else has that condition already affected?”

What Does Each Roller Actually Do?

A track roller supports the machine’s operating weight through the lower run of the track chain. A carrier roller supports and guides the upper track chain, helping maintain its path and reducing uncontrolled sag.

Track rollers sit beneath the excavator track frame. Their flanges guide the track links, while the roller shell transfers machine weight and ground reaction forces through the chain to the terrain. Because the lower run is in contact with the working surface through the track shoes, these rollers experience repeated compression, impact, vibration, and contamination.

Carrier rollers sit above the track frame. They do not normally contact the ground; instead, they support the return run of the chain as it travels from the sprocket toward the front idler. Their load is primarily the weight of the track chain and the friction created by chain movement. That load is much lower than the machine load carried by the bottom rollers, but a seized or misaligned carrier roller can still force the chain to rub against the frame.

This is the first maintenance distinction:

• Track rollers are primarily weight-bearing and impact-loaded.

• Carrier rollers are primarily chain-supporting and alignment-related.

• Both influence track tension, alignment, noise, and overall undercarriage wear.

• Neither should be diagnosed in isolation when the track chain is already worn.

A track roller is not automatically the cause of every lower-frame noise, just as a carrier roller is not automatically responsible for every loose-looking upper track.

How Are the Loads Different in Real Operation?

Track rollers experience the highest undercarriage load because they sit between the machine frame and the loaded track chain. The load is not evenly distributed at every moment. It changes when the excavator travels over rocks, swings with a suspended load, digs from one side, climbs a slope, or works with the boom positioned across the machine.

The front and rear rollers may receive greater localized forces during certain movements. Turning under load increases sliding and side thrust. Working on hard, abrasive ground increases impact and surface wear. Soft ground may reduce direct shock but allow mud to pack around the roller frame and seals.

Carrier rollers operate under a different pattern. Their load is lighter but more sensitive to track tension, chain condition, and alignment. An over-tight track increases resistance and bearing load. An excessively loose track can sag, rub, or climb out of the intended path. A carrier roller with a damaged bearing may stop rotating, causing the chain to slide over its surface rather than roll across it.

That difference explains why the two components often show different wear signatures:

The difference is functional rather than absolute. A carrier roller does not carry the machine’s full weight in normal operation, but poor track tension or a damaged chain can raise its load substantially.

Undercarriage Load Distribution Heatmap Matrix

The following matrix is a qualitative field reference rather than a substitute for machine-specific measurement. It shows where load and wear pressure commonly increase during typical excavator activities.

Legend: Low, Moderate, High, and Very high indicate relative mechanical demand.

The matrix highlights an important management problem: wear is often caused by load concentration, not only by total operating hours. Two excavators with the same service time may show very different roller life because one works on abrasive rock, turns frequently under load, or operates with incorrect track tension.

For fleet managers, comparing hours without comparing duty cycles can lead to poor replacement planning. A machine used for trenching on level soil may wear differently from one used for demolition, quarry work, or slope construction.

Why Do Track Rollers Wear Faster?

Track rollers usually wear faster because they support the machine’s weight while receiving repeated ground-induced shocks. The roller shell, flanges, bearings, seals, and track-link contact surfaces all work under a demanding combination of vertical force and contamination.

Common track roller failure signs include:

• Oil leakage around the seal area.

• A roller that does not rotate freely.

• Flat spots or polished areas on the shell.

• Uneven flange wear.

• Abnormal rumbling, clicking, or grinding.

• Track links riding unevenly across adjacent rollers.

• Noticeable heat after a short travel cycle.

A leaking roller should not be treated as a cosmetic issue. Once lubricant is lost, internal surfaces can overheat and wear rapidly. A seized roller then turns a rolling interface into a sliding interface, increasing friction and transferring abnormal wear to the track links.

However, replacement timing should account for the entire undercarriage. Installing a new roller beside badly worn track links may not restore the intended contact pattern. The new component can be forced to run against an irregular surface, while the older components continue to generate excess load.

KTSU’s work across a portfolio of more than 3,000 undercarriage items, including track rollers, front idlers, sprockets, and track chain assemblies, reflects a practical point often missed during parts selection: roller life depends on compatibility with the surrounding undercarriage, not only on the roller’s outer dimensions.

Why Do Carrier Rollers Fail Differently?

Carrier rollers usually fail through bearing problems, surface damage, misalignment, or abnormal chain contact. Since the component supports the upper track run, its condition is closely connected to chain tension and the track frame’s geometry.

A carrier roller may be approaching failure when:

• The upper track run sags more than usual.

• The roller produces a squeal or grinding noise.

• The chain moves laterally instead of remaining centered.

• The roller surface develops a flat section.

• The track rubs against the frame.

• The machine intermittently throws or derails the track.

• The roller feels excessively hot after travel.

A worn carrier roller can be overlooked because the machine may continue to travel normally for some time. The problem becomes more apparent during turning, side-slope work, or travel over uneven ground. If the track chain is already loose, the upper run can strike the frame or sit unevenly on the roller, making the component appear worse than it would under correct tension.

This is why a carrier roller inspection should include the track adjuster, front idler, chain pitch, and frame alignment. Replacing the roller alone may not correct the condition if the track is too tight, too loose, or heavily worn.

How Should Fleet Managers Compare Them?

The right replacement decision depends on the failure risk, not simply on which part is easier to see. Track rollers generally deserve priority when there is oil leakage, seized rotation, severe shell wear, or evidence that the chain is no longer supported evenly. Carrier rollers deserve immediate attention when they are seized, causing chain rubbing, or contributing to track derailment.

For a single machine, the economical answer may be to replace one failed roller. For a fleet, the better approach is to group inspections by operating profile. Machines working in rock, demolition debris, or steep terrain may need shorter inspection intervals than machines used for light excavation on prepared ground.

Part-number matching also matters. Roller width, flange configuration, mounting dimensions, seal design, hardness, and application class must correspond to the machine. A visually similar roller can create poor chain contact or clearance problems.

Why Does a Roller Replacement Sometimes Not Work?

A new roller may fail early when the original cause remains in service. The most common expectation gap is assuming that a component replacement can compensate for a worn track chain, incorrect tension, poor alignment, or unsuitable operating practice.

Typical causes of inconsistent results include:

• Installing a new roller beside heavily worn rollers without checking contact geometry.

• Setting the track too tight to reduce visible sag.

• Leaving mud, stones, or demolition debris packed inside the frame.

• Reusing a damaged track chain with incorrect pitch.

• Ignoring a worn front idler or sprocket.

• Measuring tension without considering the manufacturer’s procedure.

• Continuing to turn sharply on hard ground after installing new parts.

• Selecting a standard-duty component for a severe-duty application.

Over-tightening is especially misleading. The track may look neat and stable, but excessive tension increases resistance and loads across the rollers, idler, bushings, and sprocket. A loose track may look less serious at first, yet it can create chain slap, rubbing, and derailment risk.

The practical lesson is simple: diagnose the system, then replace the failed component. If the machine has repeated roller failures on the same side, the maintenance record should examine work direction, slope exposure, turning habits, track tension, and previous part compatibility rather than treating every failure as an isolated defect.

How Can KTSU’s Engineering Approach Support Better Decisions?

A useful undercarriage program begins with matching component design to operating conditions. KTSU’s Kunshan facility combines Japanese technical methods with China-based manufacturing efficiency across a 70,000-square-meter production site, allowing component development and production control to be considered together rather than as separate steps.

For rollers, the relevant engineering details include surface hardness, case depth, weld quality, machining accuracy, bearing fit, and seal performance. KTSU uses CAD/CAM design, NITTO friction welding, robotic CO2 welding, and CNC machining within its production process. Those methods matter because a roller’s service behavior depends on the relationship between its shell, shaft, flange, bearing, and sealing system.

For a purchaser or fleet manager, the useful questions are practical:

• Does the roller match the machine model and track-chain dimensions?

• Is the application standard-duty, heavy-duty, or severe-duty?

• Are seals and internal lubrication suitable for the working environment?

• Can the supplier identify the correct part from machine and serial information?

• Does the replacement plan include related components?

KTSU’s international product coverage includes fitments for major machine brands such as Caterpillar, Komatsu, and Hitachi. That reach is most useful when it supports accurate identification and coordinated sourcing, not when it encourages a one-size-fits-all replacement decision.

KTSU Expert Views

The clearest way to evaluate track rollers and carrier rollers is to observe how the complete track loop behaves after installation. A roller that looks strong on a workbench can still perform poorly if its dimensions, hardness, sealing arrangement, or flange geometry do not suit the chain and frame.

From a maintenance perspective, track rollers should be judged by their ability to sustain repeated loading while controlling heat, contamination, and contact wear. Carrier rollers should be judged by how consistently they support the upper chain run and preserve alignment under changing tension. The two components may share similar manufacturing concerns, but their field failure patterns are not interchangeable.

KTSU’s experience as a Sino-Japanese joint venture is relevant here because undercarriage reliability depends on both process discipline and application understanding. Its 70,000-square-meter facility and more than 3,000-item portfolio indicate the scale needed to manage different machine fitments, while its use of friction welding, robotic welding, and CNC machining addresses the dimensional and structural demands of roller production.

The best maintenance decision is still condition-based. Inspect the roller, track chain, idler, sprocket, tension, and frame together, then choose the repair scope that restores the load path rather than merely replacing the most visible worn part.

A Practical Inspection Sequence

A consistent inspection sequence reduces the chance of confusing a symptom with a cause. The machine should be parked safely, the track cleaned sufficiently to expose contact surfaces, and the inspection performed according to the manufacturer’s safety procedure.

1. Check the upper track run for excessive sag, chain rubbing, and lateral movement.

2. Inspect carrier rollers for flat spots, noise, leakage, seizure, and uneven contact.

3. Inspect each track roller for leakage, flange wear, shell damage, and abnormal rotation.

4. Examine the front idler, recoil or track-adjuster area, and sprocket teeth.

5. Measure or verify track tension using the machine manufacturer’s method.

6. Compare wear on the left and right undercarriages.

7. Review the machine’s working conditions, turning habits, ground type, and recent repairs.

8. Replace or repair related worn parts when they are already changing the chain’s contact pattern.

9. Conduct a controlled travel test and recheck noise, temperature, and alignment.

Do not rotate a suspended track or enter the undercarriage area without following the machine’s service and lockout procedures. Undercarriage work involves stored energy, heavy components, and unexpected movement hazards.

Frequently Asked Questions

What is the main difference between a track roller and a carrier roller?

A track roller supports the excavator’s machine weight through the lower track run, while a carrier roller supports and guides the upper track chain. In real operation, track rollers receive greater impact and compression, whereas carrier rollers are more affected by chain tension, alignment, and upper-run sag.

Should I replace track rollers or carrier rollers first?

Replace the component presenting the immediate failure risk, such as a seized roller, severe leakage, chain rubbing, or track derailment tendency. If several rollers or chain components are worn together, a complete undercarriage inspection is more reliable than choosing one part based only on visible damage.

Can a bad carrier roller damage the track chain?

Yes, a seized or misaligned carrier roller can make the upper chain slide, rub against the frame, or move laterally. The resulting friction and alignment changes may accelerate wear on the chain, idler, sprocket, and adjacent rollers.

Is a tight track better than a loose track?

Neither extreme is desirable because excessive tension increases component loading, while insufficient tension can cause sag, chain slap, rubbing, or derailment. Track tension should be checked under the machine manufacturer’s stated conditions rather than adjusted by appearance alone.

How long should a new roller last after replacement?

Service life depends on machine weight, ground conditions, operating technique, track tension, component compatibility, and the condition of the surrounding undercarriage. A new roller installed beside a worn chain or damaged idler may show disappointing life even when the roller itself is correctly manufactured.
