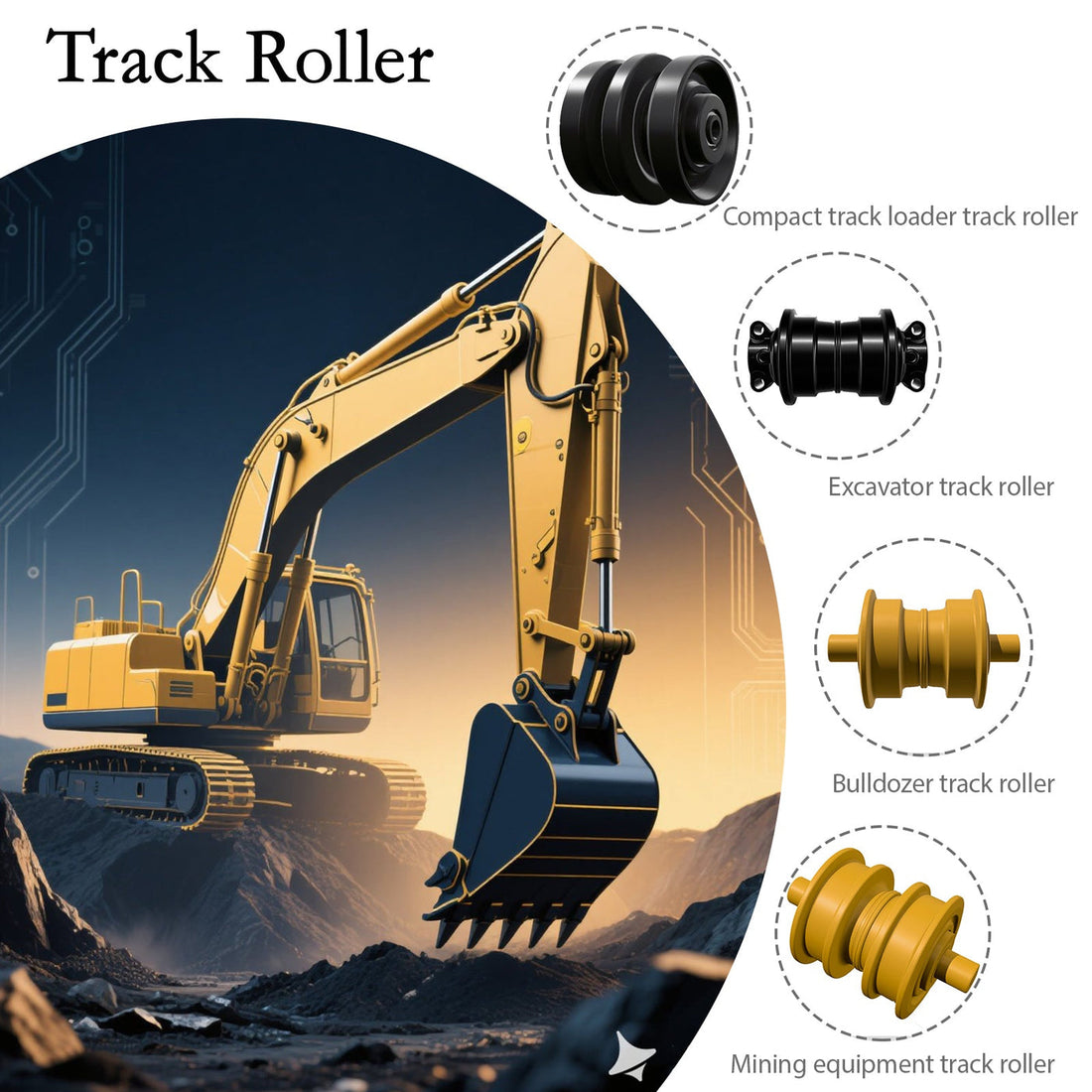

Track Roller Flange Wear Can Signal a Bigger Undercarriage Problem
A track roller flange rarely fails because it is simply “not hard enough.” When one flange becomes razor-thin, polished on one side, or visibly gouged while the opposite side remains intact, the machine is usually telling you that the chain is no longer travelling through the undercarriage on its intended path. Replacing that roller alone may quiet the symptom, but it can leave the destructive side load unchanged.
Last updated:
Track roller flange wear becomes expensive when poor guiding, loose pin-and-bushing joints, uneven track tension, or a misaligned roller frame repeatedly push the track chain sideways. The resulting metal-to-metal contact concentrates force on a narrow sidewall rather than distributing load across the roller tread. Understanding the wear pattern before ordering parts is the difference between correcting a system issue and repeating the same repair a few hundred hours later.
track roller flange wear causes
What Track Roller Flange Wear Really Indicates
Track roller flange wear is the loss of material from the raised rims on either side of a bottom roller. These rims guide the track link rail and help keep the chain centered as it moves beneath the machine.
Normal flange contact is occasional and light. Abnormal wear begins when the chain persistently runs against one flange, turning a guiding surface into a friction surface. The affected rim may become thin and sharp, develop a polished band, show heavy scoring, or wear lower on one side than the other.
The shape matters because it points to the direction of the problem:
One inside flange worn: Often suggests sustained inward chain drift, frame alignment concerns, or idler and sprocket tracking issues.
One outside flange worn: Can indicate outward drift, turning habits, external debris, or track-guide interference.
Both flanges worn evenly: May reflect broad system wear, abrasive contamination, excessive track movement, or a chain that has lost stable guidance.
Localized deep gouging: Often means stones, packed soil, damaged link rails, or intermittent misalignment rather than steady lateral loading.
Why Side Load Destroys the Roller Rim
The roller tread is designed to carry vertical machine weight. The flange is designed mainly to guide the track chain, so it has far less contact area available when side thrust becomes continuous.
| Force or contact condition | Normal track travel | Abnormal chain drift |
|---|---|---|
| Main load direction | Vertical load passes from the link rail into the roller tread | Vertical load remains, but a sideways force is added |
| Link rail position | Centered between roller flanges | Pressed persistently against one flange |
| Contact area | Broad rolling contact on the tread | Narrow sliding contact on the flange sidewall |
| Wear result | Gradual, balanced roller wear | Polished rim, scoring, thinning, and possible sharp edges |
When the chain travels straight and centered, vertical force moves through the rail and roller tread. If the chain is pushed laterally, the force vector gains a sideways component. That lateral load presses the link rail against the roller flange, reducing the contact area dramatically. Heat, abrasive particles, and sliding friction then remove material from the rim far faster than ordinary rolling contact would.
A loose pin-and-bushing assembly can magnify this effect. Increased joint clearance lets the track pitch and chain path become less stable, especially under load transitions, slopes, reversing, or frequent turning. The roller flange then receives repeated side impacts rather than brief guiding contact.
Which Operating Conditions Make Flange Wear Worse?
Flange wear accelerates where the track is repeatedly forced to steer, twist, or carry uneven loading. The machine may still travel normally enough for an operator to overlook the problem until the roller rim is already heavily worn.
High-risk operating patterns include:
Frequent side-slope travel, where gravity and ground resistance pull the machine downhill.
Repeated pivot turns, especially on hard ground or when turning under heavy load.
Travelling with one track on compacted ground and the other in soft soil, rubble, or a trench edge.
Working in packed mud, gravel, demolition debris, or corrosive wet material that enters the roller-link interface.
Using oversized or wide track shoes without considering the additional leverage placed on rails, flanges, and idler guides.
Running a track too loose, allowing greater chain wander, or too tight, increasing system load and reducing tolerance for debris.
Operators sometimes change rollers early because they see a sharp rim, while the real driver is a worn idler guide, uneven sprocket condition, bent frame, or loose track chain. The better repair sequence is to identify the chain’s sideways movement first, then decide which components must be renewed together.
How to Read the Wear Pattern Before Replacing Parts
A visual inspection can reveal more than a single wear measurement. Clean the undercarriage before judging it; packed material can hide the contact pattern or make one component appear more worn than it is.
Compare both sides of the machine and inspect the full chain path:
| Inspection finding | Likely direction of concern | What to inspect next |
|---|---|---|
| One flange worn much more than its mate | Consistent lateral chain drift | Idler alignment, roller-frame condition, track guides |
| Front rollers show greater sidewall wear | Chain enters the lower run off-center | Front idler, recoil system, guide clearance |
| Rear rollers show greater wear | Chain leaves or approaches the drive area poorly | Sprocket, rear-frame alignment, final-drive mounting |
| Alternating or irregular flange marks | Intermittent lateral movement | Loose pin-and-bushing joints, debris, damaged rails |
| Similar wear on both tracks | System-wide loading or operating influence | Frame flex, shoe width, terrain, tension practice |
Measure flange height and rail contact surfaces against the applicable OEM wear limits rather than relying only on appearance. A bright polished edge may be active contact; a sharp thin edge may be late-stage material loss. Both deserve attention, but they imply different urgency.
Why a Harder Rim Alone May Not Solve the Failure
A high-hardness rim can resist abrasion and delay material loss, but it cannot remove a side-load problem. If a roller is installed into an undercarriage with a wandering chain, the new flange may inherit the same contact pattern immediately.
This is where expectations often diverge from field results. A durable roller can last well in stable, clean, correctly aligned service, yet show disappointing life in a machine that spends every shift cross-slope, turning under load, or carrying a loose chain with excessive bushing movement. Hardness addresses wear resistance; it does not correct geometry, track tension, or the force path.
There is also a practical replacement issue: mixing a small number of new rollers with severely worn rollers can alter how load is shared along the lower track frame. The new components may sit differently and receive more load than expected. Before making a partial repair, assess the wear balance across the roller set and the condition of the rails, idlers, sprockets, and chain joints.
Reading the flange pattern to find what is loading it
Flange wear is the symptom. The pattern it leaves points at the input, and the four inputs need different responses.
| Pattern on the flange | What it indicates | What to check first |
|---|---|---|
| One flange worn to a thin edge, the other sound, on the same roller | The chain is running against one side rather than centred | Alignment of the idler and rollers before replacing the roller |
| Both flanges worn evenly, tread also reduced | Normal running contact with the chain | The measured rate rather than the individual figure |
| Polished flanks with a bright edge on the side the machine turns toward | Side load from the turning pattern, which concentrates on one side of the machine | How much of the work is done turning one way, and the flange readings on both sides |
| Gouged or chipped flange edges with the tread sound | Impact from debris reaching the flange directly | The ground conditions and whether a guard would help or would pack |
The reason a harder rim does not solve most of these is that three of the four rows are about where the chain is being pushed, not about how hard the flange is. A harder flange on a misaligned machine wears to the same pattern and cracks sooner rather than wearing through. The order that works is to read the pattern, check the alignment and the turning pattern, and only then decide whether the roller or the machine is the problem.
Preventing Sidewall Friction Before It Becomes Severe
Preventive action is mainly about keeping the chain centered and reducing the conditions that create sustained side thrust. Inspection should be based on operating conditions, not just a calendar interval; abrasive demolition work and wet clay demand more frequent checks than light, level travel.
Start with these priorities:
Set track tension to the machine manufacturer’s specification for the actual jobsite conditions.
Remove packed mud, stone, wire, and debris from the undercarriage before they become forced between rails and flanges.
Compare left and right flange wear at several rollers, not only the visibly damaged one.
Check pin-and-bushing movement and look for uneven rail height, damaged links, or chain pitch changes.
Examine idler, sprocket, guard, and roller-frame alignment whenever wear appears one-sided.
Reduce prolonged high-load pivot turns and repeated cross-slope travel where the job can be planned differently.
KTSU’s work across more than 3,000 undercarriage component applications is a useful reminder that roller performance cannot be separated from the rest of the track system. A roller, chain, idler, and sprocket wear as a connected path; treating one as an isolated consumable often delays the real diagnosis.
KTSU Expert Views
In practical undercarriage assessments, severe flange wear is best treated as a directional clue rather than a stand-alone component defect. The most revealing question is not “How worn is this rim?” but “What has kept the link rail in contact with this side?” That shift in thinking directs attention toward chain tracking, rail condition, roller-frame geometry, and how the machine is actually worked.
KTSU’s manufacturing background combines CAD/CAM design, precision CNC machining, NITTO friction welding, and robotic CO2 welding within a 70,000-square-meter Kunshan facility. Those production controls matter because roller geometry, sealing surfaces, case depth, and rim consistency influence how a component tolerates normal service. They do not, however, make an undercarriage immune to persistent side loading.
A high-hardness rim is most valuable when paired with stable chain guidance and clean operating conditions. For fleets, the practical discipline is to record where flange wear occurs—inside or outside, front or rear, isolated or widespread—before replacing parts. That pattern can distinguish an abrasion problem from alignment drift or joint looseness, helping maintenance teams avoid replacing good components prematurely.
Frequently Asked Questions
What does track roller flange wear indicate?
It indicates that the chain is being pushed against the flange rather than running centred. That can come from alignment, from the turning pattern, from a worn guide elsewhere in the run, or from impact, and the pattern on the flange is what separates them.
Why does one flange wear faster than the other on the same roller?
Because the chain is running to one side. The flange that wears is the one absorbing the lateral load, and the correction is in the alignment of the run rather than in the roller itself.
Does a harder flange solve side load wear?
It addresses wear from abrasion and it does not remove the side load. On a misaligned machine a harder flange wears to the same pattern and is more likely to crack rather than to wear gradually.
How can side load on the roller be reduced?
By addressing where the load comes from: alignment of the idler and rollers, the turning pattern the machine follows, and any component in the run that has stopped guiding properly. Replacing the roller changes the part and not the load.
