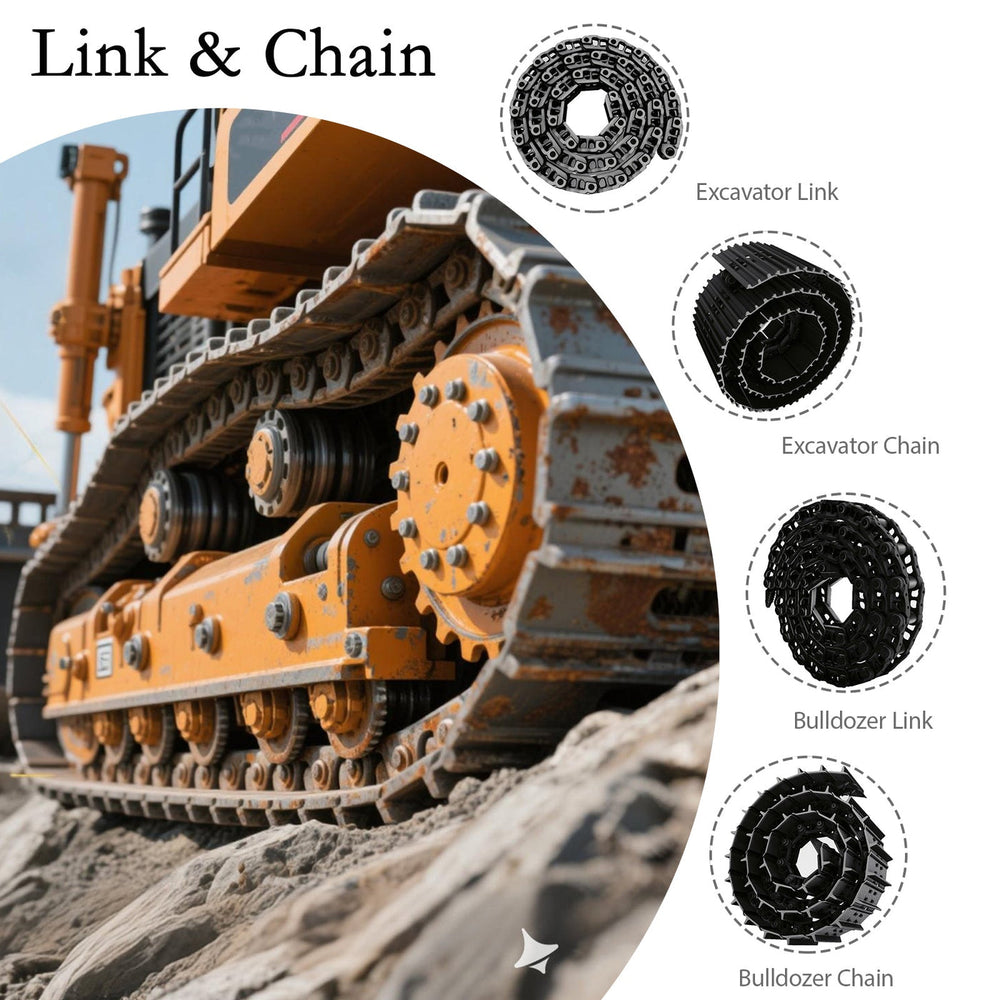

Track Link Height Measurement Can Reveal Wear Problems Before They Become Failures
Share
A worn excavator undercarriage rarely announces a problem with a single dramatic failure. More often, the warning appears as gradual track looseness, uneven travel, increased vibration, or unexpected repair costs. Track link height measurement gives operators and maintenance teams a practical way to judge remaining service life by checking the rail face with a digital vernier caliper instead of relying only on visual inspection. The challenge is knowing where to measure, how to interpret the reading, and when a worn track chain has moved beyond acceptable limits.
For excavators working in abrasive soil, rock, mud, or mixed jobsite conditions, a caliper undercarriage inspection creates a clearer picture of actual wear. A measurement that looks acceptable on one machine may represent a serious issue on another because operating environment, alignment, lubrication, and maintenance history all influence track chain performance.
What Does Track Link Height Measurement Tell You About Undercarriage Wear?
Track link height measurement shows how much material has been lost from the track link rail surface compared with the original specification. The measurement helps estimate remaining wear percentage and supports better replacement timing decisions.
The track link rail face carries continuous contact forces from rollers and idlers. As the excavator works, friction gradually reduces the height of this hardened surface. Measuring this area with a standard digital vernier caliper provides a repeatable inspection method that is more reliable than judging wear by appearance alone.
In practical maintenance situations, teams often make one of two mistakes. Some replace track chains too early because the machine looks worn externally, while others continue operating because the tracks still move. A measured approach helps separate cosmetic wear from a genuine service limitation.
KTSU’s experience as a Sino-Japanese joint venture working with construction and agricultural machinery undercarriage components reflects this practical approach. Its Kunshan facility, covering 70,000 square meters, applies engineering methods focused on durability evaluation and component consistency across different machinery applications.
How Should a Caliper Be Used During a Track Chain Inspection?
A digital vernier caliper should measure the track link rail height at a clean, unworn reference area rather than across dirt, damaged edges, or irregular contact marks. Correct positioning is essential because a small measurement error can change the perceived wear condition.
Before inspection, the track chain should be cleaned to remove compacted soil, grease, and debris around the rail surface. The excavator should be parked safely, and measurements should be taken from multiple links because wear is rarely perfectly uniform.
A typical inspection process includes:
-
Cleaning the track link rail face before measurement
-
Selecting several representative links rather than checking only one location
-
Placing the caliper jaws across the correct rail height area
-
Recording measurements for comparison with manufacturer specifications
-
Calculating approximate wear percentage based on original and current dimensions
Real jobsite conditions create variation. A machine working in wet clay may show different wear patterns from one operating on crushed stone, even with similar operating hours. Environmental factors often influence wear distribution more than owners expect.
Why Does a Track Wear Chart Matter When Reading Measurements?
A track wear chart converts raw measurement data into a practical maintenance decision by showing how much usable material remains before replacement becomes necessary.
A caliper reading alone does not answer every question. Operators need context: Is the measured height close to the service limit? Is wear increasing evenly? Is one side of the undercarriage deteriorating faster? A wear chart helps translate measurements into action.
A basic interpretation process usually follows this logic:
| Measurement Result | Typical Condition | Maintenance Consideration |
|---|---|---|
| Near original height | Limited wear | Continue scheduled inspections |
| Moderate height reduction | Normal operating wear | Monitor inspection frequency |
| Approaching service limit | Reduced remaining life | Plan replacement timing |
| Beyond recommended limit | High wear risk | Evaluate replacement immediately |
The mistake is treating a wear chart as a prediction tool that works independently. Actual service life depends on terrain, operator habits, track adjustment, lubrication quality, and alignment condition.
When Does Track Link Height Wear Become a Real Operating Problem?
Track link height wear becomes a serious concern when reduced rail material begins affecting the relationship between the track chain, rollers, sprocket, and idler system.
A common misunderstanding is that visible wear automatically means failure is near. In reality, some machines continue operating effectively with measurable wear, while others experience accelerated damage because several undercarriage components are deteriorating together.
Signs that measurement results require closer attention include:
-
Increased track chain movement or looseness
-
Abnormal travel vibration
-
Uneven wear between left and right tracks
-
Faster-than-expected sprocket wear
-
Difficulty maintaining proper track adjustment
Experienced technicians usually avoid replacing individual parts based on one symptom. The undercarriage works as a connected system. A worn track link can influence rollers, sprockets, and idlers, creating additional costs if ignored.
KTSU’s R&D and manufacturing processes include CAD/CAM engineering, NITTO friction welding, robotic CO2 welding, and CNC machining methods that focus on maintaining dimensional accuracy in undercarriage components. These technologies reflect why accurate measurement remains important throughout the component lifecycle.
Why Can Track Wear Measurements Give Wrong Expectations in Real Use?
Track link measurement may fail to provide a clear answer when users ignore inspection conditions, measurement technique, or the wider undercarriage system.
One common problem is measuring a dirty track chain and assuming the result represents actual wear. Another is comparing measurements from different machines without considering operating environment. A crawler excavator working in abrasive quarry conditions and one operating in soft agricultural soil may experience completely different wear patterns.
Another expectation gap happens when owners believe a single measurement predicts exactly how long a track chain will last. Wear progression is not always linear. A machine can operate normally for months and then experience accelerated wear after working on harsher terrain.
The limitation of a caliper inspection is not the tool itself but the interpretation. Measurements work best when combined with visual checks, maintenance records, and inspection of related undercarriage components.
How Can Operators Improve Track Chain Inspection Accuracy?
Better inspection results come from creating a consistent measurement routine instead of checking only after performance problems appear.
A practical improvement strategy includes:
-
Recording track link height measurements at regular service intervals
-
Measuring the same areas during each inspection
-
Comparing both sides of the machine
-
Combining measurement data with roller and sprocket inspection
-
Keeping maintenance history for future replacement decisions
Operators sometimes focus heavily on machine hours, but hours alone do not represent actual undercarriage stress. A lower-hour excavator working in sharp rock may experience more track wear than a higher-hour machine operating in controlled conditions.
KTSU’s global expansion work with distributors and machinery users across different regions highlights the importance of adapting inspection practices to local operating environments. Undercarriage maintenance decisions become more accurate when measurement data reflects real working conditions rather than simple assumptions.
KTSU Expert Views
Track link height measurement is one of the most practical inspection methods because it connects physical wear conditions with maintenance planning. From an engineering perspective, the important factor is not only the measured number but also how that number relates to the complete undercarriage system.
KTSU engineers view undercarriage inspection as a combination of dimensional measurement, operating environment analysis, and component interaction. Track chains, rollers, idlers, and sprockets do not wear independently. A measurement showing reduced track link height should encourage a broader evaluation rather than an immediate replacement decision.
With more than 3,000 undercarriage component items developed for machines including Caterpillar, Komatsu, and Hitachi applications, KTSU’s technical teams encounter different wear patterns across construction and agricultural equipment. Their experience shows that inspection accuracy depends on consistent methods, clean measurement surfaces, and understanding the working conditions behind the numbers.
For maintenance teams, the goal is not simply measuring wear. The goal is using measurement information to avoid unexpected downtime while maximizing the practical service value of each component.
Frequently Asked Questions
How do I measure excavator track link height with a digital caliper?
A digital caliper measures track link height by checking the rail face dimension at a clean, representative section of the link. Real inspections require multiple readings because individual links may wear differently depending on alignment, terrain, and operating habits.
What is the difference between track link height measurement and visual inspection?
Track link height measurement provides numerical wear information, while visual inspection identifies external damage, cracks, and abnormal patterns. Both methods are useful because a track chain can appear acceptable while approaching a measurable wear limit.
Can a worn track chain still be used after reaching a certain wear percentage?
A worn track chain may continue operating depending on application conditions, but operation beyond recommended limits increases the possibility of additional undercarriage damage. The decision should consider machine workload, terrain, and related component condition.
Why do track chains wear faster on some excavators than others?
Track chains wear faster when machines operate in abrasive materials, poor alignment conditions, improper track tension, or environments with limited maintenance control. Operating hours alone cannot explain all wear differences.
How often should track link height inspections be performed?
Inspection frequency depends on machine usage and working conditions. Excavators working in severe environments generally require more frequent checks than machines operating in lighter applications.
