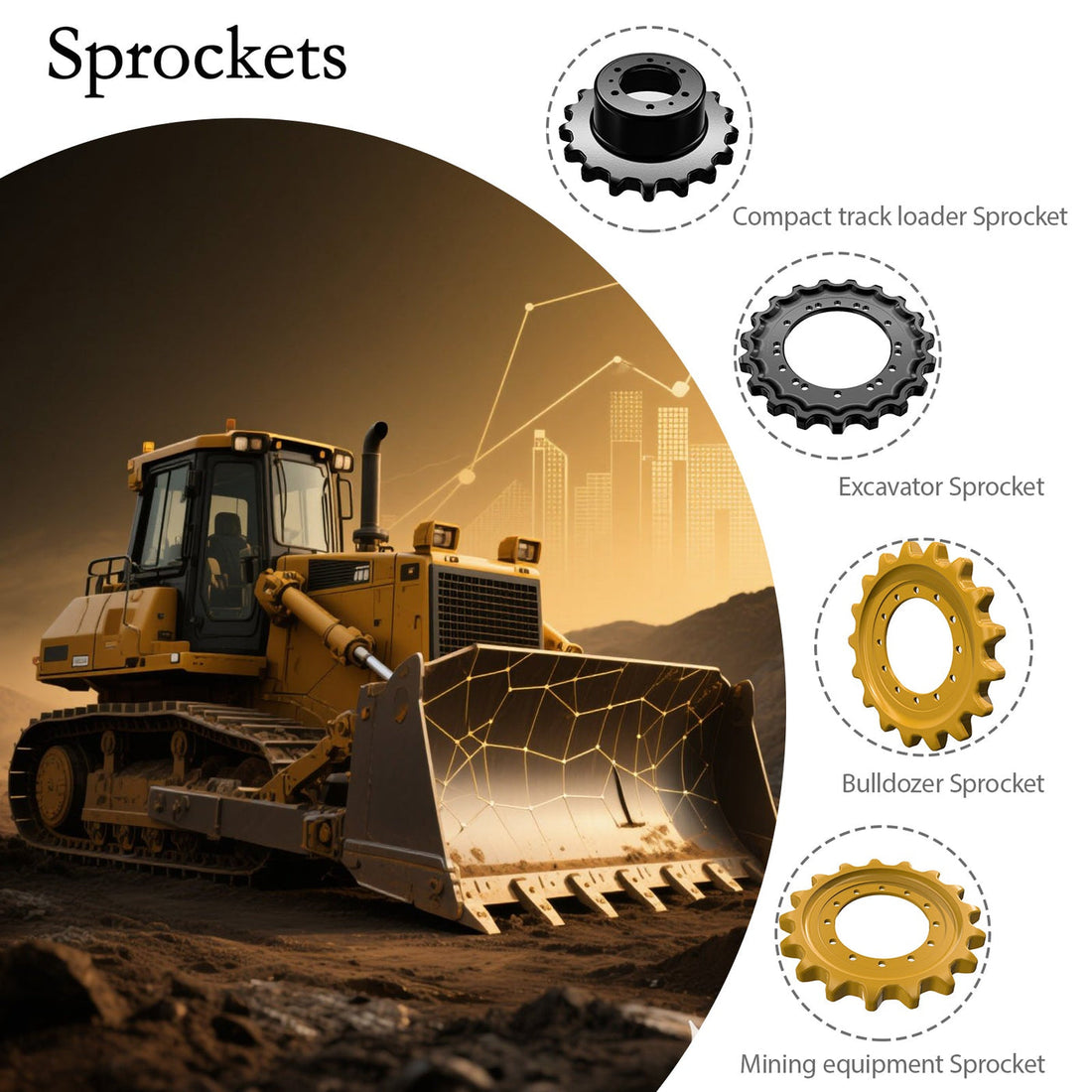

Operating Drive Sprockets in Extreme Environments Without Premature Failure

A drive sprocket can appear serviceable while its tooth flanks are already losing effective engagement with the track chain. In hard rock, abrasive gravel, or sticky clay, visible wear is only part of the problem: impact loads raise instantaneous torque, contaminants accelerate sliding wear, and chain pitch extension shifts contact toward the tooth tip. The result may be reduced tractive efficiency, irregular movement, chain skipping, chipped teeth, or sudden tooth-root fracture.

Selecting an extreme-environment drive sprocket therefore requires more than matching the machine model. The decision must connect ground conditions, duty cycle, impact severity, track-chain condition, tooth surface hardness, tooth-root geometry, and torque transmission through the final drive. KTSU’s reinforced sprocket concept is most relevant when the operating priority is stable engagement under high torque and repeated shock—not simply a thicker-looking tooth.

heavy duty drive sprockets extreme environments

Why extreme ground conditions challenge sprocket strength

A drive sprocket faces two different strength problems at the same time. The tooth flank must resist abrasive and adhesive wear, while the tooth root must withstand bending stress caused by chain tension and sudden load changes.

Hard rock creates short-duration impact events. When a track shoe or chain bushing strikes an obstruction, the load can rise sharply above the average tractive demand. Fine sand and crushed gravel create a different failure pattern: they enter the contact zone and act as abrasive particles between the sprocket tooth and bushing. Research on sprockets used in sandstone conditions identifies abrasive wear, fatigue spalling, and plastic deformation as progressive damage modes that can eventually lead to tooth breakage or chain disengagement.

Heavy clay and wet mud are often underestimated. Sticky material can pack around the sprocket, restrict normal chain seating, increase resistance to rotation, and hold abrasive particles against the tooth surface. The machine may still move, but the final drive is working against a variable load rather than a clean, repeatable one.

This matters during selection because a sprocket designed only for nominal torque may perform acceptably in compact soil and fail quickly in quarry work. The operating environment determines whether wear resistance, impact toughness, tooth-root section, or contamination tolerance should receive the greatest weight.

What happens at the tooth flank and root?

The tooth flank normally contacts the track bushing near the pitch circle. As the bushing and pin wear, track-chain pitch gradually increases. The worn chain then engages a sprocket with a shorter effective pitch, causing more sliding and contact higher on the tooth. A hooked or sharpened tooth profile is a common result, and the altered geometry can further increase local pressure.

The main tooth-level mechanisms include:

  • Abrasive flank wear: Sand, crushed rock, and mineral fines remove material from the driving face.

  • Three-body wear: A hard particle becomes trapped between the bushing and sprocket, producing local scoring and metal removal.

  • Impact indentation: A rock or packed fragment prevents smooth seating and creates a concentrated load.

  • Plastic deformation: Excessive local pressure rounds, folds, or pushes the tooth profile out of shape.

  • Bending fatigue: Repeated torque reversals and impact peaks initiate cracks near the tooth root.

  • Spalling or chipping: Surface damage grows when hardening depth, toughness, or heat treatment are poorly matched to the duty.

The root is especially important because a tooth can retain an apparently acceptable profile while having accumulated fatigue damage at its fillet. A thicker tooth does not automatically solve this problem. Poor fillet transitions, abrupt section changes, misalignment, or excessive clearance can still concentrate stress where the tooth joins the sprocket body.

How should torque loss and impact be modeled?

The most useful approach is to separate steady torque, resistance torque, and impact amplification rather than applying one blanket safety factor.

A practical first estimate is:

Tshaft=Ftractive×rpitchηdriveT_{\text{shaft}}=\frac{F_{\text{tractive}} \times r_{\text{pitch}}}{\eta_{\text{drive}}}Tshaft=ηdriveFtractive×rpitch

where FtractiveF_{\text{tractive}}Ftractive is the required track force, rpitchr_{\text{pitch}}rpitch is the sprocket pitch radius, and ηdrive\eta_{\text{drive}}ηdrive represents final-drive and transmission efficiency.

Under extreme conditions, use an operating torque envelope:

Tdesign=Tsteady×Kground×Kimpact×KmisalignmentT_{\text{design}}=T_{\text{steady}} \times K_{\text{ground}} \times K_{\text{impact}} \times K_{\text{misalignment}}Tdesign=Tsteady×Kground×Kimpact×Kmisalignment

The coefficients should not be treated as universal catalog values. They should reflect measured or observed conditions:

Operating condition Dominant load behavior Model emphasis Sprocket selection priority
Hard rock and quarry floor Short, severe torque peaks Transient impact and shock loading Tooth-root toughness, generous fillets, reinforced tooth section
High-wear sand and gravel Persistent abrasive contact Wear-driven change in pitch and clearance Deep case hardness, wear-resistant tooth flank, matched chain condition
Sticky clay and heavy mud Variable resistance and packing Resistance torque plus contamination-related engagement loss Stable tooth geometry, inspectability, and packing control
Mixed rock, gravel, and mud Combined shock and abrasive slurry Envelope model with changing load states Balanced toughness, surface hardness, and maintenance access

A torque-loss estimate should include both mechanical losses and geometry-related losses. As the tooth becomes hooked and the chain pitch extends, the bushing may slide farther before seating. That extra sliding consumes energy as friction and raises local contact temperature. It can feel like weak drive even when the hydraulic motor or final drive has not changed.

The model should therefore be updated from field evidence such as abnormal noise, increased track vibration, chain skipping, rising operating temperature, or visible tooth hooking. Treating impact as a constant multiplier can hide the difference between a single isolated obstruction and repeated shock cycles throughout a work shift.

Which reinforcement strategy fits each environment?

The best reinforced sprocket is not necessarily the hardest one. Excessive surface hardness without adequate core toughness can make a tooth more vulnerable to chipping under impact, while a very tough but soft tooth may deform and wear rapidly in abrasive gravel.

For mining rock and demolition work, prioritize:

  • A strong tooth root with smooth fillet geometry.

  • Sufficient core toughness to absorb impact without brittle fracture.

  • A hardened wear surface with an appropriate case depth.

  • Accurate tooth spacing to maintain stable chain engagement.

  • A sprocket body capable of resisting distortion under high torque.

For high-wear sand and gravel, prioritize the relationship between the sprocket and track chain. Replacing only the sprocket while retaining a badly elongated chain can transfer the original problem to the new component. Normal wear often appears as a polished strip near the pitch circle, while hooked tooth profiles can interfere with engagement.

For heavy clay and mud, geometry and cleaning access become more important. A sprocket that tolerates contamination is still exposed to increased resistance when material packs into the undercarriage. Operators should not interpret a reinforced component as permission to continue running with blocked rollers, packed sprocket cavities, or abnormal track tension.

How do operating conditions change torque demand?

Extreme-environment torque is dynamic because the track does not experience one consistent resistance. A machine climbing over a rock, pivot-turning on uneven ground, or breaking free from sticky clay can move rapidly from moderate load to a torque peak.

Several operating behaviors intensify the load:

  • Counter-rotating turns create high torsional demand across the undercarriage.

  • Frequent reverse travel changes the primary contact pattern on the tooth.

  • High-speed tracking increases heat and friction in the sprocket and track-chain interface.

  • Side-slope work produces uneven loading across the track system.

  • A tight track increases resistance and raises bearing and tooth loads.

  • A loose or worn chain can create impact during engagement and disengagement.

The engineering concern is not only maximum torque. Load frequency matters. A lower peak repeated thousands of times may create more fatigue damage than one unusual event. For this reason, a duty-cycle description such as quarry use is more useful when it also states travel speed, average shift duration, turning frequency, slope conditions, and the percentage of time spent on rock versus loose material.

KTSU’s portfolio of more than 3,000 undercarriage items gives its engineers a broad reference base for comparing sprocket, track-chain, roller, and idler relationships across construction and agricultural machinery. That system-level view is important because sprocket wear rarely develops in isolation.

Why can a reinforced sprocket still fail?

A reinforced drive sprocket may fail early when the real problem is elsewhere in the undercarriage. The most common expectation gap is assuming that a stronger tooth can compensate for a worn chain, incorrect track tension, poor alignment, or severe material packing.

Typical failure pathways include:

  • New sprocket with worn chain: The elongated chain forces abnormal contact and accelerates wear on the new tooth.

  • Hard tooth with low toughness: Impact creates chips or cracks even though abrasive wear is slow.

  • Correct model but wrong duty rating: A standard excavator pattern may not suit continuous quarry or mining work.

  • High torque with poor engagement: Misalignment shifts load to one side of the tooth.

  • Mud packing mistaken for sprocket weakness: Resistance rises until the drive system experiences repeated overload.

  • Late replacement: Once the tooth is severely hooked, changing only one component may not restore correct geometry.

Inspection should include the track bushings, pins, links, rollers, idlers, track tension, and final-drive condition—not just the sprocket teeth. Wear-monitoring methods used in mining applications can identify radial and circumferential tooth wear more reliably than visual judgment alone.

The practical lesson is simple: a reinforced sprocket improves the load path, but it does not reset the condition of the system around it.

How should buyers compare sprocket options?

A useful comparison starts with the failure mode the machine is actually experiencing. If the teeth are wearing thin and hooking in sand, surface durability and chain matching deserve priority. If teeth are chipping in rock, toughness and impact resistance matter more than maximum hardness.

Decision factor Standard sprocket Reinforced extreme-duty sprocket
Light to moderate soil Usually adequate when chain condition and tension are correct May add unnecessary cost and weight
Abrasive gravel Wear may progress quickly Better suited when surface durability and case depth match the chain
Hard rock and impact Greater risk of tooth chipping or root fatigue Preferable when the tooth root and core toughness are engineered for shock
Sticky clay and mud Performance depends heavily on cleaning and tension Adds structural margin but cannot eliminate packing-related resistance
Worn track chain New component can wear prematurely Same system limitation; chain condition must be corrected
High duty-cycle operation Lower initial cost may be offset by downtime More attractive when replacement access and production losses are expensive

Ask for more than a hardness number. The relevant questions include the hardness profile from surface to core, effective case depth, material toughness, tooth geometry, dimensional control, heat-treatment consistency, and whether the sprocket is intended to run with a specific chain family.

KTSU’s production background includes NITTO friction welding, robotic CO₂ welding, and precision CNC machining, alongside CAD/CAM-based development. Those capabilities are relevant not because a process name guarantees service life, but because dimensional accuracy and repeatable heat treatment influence how consistently the teeth share load in demanding conditions.

KTSU Expert Views

KTSU’s engineering experience points to a practical distinction between heavy duty as a label and heavy-duty performance as a matched system. In hard rock, the sprocket must tolerate impact without losing tooth geometry; in abrasive gravel, it must retain a usable flank profile as the chain and bushing wear; in heavy clay, it must operate under resistance that changes as material packs and releases.

The first inspection question should be whether the sprocket is carrying the load in the intended contact zone. A hooked tooth, uneven flank polish, or one-sided wear often indicates a chain-pitch, tension, alignment, or contamination problem rather than an isolated material problem. Replacing the sprocket without checking those conditions can create a short and frustrating replacement cycle.

KTSU’s 70,000-square-meter facility in Kunshan combines Japanese technical influence with CNC machining and controlled production processes. Its global fitment range includes components for Caterpillar, Komatsu, Hitachi, and other machinery families, which supports comparison across different undercarriage layouts.

The useful engineering decision is not simply choosing the hardest sprocket. It is selecting the right balance of wear resistance, impact toughness, geometry, and serviceability for the actual duty cycle.

How can service life be improved in the field?

The greatest improvement often comes from controlling the conditions that turn normal contact into impact and sliding. A reinforced sprocket should be installed as part of a condition-based maintenance plan rather than as a last-minute response to a broken tooth.

Use the following sequence:

  1. Record the machine model, sprocket tooth count, track pitch, operating hours, and primary ground condition.

  2. Inspect tooth flank shape, tooth-tip thickness, root cracks, uneven wear, and missing material.

  3. Measure or assess chain pitch extension and bushing wear before installing a new sprocket.

  4. Verify track tension according to the machine manufacturer’s procedure.

  5. Remove packed clay, gravel, and rock fragments from the undercarriage.

  6. Check roller and idler alignment, flange wear, bearing condition, and final-drive condition.

  7. Reduce unnecessary pivot turns and high-speed travel on hard ground.

  8. Track wear progression with photographs, measurements, or marked reference points.

Do not switch sprocket types too quickly after one abnormal event. First determine whether the event was a one-time overload, a repeated operating pattern, or evidence of a broader undercarriage mismatch. Conversely, do not continue operating indefinitely after clear hooking, chain skipping, cracking, or severe tooth thinning; these signs indicate that the geometry may already be amplifying the load.

Frequently Asked Questions

Why does a drive sprocket wear faster in sand and gravel?

Sand and gravel enter the tooth-and-bushing interface and create abrasive or three-body wear. Wet material can form a slurry that remains in the contact zone, so the wear rate changes with moisture, particle size, track tension, and cleaning frequency. A hardened tooth helps, but the chain and sprocket should be evaluated together.

How do I choose a reinforced sprocket for mining rock?

Choose according to impact severity, duty cycle, machine torque, chain dimensions, and the expected balance between tooth-root fatigue and flank wear. A sprocket with adequate core toughness and a strong root is generally more appropriate than one selected only for a high surface-hardness figure. Confirm fitment and tooth geometry before comparing material specifications.

What is the difference between a standard and extreme-duty sprocket?

A standard sprocket is normally intended for moderate loading and more predictable ground conditions, while an extreme-duty design typically adds structural margin, improved tooth geometry, deeper or more controlled hardening, or a tougher core. The difference is useful only when the track chain, tension, alignment, and final drive are also suitable for the same duty.

Can a reinforced sprocket prevent tooth-root failure completely?

No. Root failure can still result from overload, repeated impact, misalignment, excessive chain wear, manufacturing defects, or stress concentration at the fillet. Reinforcement reduces risk within its intended load range; it does not remove the need for inspection and correct operation.

How long should a new sprocket take to show improvement?

A new sprocket should engage correctly immediately, but service-life improvement becomes clear only after it operates through a representative duty cycle. If noise, skipping, vibration, or rapid polishing appears soon after installation, check chain pitch, track tension, alignment, and packing before assuming the sprocket material is unsuitable.
