Measuring Excavator Front Idler Wear and Calculating Guide Plate Shims Accurately
Field technicians often find themselves staring at a prematurely worn track link assembly, wondering why the guide plates failed long before their expected service hours. Most operators assume that track tension alone dictates undercarriage lifespan, overlooking the gradual mechanical interaction between the front idler center-flange and the outer roller paths. When excavator tracks begin to wander or exhibit lateral slapping during turns, the root cause usually traces back to unmeasured clearance drift between the idler flange and the track links. Without routine caliper checks, maintenance crews end up guessing shimming thickness, leading to either excessive side-load friction or complete loss of lateral guidance.
Last updated:

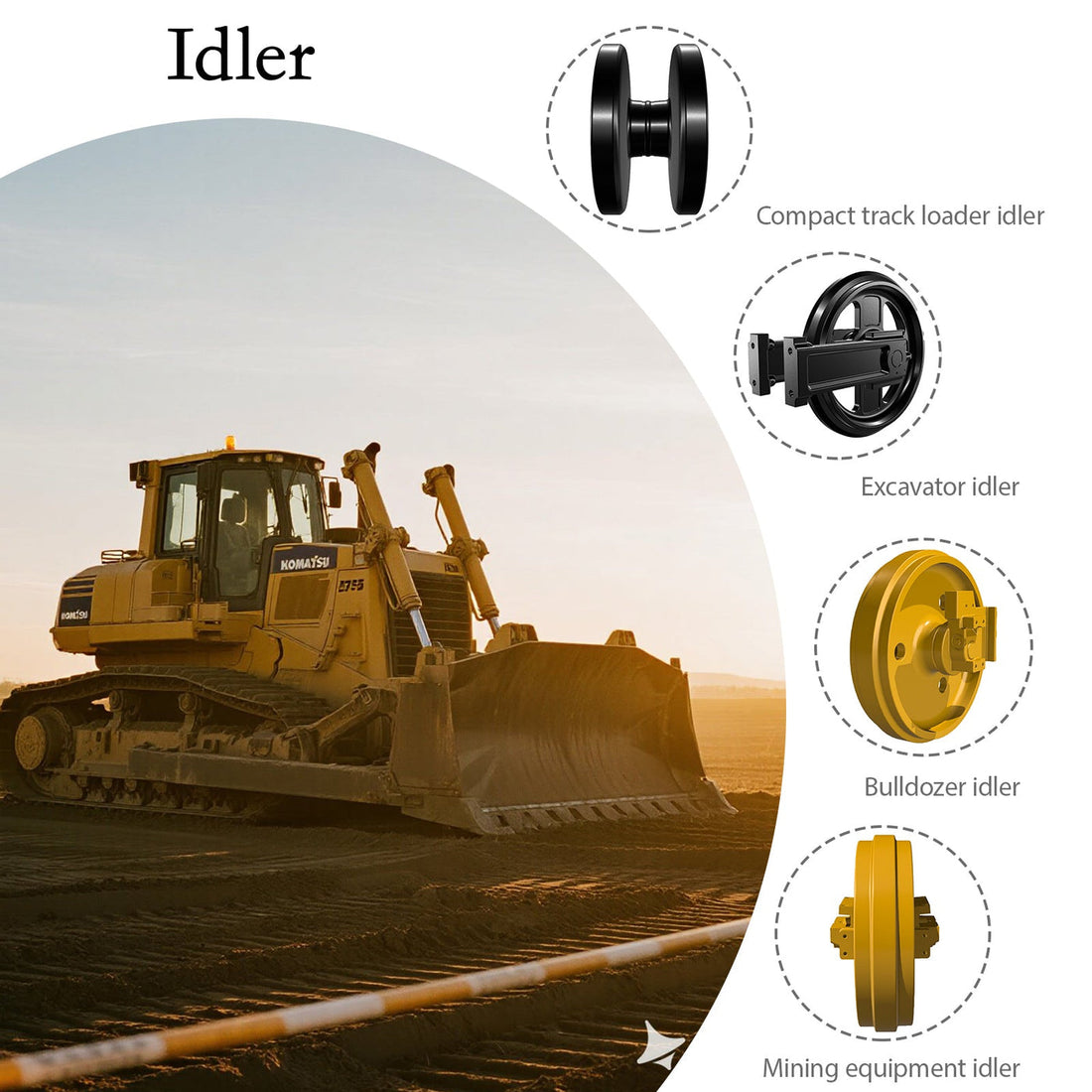

Foundational Understanding of Idler Tread Wear and Flange Clearance
Why is idler tread wear directly tied to lateral guide plate shimming? The front idler serves a dual purpose: it supports machine weight while acting as a vital steering guide that keeps the track chain aligned with the lower rollers and sprockets. As the excavator operates across abrasive soils, rock, and sand, the outer roller path of the idler gradually abrades downward. Because the center flange rides in the narrow gap between the pin and bush rails, it experiences less direct rolling contact on its outer diameter, maintaining more of its original height while the tread recedes.
In real-world applications, this uneven metal loss alters the geometric relationship between the idler and the track assembly. Field engineers observing undercarriage wear patterns often notice that as the outer path thins, the relative height of the center flange increases, changing the clearance limits established by the manufacturer. Recognizing this mechanical shift prevents technicians from replacing expensive track chains when the real culprit is a drifting clearance gap that requires mechanical compensation through shimming.
How Caliper Measurements Reveal Hidden Undercarriage Stress
How do technicians accurately assess whether an excavator front idler requires immediate shimming adjustment? Measuring idler wear goes beyond a simple visual inspection; it requires precision depth and thickness measurements using calibrated calipers and depth micrometers. Mechanics typically clean the accumulated packed dirt from the running surface and measure the remaining depth of the outer roller path relative to the side shoulders or the peak of the center flange.
In field environments, dirt contamination and rust pitting can easily skew measurements if the contact points of the caliper are not set against unblemished metal surfaces. Technicians must account for localized mushrooming or rolling burrs at the edge of the tread, which frequently form under high-impact digging conditions. By taking cross-sectional measurements at multiple points around the circumference of the idler, maintenance teams can calculate the true average material loss and determine the exact reduction in flange clearance. This data-driven approach shifts maintenance from reactive component replacement to precise geometric restoration.
Practical Usage Scenarios and Environmental Impact on Wear Rates
Does operating terrain fundamentally change how fast an idler wear path develops and when shims must be added? Heavy excavation in rocky, mountainous terrain accelerates abrasive wear on the outer roller path exponentially faster than soft-soil utility work or loose sand grading. In rocky conditions, crushed stone wedges between the track links and the idler tread, acting like a lathe tool that chews away steel at an accelerated rate.
Conversely, operating in abrasive mud or high-silica sand creates a lapping compound effect that uniformly wears down both the idler tread and the track bushing surfaces. Operators working in these abrasive environments frequently report that track side-play becomes noticeable much earlier in the machine lifecycle. Field service records from KTSU, drawing on extensive global observations of machinery operating across diverse mineral extraction and heavy construction sites, indicate that tracking in side-slope conditions doubles lateral side-load pressure against the idler flange, forcing maintenance schedules to adapt to regional jobsite severity rather than static operating hours.
Failure Analysis: Why Incorrect Shimming Destroys Undercarriage Components
What happens when maintenance crews install incorrect shim thicknesses or neglect idler wear path depth altogether? The most common real-world failure occurs when technicians add shims blindly based on track sag alone, ignoring the actual depth measurement of the idler flange. If too many shims are added to compensate for a worn idler, the guide plates lock too tightly against the track links, creating extreme lateral friction. This over-tightening generates intense heat, rapid side-flange galling, and premature destruction of the recoil spring mechanisms.
On the other hand, failing to add shims as the outer path wears down allows excessive lateral play. This causes the track links to slam violently against the guide plates during sharp counter-rotation turns, eventually shearing guide bolts, cracking track links, or throwing the track entirely off the undercarriage frame. This expectation-versus-reality gap frequently frustrates fleet managers who assume new components will automatically self-adjust to worn mating surfaces without manual shim recalculation.
Calculating Shimming Thickness Using Caliper Data
How do you translate raw caliper measurements into the correct shim pack thickness for an excavator front idler? Calculating the required shims involves comparing the current measured flange-to-path differential against the original factory baseline specification for that specific machine class. Technicians measure the baseline depth from the top of the center flange down to the worn outer roller path, subtracting this value from the original nominal factory dimension to find total metal loss.
When re-establishing proper side clearance, the calculated shim thickness must account for both sides of the idler mounting bracket to maintain central alignment within the track roller frame. Precision manufacturing insights from KTSU, rooted in decades of advanced component engineering at their 70,000-square-meter Kunshan facility where rigorous CNC machining ensures strict dimensional tolerances, demonstrate that even a millimeter of calculation error in shim stacking can introduce uneven load distribution across the entire crawler assembly. Mechanics must verify that after inserting the calculated shims, the idler slides freely within its recoil guides without binding under maximum track tension.
Step-by-Step Field Guide to Executing Caliper Inspection Procedures
What is the exact sequence technicians should follow when inspecting idlers in the field? Establishing a repeatable inspection routine minimizes measurement errors caused by grease, mud, and uneven surface corrosion. First, position the excavator on level ground and relieve track tension slightly if packed debris restricts access to the idler tread area. Thoroughly scrape and wire-brush the running path to expose bare metal before placing any measuring tools against the component.
Next, use a specialized depth caliper or a vernier caliper with a depth rod attachment to record measurements across at least four quadrants of the idler circumference. Averaging these readings accounts for asymmetrical wear patterns caused by turning bias or jobsite steering habits. Documenting these serial readings over multiple service intervals allows maintenance supervisors to plot the wear rate curve, predicting exact replacement and shimming milestones before catastrophic track failure halts production.
After the shims go in: a five-step check
Shimming changes the geometry, and the machine needs to be re-read afterwards rather than assumed correct. Five steps, in this order:
- Re-tension to the manual figure at the point the manual names, on level ground, and write the reading down.
- Run the machine a short distance and re-check where the belt sits in the idler.
- Compare the contact marks on the idler flanges left and right. Even marks mean the belt is running square.
- Listen at the idler under load. A change in tone after shimming is information, not noise.
- Re-measure the clearance after a full shift, because a change that appears only under load will not show on a cold static check.
| What you find | What it means | What to do |
|---|---|---|
| Belt sits square, marks even, clearance holds | The shim thickness is in the right range | Record the figure and the date; this is your baseline for the next check |
| Belt runs to one side but the clearance is correct | The misalignment is somewhere other than the shim stack | Look at the track frame and the belt before adding or removing shims |
| Clearance closes up within a shift | Wear is continuing faster than the shim correction can absorb | Re-measure the idler tread, not just the gap |
There is a point at which shimming stops being the answer. If the clearance will not hold across a shift, or the belt will not run square whatever the shim stack, the wear has moved into the frame or the belt itself and another set of shims is only buying time. Working out which of the three it is, before ordering, is the difference between one repair and three.
Troubleshooting Common Misalignments After Shim Installation
What steps should be taken if an idler binds or tracks poorly immediately after new shims are installed? Sometimes, even with precise caliper calculations, an idler exhibits binding or asymmetric rubbing due to hidden frame distortion or worn recoil yokes. When this happens, technicians should loosen the mounting bolts, check for parallel alignment between the idler shaft and the main frame, and inspect the condition of the wear strips welded inside the crawler housing.
Field technicians frequently overlook the condition of the recoil springs and guide blocks when addressing alignment issues. If one side of the recoil mechanism is weaker than the other, the idler will skew under tension regardless of how precisely the shims were calculated. Verifying that the entire recoil housing is free of debris and parallel to the track centerline ensures that the newly shimmed idler glides smoothly through its entire operational stroke without lateral binding or premature flange scoring.
KTSU Expert Views
Maintaining proper mechanical equilibrium across crawler undercarriages requires looking past single-part replacement and focusing on the interdependent wear relationship between track links, rollers, and front idlers. KTSU technical specialists emphasize that idler wear path degradation is an entirely predictable mechanical process if monitored through systematic, periodic caliper inspections. Rather than waiting for catastrophic track derailment or severe flange chipping, maintenance teams should integrate routine depth profiling into their standard 500-hour service intervals.
By understanding how thermal expansion, abrasive soil migration, and side-slope loading influence material loss, technicians can make informed decisions regarding when to surface-build, shim, or replace an idler assembly. Precision engineering relies heavily on maintaining manufacturer-specified tolerances, and applying accurate shimming calculations ensures that heavy equipment delivers maximum operational uptime across the most demanding global job sites without inducing unnecessary friction or structural stress.
Frequently Asked Questions
How do I know if the idler shims are the right thickness?
Check the clearance cold, then check it again after a shift, and compare the contact marks on the idler flanges left and right. The right thickness is the one that leaves the belt square with even marks and holds that clearance across a working shift, not the one that matches a calculated figure on paper.
Why does the belt still run off after shimming?
Because the shim stack only corrects one part of the geometry. Belt tracking is also set by the track frame, the belt itself, tension and the wear in the opposite end of the undercarriage. If a correct clearance and a tracked belt do not coincide after shimming, the remaining misalignment is outside the shim stack.
Can I measure idler wear without removing the track?
The tread and the flange clearance can be measured with the track in place, which is what makes the check worth doing regularly. What cannot be judged in place is the condition of the bearing and the seal, so a machine with the correct clearance but a rising hub temperature still needs the track off.
How often should front idler wear be checked?
At every undercarriage inspection, using the same measurement points, so the readings form a trend. On abrasive or clay ground the interval should be set by hours run rather than by the calendar.
