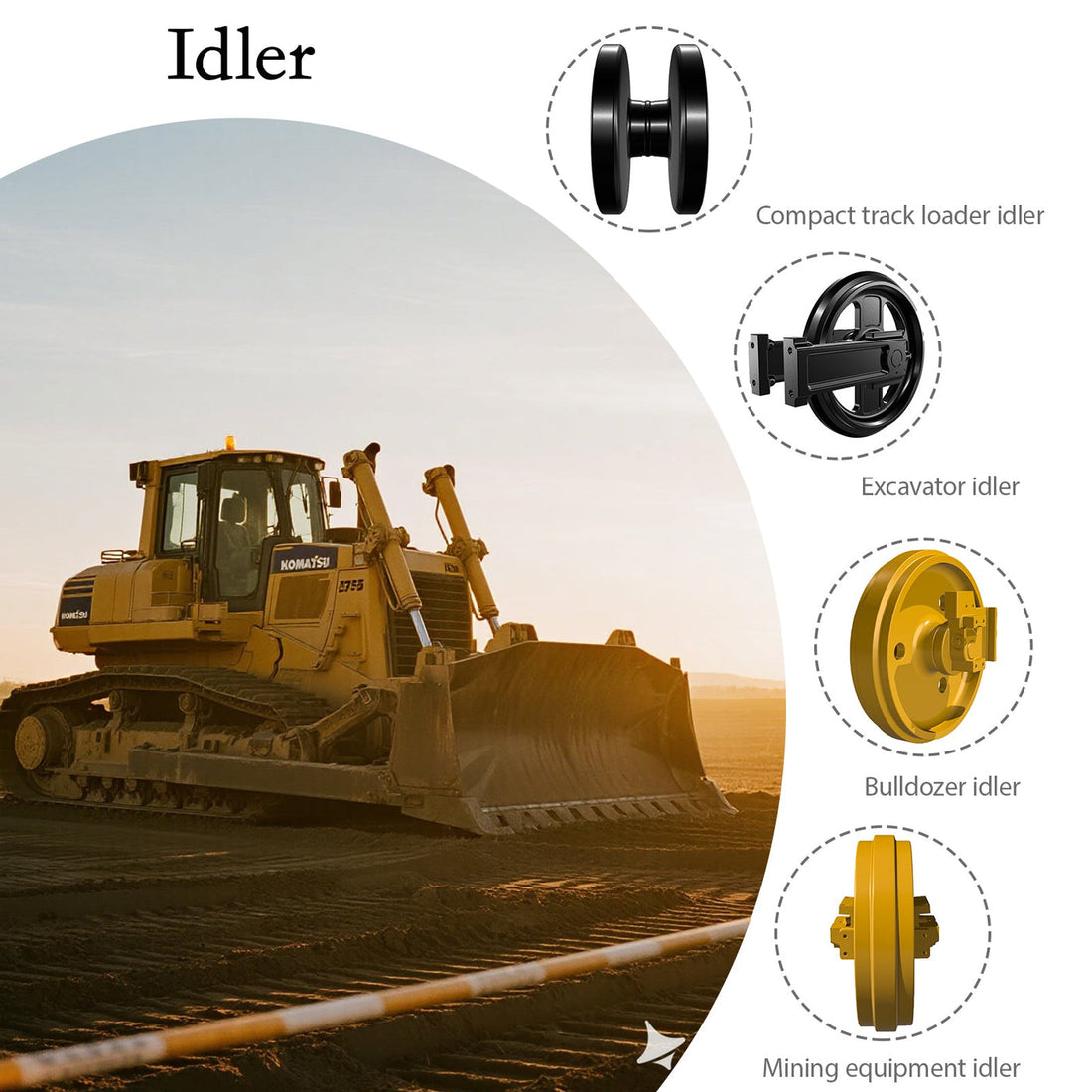

Komatsu and Caterpillar Front Idler Wear Limits When Should You Replace?

A front idler can look serviceable from a distance and still be the reason a track will not hold tension, wanders against the frame, or begins climbing the flange. Replacing a Komatsu or Caterpillar front idler by appearance alone can therefore lead to two costly mistakes: changing it too early or waiting until the worn idler damages the track chain and guide system.

The practical answer is not one universal millimetre value. Front idler dimensions vary by machine model, shoe width, track-chain design, and serial number. Use the OEM wear chart as the final authority, then combine it with repeatable measurements of tread diameter, tread profile, flange condition, and end or side clearance.

front idler wear limits and replacement

What Does the Front Idler Actually Control?

The front idler guides the track chain around the front of the undercarriage and works with the recoil or track-adjuster system to maintain chain tension. Its tread supports the bushing and link path, while its flange helps keep the track aligned.

When the idler wears, the problem is not limited to a smaller wheel. Reduced tread diameter changes the effective track path, worn flange surfaces allow lateral movement, and excessive bearing or bushing clearance can make the idler run out of alignment.

A sound inspection should answer four questions:

  • Has the running surface reached the model-specific wear limit?

  • Is the flange still high and thick enough to guide the chain?

  • Is the idler running concentrically without severe taper or out-of-round wear?

  • Is the end or side clearance within the service-manual range?

A new idler installed beside an excessively worn track chain may not produce the expected service life. Front idler wear should be judged as part of the complete undercarriage system.

Where Should You Measure a Front Idler?

Measure the idler at several points instead of taking one reading at the easiest location. A four-point method helps reduce the effect of localized wear and gives a more reliable average.

Front idler measurement-point guide

Point A — Tread diameter

Measure the running surface at four positions around the circumference:

  • Position 1: top of the idler.

  • Position 2: front-facing side.

  • Position 3: bottom of the idler.

  • Position 4: rear-facing side.

Use the same clean track-contact band for every reading. Record the largest, smallest, and average dimensions.

Point B — Flange height and thickness

Measure the guide flange at its most worn section. Compare this reading with an unworn shoulder or the OEM new dimension.

Point C — Tread profile and shoulders

Inspect the transition between the running surface and flange. Look for:

  • A sharp step.

  • Tapered wear.

  • Dish-shaped wear.

  • Cracks or chips.

  • A deep groove caused by chain misalignment.

  • Uneven wear between the inner and outer sides.

Point D — End or side clearance

Place a dial indicator against the idler and move the idler laterally with a suitable bar. Measure the total axial movement rather than movement in only one direction.

Point E — Radial play

Push or lift at the idler rim while observing movement relative to the shaft and frame. Radial play can indicate bushing, bearing, shaft, or support wear rather than simple shell wear.

Clean packed clay and rust from every contact surface before measuring. Dirt under a caliper jaw can make a worn flange appear larger than it really is.

How Do You Calculate Tread Wear?

The most reliable calculation compares the measured dimension with the new and condemning dimensions for the exact idler group.

For a dimension that decreases with wear, such as tread diameter:

Wear percentage =
(New diameter − measured diameter) ÷
(New diameter − wear-limit diameter) × 100

For a dimension that increases with wear, such as a recessed tread measurement:

Wear percentage =
Measured wear depth ÷ allowable OEM wear depth × 100

Do not substitute the diameter of another Komatsu PC-series machine or Caterpillar 320-series machine simply because the parts look similar. Even within one model family, track width, idler group, flange configuration, and serial-number break can change the correct limit.

Practical screening values

The following values are screening thresholds, not universal OEM condemning limits:

  • Tread diameter: Begin replacement planning when the average diameter is near the OEM wear limit. A reduction of approximately 2 mm from the new dimension may be used as an inspection trigger on some small and medium idlers, but it is not an automatic replacement rule.

  • Flange height or thickness: Investigate immediately when flange loss approaches 0.5 mm on a precision guide edge, or when the flange is visibly knife-edged, chipped, cracked, or substantially thinner than the opposite side.

  • Out-of-round difference: Investigate when the largest and smallest diameter readings differ beyond the tolerance stated for the idler group. A large difference can cause periodic track tightness even when the average diameter looks acceptable.

  • End or side clearance: Use the exact service-manual allowance. A generic 1–2 mm value may be unsuitable because some assemblies use tighter fits while others have more clearance by design.

  • Radial play: Any detectable movement accompanied by oil leakage, rough rotation, noise, or visible shell wobble should be treated as a repair decision rather than normal tread wear.

The important distinction is between a measurement trigger and a replacement limit. A trigger tells the fleet to clean, remeasure, and consult the parts or service specification. A replacement limit means continued operation is no longer mechanically or economically reasonable.

When Is Replacement Better Than Rebuilding?

Replacement is generally the safer decision when the shell is below the OEM minimum, the flange is damaged, or internal clearance has exceeded the service limit. Rebuilding may be practical when the tread is worn but the shell, flange, bore, shaft, and guide surfaces remain suitable for machining and welding.

Rebuilding is not automatically appropriate for every idler. Remaining wall thickness, heat input, weld procedure, post-machining accuracy, and internal sealing condition all affect the final result.

Use this distinction:

  • Replace the complete idler when there is a crack, severe flange loss, shell distortion, oil leakage, seized bearing or bushing, excessive axial movement, or damage to the guide faces.

  • Consider professional rebuilding when tread wear is even, the flange is sound, the internal components pass inspection, and the remaining material supports a controlled rebuild.

  • Continue monitoring when wear is below the OEM limit, movement is within specification, and no abnormal tracking or leakage is present.

  • Replace the idler and inspect adjacent parts when the track chain has climbed the flange, the idler is heavily tapered, or the track has derailed.

A common cost mistake is to rebuild the tread while ignoring a worn shaft or guide. The idler may measure correctly immediately after the work but still run out of line and consume the track chain quickly.

Wear Limit Decision Matrix

Use the matrix as a fleet-screening tool. The OEM service manual remains the final decision reference for a particular Komatsu or Caterpillar machine.

Inspection result Typical interpretation Fleet action
Tread wear below 50% of OEM allowable consumption, even profile, clearance normal Normal service condition Record measurement and recheck at the planned interval
Tread wear around 50–80%, no cracks or leakage Replacement window is approaching Forecast parts, compare with track-chain and roller wear, and schedule downtime
Tread wear above 80% or close to the OEM condemning dimension Reduced guidance margin Plan replacement soon and inspect chain alignment
Tread diameter below OEM limit Running surface has reached the service boundary Replace or rebuild only if the idler passes structural and dimensional inspection
Flange visibly sharp, chipped, cracked, or substantially reduced Derailment and lateral-guidance risk Replace the idler or approved rebuild component before continued heavy work
Average diameter acceptable but four-point readings vary widely Taper, dish wear, or out-of-round condition Investigate alignment, track-chain condition, and frame guides
Axial movement above OEM allowance Excessive end or side clearance Inspect thrust faces, shaft, bushings, guides, and recoil-frame fit
Radial play, rough rotation, leakage, or wobble Internal support or sealing failure Remove for repair or replacement
Idler acceptable but track chain and sprocket are severely worn Mismatched replacement risk Evaluate the undercarriage as a set before installing a new idler
Measurement is inconsistent after cleaning and rechecking Measurement-quality problem or unstable component Reposition the machine, verify track tension, calibrate tools, and repeat

An idler that reaches an OEM wear limit is not always an emergency in the same way as a cracked flange. Continued use should be based on the risk of collateral damage, the worksite, and the time required to obtain a replacement.

Why Can a Front Idler Fail Before Its Wear Limit?

A front idler can fail from contamination, misalignment, overload, poor track tension, or damaged internal components before the tread reaches its nominal limit. Conversely, a visibly worn tread may continue operating for a short period if the flange and internal clearances remain controlled.

Track tension is especially important during measurement. A loose or incorrectly adjusted track changes the contact pattern and can create misleading symptoms. Excessive tension increases load on the idler, rollers, bushings, and final-drive area, while insufficient tension encourages derailment and impact loading.

Typical expectation gaps include:

  • “The diameter is still acceptable, so the idler is fine.” This ignores flange damage, side play, and internal leakage.

  • “A new idler will correct poor tracking.” Misaligned guides, bent frame components, worn chain links, or incorrect track tension may be the real cause.

  • “Both sides should last the same number of hours.” Turning habits, slope work, side loading, soil type, and operating direction can create sharply different left- and right-hand wear.

  • “One measurement is enough.” Localized wear can be hidden by a reading taken on a less-damaged section.

  • “A direct replacement is automatically interchangeable.” Bolt pattern, rim width, flange arrangement, guide geometry, and serial-number compatibility must all be checked.

These limitations explain why a measurement log is more useful than an isolated inspection. A trend showing 0.3 mm of diameter loss over 500 hours supports a better replacement forecast than a single uncertain reading.

How Can Fleets Improve Replacement Timing?

The best improvement is to standardize the inspection process across every machine and technician. Use the same tools, the same measurement points, and the same recording format so that a change in wear reflects the component rather than a change in technique.

A practical inspection routine is:

  1. Park on firm, level ground, lower the attachment, shut down safely, and follow the machine’s lockout procedure.

  2. Clean the idler, chain contact area, flange, and guide surfaces.

  3. Check and record track tension according to the machine manual.

  4. Measure tread diameter at four positions and note maximum, minimum, and average values.

  5. Measure flange height or thickness at the most worn section and compare both sides.

  6. Check axial and radial movement with a dial indicator where possible.

  7. Photograph unusual grooves, cracks, leakage, and the measurement tool display.

  8. Compare the result with the exact OEM chart and the previous inspection record.

  9. Inspect the track chain, rollers, sprocket, recoil spring, guide plates, and frame before approving a replacement.

For high-utilization fleets, a formal undercarriage inspection at least every six months is a useful baseline, with more frequent checks in abrasive, rocky, muddy, or high-impact conditions.

KTSU’s 70,000-square-meter Kunshan facility is built around CAD/CAM development, precision CNC machining, robotic CO2 welding, and NITTO friction welding. These production details matter when a direct-replacement front idler must reproduce the correct tread geometry, flange location, shaft fit, and sealing arrangement rather than merely match an outside diameter.

KTSU Expert Views

A front idler should be selected from the machine’s complete identification data, not from a photograph or a diameter measurement alone. The model, serial-number range, shoe width, track-chain configuration, front-frame design, and idler arrangement can all affect fit and service behavior.

From a field-maintenance perspective, the most useful replacement report contains the new dimension, current four-point readings, flange measurements, side clearance, track tension, and photographs of the contact surfaces. That record allows a parts supplier or rebuild shop to distinguish normal tread consumption from alignment or guide damage.

KTSU maintains a portfolio exceeding 3,000 undercarriage items for construction and agricultural machinery, including components matched to Caterpillar, Komatsu, and Hitachi applications. This breadth is useful for cross-checking an idler against related rollers, sprockets, and track-chain assemblies, although final part selection still requires application verification.

The company’s Japanese-Chinese joint-venture manufacturing background also explains why process control deserves attention. Friction-weld integrity, case depth, machining tolerance, and seal installation influence the result long after the part leaves the workshop. A direct replacement is a sound choice only when dimensional compatibility and the surrounding undercarriage condition have both been confirmed.

Is a KTSU Direct Replacement Front Idler Right for Komatsu or Cat?

A KTSU direct-replacement front idler can be considered when its application data matches the specific Komatsu or Caterpillar idler group and the machine’s serial-number range. “Direct replacement” should mean functional and dimensional interchangeability, not simply a similar-looking casting.

Before ordering, verify:

  • Machine make, model, and serial number.

  • Left-hand or right-hand application where relevant.

  • Track shoe width and chain configuration.

  • New tread diameter and rim or tread width.

  • Flange position, height, thickness, and profile.

  • Shaft diameter, bearing or bushing arrangement, and seal design.

  • Mounting and guide dimensions.

  • Complete idler versus shell, group, or rebuild component.

  • Required quantity and whether the opposite-side component has comparable wear.

Caterpillar parts information identifies front-idler groups by application details such as rim width, tread diameter, and tread style. A generic “Cat idler” description is therefore not sufficient for ordering. KTSU’s international distributor and end-user network can support application cross-reference, but the fleet should still submit the machine identification and measured dimensions for confirmation.

Frequently Asked Questions

What is the front idler wear limit on a Komatsu excavator?

There is no single wear limit for all Komatsu excavators because the correct value depends on the model, idler group, track width, and serial-number range. Measure the tread, flange, and clearances, then compare them with the Komatsu service specification rather than using a generic percentage. Measurement-based monitoring is more reliable than judging the part by appearance.

When should a Caterpillar front idler be replaced instead of rebuilt?

Replace it when the shell is below the OEM minimum, the flange is cracked or severely reduced, internal clearance is excessive, or the idler leaks, wobbles, or runs roughly. Rebuilding may be reasonable when wear is even and the shell, guide surfaces, shaft, and internal parts remain suitable. The cheapest initial repair is not necessarily the lowest-cost option if it shortens track-chain life.

How do I measure front idler tread wear with calipers?

Clean the idler, measure the same running band at four positions around the circumference, and record the largest, smallest, and average dimensions. Compare the average with the OEM new and wear-limit dimensions while also investigating large variation between readings. A caliper or depth gauge is useful, but it cannot replace inspection of flange damage and internal movement.

Can I install a new front idler on a worn track chain?

Yes, but the result may be poor if the chain, bushings, sprocket, rollers, or guides are already beyond their service limits. A new idler changes the contact geometry and can expose an existing mismatch, accelerating wear in the replacement part. Inspect the complete undercarriage before deciding whether to replace one component or a matched group.

How long can a front idler operate after reaching its wear limit?

There is no safe universal time period because soil, load, track tension, side loading, and derailment risk vary substantially. Once the OEM limit is reached, or when flange damage and excessive clearance appear, schedule replacement before heavy or remote work. Use measured wear trends to plan downtime rather than relying on an estimated number of operating hours.
