ISO GPS vs ASME GD&T: Confirm the Governing System Before Quoting
An ISO GPS drawing should not be read with ASME defaults, and an ASME drawing should not be read with ISO defaults. The two systems have their own symbols, definitions and default rules, and similar-looking symbols do not carry one system's defaults into the other. Before quoting or inspecting, identify which system the controlled package invokes, which editions apply and whether the customer has added departures. Where the invocation is mixed or missing, get a written, characteristic-specific interpretation from the person who owns the requirement.
Why the system has to be declared first
ISO 8015:2011, which ISO lists as published and confirmed, sets out fundamental concepts, principles and rules for creating, interpreting and applying the other standards in the geometrical product specifications (GPS) family and for verification. It applies to interpreting GPS indications on all types of drawings. ISO says "drawing" is to be read in the broadest sense, covering the total package of documentation that specifies the workpiece. In practice, an ISO reading draws on the whole package and not only the picture.
ASME describes Y14.5 as the authoritative guideline for the design language of geometric dimensioning and tolerancing. The 2018 edition, listed with the (R2024) reaffirmation, establishes symbols, rules, definitions, requirements, defaults and recommended practices for stating and interpreting GD&T on drawings, in digital-data models and in related documents.
Both describe a complete language with its own rules. A feature control frame can look alike in two systems and still rest on different rules for how it is read. This article does not list those differences, and the public scope pages reviewed do not either. The point is narrower: the reader is not entitled to supply one system's defaults when the drawing invokes the other, or invokes neither.
Do not infer from country, habit or appearance
The system is a fact about the controlled package, so read it off the package. Do not infer it from the drawing's origin, the supplier's country, the customer's industry or the look of the symbols. Do not assume that one system is more precise than the other, and do not rely on informal comparison tables that describe the systems in general terms. Such tables are not technical rules for any particular drawing.
Build a system, edition and default register
Keep one register per controlled package. It is a recommended review aid, not a form required by either standard.
| Field | What to record | If missing or unclear |
|---|---|---|
| Invoked system | The standard named in the title block, notes or the purchase documents, as written | Treat the system as unresolved |
| Edition and revision | The edition of each invoked standard and the drawing revision | Ask for the controlling edition |
| Customer departures | Any note that changes or adds to the standard | Record each as part of the requirement |
| Affected characteristics | The symbols, modifiers or default-dependent notes that rely on the system's rules | List them individually |
| Default assumptions in use | Any default you or the supplier are applying, and the source of that default | An unstated default goes in as an open question |
| Mixed or conflicting invocation | Places where both systems appear, or where notes disagree | Hold the characteristic until it is resolved |
| Clarification request | The question sent, to whom and when | Keep it with the quote |
| Written interpretation | The owner's answer, for that characteristic and drawing revision | Do not extend it to other characteristics |
The package may also include a 3D model. When a model and a drawing disagree, authority is a separate question, covered in when the 3D model and 2D drawing disagree on a part.
Resolve ambiguity in writing
If the drawing invokes a system and edition, record them and read the characteristics under those rules. If it invokes neither, or both, do not pick one. Send the requirement owner a specific question, such as which standard and edition govern a named characteristic, and ask for the answer in writing. Keep the answer with the quote and the inspection plan, tied to the drawing revision it addresses. An interpretation given for one characteristic does not settle others.

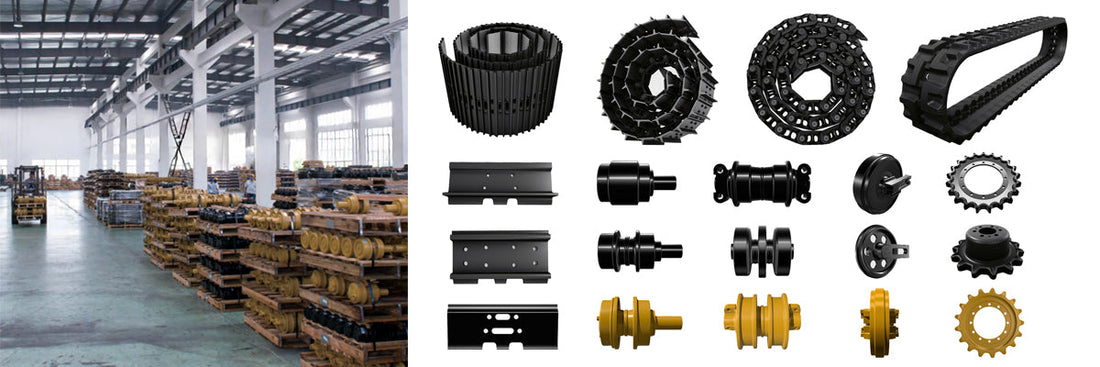

For a part from KTSU, provide the controlled drawing package and any notes you hold when asking what documentation is available. The public excavator undercarriage parts collection identifies the product family. It does not establish which drawing system any supplier applies or that KTSU will read a given package under either system.
The register is complete when the governing system and editions are declared, departures and default-dependent characteristics are listed, and every ambiguity has a written question or a written answer from the authorized owner.
