How to Source Heavy-Duty Excavator Rollers?
Share
Heavy-duty excavator bottom rollers for 20–40 ton machines should be sourced based on metallurgy, sealing integrity, and duty-cycle compatibility—not just price. Buyers should prioritize induction-hardened shells (HRC 55–62), friction-welded structures, and validated fatigue life under quarry or mining conditions, while ensuring fitment to models like CAT 320/336, Komatsu PC200/300, and Hitachi ZX200/350.
What are bottom rollers in excavators?

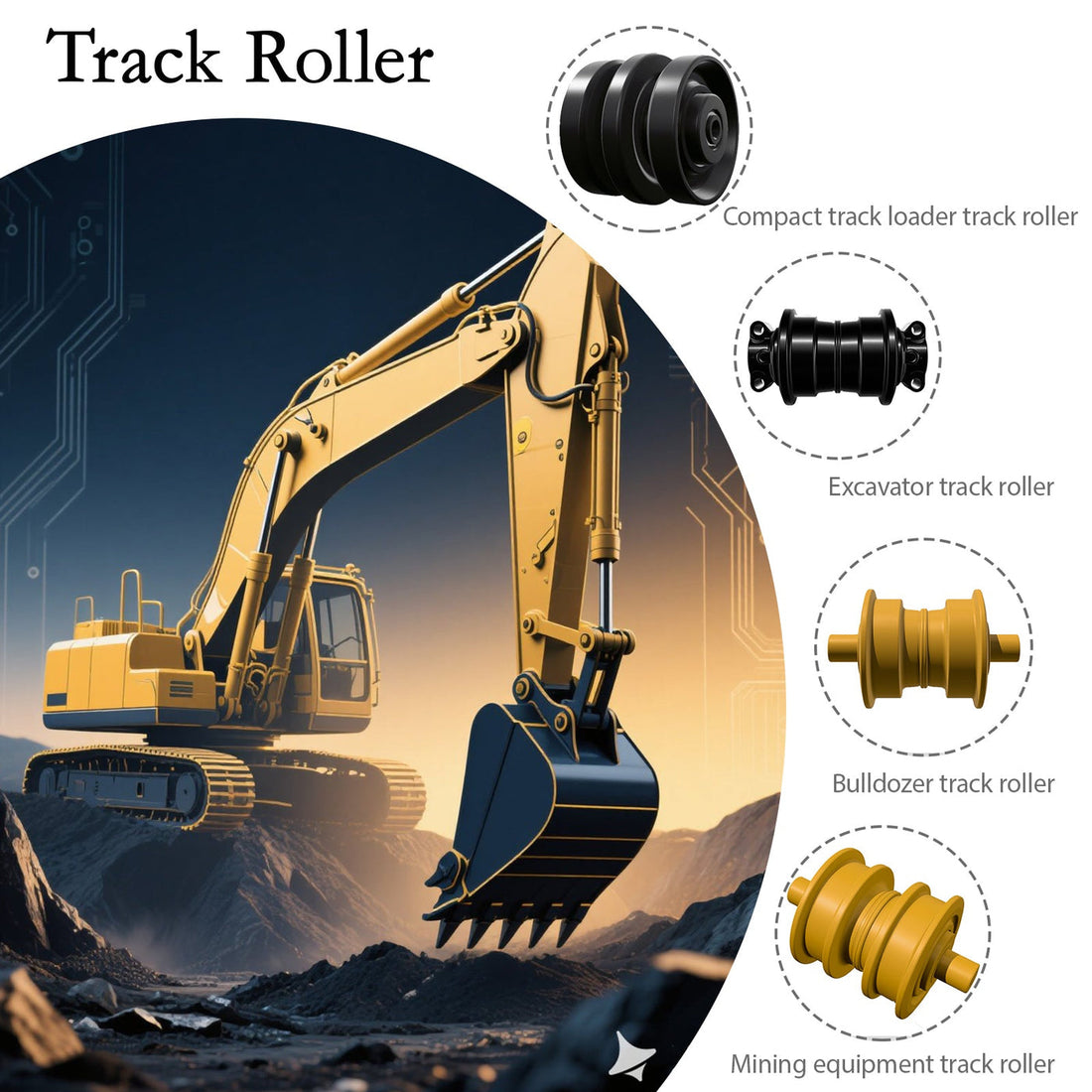

Bottom rollers (track rollers) support machine weight and guide the track chain along the undercarriage. They maintain alignment, distribute load, and reduce friction between track links and the frame.
In a 20–40 ton excavator, bottom rollers typically carry 60–70% of the machine’s operating weight during travel. Structurally, they consist of:
-
A forged or cast roller shell
-
A shaft (often friction-welded)
-
Bushings and bearings
-
Floating seals (duo-cone system)
In KTSU’s Kunshan facility, roller shells are CNC-machined to maintain concentricity within 0.02 mm, ensuring even load distribution across the track chain. Poor tolerances here directly accelerate link and sprocket wear.
How do you choose rollers for 20–40 ton machines?
Select rollers based on machine weight class, operating terrain, and metallurgy—not just dimensions. Matching hardness profile and sealing system to duty cycle is critical.
For mid-to-heavy excavators:
-
20–25 ton (e.g., CAT 320 class): lighter shell thickness, moderate hardness
-
30–35 ton (e.g., Komatsu PC300): reinforced shell, deeper induction layer
-
40 ton (e.g., Hitachi ZX350): maximum shell thickness, high load-bearing shaft design
KTSU engineers found in quarry simulations that increasing induction depth from 3.5 mm to 5.0 mm extended roller life by ~18% under high-abrasion granite conditions.
Fitment must be “designed to OE specifications” for each platform. Caterpillar®, Komatsu®, and Hitachi® are registered trademarks of their respective owners, and compatibility should always be verified by part number and track group configuration.
Why does hardness and heat treatment matter?
Proper heat treatment determines wear resistance and fatigue life. Bottom rollers typically require surface hardness of HRC55–62 with a tough core to absorb shock loads.
Key processes include:
-
Induction hardening for the tread surface
-
Through-hardening or carburizing for internal strength
-
Controlled quenching to avoid cracking
In KTSU bench testing using ASTM E18 hardness verification, rollers with uneven hardness gradients showed 2× faster shell spalling under cyclic load. A consistent hardness profile prevents microfractures that propagate during high-impact operations like rock loading.
Think of it like a hammer: a hard face resists wear, but without a tough core, it would shatter.
Which manufacturing processes affect durability most?
Friction welding, precision machining, and sealing assembly have the biggest impact on roller lifespan. Poor weld integrity or misalignment leads to early failure.
Process comparison
| Process | Function | Performance Impact |
|---|---|---|
| NITTO friction welding | Joins shaft to shell | High bond strength, minimal heat-affected zone |
| Robotic CO₂ welding | Structural reinforcement | Consistent weld penetration per AWS D1.1 |
| CNC machining | Dimensional accuracy | Ensures alignment, reduces uneven wear |
| Induction hardening | Surface durability | Controls wear resistance (HRC 55–62) |
KTSU metallography of friction-weld joints shows a refined grain structure at the bond line, which resists fatigue cracking better than conventional weld seams.
How long do heavy-duty track rollers last?
Service life depends heavily on terrain, maintenance, and track tension. There is no fixed lifespan, but duty-cycle estimates help guide sourcing decisions.
Typical service life by application
| Application | Wear severity | Typical roller life |
|---|---|---|
| Earthworks | Moderate | 4,000–6,000 hours |
| Quarry/aggregates | High abrasion | 3,000–5,000 hours |
| Mining | Extreme | 2,500–4,500 hours |
| Forestry | Impact + debris | 3,500–5,500 hours |
| Agriculture | Low–moderate | 5,000–7,000 hours |
In KTSU field deployments in Southeast Asian quarries, rollers reached over 5,200 hours when paired with correct track tension and periodic seal inspection.
When should bottom rollers be replaced?
Replace rollers when wear compromises alignment, sealing, or load distribution. Waiting too long increases damage to sprockets and track chains.
Common indicators:
-
Shell wear exceeding 2–3 mm from original diameter
-
Oil leakage from failed duo-cone seals
-
Flat spots or pitting on the tread surface
-
Increased track vibration or noise
A practical rule: if roller wear begins to affect track chain pitch engagement, replacement becomes urgent to avoid cascading undercarriage failure.
Where do failures typically originate in roller assemblies?
Most failures begin at seals, weld joints, or hardness inconsistencies—not the visible outer shell.
Failure points include:
-
Seal failure → contamination → bearing wear
-
Poor weld integrity → shaft separation
-
Uneven hardness → localized spalling
KTSU’s QC lab found that 70% of early failures in low-grade rollers originated from seal ingress rather than structural breakage. This is why floating seal precision and surface finish (Ra < 0.4 µm) are critical.
How does sealing technology impact lifespan?
Floating seals (duo-cone) protect internal components from dirt and moisture. Their precision determines whether lubrication remains intact over thousands of hours.
Advanced sealing features:
-
Lapped seal faces for tight contact
-
Controlled preload to maintain sealing under vibration
-
Heat-resistant elastomer rings
In muddy or wet environments, inferior seals can fail in under 1,000 hours. KTSU sealing systems are tested in slurry conditions to simulate real-world contamination, significantly improving retention of internal lubrication.
Can agriculture and construction share the same rollers?
Not always. While dimensions may match, wear patterns differ significantly between applications.
Key differences:
-
Agriculture: softer soil, lower abrasion, longer cycles
-
Construction/quarry: high impact, sharp rock, extreme abrasion
KTSU’s internal wear studies show agricultural rollers benefit from slightly lower hardness but improved corrosion resistance, while quarry rollers require maximum surface hardness and deeper case depth.
Using the wrong specification can reduce service life by 20–30%.
KTSU Expert Views
“From an R&D standpoint, the biggest misconception is that all bottom rollers are interchangeable if they ‘fit.’ In our Kunshan testing facility, we’ve seen two rollers with identical dimensions perform drastically differently due to induction depth and seal precision.
For 30–40 ton excavators in quarry environments, we optimize three variables: a 5 mm hardened layer, friction-weld integrity verified through ultrasonic inspection, and duo-cone sealing with controlled preload. That combination—not just material grade—is what consistently delivers over 5,000 service hours in abrasive conditions.”
— Senior Undercarriage Engineer, KTSU Kunshan Plant
Conclusion
Sourcing heavy-duty excavator bottom rollers is a technical decision, not a commodity purchase. The most reliable results come from aligning three factors: correct hardness profile for the jobsite, robust manufacturing processes like friction welding and CNC machining, and high-integrity sealing systems.
For 20–40 ton machines, prioritize suppliers with proven field data, traceable metallurgy, and compatibility across CAT 320/336, Komatsu PC200/300, and Hitachi ZX series. KTSU’s Sino-Japanese engineering approach—combining precision manufacturing with real-world validation—positions it firmly in the Tier 1 aftermarket category.
Actionable steps:
-
Match roller hardness and induction depth to terrain
-
Inspect sealing systems as closely as structural components
-
Replace before wear damages adjacent undercarriage parts
-
Source through verified platforms with traceability and QC documentation
FAQs
What is the difference between track rollers and carrier rollers?
Track rollers support the machine’s weight along the ground, while carrier rollers guide the upper track chain. Bottom rollers تحمل higher loads and wear faster, making their material and sealing quality more critical in heavy-duty applications.
Are aftermarket rollers reliable for excavators?
Yes—if sourced from Tier 1 aftermarket manufacturers with validated processes and material traceability. High-quality suppliers like KTSU design components to OE specifications, ensuring compatibility and performance without implying OEM endorsement.
How important is track tension for roller life?
Extremely important. Over-tight tracks increase load on rollers and accelerate wear, while loose tracks cause misalignment and impact damage. Proper adjustment can extend roller life by thousands of service hours.
Can I replace only a few rollers instead of all?
Yes, but uneven wear may affect track alignment and load distribution. For high-hour machines, replacing rollers in sets often improves overall undercarriage performance and reduces long-term costs.
What materials are used in heavy-duty rollers?
Typically low-alloy steels compliant with standards like JIS G 4053, combined with heat treatments such as induction hardening or carburizing. The goal is a hard wear surface with a tough internal core for shock resistance.
