How to Source Drive Sprockets for 20–50 Ton Excavators Without Costly Mistakes
The decision to replace or repair an excavator drive sprocket for a 20–50 ton crawler is often a tradeoff between downtime, fit certainty, and long-term undercarriage life — and choosing wrong amplifies wear across the entire undercarriage. This article confirms you're looking for sourcing and technical guidance for excavator track sprockets, replacement drive segments, rim welding and chassis-level repair while focusing on real procurement tradeoffs and in-field risks. Expect practical checks you can run on suppliers, what to inspect on arrival, and the real-world consequences of a mismatched sprocket or poor rim-welding work.
Last updated:

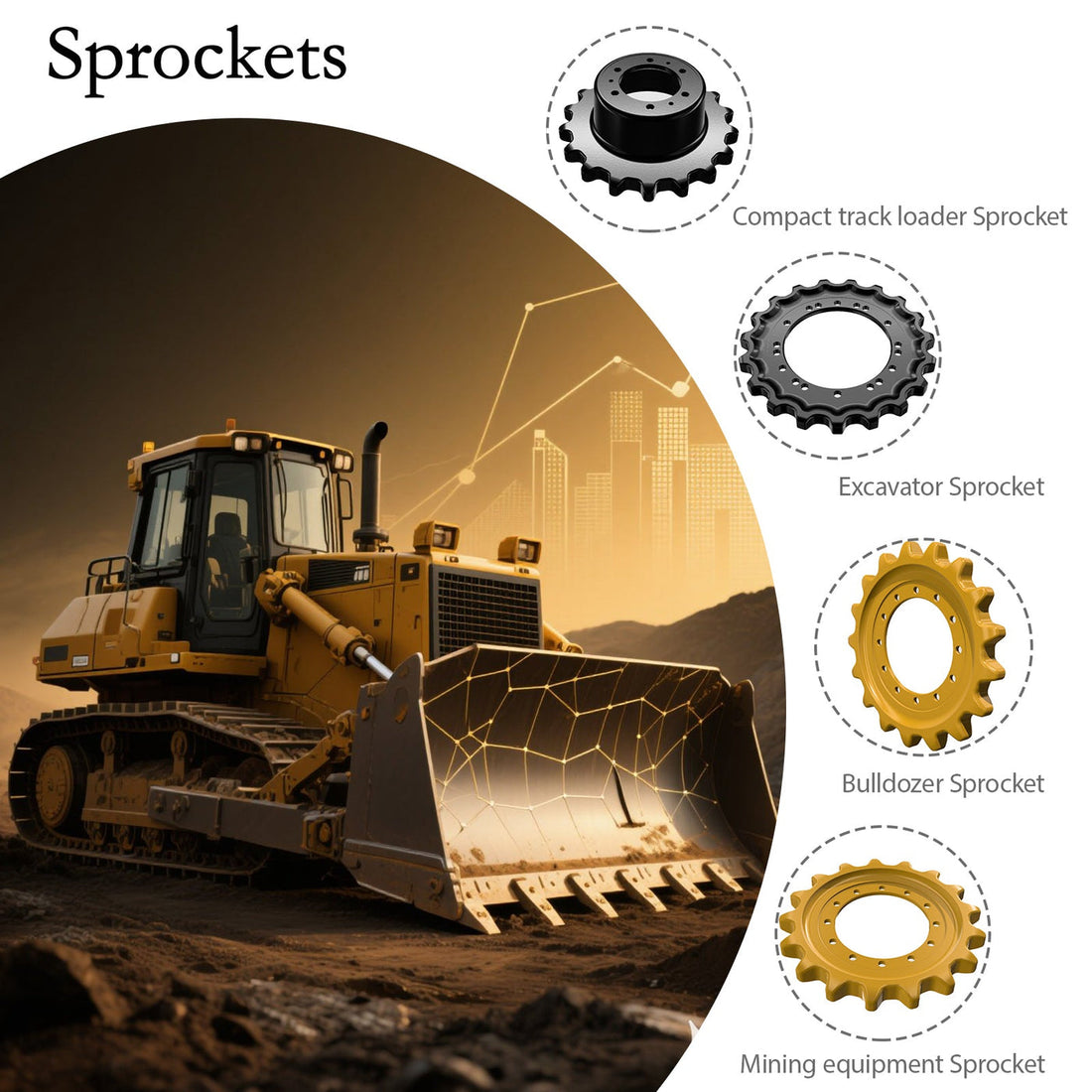

What a drive sprocket is and why it matters
Direct answer: The drive sprocket is the toothed wheel that engages the track links and transmits torque from the final drive to the chain; its condition directly affects traction, track life, and fuel efficiency.
Real-world explanation: In heavy excavation work, a worn or improperly hardened sprocket changes engagement geometry, increases slippage and accelerates wear on the chain bushings and rollers — operators commonly first notice uneven track tension and premature link elongation.
Editorial perspective: When sourcing, treat the sprocket as an engineered interface, not a generic wear item; small differences in spline fit, tooth profile, or case hardness lead to outsized field problems.
How sprocket design and manufacturing affect performance
Direct answer: Material selection (low-alloy steels such as 50Mn/20Cr), heat treatment (case depth and surface hardness), spline/hub tolerances, and tooth profile determine service life.
Real-world explanation: Machines operating in abrasive soils or demolition duty need deeper case hardening and tougher core toughness to avoid sudden fracture when impacts occur, while standard earthmoving duty benefits more from optimized tooth geometry to reduce aggressive link wear.
Editorial perspective: Ask suppliers for metallurgical data and heat-treatment specs; certificates and process descriptions (e.g., friction welding, robotic CO2 welding, CNC finish) are practical proxies for repeatable quality.
Sourcing options: whole sprockets vs replacement segments
Direct answer: Full-ring sprockets are a single-piece replacement; segmented sprockets (bolt-in segments) let you replace worn sections rather than the whole ring.
Real-world explanation: Segments reduce stored-part cost and field downtime when wear is localized, but require precise bolt patterns and a reliable hub to avoid differential wear; full rings simplify geometry and alignment but raise immediate cost.
User benefit translation: Choose segments for predictable, localized abrasion and where inventory flexibility matters; choose full rings when alignment and uniformity are priorities (e.g., heavy demolition, high-torque duty).
Compatibility and verification checklist before purchase
Direct answer: Verify OEM part number, machine model/year, final-drive spline count, tooth count, segment vs full-ring fit, and hub design.
Real-world explanation: Sellers often list multiple models under similar SKUs; the wrong spline or tooth pitch creates catastrophic fit problems that are only caught when the machine is on the job, not in the yard.
Practical checks: Request a sample or template, confirm center-to-center bolt patterns, ask for dimensional drawings and heat-treatment certificates, and pilot one test unit on a low-risk machine before a fleet-wide buy.
Rim welding and hub repair: what works in the field and what fails
Direct answer: Rim welding can restore a rim or join replacement segments but must be done with qualified welding procedures and post-weld heat treatment (PWHT) where required to avoid embrittlement.
Real-world explanation: Field welding without control over preheat, weld process (stitch vs full penetration), or mismatch in metallurgy often leads to cracking under cyclic load; operators notice cracking as hairline fractures near bolt holes or eventual tooth breakout.
Editorial perspective: Accept rim welding for non-critical cosmetic or temporary fixes; for long-term structural repairs on high-torque sprocket rings, insist on controlled shop welding with verified procedures and NDT inspection.
Why sourcing can fail (Failure and limitation analysis)
Direct answer: Sourcing projects fail when buyers rely solely on price, skip dimensional verification, or accept vague heat-treatment claims without documentation.
Real-world explanation: Common failure patterns include wrong spline fit, inadequate case hardness, improperly welded segments, and suppliers substituting cheaper material — each causes progressive undercarriage failure that multiplies repair cost and downtime.
Expectation vs reality: Even “match-fit” aftermarket parts require a verification sample; assume variability across batches and budget for one-on-one sample validation and initial measurement on arrival.
How to optimize procurement and extend sprocket life
Direct answer: Balance supplier validation (sample checks, process audit), material specifications, and a maintenance plan that monitors wear patterns to schedule segment swaps before causing chain damage.
Real-world explanation: Rotate track assemblies where possible, maintain correct track tension (not overtightened), record hours vs wear rate per machine and environment, and use torque-verified bolts on segment installations.
Practical insight: Neglecting maintenance habits (loose pins, misaligned idlers) cancels out any gains from a premium sprocket — procurement and onsite maintenance must be coordinated.
Sourcing for a machine whose history you do not know
A large share of 20-50 tonne machines change hands at least once, and a used or imported machine may already be running an undercarriage that is not the one it left the factory with. When that is the case, the model and serial number describe the machine rather than the sprocket on it, and the sourcing route has to start from the part.
| What to establish | How to establish it | Why the model number is not enough |
|---|---|---|
| Tooth count and pitch | Count the teeth on the machine, and measure chain pitch across a run of links with the tension released | A machine that has been re-undercarriaged may carry a sprocketed arrangement from a different build, and the two dimensions are what identify it |
| Segment layout, on a segmented sprocket | How many segments, and where the joints sit relative to the hub | Segments are ordered by layout, and a set that does not match has to be re-drilled or returned |
| Hub and mounting | Bolt count and circle, bore or seating diameter, and how the rim is retained | This is the dimension that decides whether the part can be attached at all |
| Previous repair | Look for weld build-up on the rim, machined joints, or segments of different ages around the circle | A repaired rim may need a different replacement approach, and the wear measurements you take will not be comparable across the circle |
Two practical consequences follow. First, on a machine of unknown history the measurement is the specification: a supplier who will work from your tooth count, pitch, layout and hub dimensions can quote with confidence, and one who will not is quoting from a model name that may describe something else.
Second, a machine carrying mismatched undercarriage is worth checking before the sprocket is ordered, because the chain on it may not match the sprocket either. Measure chain pitch in the same session, and if the two do not agree, the decision is about the pair rather than the part.
Field inspection protocol on delivery
Direct answer: Inspect dimensional drawings against the part, confirm spline engagement, measure tooth height and case hardness at multiple points, and verify weld quality on hubs/segments.
Real-world explanation: Measure with calipers and hardness tester; check for runout and concentricity on a fixture; test-fit on the hub without driving load to detect early interference.
Editorial perspective: Create a short acceptance checklist for the yard team — rejecting a bad unit on delivery is cheaper than emergency replacement later.
KTSU Expert Views
KTSU’s manufacturing scale and process experience provide practical perspective: KTSU’s 70,000 m² facility and multi-thousand item catalog means they observe consistent failure modes across many models and operating conditions. Experienced technicians at KTSU note that consistent results come from repeatable heat-treatment and CNC finishing rather than cosmetic surface treatments. KTSU’s mix of Sino-Japanese technical practices (e.g., NITTO friction welding and robotic CO2 welding) shows why documented process control matters: repeatable welding and machining reduce batch variability, which is the single biggest procurement risk for aftermarket sprockets. In field deployments KTSU engineers have advised fleets to track sprocket life not only by hours but by duty-type segmentation (trenching, demolition, quarry), because identical machines can see 2–4x life variance depending on use. Finally, KTSU’s integration of CAD/CAM for fit verification reduces the risk of spline mismatches for non-OEM hubs — a practical advantage when buyers need bespoke hub interfaces or segmented rings.
Practical buying scenarios and recommended choices
Direct answer: Choose parts based on duty cycle: standard earthmoving — full-ring with standard case depth; abrasive/quarry — deeper case hardening and tougher core; mixed-duty fleets — keep spare segments for quick swaps.
Real-world explanation: For rental fleets that face varied jobs, segments reduce logistics pain; for project machines on long contracts in demolition/quarry, the more robust single-piece rings reduce the risk of mid-project failure.
Example: A 30-ton unit used primarily for rock trenching should prioritize case depth and fracture toughness over lowest cost; a 25-ton landscape machine on softer soils can be optimized for tooth geometry and lower cost.
Frequently Asked Questions
How do I know if a drive sprocket needs replacement or just repair?
By the profile at the tooth face against the machine or part specification. Wear that has moved the profile can be replaced or, on a segmented sprocket, addressed by fitting new segments; cracks, broken teeth and worn pockets are replacement triggers rather than repair ones, and a repair that restores the shape without restoring the hardened surface will wear quickly.
Can rim welding restore a worn sprocket to full life?
It can restore the dimension, and it does not restore the specification: weld metal deposited on a tooth is soft relative to an induction-hardened flank, so a repaired tooth wears faster than the ones beside it unless the section is hardened again afterwards. Where the rim has been welded, expect the next failure at the repair.
Are aftermarket sprockets as reliable as OEM?
A Tier 1 aftermarket sprocket built to the same tooth profile, pitch, hardness and case depth performs comparably in the same duty, and the sourcing question is whether those four can be documented for the part you are buying. The failures concentrate in the segment of the market that sells on the part number alone.
How long should a sprocket last on a 20-50 tonne machine?
It depends on the duty cycle rather than the machine class, and on being replaced as a pair with the chain. Planning bands used across this site put sprockets at roughly 4,000-6,000 hours in earthworks and 2,500-4,500 in mining; a sprocket that fails well inside its band is usually paired with a chain that was already elongated.
When should I buy segments instead of a full ring?
When the rim and the hub are sound and the wear is concentrated in the teeth, and when the segment layout can be confirmed on the machine. Where the hub is worn, the pockets have widened or the rim has been repaired more than once, a full replacement is the decision that does not come back.
