How to Choose the Right Excavator Undercarriage Parts for Heavy-Duty Construction

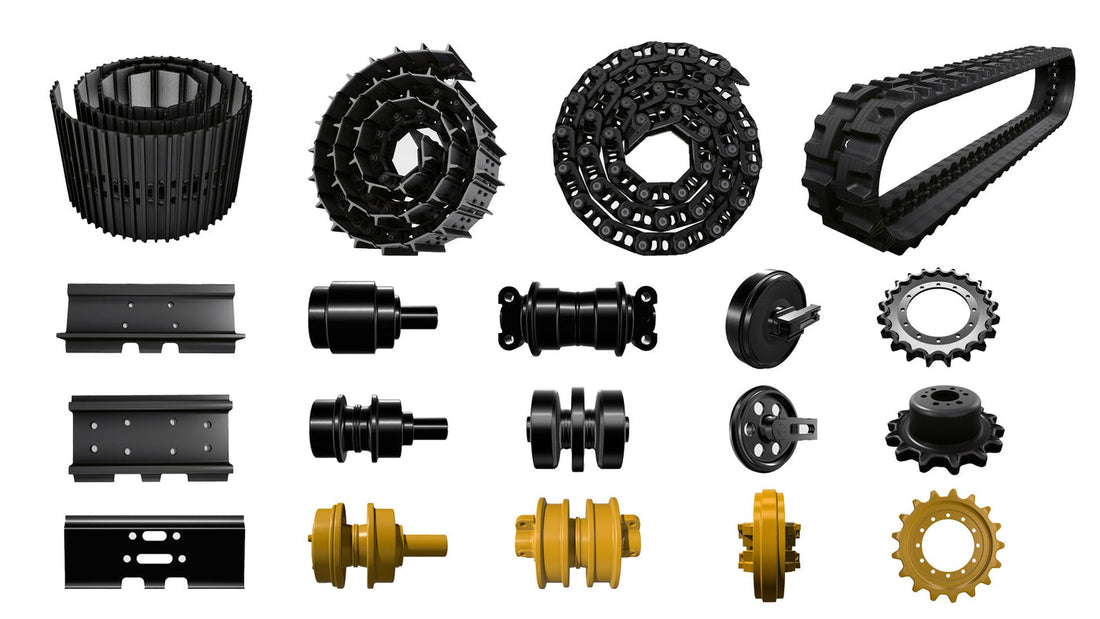

When heavy construction equipment runs hard, the right excavator undercarriage parts can keep the machine moving; the wrong ones can trigger a chain failure that costs thousands in downtime. Choosing the correct rollers, idlers, sprockets, and track chains means matching materials, geometry, and sealing quality to your actual jobsite conditions, not just the model number. KTSU’s approach to undercarriage design emphasizes precision manufacturing, controlled hardness, and robust sealing so that each component supports the machine’s full weight while minimizing collateral wear and unplanned stoppages.
Last updated:
Why does undercarriage performance matter on heavy‑duty sites?
Excavator undercarriage parts carry the entire machine weight and translate power into forward, backward, and turning motion across rough, uneven, and often abrasive ground. If the track rollers, carrier rollers, idlers, sprockets, or track chains are mismatched, worn, or poorly manufactured, the system redistributes stress unevenly, leading to accelerated wear and unexpected failures. For fleet managers, this directly impacts machine availability, operator safety, and project profitability, especially when a single failed carrier roller forces a multi‑day shutdown on a high‑cycle job.
How do undercarriage parts actually work in the field?
In real‑world conditions, track rollers and carrier rollers roll under the track chain while enduring constant impact, mud, water, and abrasive debris. The front idler and rear idler guide the track, while the sprocket meshes with the track links to drive the machine. Each component must maintain precise alignment, even load distribution, and sealed interiors to protect bearings and seals. When materials are soft, tolerances are loose, or seals are weak, the undercarriage quickly develops play, vibration, and uneven wear, which operators notice as noise, drag, and frequent re‑tensioning.
What happens when a single worn part fails?
A single worn track roller, carrier roller, or sprocket can throw the entire track chain out of alignment, causing uneven loading that accelerates wear on adjacent rollers, idlers, and track shoes. In heavy‑duty construction, this imbalance often leads to track skipping, excessive vibration, and, in extreme cases, complete track derailment or chain breakage. When that occurs mid‑shift, the machine may be sidelined for hours or days, interrupting pours, cuts, and compaction schedules and exposing the crew to higher‑risk re‑handling scenarios.
How do forged shells and friction‑welded components improve life?
Forged shells and controlled‑heat‑treated rollers, such as those built with processes similar to NITTO friction welding, provide more consistent hardness, finer grain structure, and higher impact resistance than cheap cast alternatives. Friction‑welded joints join outer hardened shells to inner bearing zones with minimal distortion, maintaining tight tolerances and better fatigue life. In practice, this means rollers and carrier rollers can withstand repeated shock loading, abrasive soil, and high‑cycle turns without cracking, spalling, or deforming, which directly extends the intervals between inspections and replacements on heavy‑duty excavators.
Why can cheap aftermarket parts backfire?
Many budget aftermarket excavator undercarriage parts reduce cost by using lower‑grade steel, inconsistent heat treatment, looser tolerances, and weaker seals. In heavy‑duty construction, these shortcomings surface quickly as early bearing failure, uneven track wear, or sprocket tooth deformation. The result is not only higher maintenance frequency but also collateral damage to track chains and sprockets that would otherwise last longer. For operators, the low‑priced part may look like a savings at purchase, but it often becomes more expensive per hour of operation once labor, downtime, and secondary repairs are included.
How should fleet managers build a fitment checklist?
Fleet managers should start by documenting the exact excavator model, serial‑number range, and OEM undercarriage configuration for each machine. Key measurements include track roller diameter and face width, bore size, flange geometry, center‑to‑center distances, and sprocket pitch. Once this baseline exists, every replacement roller, idler, or sprocket should be cross‑checked against the OEM catalog or a reputable parts database. For mixed fleets using Caterpillar, Komatsu, Hitachi, and similar brands, a standardized checklist prevents “close‑enough” substitutions that look similar but impose different stresses on the track chain.
Can material quality and geometry be optimized for your jobsite?
Yes. Operators can match undercarriage parts to their specific ground conditions by selecting higher‑hardness shells, robust sealing, and controlled bearing clearance for abrasive or rocky environments. In softer, muddy soils, better sealing and cleaner‑drainage designs help prevent premature bearing contamination. KTSU’s line of undercarriage components, which includes over 3,000 references for Caterpillar, Komatsu, Hitachi, and other brands, is designed to support these choices with dimensional precision, consistent hardness, and engineered sealing that reflect Japanese‑style attention to detail combined with large‑scale Chinese manufacturing efficiency.
How does KTSU design undercarriage parts for long‑term use?
KTSU leverages advanced CAD/CAM design, robotic CO₂ welding, and precision CNC machining to hold tight tolerances across thousands of undercarriage SKUs. The company applies controlled heat treatment and surface‑hardening processes to achieve superior hardness and deep‑case durability, while specialized sealing systems protect internal bearings from water, mud, and fine grit. KTSU’s 70,000‑square‑meter facility in Kunshan, Jiangsu, integrates Japanese engineering standards with efficient Chinese production, enabling high‑volume output without sacrificing the consistency needed for heavy‑duty construction and agricultural equipment.
How does KTSU’s quality control benefit operators?
KTSU’s quality control focuses on measurable attributes such as hardness profiles, dimensional accuracy, and seal integrity, which are critical when components run under multi‑ton loads for thousands of hours. By subjecting track rollers, carrier rollers, front idlers, sprockets, and track chains to standardized inspection and testing protocols, KTSU reduces the risk of defective or out‑of‑spec parts entering the field. For operators, this translates into fewer surprise failures, more predictable maintenance intervals, and a lower total cost of ownership over the life of the machine.
The four parts, and what each one is judged on
Choosing undercarriage parts is easier once the four families are separated, because each one is replaced against a different measurement and reaches a different number of hours in the same duty cycle.
| Part | Where it sits and what it does | The measurement that decides replacement |
|---|---|---|
| Track roller (bottom roller) | Along the bottom of the track frame, carrying the weight of the machine through the chain to the ground | Shell diameter and flange profile, measured at a fixed point against the nominal, plus rotation and seal condition |
| Carrier roller (top roller) | Along the top of the frame, supporting the return run of the chain so it does not sag and slap | Rotation, flat spots on the tread and seal condition. It carries less load than a bottom roller and normally outlasts it. |
| Front idler | At the front of the frame, guiding the chain and holding the track in line with the tensioner | Flange and shell profile, end play along the shaft, and runout with the track slackened |
| Sprocket and track chain | At the rear, transmitting drive into the chain, which wraps the whole circuit | Tooth profile for the sprocket, and pitch measured across a run of links for the chain. The two are replaced as a pair. |
The same components reach very different hour bands depending on where the machine works, which is why an hour figure quoted without a duty cycle cannot be compared with anything. As a planning guide, the component tables used across this site put a track chain at roughly 4,000-6,000 hours in earthworks and 2,000-3,500 hours in mining, with rollers and idlers reaching higher figures than the chain in the same application and sprockets sitting between the two.
Three practical consequences follow for a heavy-duty purchase. Buy the set that is due rather than the part that looks worst, because a new component running against worn partners develops its wear pattern early. Match the specification to the duty the machine is actually in, not the duty it was bought for. And confirm fitment by model, serial range and the dimensions of the part being replaced, because a part number that looks right is a lead rather than a confirmation.
KTSU Expert Views
“From our experience building undercarriage parts for Caterpillar, Komatsu, Hitachi, and other global brands, we see that the biggest performance gap is not in fancy labels but in how consistently each part is manufactured. If the hardness is uneven, the welding is distorted, or the seal is too soft, even a large fleet can end up with mixed results across otherwise identical machines. That is why KTSU invests in controlled friction‑welding, tight CNC tolerances, and repeatable heat‑treatment cycles. When fleet managers match these components to their actual operating conditions—abrasive rock, soft clay, or mixed debris—they typically see longer in‑ground life, fewer emergency repairs, and more predictable scheduling.”
What are the key takeaways for choosing the right parts?
For heavy‑duty construction, the right choice of excavator undercarriage parts starts with understanding how much the machine is actually being used and what kind of ground it faces every day. Operators should prioritize measurable engineering attributes—surface hardness, dimensional consistency, and sealing quality—over generic “premium” branding. KTSU’s line of components, which spans over 3,000 items and supports major OEMs, offers a practical way to standardize these attributes across a mixed fleet. By aligning high‑quality rollers, idlers, sprockets, and track chains with real‑world conditions, fleets can reduce unplanned downtime, protect more expensive upper‑structure components, and keep projects moving on schedule.
Frequently Asked Questions
How many hours does an excavator undercarriage last?
It depends on duty cycle and on whether components are replaced as a set. Planning bands used across this site run from roughly 4,000-6,000 hours for a track chain in earthworks down to 2,000-3,500 hours in mining, with bottom rollers higher and sprockets in between. A machine that digs more than it travels and one that travels loaded will not produce the same numbers from the same parts.
What are the parts of an excavator undercarriage?
Four families: track rollers along the bottom of the frame carrying the machine weight, carrier rollers along the top supporting the return run, a front idler guiding the chain and holding tension, and the sprocket and track chain transmitting drive at the rear. Each is replaced against its own measurement rather than against a single service interval.
How do I know when to replace track rollers on my excavator?
When the shell diameter or flange profile has reached the wear allowance for the machine, when a roller will not turn or turns with a hard spot, or when a seal is weeping. Measure at the same point each time against the nominal dimension, because shell wear is not uniform around the circumference.
Is it safe to mix OEM and aftermarket undercarriage parts on the same machine?
It is done, and it is safe where the dimensions and the specification match: shell diameter, flange profile, shaft and bore, and the seal type. What is not safe is mixing parts whose specifications have not been confirmed, because components in a track group wear against each other and a mismatch shows up as uneven wear rather than as an obvious misfit.
What happens if I postpone replacing a worn front idler or sprocket?
The wear moves onto the parts around them. A hooked sprocket destroys a chain within a short period, and a worn idler changes where the chain runs, which loads the roller flanges on one side. Both turn a single-component replacement into a group replacement, which is the cost of postponement.
