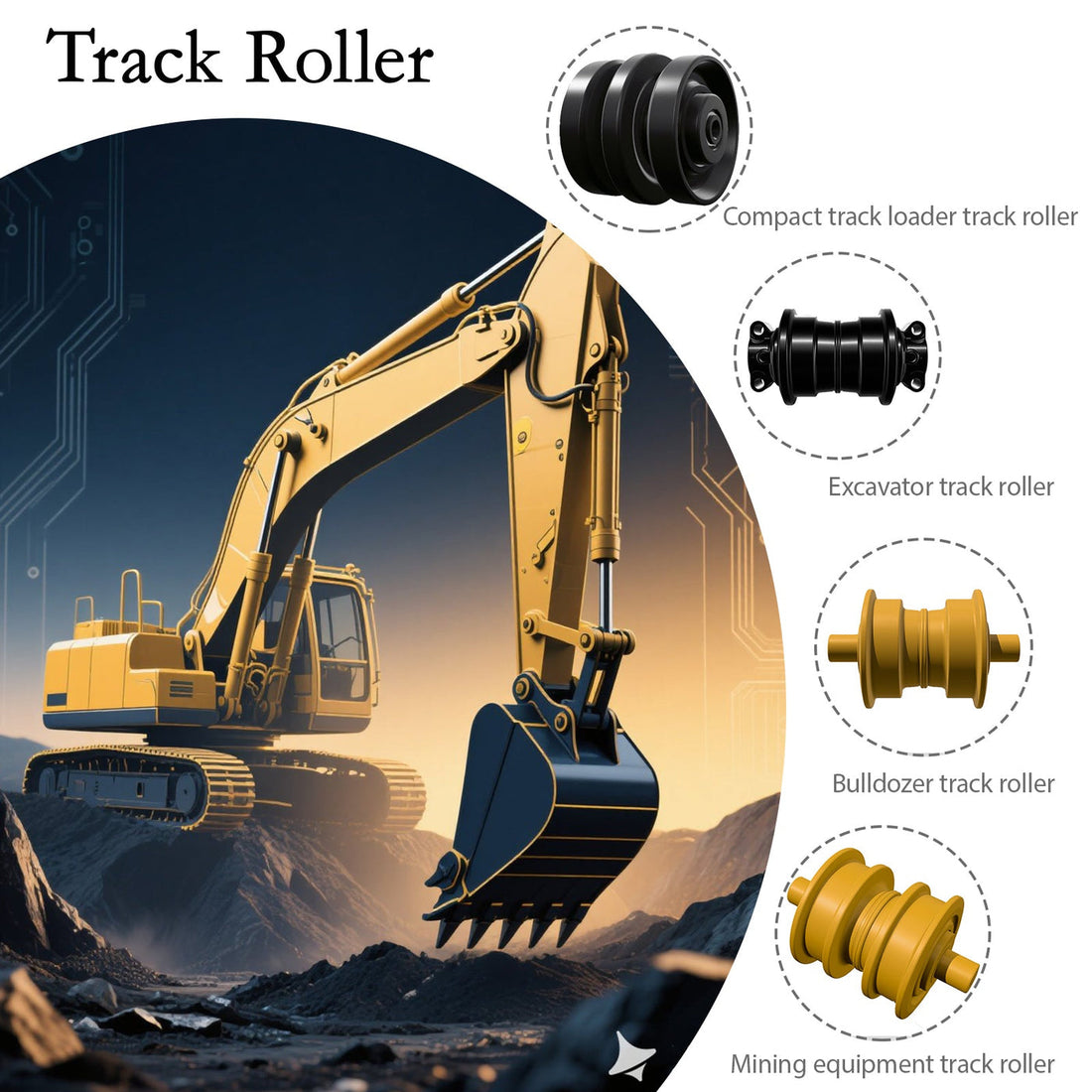

How to Choose the Right Excavator Track Roller?
Choose the right excavator track roller by matching the exact machine model, OEM part number, and roller type (single flange, double flange, or heavy-duty) to your duty cycle. Verify surface hardness (HRC 50–58), heat-treatment process, and seal integrity before ordering. For severe duty like quarry work, select heavy-duty rollers with induction-hardened surfaces and duo-cone floating seals. Always confirm track tension and alignment first—incorrect tension causes premature wear regardless of roller quality.
Last updated:
What Type of Track Roller Do You Need?
Track rollers fall into three main categories: single flange, double flange, and heavy-duty. Single flange rollers are typically positioned next to the sprocket and aid in steering. Double flange rollers are used in the middle and near the idler to keep the track aligned during turns. Heavy-duty rollers feature reinforced construction for severe abrasion environments like quarries or rocky terrain.
Verify your roller type by checking the original marking or measuring diameter, shaft length, and bolt hole spacing if markings are worn. For CAT 320D, Komatsu PC200, or Hitachi ZX350, confirm compatibility via the OEM part number before ordering aftermarket replacements.
Track roller or carrier roller: getting the part right first
Before any specification question matters, one identification question does, because the two components are ordered by the same part-number habit and are not the same part. The quickest way to tell them apart is where they sit and what they carry.
| Track roller (bottom roller) | Carrier roller (top roller) | |
|---|---|---|
| Position | The bottom of the track frame, in a row along the ground line | The top of the frame, on the return run of the chain |
| What it carries | The weight of the machine, through the chain to the ground | The return run of the chain, plus the tension the adjuster puts into it |
| Load character | High, steady, with shock from ground contact | Lower, but constant, and exposed to vibration |
| Typical failure | Shell and flange wear first, then the bearing | Seal and bearing first, with flat spots appearing on the tread |
| Effect on the machine if ignored | The machine drops onto the track and the chain loads unevenly | The return run drags instead of rolling, wearing the top of the link and loading the frame |
The practical reason to check this first is that a symptom does not always point at the part that is failing. Noise from the upper track group and a chain that sags between the sprocket and the idler point at the carrier rollers; a machine sitting low on one side, a polished band on the link rail and flange damage point at the bottom rollers. Replacing the wrong one of the two is an expensive way to leave the noise in place.
When the standard roller is the right choice
The specification section above ends with a heavy-duty roller for severe work, and it is worth stating the other half of that rule plainly: in light and standard duty, a heavier roller is not automatically a better one. Harder and thicker parts cost more, and if the duty is not asking for them, the money is buying life the machine was not going to consume.
The way to decide is to look at how the rollers that came off actually failed. Even flange and shell wear across the set, reaching the expected hours, means the specification was right and the next purchase can be the same one. Wear that is uneven, or concentrated on one or two rollers, means the problem is alignment or tension rather than the part, and a stronger roller will simply fail in the same place slightly later.
Which Machine Model and Part Number Must You Match?
The most critical step is identifying the exact machine make, model, and OEM reference code. Check:
| Verification Step | What to Confirm |
|---|---|
| Machine make | Caterpillar / Cat, Komatsu, Hitachi, etc. |
| Model number | CAT 320D, Komatsu PC200-8, Hitachi ZX350LC-6 |
| OEM part number | Original manufacturer reference code |
| Roller type | Single flange, double flange, or heavy-duty |
If the original roller's markings are worn off, measure roller diameter, shaft length, and bolt hole spacing for accurate matching. Never assume interchangeability across model years—even a CAT 320C and 320D may have different part numbers.
Caterpillar, Cat, Komatsu, and Hitachi are registered trademarks of their respective owners. KTSU parts are aftermarket replacement components and are not affiliated with, endorsed by, or approved by those OEMs.
How Does Duty Cycle Affect Replacement Decisions?
Duty cycle determines wear rate and replacement timing. Light earthmoving with moderate turnover causes slower wear than severe quarry work or rocky mining. According to industry data, undercarriage components can account for up to 50% of total equipment operating costs in severe duty.
Light duty: Regular earthmoving, farming, landscaping—replace when wear reaches moderate levels
Standard duty: General construction, road work—monitor for early wear signs
Severe duty: Quarry, mining, rocky terrain—select heavy-duty rollers and replace at early wear stages
For agriculture vs. construction, track wear differs significantly: agricultural work involves softer soil with less abrasion, while construction and quarry operations expose rollers to constant impact and high abrasion.
What Wear Signs indicate Track Roller Failure?
Watch for these red flags that signal track roller failure or imminent seizure:
Flat-spotted rollers: Visible deformation on the rolling surface
Cracked housings: Structural cracks in the roller shell
Missing or loose bolts: Hardware failure indicating mounting issues
Seized bearings: Roller doesn't spin freely when machine is unloaded
Abnormal noise/vibration: Grinding sounds or shaking during operation
Heat build-up: Hot rollers detected via infrared thermometer after work
Perform a quick field check: lift the machine to unload the track, then spin each roller. Any that drag or feel gritty are at risk of seizure. Also inspect for heat outliers with a handheld infrared thermometer after a long pass.
How Do You Verify Material Quality and Heat Treatment?
A quality track roller should be made from high-strength forged steel and undergo heat treatment for hardness and wear resistance. Look for rollers with surface hardness in the HRC 50–58 range.
Key manufacturing processes that influence service life include:
Induction surface hardening: Creates a hard outer layer while maintaining core toughness
Through-hardening: Uniform hardness throughout the component
Deep-case carburizing: Enhanced surface durability for severe duty
NITTO friction welding: High-integrity weld joints for shell assembly
Robotic CO₂ welding: Consistent weld quality with minimal distortion
CNC machining: Precise dimensional tolerance for proper fitment
In KTSU's Kunshan QC workflow, engineers typically check weld integrity, case depth, surface finish, and dimensional tolerance before shipping. Field feedback often focuses on seal performance and rolling smoothness under heavy loads.
Which Seal Type Prevents Early Failure?
The seal is critical for preventing contamination and retaining lubricant. Duo-cone (floating) seals are the industry standard for undercarriage rollers. Four main reasons duo-cone seals fail early include:
Seal housing surface too smooth for elastomeric toric rings to roll
Incorrect installation (misalignment or damage during assembly)
Contaminated lubricant causing premature wear
Toric rings suffering from compression set
Proper installation steps:
Ensure housing is clean, free of burrs, scratches, and dust
Fit O-ring correctly on the floating seal without distortion
Confirm housing end is parallel to the sliding surface
Apply compatible lubricant to sliding surfaces before reassembly
Always install a new seal if the assembly housing is disassembled—never reuse old seals.
What Do KTSU Engineers Recommend?
"When evaluating aftermarket track rollers, prioritize manufacturers with traceable material control and documented heat-treatment processes over commodity will-fit suppliers. A distributor selecting rollers should verify the seal type (duo-cone floating seals are standard), confirm surface hardness matches OE specifications, and match the flange configuration to your machine's steering geometry. For severe-duty applications like quarry work, choose heavy-duty rollers with induction-hardened surfaces—never compromise on seal integrity, as contamination is the primary cause of early bearing failure. Always check track tension and alignment before replacing rollers; incorrect tension causes asymmetric wear regardless of component quality."
— KTSU Undercarriage Engineering Team
When Should You Replace Individual Parts vs. the Complete System?
Replace individual parts for isolated failures and low hours—such as one or two failed rollers, a cracked idler, or a damaged shoe row with otherwise healthy chain and sprocket pitch. Replace the complete system when you observe pitch mismatch, widespread wear, chronic tension loss, uneven wear across both sides, or frame cracks causing misalignment.
Quick decision matrix:
| Condition | Action |
|---|---|
| 1–2 failed rollers, healthy chain | Replace individual parts |
| Pitch mismatch, hooked sprockets | Replace complete system |
| Chronic tension loss, uneven wear | Replace complete system |
| Frame cracks causing misalignment | Replace complete system |
Conclusion
Choose the right excavator track roller by matching the exact machine model, OEM part number, and flange type to your duty cycle. Verify material quality (HRC 50–58 hardness), heat-treatment process (induction hardening for severe duty), and seal integrity (duo-cone floating seals) before ordering.
Key takeaways:
Replace vs. rebuild: Individual parts for isolated failures; complete system for widespread wear or pitch mismatch
Match selection to duty cycle: Heavy-duty rollers for quarry/mining, standard for general construction
Check tension first: Incorrect track tension causes premature wear regardless of roller quality
Confirm cross-reference: Verify model, serial range, and OEM part number before ordering
Order through traceable channels: Use KTSU's digital procurement or authorized distributor channel for Quality Tier 1 aftermarket parts
Traceability matters: Manufacturing process and material control directly impact service life
Order through KTSU's digital procurement system or authorized distributor channel for traceable, Quality Tier 1 aftermarket undercarriage components designed to OE specifications.
Frequently Asked Questions
What is the difference between a track roller and a carrier roller?
Position and load. A track roller sits at the bottom of the frame and carries the weight of the machine through the chain to the ground. A carrier roller sits at the top of the frame and carries the return run of the chain, which is a lighter but constant load, and it is exposed to vibration rather than to ground shock.
Which roller wears out first?
The bottom rollers normally do, because they carry the machine. The component tables used elsewhere on this site put carrier rollers at roughly 6,000-8,000 hours in earthworks against 5,000-7,000 hours for bottom rollers, with both falling sharply in quarry and mining work.
How do I know whether a noise is coming from a roller or a carrier roller?
By where it comes from and when it appears. Noise from the upper track group and a chain sagging between the sprocket and the idler point at the carrier rollers. A machine sitting low on one side, a polished band on the link rail and damaged flanges point at the bottom rollers. Check tension and alignment before replacing either.
Is a heavy-duty roller always the better choice?
No. In light and standard duty a heavier, harder roller buys life the machine was not going to use, at a higher price. The deciding evidence is how the rollers that came off failed: even wear reaching the expected hours means the standard specification was right, while uneven or localised wear means the problem is alignment or tension rather than the part.
What seal type should a track roller have?
A floating or duo-cone seal is what keeps abrasive fines out of the bearing on a roller that lives in the dirt, and it is the specification most often substituted when a price is beaten. It is also the failure that shows up first, as a weep at the end cap or a polished flange face.
