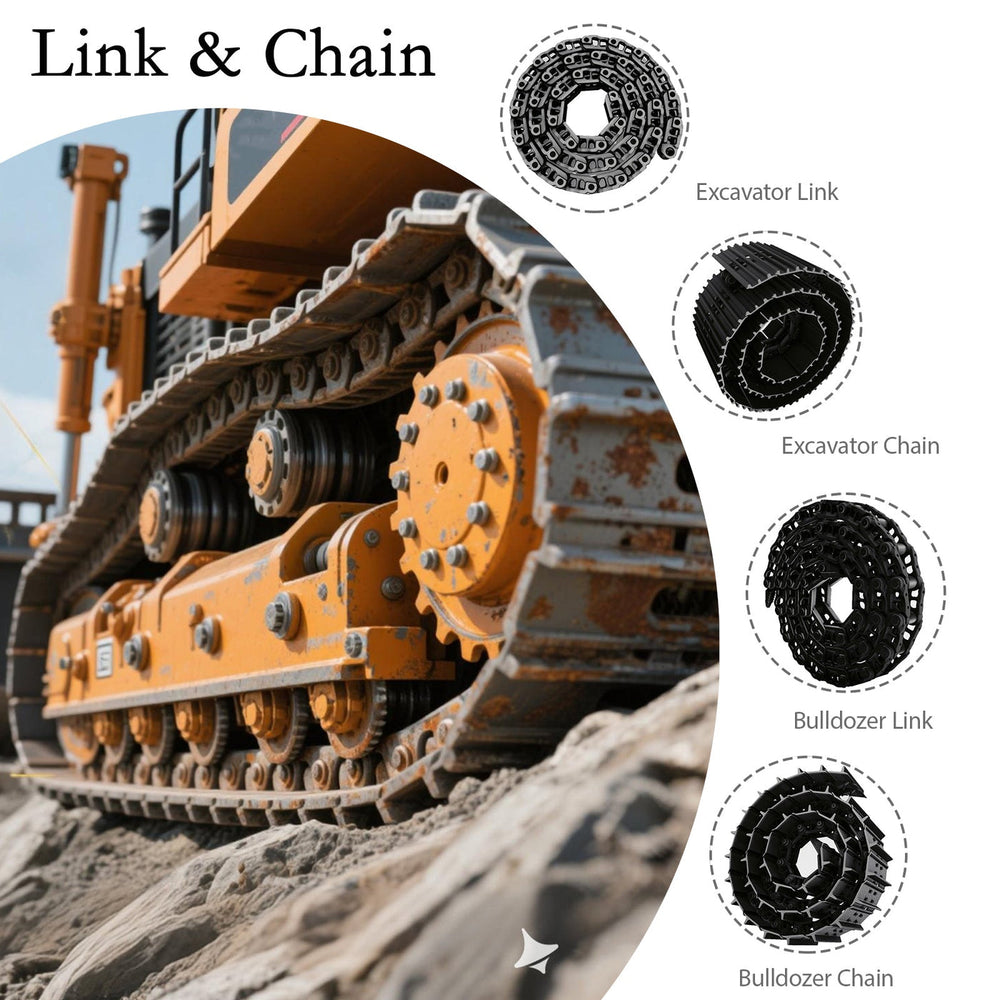

How Does Track Link Geometry Affect Excavators?

Track link geometry—primarily pitch, link height, rail width, and pin/bushing dimensions—directly controls how an excavator's undercarriage transfers power, supports weight, and wears over time. Incorrect pitch causes sprocket teeth to ride up on bushings, accelerating wear on sprockets, idlers, and rollers. As pins and bushings wear internally, pitch elongates ("stretches"), reducing traction, increasing fuel consumption, and creating instability. When pitch exceeds 2% elongation from original specs, replacement is necessary to prevent catastrophic derailment and consequential damage to final drives and track frames.

What Is Track Link Geometry and Why Does It Matter?

Track link geometry refers to the precise dimensional relationships within the track chain assembly: pitch (center-to-center pin distance), link height (rail surface to shoe bottom), rail width (roller contact surface), bushing outer diameter, pin diameter, and link bore/counterbore specifications. These dimensions form the "heartbeat" of the undercarriage system.

The undercarriage supports the entire machine weight while transferring engine power to the ground. Think of it as a finely tuned orchestra: track links and bushings set the rhythm, the sprocket acts as the conductor, and rollers/idlers guide the movement. If one musician plays out of time—an incorrect pitch dimension—the entire system throws into destructive friction rather than efficient motion.

Dimensional inaccuracies trigger cascading effects. A deviation of even a few millimeters initiates accelerated wear on adjacent components. The economic impact is severe: undercarriage components account for roughly 50% of an excavator's total maintenance costs over its lifetime. Premature failure involves not just the failed part's cost but "consequential damage" to expensive final drives and track frames.

How Does Track Pitch Control Sprocket Engagement?

Track pitch is the center-to-center distance between consecutive pins in the track chain—the fundamental "stride" that must correspond perfectly with sprocket tooth spacing. The sprocket engages track bushings (not the links themselves), pushing them to create movement. Sprocket tooth pockets must perfectly accommodate bushing diameter and spacing.

The Pitch Mismatch Mechanism

When track pitch is longer or shorter than sprocket pitch—even minimally—the bushing won't seat correctly at the tooth root. Instead of smooth rolling engagement, the sprocket tooth impacts the bushing, causing destructive sliding motion called "pitch mismatch." This is a primary driver of undercarriage wear.

As chains wear internally (pin/bushing interfaces), pitch elongates. The chain no longer fits the sprocket perfectly. Bushings begin riding higher up sprocket teeth, accelerating wear on both the bushing's outer surface and sprocket tooth tips. This explains why sprockets should be replaced when track chains are replaced: installing a new correct-pitch chain on a worn sprocket rapidly destroys the new chain's bushings.

Measuring Pitch Accurately

Measuring a single pitch on worn chain is misleading due to bushing/pin wear. Industry standard is measuring across multiple links:

1. Lay track section on flat surface (or ensure tension on-machine)

2. Measure from leading edge of pin 1 to leading edge of pin 5 (across 4 links)

3. Divide total by 4 for average pitch

For example, if distance across four links is 812 mm, pitch = 812 ÷ 4 = 203 mm. Use calibrated tape or vernier caliper; small measurement errors cause incorrect part identification.



How Does Pitch Elongation Impact Overall Performance?

As pins and bushings wear internally, track pitch elongates ("stretches"). This internal wear is the primary cause of pitch extension. When pitch exceeds 2% elongation from original specifications, replacement becomes necessary regardless of operating hours.

Direct Performance Consequences

Higher Fuel Consumption: Increased fuel burn signals the machine fighting internal resistance instead of producing forward motion. Bushing wear raises friction, overly tight track tension adds resistance, and misaligned links/rollers increase load. Every rotation demands more power, forcing the engine to burn more fuel.

Loss of Traction and Digging Efficiency: Reduced traction decreases the machine's ability to convert hydraulic force into ground engagement. You'll notice weaker digging penetration, slower pushing performance, and more track slip on soft terrain—meaning more passes, lower output, and wasted fuel. Causes include pitch extension, link rail height wear, uneven grouser height, bushing ovality, and distorted track shoes.

Machine Instability and Rough Travel: When unstable, machines shake, move unevenly, or struggle to go straight. This reduces operator comfort and makes fine grading or precision digging harder. Causes include unevenly worn link rails, flattened/seized rollers, pitch variation disrupting sprocket engagement, tight bushing spots, and loose/misaligned shoes.

Excessive Noise, Vibration, or Chain Jumping: Metallic clicks, grinding, or rhythmic vibration are early TLA (Track Link Assembly) issues. If ignored, they lead to chain jumping—a dangerous condition risking derailment. Causes: pitch variation, worn sprocket teeth, link rail wear, oval bushings, seized rollers, misaligned shoes.

Which Link Height and Rail Width Dimensions Indicate Wear Life?

If track pitch is the undercarriage's heartbeat, link height and rail width are its physical presence—the surfaces bearing machine weight and guiding its path. These dimensions directly indicate remaining useful life and provide diagnostic clues about overall undercarriage health.

Understanding Link Height

Link height measures from the link bottom (where it sits on the track shoe) to the top of its rail surface. The rail is the hardened, polished surface contacting track rollers and front idlers. New links have maximum height; operational wear gradually reduces it.

Think of link height as tire tread—the sacrificial material designed to wear over thousands of hours. Comparing measured height to original OEM specifications accurately determines wear percentage and predicts remaining service life. For example, if a manufacturer specifies 12 mm loss equals 100% wear, and measurement shows 6 mm lost, the link is 50% worn. This enables predictive maintenance rather than reactive "fix it when it breaks".

Rail Width as Contact Point

Rail width is the top contact surface width, engineered to match roller width. Proper match ensures even load distribution. If rail is too narrow or rollers mismatched, load concentrates, accelerating wear on both link rail and roller flanges.

Wear Patterns as Diagnostic Tools

• Even, Flat Wear: Ideal—indicates proper alignment, harmonious components, uniform height decrease

• Scalloping: Wave-like wear pattern from seized rollers grinding concave "scallops" into rails

• Rail Chipping/Spalling: Pieces breaking away from extreme impact (sharp rocks) or improper heat treatment (brittle surface)

• Side Wear (Flanging): Significant side-edge wear points to guidance problems—misaligned track frame, worn roller flanges, or consistent slope operation pushing weight against one side

What Manufacturing Processes Ensure Geometric Precision?

High-quality track links require precise manufacturing to maintain dimensional integrity under extreme loads. KTSU's Kunshan facility employs several critical processes that directly impact track link geometry performance.

Material Science: Forging vs. Casting

Track links are manufactured by casting or forging:

• Casting: Molten steel poured into mold. Inexpensive for complex shapes but cooling can create internal voids or non-uniform grain structure—potential weakness points

• Forging: Solid steel billet heated and shaped under immense pressure using dies. This aligns steel grain structure with part shape, producing denser, stronger components more resistant to impact and fatigue. For critical high-stress excavator track links, forging is superior

Heat Treatment: Surface Hardness vs. Core Toughness

Track links don't have uniform hardness throughout—they're engineered with different properties via sophisticated heat treatment:

• Core Toughness: Main body heat-treated to lower hardness (tough, ductile) to absorb shocks and resist cracking under high-impact loads

• Surface Hardness: Rail surface undergoes induction hardening—electric coil rapidly heats only surface layer, then immediately quenches. Creates very hard, wear-resistant "skin" (typically 50-58 Rockwell C) on tougher core

This differential treatment is vital: too-hard throughout = brittle/shattering; too-soft = rapid wear. The balance between hard wear-resistant surface and tough impact-resistant core marks quality track links.

KTSU's QC workflow typically includes induction surface hardening for rail surfaces, through-hardening for link bodies, and dimensional tolerance verification using CNC machining after heat treatment to ensure pitch, height, and bore specifications meet OE tolerances.

Welding and Machining Precision

• NITTO friction welding: Used for attaching wear surfaces or reinforcing critical zones with controlled heat input

• Robotic CO2 welding: Ensures consistent weld quality with minimal variation across production batches

• CNC machining: Precision-machines link bores, counterbores, and rail surfaces to exact tolerances (typically ±0.05 mm for critical dimensions)

• CAD/CAM optimization: Digital design ensures geometric relationships between pins, bushings, and rails maintain proper engagement angles [brand]

What Do KTSU Engineers Recommend?

"When distributors evaluate track link replacements, the first measurement should always be pitch across four links—not a visual 'looks stretched' check. Pitch elongation beyond 2% means the entire track group, sprockets, and often idlers need coordinated replacement. Installing a new chain on worn sprockets will destroy bushings in months. Also verify the machine's serial number: OEMs make running changes during production, and a CAT 320C from 2005 may have different pitch than a 2010 model. Our Kunshan facility checks every batch's pitch tolerance before shipment, but field verification is still essential because incorrect tension or frame misalignment can mask geometry problems."

— KTSU Undercarriage Engineering Team

When Should You Replace vs. Repair Track Links?

Timing component replacements correctly prevents chain-reaction failures. A severely worn sprocket destroys a new track chain in a fraction of its normal lifespan. Worn pins/bushings chew through rollers and idlers. One delayed repair creates domino-effect failures.

Replacement Decision Matrix



Service Strategies That Extend Life

• Wet bushing turns: Press out pins/bushings, rotate 180°, reinstall to present fresh wear surface. Viable only if internal wear isn't excessive; can double pin/bushing life

• Roller swapping: Move less-worn rollers to high-wear positions

• Resurfacing: Some operations resurface worn idler treads or add material to worn track shoes

These are interim solutions—only viable when overall component condition remains acceptable.

How Do Duty Cycle and Environment Affect Geometry Wear?

Operating conditions dramatically influence how quickly track link geometry degrades. Matching component selection to duty cycle is essential for maximizing service life.

Environment-Specific Wear Patterns



SALT vs. Sealed vs. Dry Chains

For abrasive, sandy conditions common in many global markets, SALT chains are not luxury—they're necessities for reasonable service life:

• Dry Chains: No seals; dirt freely enters pin/bushing joint. Noisy, wear quickly. Only for older bulldozers in light applications

• Sealed Chains: Basic seals keep large debris out; light grease during assembly. Significant improvement but grease has limited life

• SALT Chains: Advanced polyurethane duo-cone seals hold permanent oil reservoir. Benefits: dramatically reduced internal friction/wear, longer pin/bushing life (maintains correct pitch longer), quieter operation, extended entire undercarriage life. Higher initial cost (15-25%) easily justified by extended replacement interval

Operating Technique Impact

• Wide turns vs. sharp pivots: Tight pivot turns scrub tracks sideways, wearing shoes/links at alarming rate. Wide, gradual turns distribute stress evenly

• High-speed travel: Sends shock waves through rollers/idlers/link. Slowing down reduces impact forces dramatically

• Reverse operation: Wears sprockets/bushings faster than forward (different sprocket engagement). Minimize when possible

• Track spinning: Grinds tracks against sprockets, wears shoes. Reposition or adjust load instead of powering through

• Alternating turning directions: Balances wear across both sides. Consistent left turns wear left side faster

Conclusion

Track link geometry is the foundation of excavator undercarriage health. Pitch accuracy controls sprocket engagement; link height and rail width indicate wear life; pin/bushing dimensions determine internal wear rate. When pitch elongates beyond 2%, the entire system suffers—sprockets, idlers, and rollers accelerate wear exponentially.

Actionable takeaways for distributors, fleet managers, and procurement teams:

1. Measure pitch over four links (not visually guess); replace when >2% elongation

2. Replace sprockets with track chains—never install new chain on worn sprockets

3. Verify machine serial number before ordering; OEMs make running changes during production

4. Match chain type to duty cycle: SALT for abrasion, HD for impact, standard for soft ground

5. Check track tension weekly; improper tension accelerates wear on all components

6. Clean undercarriage daily—packed mud acts like grinding paste, reducing life 30-50%

7. Order through KTSU's digital procurement or distributor channel for traceable manufacturing and QC-backed components

Traceability matters: KTSU's Kunshan facility performs batch-level pitch tolerance verification before shipment, ensuring every track link assembly meets OE dimensional specifications for Caterpillar, Komatsu, and Hitachi platforms. In an industry where undercarriage costs represent 50% of lifetime maintenance, geometry precision isn't academic—it's profitability.
