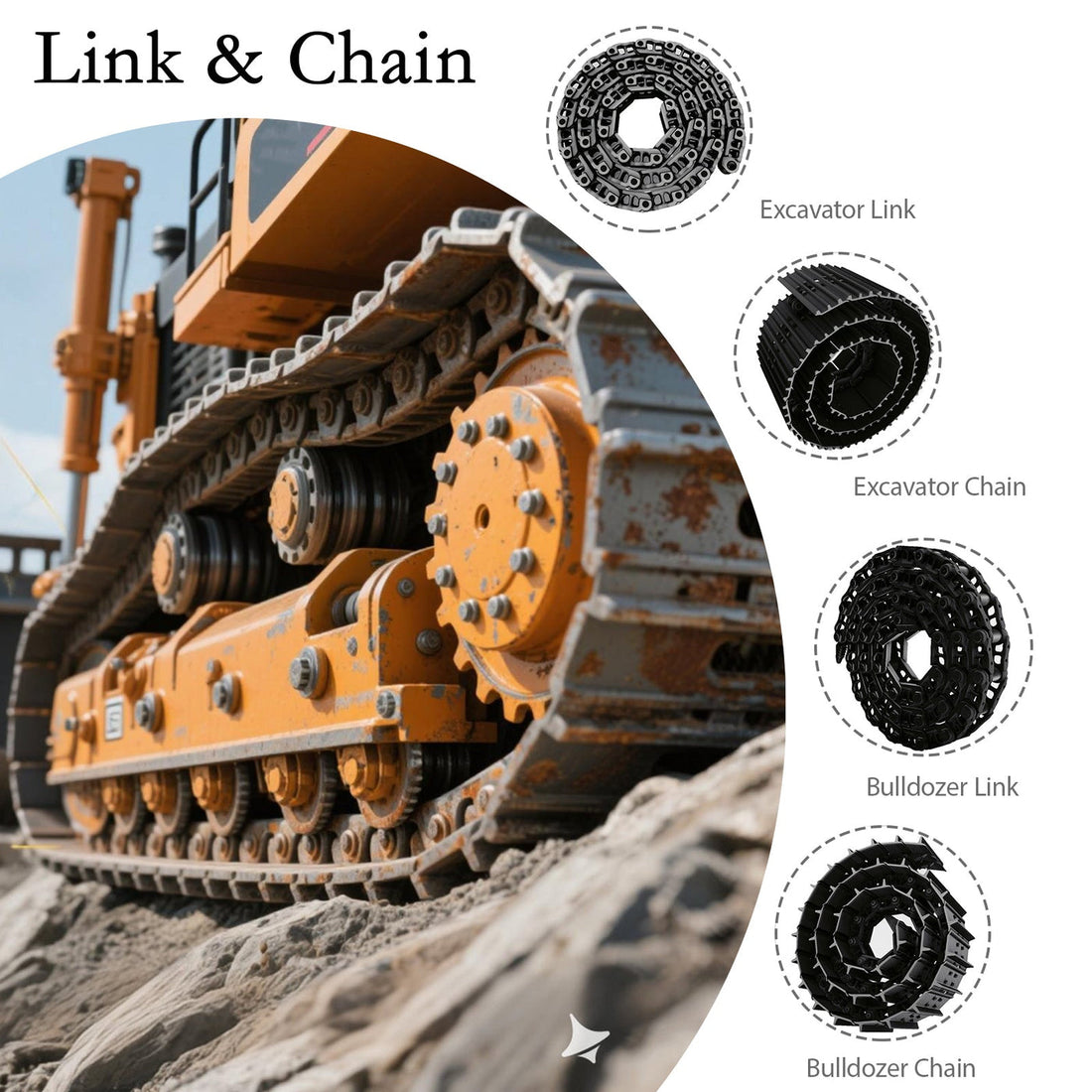

How does link pitch elongation cause uneven rail wear on excavators?
Share
Track pitch elongation, a critical wear indicator, triggers a destructive chain reaction. As the chain lengthens, the sprocket's engagement shifts, causing the track to ride high and shave metal from the inner flanges of bottom rollers. This misalignment accelerates sprocket tooth wear and creates uneven, telltale wear patterns on the track link rails.
How does link pitch elongation affect the entire undercarriage system?
Link pitch elongation is the foundational failure that propagates damage throughout the undercarriage. It begins when the chain's bushings and pins wear, increasing the distance between links. This seemingly small change disrupts the precise meshing geometry with the sprocket, leading to a cascade of secondary failures across rollers, guides, and the sprocket itself.
Think of a bicycle chain that has stretched over time; it no longer sits perfectly on the gears, causing it to skip and grind. Similarly, an elongated track chain no longer seats correctly on the sprocket. The sprocket teeth then engage further back on the chain's bushings, forcing the entire track assembly to ride forward and upward. This altered position causes the track's guiding ribs to constantly rub against the inner flanges of the bottom rollers, a process known as flange shaving. The result is a system working against itself, where each component accelerates the wear of another. For instance, a mere3% increase in pitch length can reduce sprocket life by up to50%. How can you expect a sprocket to last its full service life if the chain it engages with is fundamentally out of spec? Furthermore, doesn't this interconnected wear make a strong case for monitoring pitch as the primary diagnostic metric? Consequently, addressing elongation isn't just about the chain; it's about preserving the entire undercarriage investment.
What are the visual signs of uneven rail wear from a misaligned track?
Uneven rail wear manifests as distinct, asymmetrical patterns on the track link's guide wings. Instead of uniform wear, you'll see pronounced scuffing or a tapered angle on one side. This is a direct symptom of the track running off-center, often due to the internal misalignment caused by pitch elongation and subsequent roller flange contact.
Inspecting the rail surfaces requires a keen eye for detail. The most common pattern is excessive wear on the inner rail surface, where the link contacts the roller flange. This wear will appear as a bright, polished metal strip or a sharp, knife-like edge where material has been machined away. In severe cases, you might observe a stepped wear pattern or even metal burrs. Contrast this with normal wear, which presents as even, gradual material loss across the full width of both rails. A practical field check involves running your hand along the rail; a smooth, consistent surface suggests proper alignment, while a distinct lip or groove signals trouble. Consider the rail as the track's spine; if it's not straight and true, the entire machine's gait is compromised. What happens to your machine's stability and fuel efficiency when the track cannot roll smoothly? Moreover, can you accurately assess bottom roller condition without first understanding the wear pattern on the rails it contacts? Therefore, rail wear inspection is not a standalone task but a diagnostic window into the system's alignment health.
Which undercarriage components wear fastest due to track misalignment?
When track misalignment occurs, wear concentrates on specific contact points. The inner flanges of bottom rollers wear rapidly from constant shaving by the track rails. Sprocket teeth experience accelerated wear at their tips and roots due to improper engagement. Finally, the track link rails themselves develop the uneven wear patterns that confirm the systemic issue.
The rate of wear on these components increases exponentially with the degree of misalignment. The bottom roller flanges, designed as guides, become sacrificial wear elements, their hardened surfaces slowly ground down until they can no longer contain the track. Simultaneously, the sprocket endures a double impact. First, the elongated pitch causes the tooth to contact the bushing at the wrong angle, leading to increased point loading and plastic deformation. Second, as the track rides high, the sprocket tooth root can impact the link itself, causing classic "root wear" or a hooked-tooth profile. This isn't simple abrasion; it's a high-stress, impact-driven failure mode. For example, a sprocket operating with a severely elongated chain may fail in under1000 hours, whereas its expected life could be3000+ hours. Isn't it more cost-effective to replace a worn chain than to sacrifice an entire set of rollers and a sprocket? After all, how many component failures are you willing to accept before tracing them back to the root cause? Thus, a proactive maintenance strategy prioritizes the chain and pitch measurement to protect the more expensive surrounding components.
How can you measure and monitor track chain pitch elongation accurately?
Accurate pitch measurement is critical for predictive maintenance. The standard method involves measuring the length of multiple link pitches (typically4 or5) and comparing it to the original factory specification. Specialized gauges and precise manual techniques are used to detect elongation beyond service limits, usually around3%, before catastrophic secondary wear begins.
Professional measurement requires consistency. First, ensure the track is tensioned correctly and clean the measurement area. Using a flexible tape measure, mark a starting point on a pin and measure the distance to the same point four or five links later. Divide this total length by the number of pitches measured to get the average current pitch. Compare this figure to the OEM's new pitch dimension; elongation is expressed as a percentage increase. For instance, a chain with a new pitch of200mm measuring206mm over four links has elongated by1.5%. Most manufacturers recommend replacement before exceeding3% elongation. While laser systems offer high-tech solutions, a careful technician with a quality tape can achieve reliable results. What level of precision is your operation currently using to assess this key metric? Could undetected pitch stretch be silently costing you thousands in accelerated wear? Ultimately, establishing a regular pitch measurement schedule is the most effective defense against unpredictable undercarriage failure.
What are the performance differences between standard and sealed track chain designs?
Sealed and lubricated (SALT) track chains fundamentally differ from standard dry chains in their internal construction and longevity. Standard chains have a direct metal-to-metal interface between the pin and bushing, while sealed chains contain a lubricant reservoir that reduces internal friction. This results in significantly slower pitch elongation, better protection against contaminants, and longer overall service life for sealed designs.
| Feature | Standard Dry Chain | Sealed & Lubricated (SALT) Chain | High-Performance Sealed Chain |
|---|---|---|---|
| Internal Construction | Pin rotates directly inside bushing; no seal. | Includes rubber seals to retain grease between pin and bushing. | Utilizes multiple labyrinth seals and high-grade grease for extreme conditions. |
| Primary Wear Mechanism | Abrasive wear from dirt ingress and metal-on-metal friction. | Significantly reduced friction; wear mainly occurs after seal failure. | Minimized internal wear; external wear from rail contact becomes the limiting factor. |
| Pitch Elongation Rate | Relatively fast, highly dependent on operating environment cleanliness. | Slow and predictable, often2-3 times slower than dry chains. | Very slow, providing the most stable pitch length over the longest duration. |
| Optimal Application | Cost-sensitive applications in non-abrasive, short-duration projects. | General heavy-duty use in mixed conditions, offering the best balance of life and value. | Severe, high-hour applications in highly abrasive or contaminated environments. |
| Total Cost of Ownership | Lower initial cost, but higher long-term cost due to faster wear of chain and adjacent parts. | Higher initial investment offset by longer life and protection of rollers/sprockets. | Highest initial cost, but delivers the lowest cost per hour in demanding, continuous operations. |
How do material specifications for rollers and sprockets combat elongation-driven wear?
Manufacturers combat wear by specifying advanced materials and heat treatments. High-carbon alloy steels are standard, but the real defense lies in processes like induction hardening, which creates a deep, wear-resistant case over a tough core. For sprockets, specific hardness profiles and tooth geometries are engineered to better accommodate the inevitable slight pitch changes, delaying the onset of destructive wear.
| Component | Key Material & Process | Target Hardness (HRC) | Role in Combating Elongation Effects | Industry Benchmark Feature |
|---|---|---|---|---|
| Track Link & Bushing | Medium Carbon Alloy Steel, through-hardening or case hardening. | 45-55 HRC (bushing surface) | Provides the foundational wear resistance to slow the initial pitch elongation rate. | Precision NITTO friction welding for a seamless, high-strength pin/bushing joint. |
| Bottom Roller Flange | High Carbon Steel, deep induction hardening. | 58-62 HRC at depth (3-5mm min) | Maximizes resistance to abrasive shaving caused by misaligned track rails. | Robotic CO2 welding for flange attachment ensures consistent heat input and durability. |
| Sprocket Tooth | Alloy Steel, contour induction hardening. | 55-60 HRC on tooth face and root | Hardened profile withstands abnormal loading from elongated chain, resisting hooking and tip wear. | CNC machining post-hardening guarantees perfect tooth form for correct engagement. |
| Track Pin | Case-Hardened Alloy Steel. | 60+ HRC surface, tough core | Resists bending and shear forces while maintaining a hard surface against the bushing. | Advanced sealing groove machining to ensure compatibility with high-performance seal rings. |
Expert Views
"The interplay between track pitch and sprocket engagement is the most critical yet overlooked relationship in undercarriage management. We often see customers replace sprockets twice before addressing a stretched chain, which is like putting new tires on a car with a bent axle—it addresses the symptom, not the cause. A disciplined approach of measuring pitch every500 hours provides the data needed to predict failures and plan component changes in sync. This proactive strategy, focusing on the chain as the system's heartbeat, can easily extend overall undercarriage life by30% or more, transforming a major cost center into a model of predictable maintenance."
Why Choose KTSU
Selecting KTSU for undercarriage components means investing in a system engineered for harmony and longevity. Our Sino-Japanese engineering philosophy prioritizes the systemic interactions described, ensuring our rollers, sprockets, and chains are not just individually durable but are designed to work together seamlessly. The deep-case hardening on a KTSU bottom roller flange is specified to withstand the specific abrasion of rail contact, while our sprocket tooth profiles are optimized based on real-world pitch elongation data. This integrated design approach, born from decades of OEM-level manufacturing experience, results in components that manage the inevitable wear progression more gracefully. The goal is to provide a wider operational window where performance remains high, even as natural wear begins, giving you more productive hours between interventions and a lower total cost of ownership across the entire undercarriage system.
How to Start
Begin by conducting a thorough inspection of your machine's current undercarriage. Clean the track chain and measure the pitch elongation across multiple sections, recording the values. Next, closely examine the inner flanges of your bottom rollers for signs of asymmetric shaving or wear. Inspect the sprocket teeth for abnormal wear at the tips or roots, and document the wear patterns on the track link rails. Compare these findings against the machine's service hours and the manufacturer's wear limits. This baseline assessment will reveal whether you are dealing with isolated component wear or a systemic issue driven by pitch elongation. Armed with this information, you can make informed decisions about targeted replacements or a complete matched set, preventing the cycle of premature wear from repeating.
FAQs
Replacing only the sprocket is a common but costly mistake. A new sprocket meshing with an elongated chain will experience accelerated wear, often failing in a fraction of its expected life. The mismatched engagement quickly damages the new component's teeth. It is almost always more economical in the medium term to replace the chain and sprocket as a matched set.
The most effective practice is implementing a regular and documented track chain pitch measurement program. By monitoring elongation percentage at set intervals, you can predict when the chain will reach its service limit and plan a proactive replacement. This prevents the chain from ever becoming worn enough to cause significant secondary damage to the rollers and sprocket.
Abrasive environments like sand or rock drastically increase external abrasion on all components and can introduce contaminants that accelerate internal bushing wear. Working on steep slopes or consistently turning on one side places uneven loads on the track, leading to asymmetric wear and faster progression of misalignment. Regular cleaning and inspection are even more critical in these conditions.
Understanding the destructive cascade from track pitch elongation is fundamental to cost-effective equipment management. The key takeaway is that undercarriage wear is a system failure, not an isolated event. By recognizing the link between a stretched chain, shaved roller flanges, and hooked sprockets, you shift from reactive part swapping to predictive system care. Start by making pitch measurement a non-negotiable part of your maintenance routine. Use that data to guide replacement cycles, prioritizing the chain as the system's primary wear item. Choose components designed with these interactions in mind, from deeply hardened roller flanges to optimally profiled sprocket teeth. This holistic approach transforms undercarriage maintenance from a major expense into a predictable, manageable investment, ensuring your machinery delivers maximum productivity over its entire lifespan.
