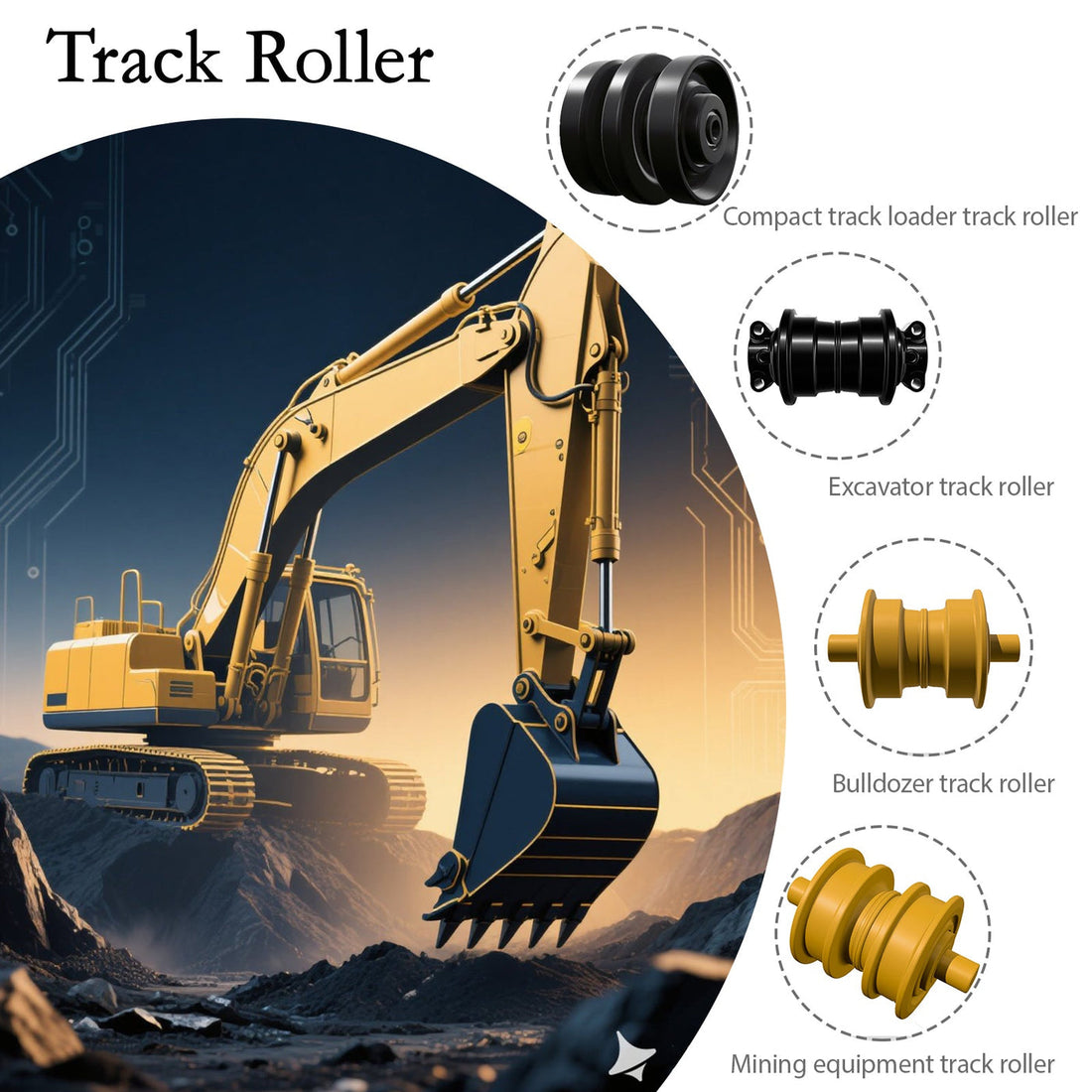

How does frozen mud in track rollers cause flat spots on crawler treads?
Trapped mud and debris harden and freeze around lower bottom rollers, preventing them from turning. This forces the track chain to slide, grinding destructive flat spots onto the roller treads. This accelerated wear leads to premature failure of the entire undercarriage system, including track links and sprockets, causing costly downtime and repairs.
Last updated:
How does hardened mud cause track roller failure?
When mud and debris pack into the undercarriage and are not removed, they harden into a concrete-like substance around the bottom rollers. This material freezes the rollers in place, stopping them from rotating. The moving track then slides across the stationary roller shell, creating intense friction and heat that grinds flat spots into the hardened steel surface.
The process begins with fine, abrasive particles like clay and silt entering the seal gaps. As the machine operates, these particles mix with water and are compressed by the immense weight of the equipment, effectively forming a low-grade ceramic shell around the roller. This shell bonds to the roller's outer diameter and flange, locking it solid. Consider the analogy of a wheel bearing packed with old, hardened grease; it simply will not turn, and forcing it causes catastrophic damage. How do you think this affects the track's tension and alignment? The stationary roller acts like a brake pad, while the track chain acts like a grinding wheel, a combination destined for failure. Consequently, the uneven surface of the flat-spotted roller then hammers against the track link bushings with every revolution. This impact stress, transferred through the chain, is a primary culprit for premature track link damage and bushing rotation. Furthermore, the increased rolling resistance forces the final drive to work harder, which can lead to sprocket wear and even power train issues. The entire failure cascade, from a simple mud pack to a ruined undercarriage, underscores the critical nature of proactive debris management.
What are the signs of frozen or damaged bottom rollers?
Operators and maintenance crews can identify failing bottom rollers through visual and operational cues. Key signs include visible flat spots on the roller treads, unusual track sag or tight spots, and a distinct grinding or squealing noise during operation. Increased vibration and a noticeable decrease in machine speed and fuel efficiency are also strong indicators.
Beyond the obvious visual check for flattened or gouged surfaces, listen for a rhythmic scraping or grinding sound that coincides with the track's rotation—this is the track link scraping over the stationary roller's damaged shell. You might also feel a jerking or lurching motion during travel, especially at low speeds, as the track struggles to roll over the compromised roller. Another telltale sign is inconsistent track sag; when you measure the sag between the carrier roller and the front idler, you may find it's too tight over the frozen roller and too loose elsewhere. Why is this inconsistency so problematic? It creates uneven stress distribution, accelerating wear on other components like the front idler bearings and track links. For instance, a machine working in a swampy area that suddenly develops a stiff track on one side is almost certainly experiencing this issue. Therefore, incorporating a brief visual and auditory inspection into your daily pre-start routine is not just recommended, it's essential for early detection. Early detection is the most cost-effective maintenance strategy, as it allows for cleaning or roller replacement before collateral damage spreads to more expensive components like the track chain or sprocket.
Which cleaning methods are most effective for heavy-duty undercarriages?
Effective cleaning ranges from daily preventive washes to specialized techniques for packed debris. High-pressure water washing is the standard, but for hardened material, mechanical removal with bars or picks is necessary. Steam cleaning offers a powerful middle ground, and for extreme cases, controlled heating with a torch can crack the hardened shell, though this requires caution to avoid damaging seals.
The cornerstone of any effective regimen is a post-operation wash with a high-pressure cleaner, aiming to remove loose material before it has a chance to set. For material that has already hardened, a combination of mechanical persuasion and hydration works best. Using a long steel bar or a dedicated spalling hammer to carefully break up the crust is a common field technique. Following this with a focused steam clean can then wash away the fractured particles. Steam is particularly effective because the heat helps break the bond between the mud and the metal, and the pressure can reach into crevices that cold water cannot. However, what about the seals? Excessive pressure directed directly at seal lips can force contaminants past them, so always angle the spray. As a real-world example, many mining operations use dedicated wash bays where machines are cleaned after every shift, dramatically extending undercarriage life. In contrast, neglecting this step is akin to letting salt and grime build up on your car's brake rotors; eventually, performance degrades and failure follows. Ultimately, the best method is the one that is performed consistently, tailored to the soil conditions and the severity of the buildup.
What is the technical difference between standard and heavy-duty track rollers?
Heavy-duty track rollers are engineered with superior materials and design features to withstand extreme loads and abrasion. Key differences include larger diameter rollers for reduced ground pressure, thicker shell walls, higher-grade alloy steels, advanced sealing systems with multiple layers, and often, induction-hardened treads for exceptional wear resistance compared to standard rollers.
| Feature | Standard Duty Roller | Heavy-Duty Roller | Extreme-Duty/Application-Specific |
|---|---|---|---|
| Shell Material & Hardness | Medium-carbon steel, through-hardened to approx.45-50 HRC | High-carbon alloy steel (e.g., SCr440), induction-hardened tread to55-60+ HRC | Special alloy steel with deep case hardening, hardness exceeding60 HRC for severe abrasion |
| Bearing & Seal System | Single lip contact seal, standard ball bearings | Multi-labyrinth or dual lip seals with grease purging channel, large-diameter tapered roller bearings | Pressurized multi-stage sealing, often with proprietary sealant, oversized roller bearings for maximum load capacity |
| Flange Design & Protection | Standard height flange, basic weld construction | Reinforced, taller flanges often with wear-resistant weld buildup on the inside edge | Integral forged or massively reinforced flanges, sometimes with bolt-on wear guards for easy replacement |
| Primary Application | General grading, light excavation, farm tractors in moderate conditions | Continuous high-load applications like large excavators, dozers in rocky or abrasive soils | Extreme environments: mining, quarrying, landfill operations with constant impact and contamination |
How can proper undercarriage maintenance prevent track link damage?
Preventive undercarriage maintenance directly mitigates track link damage by ensuring even load distribution and smooth operation. Key practices include regular cleaning to prevent roller freeze-up, maintaining correct track tension, periodic inspection for component wear, and timely roller replacement to avoid the hammering effect that destroys link bushings and causes premature bushing rotation.
Track link damage is rarely an isolated event; it is typically the result of failures elsewhere in the system. A frozen bottom roller is a prime instigator. As the track chain is forced to slide over the flat spot, it experiences localized stress and heat that can anneal the hardened bushing surface, making it softer and more prone to wear. Furthermore, the impact from hitting the flat spot is transmitted through the pin and bushing joints, accelerating ovalization and leading to premature track elongation. Think of it like driving a car with a flat tire; the uneven ride doesn't just ruin that one tire—it stresses the suspension, alignment, and even the transmission. How does proper tension factor in? An over-tight track increases stress on all components and reduces the track's ability to shed debris, while an overly loose track can derail and cause catastrophic impact damage. For example, a properly maintained undercarriage with freely rotating rollers allows the track to articulate smoothly, distributing the machine's weight evenly across all links and bushings. This harmonious function is the key to achieving the full service life of every component. Consequently, a disciplined maintenance schedule focused on roller condition is your first and most powerful defense against unexpected track chain failure.
Flat spot, spalling or even wear: telling them apart, and what each means
Three different things get called a flat spot, and they have different causes and different consequences for the rollers around them. The surface tells you which one you are looking at.
| What the roller surface shows | What caused it | What it means for the rest of the group |
|---|---|---|
| One or two distinct facets where the roller has stopped turning and the chain has rubbed the same area | Frozen or packed material locking the roller, so the chain slid over a stationary surface | Check the neighbours and the chain. The flat spot is the visible damage; the link rail and the adjacent rollers took the same treatment. |
| Even reduction in shell diameter all the way round, with the surface still smooth | Ordinary abrasive wear over the roller life | Measure against the nominal and the wear allowance. This is a planned replacement rather than a failure, and the group may still be serviceable. |
| Patches where the surface material has flaked away, often on the flange edges | Spalling, which is a surface-hardening and load story rather than a debris story | It points at the specification or the load rather than the cleaning routine, and it usually appears across more than one roller of the same batch. |
| A polished band with no material loss, on the roller or on the link rail above it | Sliding contact rather than rolling contact, caught early | The earliest of the four, and the cheapest to act on: the roller is on its way to the first row rather than already there. |
The practical value of sorting them is that only the first row is answered by cleaning and parking discipline. The second is a measurement question, the third is a specification question, and the fourth is the warning that gives you time to deal with either.
One caution applies after any frozen event. A roller that has been locked and dragged has had its seal working in conditions it was not designed for, so a roller that turns freely again is not yet proven: check it again after a shift or two, because seal damage from a freeze shows up as a weep before it shows up as a seized bearing.
What specifications should you compare when selecting replacement rollers?
Selecting replacement rollers requires comparing critical specifications to ensure compatibility and performance. Essential factors include the OEM part number or dimensional match (bore, overall width, tread diameter), load rating and construction type (standard/heavy-duty), material grade and hardness, seal technology, and bearing type. Matching or exceeding the original equipment's specifications for your specific working conditions is paramount.
| Comparison Criteria | OEM Roller | Premium Aftermarket (e.g., KTSU) | Economy Aftermarket |
|---|---|---|---|
| Material & Hardness Process | Proprietary alloy, specific heat treatment for balanced durability | High-grade alloy steels (e.g., Japanese SCM equivalents), controlled induction hardening for deep, consistent case depth | Generic carbon steel, often through-hardened with less control, leading to potential brittleness or shallow case |
| Sealing System Complexity | Often uses proprietary multi-stage seal designs specific to the brand | Engineered multi-labyrinth or dual-lipped seals with grease channels, designed to match or exceed OEM exclusion capability | Basic single-lip contact seals that offer minimal protection against fine abrasive particles |
| Bearing Load Capacity | Designed to exact machine load calculations with custom bearing specs | Utilizes high-capacity, name-brand tapered roller bearings selected for the application's dynamic loads | May use lower-grade or smaller bearings that reduce overall load capacity and service life |
| Overall Value Proposition | Guaranteed fit and performance at a premium price, supports full machine warranty | Optimized performance-to-cost ratio, offering near-OEM durability and features often at a30-50% cost savings | Low initial purchase price, but higher risk of premature failure and associated collateral damage costs |
Expert Views
"The single most overlooked aspect of undercarriage longevity is debris management. We consistently see machines where the difference between a3,000-hour and an8,000-hour roller life comes down to cleaning discipline. A frozen roller isn't just a roller problem—it's a system-wide failure trigger. The economic impact isn't just the cost of the roller itself, but the cascading damage to chains, sprockets, and the immense downtime. Investing in quality components with robust seals is crucial, but it's a wasted investment if they're perpetually packed with solidified muck. The most advanced roller in the world cannot function as intended if it's cemented in place. A proactive, condition-based maintenance approach, where rollers are checked for free rotation weekly, pays for itself many times over."
Why Choose KTSU
Choosing KTSU for undercarriage components means selecting a product born from a specific engineering philosophy that prioritizes durability in contaminated environments. The joint venture heritage brings Japanese precision in metallurgy and sealing design directly to the challenges faced in global markets. KTSU rollers are not just dimensional copies; they are re-engineered with features like enhanced seal labyrinths and optimized grease pathways that actively combat the ingress of mud and slurry. The use of advanced manufacturing techniques, such as NITTO friction welding for flanges, ensures structural integrity under high-impact loads. This focus on the root causes of undercarriage wear—abrasion, contamination, and impact—results in components that consistently achieve a high performance-to-cost ratio. For a maintenance manager, this translates to predictable service intervals, reduced risk of unexpected failures, and lower total cost of ownership over the machine's life, which is the ultimate goal of any parts procurement decision.
How to Start
Begin with a thorough assessment of your current undercarriage condition on a key machine. Document the state of several bottom rollers—check for rotation, visible flat spots, and seal integrity. Next, review your recent maintenance logs for cleaning frequency and unscheduled repairs related to the track system. Then, analyze your primary worksite material: is it fine, abrasive clay or rocky fill? This assessment will define your needs. If rollers are failing prematurely, investigate whether the root cause is material (inadequate component specs) or maintenance (inadequate cleaning). Finally, use your machine's model and serial number to source accurate specifications. This problem-focused approach ensures you select the right component solution, whether it's upgrading to a more robust roller design like those from KTSU or implementing a new site maintenance protocol, or both.
Frequently Asked Questions
How does frozen mud damage a track roller?
It locks the roller so it cannot turn, and the chain then slides across a stationary surface instead of rolling over it. The result is a flat spot on the roller and matching abrasion on the link rail and bushing surfaces, which is why the damage is never confined to the roller.
Can a roller with a flat spot be reused?
No. The flat spot is material that is no longer there, so the roller cannot support the chain evenly again and will produce the same sliding contact on every revolution. It is a replacement item, and the useful work is finding why it locked rather than whether it can be saved.
How do I tell a flat spot from normal wear?
A flat spot is localised: one or two facets where the surface has been rubbed down, usually with a matching polish on the link above it. Normal wear is an even reduction in diameter all the way round with the surface still smooth. Spalling is different again, with patches of surface material flaked away rather than worn.
Which cleaning methods work best on a heavy undercarriage?
Whatever removes packed material from around the rollers, the flanges and the adjuster without driving it past the seals: work the material out rather than washing it in. The timing matters as much as the method, because material left in place at the end of a shift is what freezes overnight.
How often should rollers be checked in freezing conditions?
Every shift during the cold period, with the track slackened, because both the locking and the seal damage it causes happen between one shift and the next rather than gradually. A roller that turns freely in the morning but leaves a weep by the afternoon is telling you the seal was damaged in the freeze.
The destructive cycle of frozen rollers and track link damage is a preventable problem with a clear cause and effect. Hardened debris acts as a glue, stopping rollers and turning the track into a grinding tool. The solution hinges on a two-pronged approach: consistent, condition-based cleaning to prevent the issue, and the selection of rollers engineered to resist it. Components with superior sealing and hardened materials, such as those developed by KTSU, provide a stronger defense against the inevitable ingress of contaminants. Remember, undercarriage maintenance is systemic; a failure in one component inevitably stresses others. By understanding the mechanics of flat spot formation, implementing rigorous cleaning routines, and choosing parts designed for durability, you can transform your undercarriage from a constant cost center into a model of reliability. The key takeaway is to act proactively—inspect regularly, clean diligently, and replace with quality—to keep your machinery moving efficiently and economically.
