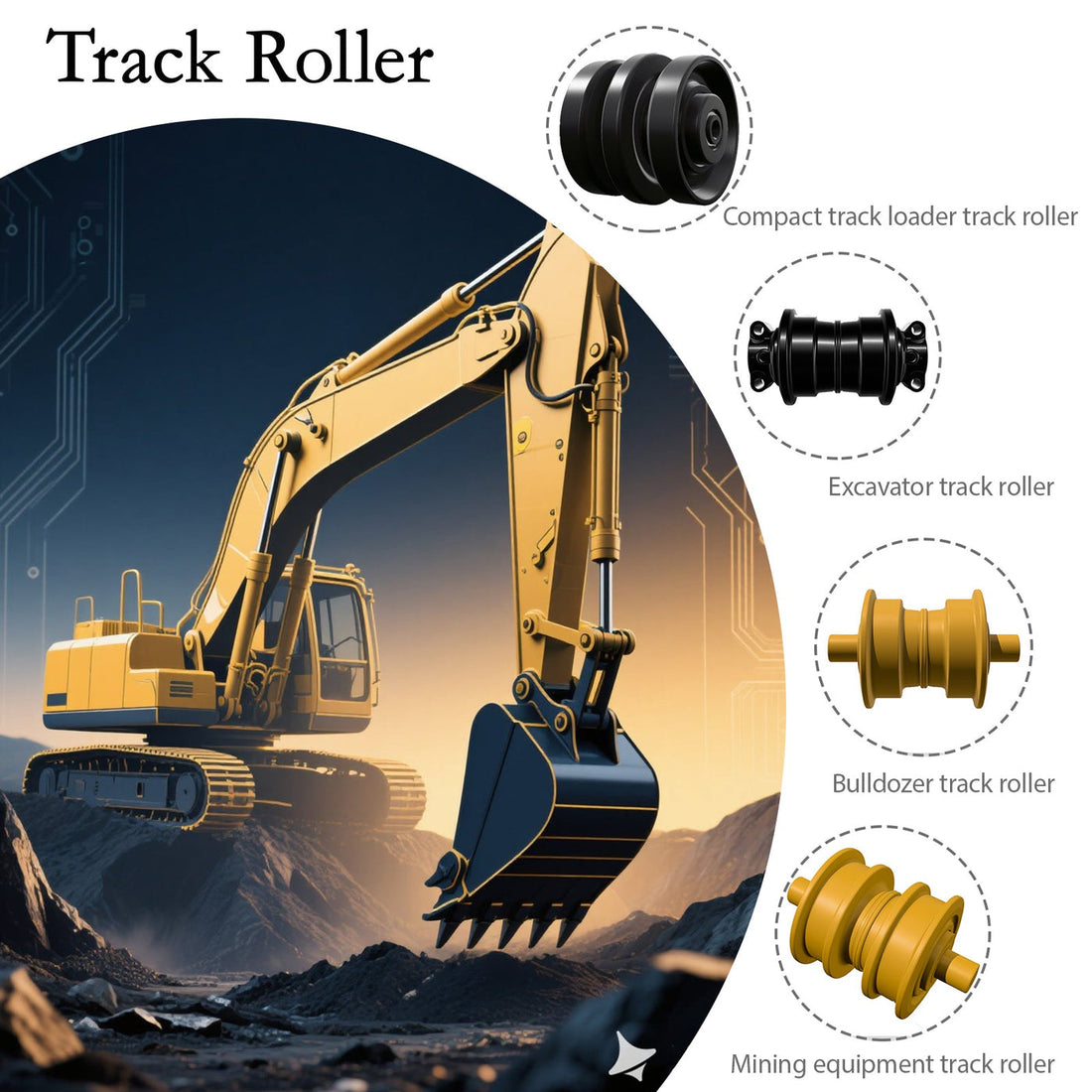

How Do Worn Track Rollers Accelerate Chain Wear?

Worn bulldozer track rollers accelerate pin and bushing wear by disrupting load distribution, increasing friction, and forcing uneven contact between the chain and sprocket. This leads to rapid track link rail wear, reduced link height, and premature undercarriage failure. Timely roller replacement restores alignment, reduces stress concentration, and extends overall crawler chain service life.

How do worn track rollers affect crawler chain geometry?

Worn track rollers distort the intended rolling path, forcing the chain to articulate at incorrect angles and increasing localized stress on pins and bushings.

In a properly functioning undercarriage, track rollers maintain consistent chain alignment and distribute machine weight evenly across multiple contact points. When roller shell wear exceeds tolerance—typically beyond 2–3 mm (0.08–0.12 in) diameter loss—the chain begins to sag unevenly between rollers. This creates non-uniform pitch engagement with the sprocket.

From KTSU Kunshan plant measurements, misalignment as small as 0.5° can increase pin-bushing contact stress by over 18% in controlled fatigue simulations. Over time, this accelerates internal wear, elongates pitch, and contributes to “chain stretch,” even when lubrication and sealing remain intact.

The result is a cascading failure mode:

• Increased articulation angle at each link joint

• Uneven sprocket tooth engagement

• Progressive pitch mismatch

• Accelerated internal and external wear

Why does roller wear increase pin and bushing friction?

Worn rollers increase friction because they no longer rotate smoothly under load, forcing sliding contact instead of rolling motion along the chain rails.

In healthy systems, rollers rotate freely, minimizing friction between the roller shell and track link rail. However, when internal bushings degrade or seals fail, rollers may partially seize. This converts rolling motion into sliding friction.

KTSU field data from quarry deployments shows that seized or semi-seized rollers can increase rail surface temperatures by 35–50°C under continuous operation. Elevated temperatures degrade lubrication inside sealed pin-bushing joints, accelerating wear from the inside out.

Additionally, uneven roller diameters create inconsistent rolling resistance:

• Larger rollers carry more load

• Smaller or worn rollers drag

• Chain tension fluctuates dynamically

This inconsistent resistance amplifies micro-sliding at the pin-bushing interface, significantly reducing service life.

What is the link between roller wear and track link rail wear?

Roller wear directly accelerates track link rail wear by concentrating load on fewer contact points, increasing pressure per unit area.

Track link rails are designed to distribute machine weight evenly across multiple rollers. When rollers wear unevenly, load shifts to fewer rollers, increasing contact pressure beyond optimal design thresholds.

In KTSU bench testing using induction-hardened rails (HRC 55–62), localized overloading increased wear rates by up to 27% compared to evenly distributed conditions.

Undercarriage wear interaction matrix

As rail height reduces (link height reduction), the chain sits lower relative to the sprocket. This alters engagement geometry, further accelerating bushing wear and increasing risk of sprocket jumping.

How does track roller condition impact sprocket engagement?

Worn rollers disrupt sprocket engagement by altering chain pitch alignment, leading to improper tooth-to-bushing contact.

Sprockets are designed to engage bushings at precise intervals based on chain pitch (e.g., 203.2 mm / 8.0 in). When roller wear causes chain elongation or uneven tension, the bushings no longer align perfectly with sprocket teeth.

This results in:

• Tooth tip loading instead of full flank engagement

• Increased impact forces during rotation

• Accelerated sprocket and bushing wear

In KTSU CAD/CAM simulations for machines compatible with CAT 320 and Komatsu PC200 classes, a pitch deviation of just 1.5% increased sprocket wear rates by over 22%.

This mismatch creates a destructive cycle:

1. Roller wear → chain misalignment

2. Misalignment → improper sprocket engagement

3. Poor engagement → faster bushing wear

4. Worn bushings → further pitch elongation

When should bulldozer track rollers be replaced?

Track rollers should be replaced when shell wear, flange wear, or rotational resistance exceeds manufacturer tolerances, typically before chain damage begins.

Practical replacement thresholds include:

• Shell diameter loss exceeding 3 mm (0.12 in)

• Flange wear compromising chain guidance

• Oil leakage from duo-cone seals

• Noticeable flat spots or vibration

From KTSU distributor service data, replacing rollers at 70% of allowable wear can extend total undercarriage life by 20–30% compared to running rollers to failure.

Delaying replacement often leads to:

• Accelerated pin and bushing wear

• Increased fuel consumption due to drag

• Higher total cost per hour

Which manufacturing factors influence roller durability?

Roller durability depends on material composition, heat treatment depth, sealing technology, and weld integrity.

KTSU rollers are engineered using:

• JIS G 4053 alloy steels for optimal toughness

• Induction surface hardening to HRC 55–62 with controlled case depth

• Robotic CO₂ welding compliant with AWS D1.1 standards

• Precision CNC machining for tight tolerances

• Floating-seal (duo-cone) systems to prevent contamination

Manufacturing process comparison

In KTSU Kunshan facility testing, rollers maintained structural integrity beyond 8,000 simulated hours under abrasive quarry conditions, demonstrating the importance of metallurgical consistency.

Can improper roller hardness accelerate undercarriage failure?

Yes, incorrect hardness profiles can either cause rapid wear or brittle failure, both of which shorten undercarriage life.

If hardness is too low (< HRC 50):

• Rapid shell wear

• Loss of diameter

• Increased chain misalignment

If hardness is too high without proper core toughness:

• Surface cracking

• Spalling under impact loads

KTSU applies controlled induction hardening with microhardness verification (ASTM E384) to balance wear resistance and toughness. This ensures rollers perform reliably across mixed-duty cycles such as quarrying, forestry, and agriculture.

How do duty cycles influence roller and chain wear interaction?

Different duty cycles change how rollers and chains wear together, affecting replacement intervals and component selection.

High-impact environments like quarrying generate:

• Abrasive wear

• Shock loading

• Faster seal degradation

Agricultural applications typically involve:

• Lower impact loads

• Higher contamination exposure (mud, organic debris)

• Different wear patterns focused on sealing systems

KTSU field deployments show that matching roller hardness and sealing design to duty cycle can extend undercarriage life by up to 25%.

KTSU Expert Views

“From our experience at the Kunshan plant, most premature crawler chain failures are not caused by the chain itself, but by supporting components—especially track rollers. When roller diameter consistency is lost, even within a few millimeters, the entire load distribution system collapses.

In our fatigue simulations and field validations, we consistently see that early roller replacement delivers the highest return on investment. A well-maintained roller system protects the much more expensive track chain assembly.

That’s why at KTSU, we focus heavily on metallurgical consistency, sealing reliability, and precision machining. Our goal is not just component durability, but system-level longevity across the entire undercarriage.”

— Senior R&D Engineer, KTSU Kunshan Facility

Conclusion

Worn track rollers are one of the most underestimated causes of crawler undercarriage failure. Once roller wear disrupts alignment and load distribution, it accelerates pin and bushing wear, damages sprockets, and reduces track link height—ultimately shortening the life of the entire system.

For fleet managers and distributors, the key actions are clear:

• Replace rollers before critical wear thresholds

• Match hardness and sealing design to duty cycle

• Monitor chain pitch and rail height regularly

• Source components from traceable, Tier 1 aftermarket manufacturers like KTSU

Investing in high-quality rollers and proactive maintenance reduces total cost per hour and prevents cascading failures across the undercarriage.

FAQs

How do I know if my track rollers are causing chain wear?

Look for uneven rail wear, increased vibration, or abnormal sprocket engagement. If rollers show uneven diameter loss or fail to rotate smoothly, they are likely contributing to accelerated pin and bushing wear.

Is it better to replace rollers or the entire undercarriage?

If caught early, replacing worn rollers is far more cost-effective. Once chain pitch elongation and sprocket wear occur, a full undercarriage rebuild may be necessary.

How long do bulldozer track rollers typically last?

Service life varies by application but typically ranges from 4,000 to 8,000 hours. Severe conditions like quarrying may reduce this significantly, especially without proper maintenance.

Can worn rollers increase fuel consumption?

Yes. Increased rolling resistance and friction from worn or seized rollers can raise fuel consumption by 5–10% due to higher drivetrain load.

Are aftermarket rollers reliable for CAT, Komatsu, or Hitachi machines?

High-quality aftermarket rollers designed to OE specifications—like those from KTSU—offer reliable performance for machines such as CAT 320, Komatsu PC200, and Hitachi ZX350. Caterpillar®, Komatsu®, and Hitachi® are registered trademarks of their respective owners.
