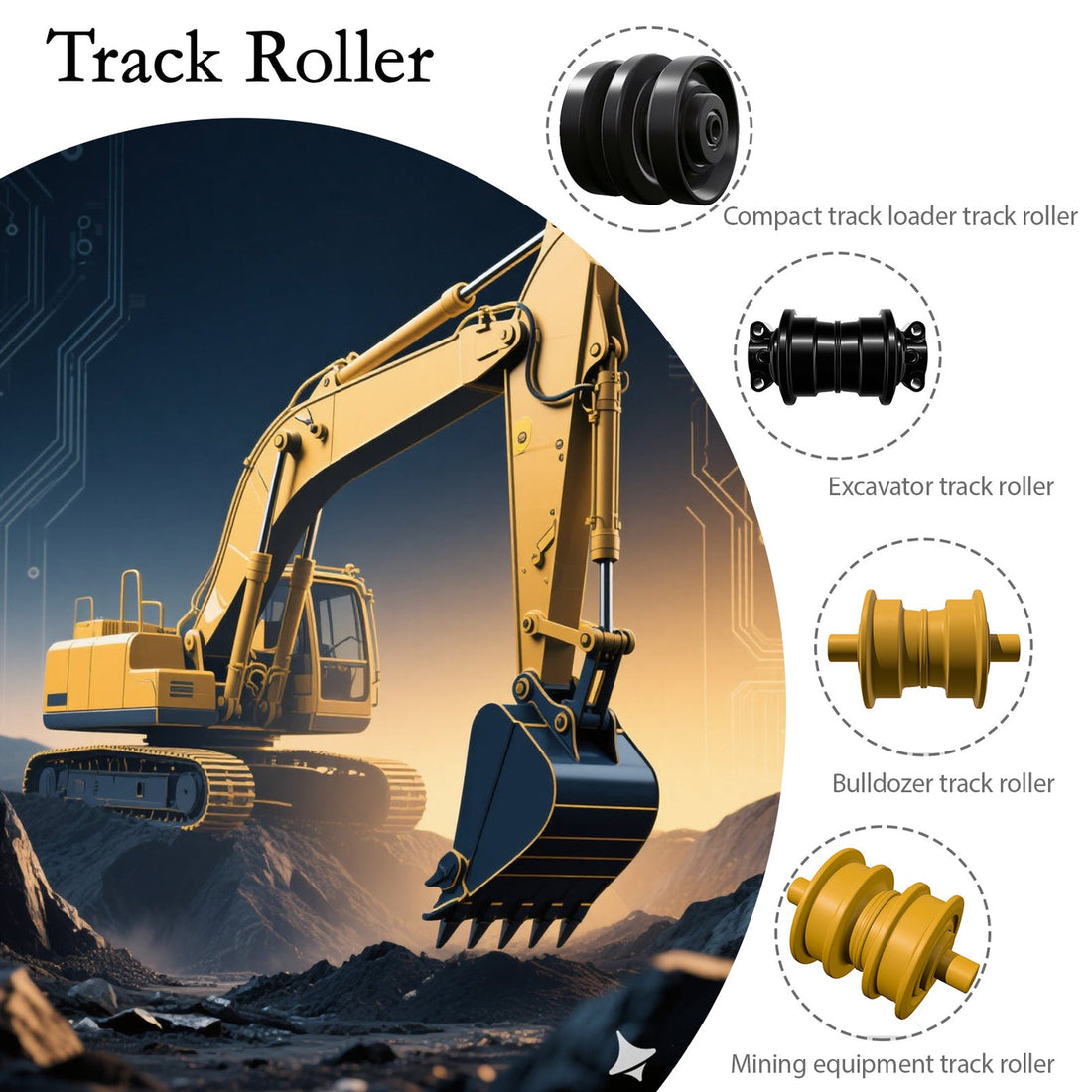

How do forged steel track rollers manage immense loads in heavy crawler chassis applications?
Forged steel track rollers are engineered to withstand immense localized loads by utilizing a thick-walled shell design. This robust construction, often from high-grade alloy steel, allows the roller to absorb concentrated forces from the track links and distribute them evenly across the roller's width and into the chassis frame, preventing structural failure during severe pushing and digging operations.
Last updated:
How do forged steel rollers differ from standard cast rollers in heavy-duty applications?
Forged steel rollers and cast rollers serve the same basic function but are built for different worlds of stress. The forging process aligns the steel's grain structure, creating a part with superior tensile strength and impact resistance, which is non-negotiable for severe applications where shock loads are constant.
Imagine the difference between shaping clay by pressing it into a mold versus hammering it into shape on an anvil. Forging is the anvil method, and it fundamentally changes the material. For a high-capacity bottom roller supporting a40-ton dozer during a deep ripping operation, this internal integrity is everything. Cast components, while cost-effective for less demanding roles, can contain microscopic voids or inclusions that become initiation points for cracks under extreme, cyclical stress. The forging process virtually eliminates these imperfections, resulting in a more homogeneous and reliable material. When you consider the punishing environment of a mining site or a major earthmoving project, the question isn't just about durability, but about predictable performance under peak load. Could a cast component handle the same million-plus load cycles? Furthermore, the ability to achieve greater surface hardness through subsequent heat treatment is often superior in forged parts, directly combating the abrasive wear from track pins and bushing surfaces. In essence, while both types get the job done, forged steel rollers are engineered from the inside out to survive where failure is not an option, transforming immense point loads into manageable structural forces.
What specific design features allow a thick-walled shell to distribute structural forces?
The thick-walled shell of a track roller isn't just about brute strength; it's a sophisticated load-management system. Its geometry and material work in concert to transform a crushing point load into a broad, controlled force vector that the machine's chassis can safely handle without deformation.
The primary mechanism is through increased moment of inertia and optimized contact geometry. A thicker wall massively increases the roller's cross-sectional area, which directly boosts its resistance to bending and deformation under load. This is similar to how a thick, solid wooden beam can support more weight than a thin, hollow one of the same outer diameter. The curved profile of the shell is precisely machined to match the track link, creating a large, consistent contact patch. This spreads the load from a theoretical line contact to a wider area, dramatically reducing contact stress, or the pressure per square inch. Consider the immense downward force from a bulldozer blade meeting immovable rock; that force travels through the track links and into the roller shell. The thick wall prevents localized "pinching" or indentation. Instead, the force is channeled radially through the shell, into the roller's axle and sealed bearings, and finally into the robust track rail support of the undercarriage frame. How does this prevent catastrophic frame damage? By ensuring the load is introduced to the chassis as a stable, distributed push rather than a sharp, concentrated punch. Consequently, the entire heavy crawler chassis component system works as a unified structure, with the roller acting as the first and most critical line of defense in force distribution.
Which material properties are most critical for severe application undercarriage rollers?
For rollers in severe applications, three material properties are paramount: high yield strength to resist permanent deformation, exceptional toughness to absorb impact without cracking, and superior hardness to withstand abrasive wear. The ideal material offers a balanced combination, often achieved through specific alloying and heat treatment processes.
| Material Property | Role in Roller Performance | How It's Achieved in Manufacturing | Consequence of Deficiency |
|---|---|---|---|
| Yield Strength | Determines the load at which the roller shell begins to permanently deform or "take a set." | Use of medium-carbon alloy steels (e.g.,4140,4340) and controlled forging. | Roller becomes ovalized under load, causing uneven track tension and accelerated wear on all components. |
| Impact Toughness | Ability to absorb sudden shock loads from obstacles like rocks or trench edges without fracturing. | Precise heat treatment (quenching & tempering) to create a fine, tempered martensite microstructure. | Roller shell develops cracks or spalls, leading to catastrophic failure and potential track derailment. |
| Surface Hardness | Resists abrasive wear from constant contact with track chain bushings and gritty contaminants. | Case hardening processes like induction hardening to create a hard outer shell (55-60 HRC) over a tough core. | Rapid wear of the roller flange and tread, reducing service life and increasing machine track resistance. |
| Fatigue Strength | Resistance to failure under repeated cyclic loading over millions of revolutions. | High-quality, clean steel with minimal inclusions and shot peening of critical surfaces. | Subsurface cracking initiates, leading to premature spalling and pitting of the roller tread. |
How does the integration with other crawler chassis components affect system longevity?
A track roller's performance and lifespan are inextricably linked to the condition and compatibility of all surrounding undercarriage parts. A premium roller installed on a worn sprocket or loose track chain will fail prematurely, as the system is designed to function as a synchronized, load-sharing assembly.
The roller does not work in isolation. It is part of a kinematic chain that includes the track links and bushings, the front idler, the rear sprocket, and the carrier rollers. For instance, a sprocket with worn teeth will not properly engage the track chain, causing a jerky, uneven motion that transfers shock loads directly into the rollers and track rail supports. Similarly, a track chain with excessive internal wear becomes longer, leading to poor tension and allowing the track to "slap" down onto the rollers with greater force. This phenomenon dramatically increases the impact loads on the roller shells and their mounting bolts. A well-matched system, on the other hand, ensures smooth load transfer. The roller's job is to guide and support the track; it relies on the sprocket and idler to maintain proper track drive and tension. When all components are within wear specifications, loads are distributed as engineered. Therefore, considering a roller replacement is also an opportune time to assess the entire undercarriage system. Can a new roller compensate for a failing track chain? The answer is a resounding no. Proactive, system-wide maintenance is the only path to maximizing the service interval of these expensive, heavy crawler chassis components, ensuring the structural forces are managed efficiently from the ground up.
What are the key performance metrics for evaluating high-capacity bottom rollers?
Evaluating a bottom roller goes beyond simple dimensions. Key metrics include dynamic load rating for capacity, radial play for bearing integrity, flange height for track guidance, and overall wear life measured in hours. These metrics collectively predict the roller's ability to maintain performance under continuous severe operation.
| Performance Metric | What It Measures | Typical Range for Severe-Duty Rollers | Field Verification Method |
|---|---|---|---|
| Dynamic Load Rating | The calculated load the roller can withstand for one million revolutions under standard conditions. | Often exceeds50,000 lbs per roller for large dozers and excavators. | Not directly field-measured, but inferred from machine weight and application severity matching. |
| Allowable Radial Play | The permissible amount of up-and-down movement of the roller on its axle, indicating bearing wear. | New:< 1mm. Replacement threshold: Usually3-5mm, per OEM specifications. | Use a pry bar to lift the track and measure gap between roller flange and track link with a feeler gauge. |
| Flange Height & Wear | The height of the side flange that guides the track chain. Critical for preventing derailment. | Original height varies by model. Wear limit is often50% of original height. | Visual inspection and measurement against OEM wear specs. Worn flanges appear rounded or low. |
| Tread Diameter Wear | Reduction in the roller's outer diameter due to abrasion against the track bushing. | Roller is typically considered worn out at a10-15% reduction from original diameter. | Measure with calipers across the center of the tread, comparing to the original dimension. |
| Seal Integrity | The effectiveness of the multi-labyrinth and rubber seal in keeping grease in and contaminants out. | Expected to last the full life of the roller tread under normal conditions. | Inspected for grease leakage or the presence of grinding paste (grease mixed with abrasive dirt) around the seal area. |
Why is preventive maintenance for track rail support and rollers non-negotiable in earthmoving?
Preventive maintenance on track rail supports and rollers is the cornerstone of uptime and cost control in earthmoving. Catching minor wear on a roller flange or a loose bolt on a track rail support prevents exponential damage that can lead to machine immobilization and extraordinarily expensive repairs.
Think of the undercarriage as the foundation of a building. If the foundation cracks and shifts, every wall, window, and door above it is affected. Similarly, a failing track roller or a bent track rail support creates misalignment throughout the entire track system. This misalignment multiplies wear rates. A slightly worn roller will begin to grind unevenly on the track link, accelerating wear on both parts. A loose or damaged track rail support allows the roller to wobble or exert force in an unintended direction, placing abnormal stress on the roller axle and the main chassis frame. These issues don't remain isolated; they cascade. What starts as a few millimeters of extra play can evolve into a track derailment in the middle of a critical job, costing tens of thousands in downtime and repair. Regular inspection intervals, based on engine hours, are therefore not a suggestion but a mandatory operational protocol. Cleaning the undercarriage to inspect for cracks, measuring roller wear, and checking bolt torque on all track rail support connections are simple acts that yield profound economic benefits. Consequently, a disciplined maintenance program directly protects the massive capital investment in the machine by ensuring the structural forces from heavy blade pushing are always channeled through components that are in proper, aligned condition.
From machine weight to a roller specification, and where that route stops
The sections above describe what a forged roller does with load. Turning that into a purchase order means working in the other direction, from what the machine weighs and how it works to the numbers a supplier needs.
- Start from the operating weight, not the bare machine. The relevant figure includes the attachment, the counterweight and the load the machine actually handles, because that is what the track group carries.
- Convert it to a load per position. The machine weight is shared across the rollers on each side and shifts forward or backwards with the attachment. A machine that digs over the front idler and one that travels loaded are loading different rollers hardest.
- Match that load to the roller bearing rating, and look at the ratio. What matters is not the raw rating but how much of it the application uses: a roller run near its capacity has no reserve for the impact a forged shell and a tough core are bought for.
- Specify the shell and the seal together. Shell thickness and material decide the abrasion and deformation life; the seal decides whether the bearing is still working at the end of it. A thick shell with the wrong seal produces a roller that looks unworn and has failed.
- Record what came off. Wear pattern, hours and removal reason on the roller being replaced are what turn the next specification into a decision rather than a repeat of the last one.
Where the route stops. Three limits are worth knowing before specifying upward.
- The frame and the bracket. A larger roller has to fit the mounting arrangement that is on the machine, and a heavier roller loads that bracket differently. Fitment is a dimension before it is a rating.
- Ground clearance and track gauge. A thicker shell changes the running geometry, and on a low machine that can matter more than the extra wear life is worth.
- Whether the failure mode is addressed at all. If the rollers that came off failed because a seal let contamination in, or because tension and alignment were wrong, a heavier shell changes nothing. The specification should be chosen against the failure that actually happened, not against the worst one imaginable.
Expert Views
"In my three decades working with heavy mining equipment, the undercarriage is where physics meets finance. A forged steel track roller is a masterpiece of applied mechanics. Its thick-walled design isn't just about being strong; it's about being predictable under stochastic loading. We model these components to handle not just the calculated vertical load, but the unpredictable lateral shocks and torsional stresses from uneven ground. The true engineering challenge is optimizing the wall thickness, material grade, and heat treatment to achieve the perfect balance between weight, cost, and fatigue life. A roller that's too heavy increases inertial losses, while one that's too light won't last a season. The best manufacturers understand this balance intimately, producing components that disappear into reliable service, which is the highest compliment you can give a critical machine part."
Why Choose KTSU
Selecting KTSU undercarriage components means opting for a synthesis of proven engineering philosophy and modern manufacturing rigor. The company's foundation as a Sino-Japanese joint venture brings together a deep heritage of precision design with scalable production expertise. This is evident in their approach to forged steel track rollers, where the focus is on achieving consistent metallurgical properties and precise geometric tolerances that ensure proper load distribution. Their use of technologies like NITTO friction welding for sprockets and robotic CO2 welding for assemblies translates to components with superior structural integrity and reduced heat-affected zones, which directly contributes to longevity in severe applications. For an equipment manager, this translates to reduced variance in component life, allowing for more accurate fleet maintenance forecasting and budgeting. The value isn't just in the product, but in the predictable performance cycle it offers, minimizing unplanned downtime and the safety risks associated with undercarriage failure on site.
How to Start
Begin with a thorough assessment of your current undercarriage condition on a specific machine. Document the service hours, measure the remaining flange height and tread diameter on several rollers, and check for any visible cracks or leaks. Next, review the machine's application history—has it been in normal digging, severe rock, or high-impact demolition work? This severity rating is crucial for specifying the correct component grade. Then, compile the machine model and OEM part numbers for the rollers, idlers, and sprockets. With this information, you can engage with a technical specialist to discuss not just a like-for-like replacement, but an opportunity to potentially upgrade to a more robust specification if the application demands it. Finally, establish a post-installation inspection schedule to monitor the new components' wear patterns, which will validate your part selection and inform future purchasing decisions for your entire fleet.
Frequently Asked Questions
How do forged rollers differ from cast rollers under heavy load?
The grain structure differs, and that is what shows under load: forging compresses the steel so the grain follows the shape of the component and internal voids are closed, which improves the part response to impact and fatigue. Casting allows more design freedom and leaves a residual risk of porosity that matters most under cyclic load.
How does a thick-walled shell distribute load?
By spreading the concentrated force from the track links across the width of the shell and into the chassis frame rather than allowing it to deform one area. The consequence of getting it wrong is described in this article as the shell taking a set, which changes the running geometry permanently.
Which material properties matter most for severe-duty rollers?
Yield strength, which sets the load at which the shell deforms permanently, together with the toughness that absorbs impact and the hardened surface that resists abrasion. The article notes that medium-carbon alloy steels such as 4140 and 4340 are used with controlled forging to obtain the combination.
Can I fit a heavier roller than the machine was built with?
Only if the mounting arrangement, the bracket and the running geometry allow it, and only if the extra capacity addresses the failure that actually occurred. A heavier roller that does not fit properly, or that is bought for a failure mode it does not defend against, is a more expensive part with the same outcome.
How do roller failures link to the rest of the chassis?
A roller is one element of a system that includes the link rails, the idler, the sprocket and the frame. A roller that stops supporting the chain evenly changes the load on every component downstream of it, which is why the maintenance section of this article treats rail support and roller condition as one subject rather than two.
In conclusion, the performance of forged steel track rollers in severe applications is a direct result of intentional design, material science, and systemic integration. The thick-walled shell acts as a primary transformer of immense, localized loads into manageable structural forces, protecting the vital chassis of heavy machinery. Success hinges on understanding that these components are part of an interdependent system; their longevity is influenced by the condition of every other undercarriage part and the rigor of your maintenance protocol. When selecting components, prioritize the engineering pedigree and manufacturing consistency that ensure predictable wear life and operational safety. By adopting a holistic view—from the roller's hardened surface to the integrity of the track rail support—you make informed decisions that safeguard productivity, control costs, and keep your most valuable assets moving forward under the most demanding conditions. Start with a detailed inspection, plan for system-wide health, and choose partners whose expertise is reflected in the reliability of their product.
