How can high-temperature seals and reinforced shell walls extend track component life in extreme mining?

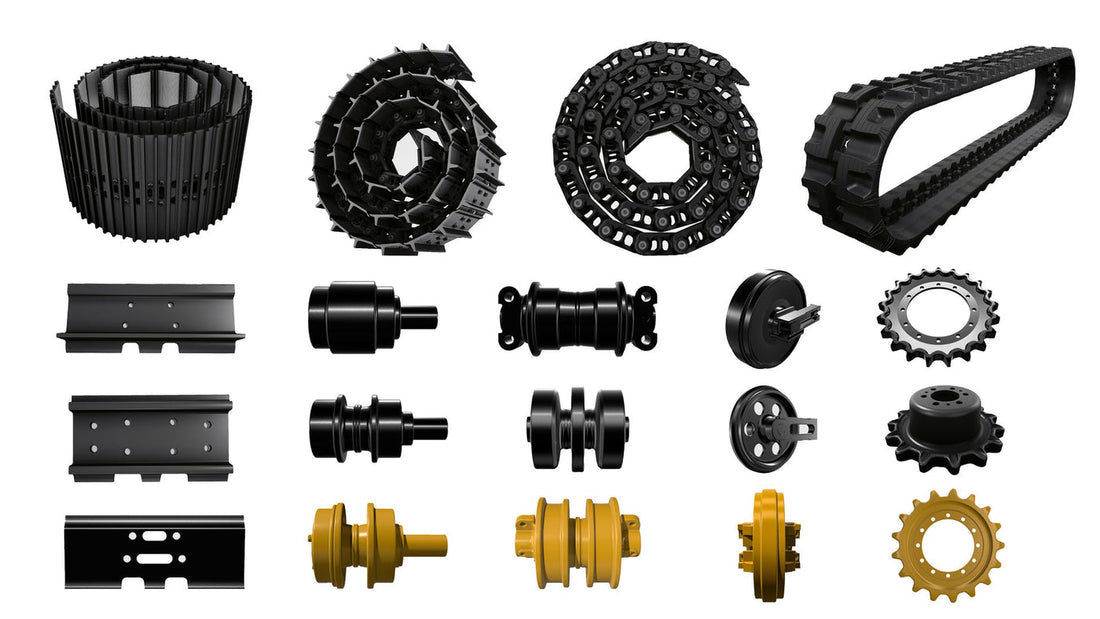

Heavy-duty track rollers and undercarriage parts for extreme operations require advanced technical specifications. These include high-temperature synthetic toric seals to prevent lubricant breakdown and enhanced shell wall dimensions with specialized alloys to resist abrasive slag gouging, ensuring durability in mining and high-heat environments.
Last updated:
What are the core technical specifications for extreme-duty track rollers?
Extreme-duty track rollers must be engineered to a higher standard than standard components. Key specifications involve material composition for shell walls, seal technology for high temperatures, and dimensional tolerances to handle extreme loads without premature failure in abrasive conditions.
When you are designing for extreme operations, the technical specifications become the blueprint for survival. The shell wall thickness is not just increased; it is strategically reinforced with alloys like boron steel to achieve a surface hardness exceeding55 HRC, which directly combats abrasive wear. Internally, the roller's labyrinth is protected by high-temperature synthetic toric seals, often made from fluorocarbon compounds that maintain elasticity and sealing force even when ambient temperatures soar past120°C. This prevents lubricant from thinning and leaking out, which is the primary cause of internal bearing failure. Consider the analogy of a deep-sea submarine: its hull must resist immense pressure while its seals keep the internal environment perfectly isolated. Similarly, a track roller's shell resists external gouging while its seals maintain a pristine internal climate. How can a component last if its vital fluids escape under thermal stress? What good is a hard shell if the internal mechanics are compromised by contamination? Consequently, the interplay between a robust shell and an impeccable sealing system defines the component's operational lifespan. Manufacturers like KTSU focus on these synergistic specifications, ensuring that enhanced dimensions and advanced materials work in concert rather than in isolation.
How do high-temperature synthetic toric seals prevent undercarriage failure?
High-temperature synthetic toric seals are critical for maintaining lubricant integrity and excluding contaminants. They are engineered from advanced elastomers that resist hardening, cracking, and compression set under sustained thermal load, directly preventing the internal bearing failures that lead to catastrophic undercarriage breakdown.
The primary role of a high-temperature synthetic toric seal is to function as a dynamic barrier in a punishing environment. Standard nitrile rubber seals can harden and crack when exposed to the intense heat radiating from slag or hot clinker, creating micro-gaps for abrasive fines to infiltrate. In contrast, seals formulated from materials like FKM (Fluorocarbon) or HNBR (Hydrogenated Nitrile Butadiene Rubber) are specifically designed to retain their mechanical properties, such as elasticity and compression set resistance, at temperatures exceeding150°C. This ensures the grease inside the roller stays viscous and in place, continuously coating the bearings. For instance, on a slag pot carrier in a steel mill, rollers are bathed in radiant heat; a failing seal would allow grease to liquefy and purge, followed by an influx of abrasive metallic dust. Once that happens, how long before the bearing seizes and the roller stops turning? Is the undercarriage's mobility only as strong as its most vulnerable seal? Therefore, the selection of this component is not an afterthought but a frontline defense. By integrating such seals, KTSU ensures that the internal mechanics are shielded, transforming the roller from a simple wheel into a sealed, longevity-optimized system.
Which material grades and hardening processes are best for abrasive mining rollers?
Selecting the optimal material grade and hardening process is paramount for rollers in abrasive mining. High-carbon, alloy steels like4140 or4340 are preferred, treated through processes like induction hardening or deep carburizing to create a hard, wear-resistant surface while maintaining a tough, shock-absorbing core.
The battle against abrasion is won at the metallurgical level. Mining rollers face constant scraping from silica-rich ore and sharp rock fragments, a scenario that demands a material with a dual personality: an exceptionally hard exterior to resist cutting and a ductile core to absorb impact loads from uneven terrain. Medium-carbon alloy steels, such as SAE4140, provide an excellent balance. They are typically heat-treated through induction hardening, which rapidly heats and quenches the outer shell to create a case hardness of58-62 HRC to a depth of6-8mm, while the core remains at a tougher30-35 HRC. This is superior to through-hardening, which can make the entire component brittle. Think of a high-quality kitchen knife: it has a razor-sharp, hard edge for cutting but a flexible spine that prevents snapping. A mining roller needs that same principle on a massive scale. If the surface is too soft, it will gouge quickly; if the whole piece is uniformly hard, a single impact could cause catastrophic fracture. So, what is the point of surface hardness without underlying toughness? Can a component truly endure if it is brittle throughout? Ultimately, the process must be precisely controlled, as companies like KTSU do, to ensure the hardened zone is deep enough to last through years of wear without being so deep that it compromises the part's structural integrity.
What design features enhance shell walls to resist slag gouging?
Enhancing shell walls against slag gouging involves increasing wall thickness, utilizing specific alloy compositions, and applying specialized surface treatments. The goal is to create a physical barrier that can withstand the cutting and welding action of molten slag debris without deforming or wearing through prematurely.
Resisting slag gouging requires a defensive strategy that goes beyond simple material hardness. The shell wall's dimensions are often increased by20-30% over standard rollers, providing more sacrificial material before wear reaches a critical point. The material itself is typically a high-chromium alloy steel, which offers improved hot hardness and resistance to thermal fatigue. Furthermore, the surface may undergo a specialized treatment like boriding or the application of a hardfacing weld overlay using tungsten carbide particles. This creates a composite surface where extremely hard carbide granules are embedded in a tough steel matrix, much like gravel in concrete. When a piece of sharp, hot slag drags across this surface, it meets discontinuous points of extreme hardness that deflect and fracture the abrasive agent instead of allowing it to cut a continuous groove. Imagine dragging a piece of chalk across a bumpy road versus a smooth pane of glass; the irregular, ultra-hard surface disrupts the gouging process. However, if the wall is thick but the surface treatment is poorly bonded, will it simply spall off? Does increased mass alone guarantee longevity without the correct surface engineering? Thus, the enhancement is a multi-variable equation: thickness for volume, alloy for base properties, and surface engineering for direct interaction with the abrasive medium. This holistic approach is what separates a standard part from one engineered for extreme environments like those KTSU targets.
| Feature Category | Standard Duty Roller | Heavy-Duty Mining Roller | Extreme High-Temp/Slag Roller |
|---|---|---|---|
| Primary Material Grade | 1045 Carbon Steel | 4140 Alloy Steel | 4340 Alloy Steel with Chromium Additions |
| Shell Wall Thickness (Typical Increase) | Base Reference (e.g.,20mm) | 25-30% increase (e.g.,25-26mm) | 30-40% increase (e.g.,26-28mm) |
| Hardening Process & Depth | Induction Hardening,4-5mm depth | Deep Induction/Carburizing,6-8mm depth | Carburizing with Boriding or Hardface Overlay |
| Seal Type & Temp Rating | Standard Nitrile (NBR) Seal (≤100°C) | Enhanced Nitrile or HNBR Seal (≤120°C) | Fluorocarbon (FKM) Toric Seal (≤150°C+) |
| Core Hardness (HRC) | ~25 HRC | 30-35 HRC | 32-38 HRC |
| Key Application | General Earthmoving | Abrasive Rock Mining | Steel Mill Slag Pots, Hot Clinker Handling |
How does track link wear correlate with roller and sprocket performance?
Track link wear is intrinsically linked to the condition of rollers and sprockets. Worn rollers cause improper track tension and alignment, leading to accelerated link bushing and pin wear. Conversely, a worn sprocket meshes poorly with the links, causing a ratcheting effect that deforms and fatigues the link material.
The undercarriage is a closed kinematic system where every component's wear directly impacts the others. A carrier roller with a gouged shell or a seized track roller creates uneven support points, causing the track chain to whip and slap under load. This dynamic misalignment places abnormal stress on the link bushings, accelerating the wear at the pivotal pin-to-bushing interface. On the drive end, a sprocket with hooked teeth due to wear no longer engages the link bushings cleanly. Instead of a smooth rolling motion, it pushes and pulls on the bushings, a phenomenon known as "sprocket climb," which applies tremendous tensile and compressive forces to the link itself. It is akin to a bicycle chain skipping on worn gears; each skip jolts and strains the chain links. If your rollers are not maintaining proper track alignment, how can you expect the links to wear evenly? If the driving force from the sprocket is not smooth, what does that mean for the structural fatigue of the entire chain? Therefore, monitoring and replacing rollers and sprockets at appropriate intervals is not just about those parts themselves; it is a proactive strategy to preserve the far more expensive track chain. A holistic maintenance view, supported by quality-matched components from a single source like KTSU, ensures synchronous wear and maximizes total undercarriage life.
| Undercarriage Component | Primary Failure Mode in Extreme Ops | Impact on Track Links | Preventive Design Focus |
|---|---|---|---|
| Track Rollers | Shell gouging, bearing seizure from failed seals | Causes track misalignment and whip, leading to uneven bushing wear and link fatigue. | Enhanced shell walls, high-temp seals, large-diameter bearings. |
| Carrier Rollers | Flange wear, leading to loss of track guidance | Allows track to derail or run sideways, shearing link guides and stressing pins. | Reinforced flange design, hardened wear surfaces. |
| Sprockets | Tooth hooking and root wear from abrasion | Poor engagement causes sprocket climb, applying impact loads that deform and crack link ends. | Split rim design for segment replacement, deep tooth hardening. |
| Track Links & Bushings | Bushing rotation, external wear from ground contact | Increased pitch length mismatches with sprocket, accelerating sprocket wear in a feedback loop. | Through-hardened bushings, sealed and lubricated pin joints. |
Why is a systems approach critical for extreme load crawler hardware?
A systems approach is critical because extreme load crawler hardware components are interdependent. Optimizing one part, like a roller, while neglecting its interaction with the track chain or sprocket leads to mismatched wear rates, premature failures elsewhere, and reduced overall system efficiency and cost-effectiveness.
Viewing an undercarriage as a collection of individual parts is a fundamental error in extreme applications. The system's performance is dictated by the weakest interaction, not the strongest component. For example, installing rollers with ultra-hard shells but standard seals in a high-temperature environment will lead to rapid seal failure, bearing contamination, and roller seizure. That seized roller then becomes a grinding stone against the track link, causing accelerated wear that negates the benefit of the hard shell. The entire system's durability is compromised by one sub-optimized interface. It is similar to building a race car with a powerful engine but inadequate brakes and tires; the potential of the engine cannot be safely or effectively utilized. Can you truly achieve longevity by focusing on parts in isolation? What is the total cost of a failed component that takes down others with it? Hence, engineering must consider load paths, thermal exchange, wear compatibility, and maintenance intervals holistically. This philosophy ensures that enhancements in one area, such as KTSU's focus on seal and shell technology, are complemented by compatible advancements in link hardness and sprocket tooth profile, creating a cohesive system where all parts work together to extend service life under duress.
Specifying a seal by temperature: what to ask for, and how the failure sequence runs
The seal is the smallest item in this conversation and the one that decides the outcome, because a seal that loses its properties ends the life of the assembly around it. Specifying one for a hot application is a matter of four numbers rather than a material name.
| What to specify | Why it decides the result | What an inadequate answer sounds like |
|---|---|---|
| Seal material, with the temperature range it is rated for | Materials such as FKM and HNBR are specified to retain elasticity and resist compression set at elevated temperatures, which is the property that keeps the faces loaded | High temperature, with no material and no range |
| Hardness of the seal element | It sets how the seal behaves against the counterface at operating temperature, and the wrong hardness leaks when hot and drags when cold | A hardness figure quoted without the temperature it applies at |
| Compression set behaviour at temperature | A seal that takes a permanent set stops following the surfaces it is meant to separate, and the leak appears without any visible damage | Nothing, in most quotations |
| Media compatibility | The lubricant, the dust and any wash-down chemistry all act on the seal element; hot abrasive service combines all three | Compatible, without saying with what |
How the failure sequence runs. It is worth knowing the order, because the part that fails is rarely the part that started it.
- The seal element loses elasticity or takes a compression set at temperature.
- The contact load between the sealing faces drops, and fine abrasive material reaches the bearing path.
- The lubricant is contaminated, and the bearing surface begins to wear at a rate the duty cycle did not predict.
- The roller or idler develops play, which changes how it supports the chain.
- The chain and the parts around the failed roller are retired early, and the roller is reported as the failure.
Two boundaries belong with that sequence. Temperature is rarely the only stress: a high-temperature application in mining is usually also abrasive and contaminated, and a seal rated for heat but not attacked by the media fails just as quickly. And the shell wall on the same component is defending a different threat — slag gouging and impact — so specifying a seal and a shell is two decisions that happen to be made on one part number.
Expert Views
"In extreme environments, the engineering mindset must shift from component replacement to system preservation. The real cost isn't the price of a single roller, but the downtime and collateral damage when a sub-spec part fails. The most advanced rollers integrate material science and mechanical design seamlessly—think of a high-temperature seal not as an accessory but as an integral load-bearing element of the internal cavity. Success hinges on predicting failure modes not just for the part you're designing, but for the parts it touches. That's where true value is engineered, moving beyond catalog specs to application-specific solutions that consider thermal dynamics, abrasive media, and operational tempo."
Why Choose KTSU
Selecting a supplier for extreme-duty undercarriage parts requires confidence in technical depth and manufacturing consistency. KTSU, as a Sino-Japanese joint venture, brings a fusion of Japanese precision engineering and robust manufacturing capability to the table. This translates to components where the specified material grades, hardening depths, and seal tolerances are not just promised but rigorously validated. Their focus on a comprehensive "one-stop" portfolio means the systems approach is inherently supported, as rollers, idlers, sprockets, and chains are designed with interoperability in mind. For an equipment manager facing the relentless wear of mining or high-heat slag handling, this offers a pragmatic advantage: reduced risk of compatibility issues and synchronized wear life across the undercarriage system, ultimately contributing to more predictable maintenance scheduling and total cost of operation.
How to Start
Begin by conducting a thorough assessment of your specific extreme operating conditions, documenting factors like primary abrasive material, average ambient and component operating temperatures, and typical load cycles. Next, perform a forensic analysis on your most recently failed components to identify the exact failure mode—whether it was seal degradation, shell gouging, or bearing spalling. With this data in hand, you can then engage with technical specialists to match your needs to precise specifications, such as the required shell wall thickness increase or the exact synthetic seal compound. The final step is to prototype the selected components on a single machine for a monitored period, tracking wear rates and temperatures to validate performance before committing to a fleet-wide rollout.
Frequently Asked Questions
Which seal materials work at high temperature?
Fluorocarbon (FKM) and hydrogenated nitrile (HNBR) are the materials this article cites for retaining elasticity and resisting compression set at elevated temperatures, quoted above 150 degrees Celsius. The material matters less than whether the range, the hardness and the media compatibility are stated for the application you are buying for.
Why does a high-temperature seal fail before the bearing does?
Because it is the first component to lose the property it was specified for. Once the seal element takes a compression set or loses elasticity, the contact load between the faces drops, abrasive material reaches the bearing path, and the bearing starts wearing at a rate nobody predicted. The bearing is reported as the failure; the seal caused it.
How do I verify the seal on a part I have been quoted?
Ask for the material, the rated temperature range, the hardness with the temperature it applies at, the compression set behaviour and the media compatibility. Where a quotation gives a material name without a range, the specification is a name rather than a number, and there is nothing to hold a supplier to.
Do reinforced shell walls matter if the seal is correct?
They answer a different problem. The seal defends the bearing against contamination and heat; the shell wall defends the roller against impact and gouging from the material it runs on. In extreme mining both threats exist, which is why the article treats them as one specification rather than as alternatives.
What maintenance keeps a sealed roller alive in hot abrasive service?
Correct track tension, cleaning rather than wash-down that drives material past the seal, and inspection of the end cap for a weep. The weep is the earliest visible signal and the one that matters most, because the failure sequence above is already running by the time the roller behaves differently.
In conclusion, specifying undercarriage parts for extreme operations demands a focused understanding of failure mechanics. The twin pillars of defense are advanced high-temperature sealing systems and strategically enhanced shell dimensions with appropriate hardening. Remember that these components do not work in isolation; a system-wide perspective is essential to prevent mismatched wear and cascading failures. Prioritize gathering precise application data and seek out engineering partners who demonstrate depth in both material science and holistic undercarriage design. The goal is to move from reactive replacement to predictive, performance-based procurement, thereby maximizing machine availability and controlling the total cost of operation in the world's most demanding environments.
